Fiatallis Hydraulic Motors Service Manual 60406205 – PDF DOWNLOAD

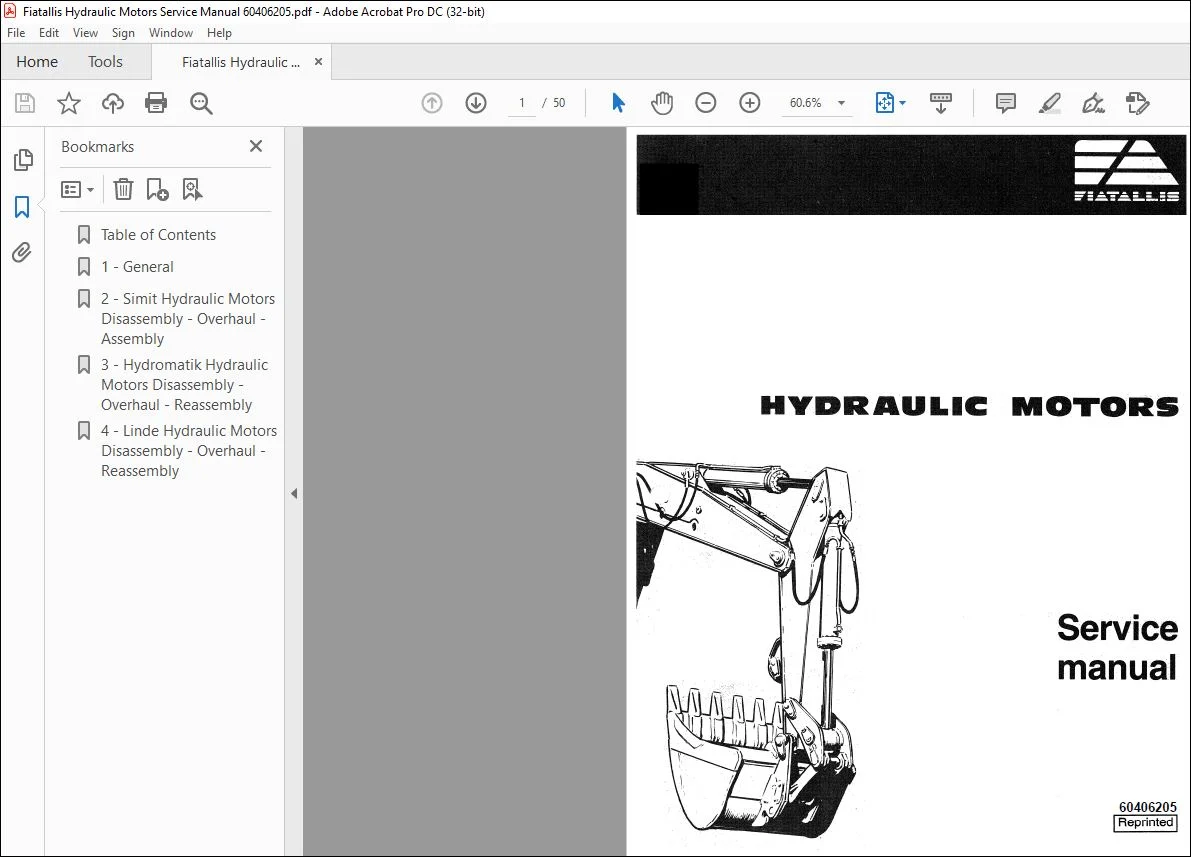

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Fiatallis Hydraulic Motors Service Manual 60406205 – PDF DOWNLOAD
GENERAL :
Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or serviGing machine. Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing mqchine. Machine-mounted safety signs have been color coded yellow with black borders”and lettering for warning and red with white borders and lettering for danger points.
- Do not allow unauthorized personnel to service or maintain this machine. Do not perform any work on equipment that is not authorized. Follow the Maintenance and Service procedures. Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling or servicing this machine.
- Always wear safety glasses with side shields. Do not wear rings, wrist watches, jewelry, or loos~ or hanging apparel, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats. safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vest, or respirators. Consult your employer for specific safety equipment requirements.
- Do not use controls or hoses.as handholds when climbing on or off machine. Hoses _and controls are movable and do not provide a solid support. Controls may also be inadvertently moved causing accidental machine or equipment movement. Do not jump on or off machine. Keep two hands and one foot. or two feet and one hand, in contact with steps and grab-rails ;md handles at all times.
- Machine should not be serviced with anyone in the operator’s seat unless they are.qualified to operate the machine and are assisting in the servicing. Keep operator’s compartment. stepping points, grabrails and handles clean of foreign objects, oil. grease, mud or snow accumulation to minimize the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
- Never attempt to operate the machine or i_ts tools from any other position than seated in the operator’s seat. Keep operator’s compartment clear of loose objects. If movement of an attachment by means of the machine’s hydraulic system is required for service or maintenance, db not raise or lower attachments from any position other than when seated in the operator’s seat. Before starting machine or moving attachment or tool.
- make sure to set brakes. sound horn and call for an all clear. Raise attqchment slowly. Always block with external support any linkage, parts, or machine according to local or national reqt.Jirements. Never allow anyone to walk under or be near unblocked raised equipment.
- Avoid working or walking under raised blocked equipment unless you are assured of your safety. Never place head, body. limbs. fingers. feet or hands into an exposed portion between uncontrolled or unguarded scissor points of machine without first providing secure blocking. Never lubricate. service or adjust a machine with the engine running, except as called for in the Operation and Maintenance filstruction Manuals.
- Do not wear loose clothing or Jewelry near moving parts. When servicing or maintenance requires access to areas that cannot be reached from the ground. use a ladder or step platform that meets local or national requirements to reach the service point. If such ladders or platform are not available. use the machine handholds and steps as provided.
- Perform all service or maintenance carefully. Shop or field service platform and ladders used to maintain or service machinery should be constructed and maintened according to local or national requi-· rements. Never check or fill ‘tuel tanks, storage batteries or use starter fluid near lighted smoking materials or open flame due to the presence of flammable fluid.
- Brakes are inoperative when manually released for servicing. Provision must be made to maintain control of the machine by blocking or other means. Always plac;e the fuel nozzle against the side of the filler opening before starting and during fuel flow.
- To reduce the change of a static electricity spark, keep contact until after fuel flow 1s shut off. Use only designated towing or pulling attachment points. Use care in making attachment Be sure pins and locks as provided are secure before pulling. Stay clear of drawbars. cables or chains under load. To move a disabled machine. use a trailer or low boy truck if available.
- If towing is necessary, provide war-· ning signals as required by local rules and regulations and follow operation and maintenance instruction manual recommendations. Load and unload on a level area that gives full support to the trailer wheels. Use ramps of ddequate strength, low angle and proper height. Keep trailer bed clean of clay, oil and all materials that become slippery.
- Tie machine down securely to truck or trailer bed and block tracks (or wheels) as required by the carrier. Never align holes with fingers or.hands. Use the proper aligning tool. Remove sharp edges and burrs from reworked parts. Use only grounded auxiliary power source for heaters,_ chargers. pumps and similar equipment to reduce the hazards of electrical shock. Lift and handle all heavy parts with a lifting device of propre capacity.
- Be sure parts are supported by proper slings and hooks. Use lifting eyes if pi,vided. Watch out for people in the vicinity. Never place gasoline or diesel fuel in an open pan. Never use gasoline or solvent or other flammable fluid to clean parts.

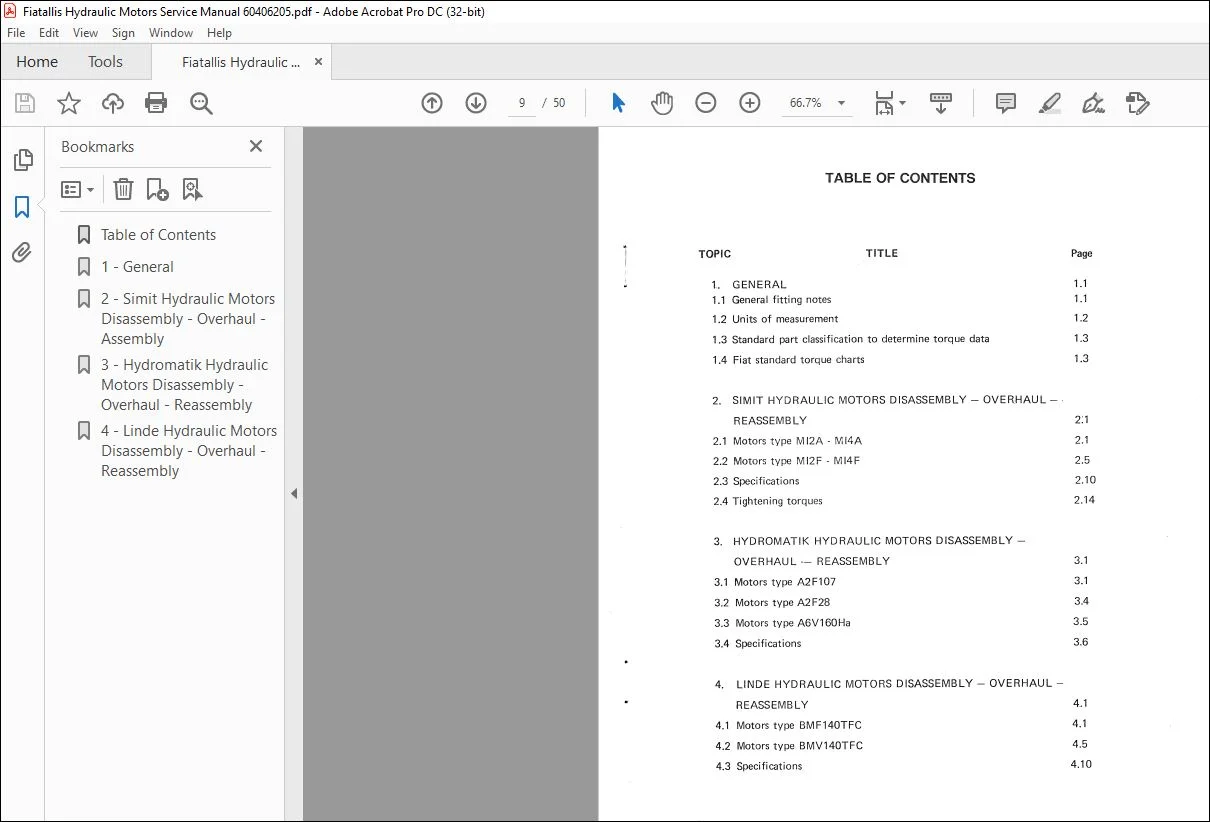

TABLE OF CONTENTS:
Fiatallis Hydraulic Motors Service Manual 60406205 – PDF DOWNLOAD
1. GENERAL
1.1 General fitting notes
1.2 Units of measurement
1.3 Standard part classification to determine torque data
1.4 Fiat standard torque charts
2. SIMIT HYDRAULIC MOTORS DISASSEMBLY – OVERHAUL
REASSEMBLY
2.1 Motors type M I2A – M I4A
2.2 Motors type M12F – Ml4F
2.3 Specifications
2.4 Tightening torques
3. HYDROMATIK HYDRAULIC MOTORS DISASSEMBLY
OVERHAUL — REASSEMBLY
3.1 Motors type A2F107
3.2 Motors type A2 F28
3.3 Motors type A6V160Ha
3.4 Specifications
4. LINDE HYDRAULIC MOTORS DISASSEMBLY – OVERHAUL
REASSEMBLY
4.1 Motors type BMF140TFC
4.2 Motors type BMV140TFC
4.3 Specifications
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
S.V
