Fiatallis FX 130 Excavator Service manual 60406765 – PDF DOWNLOAD

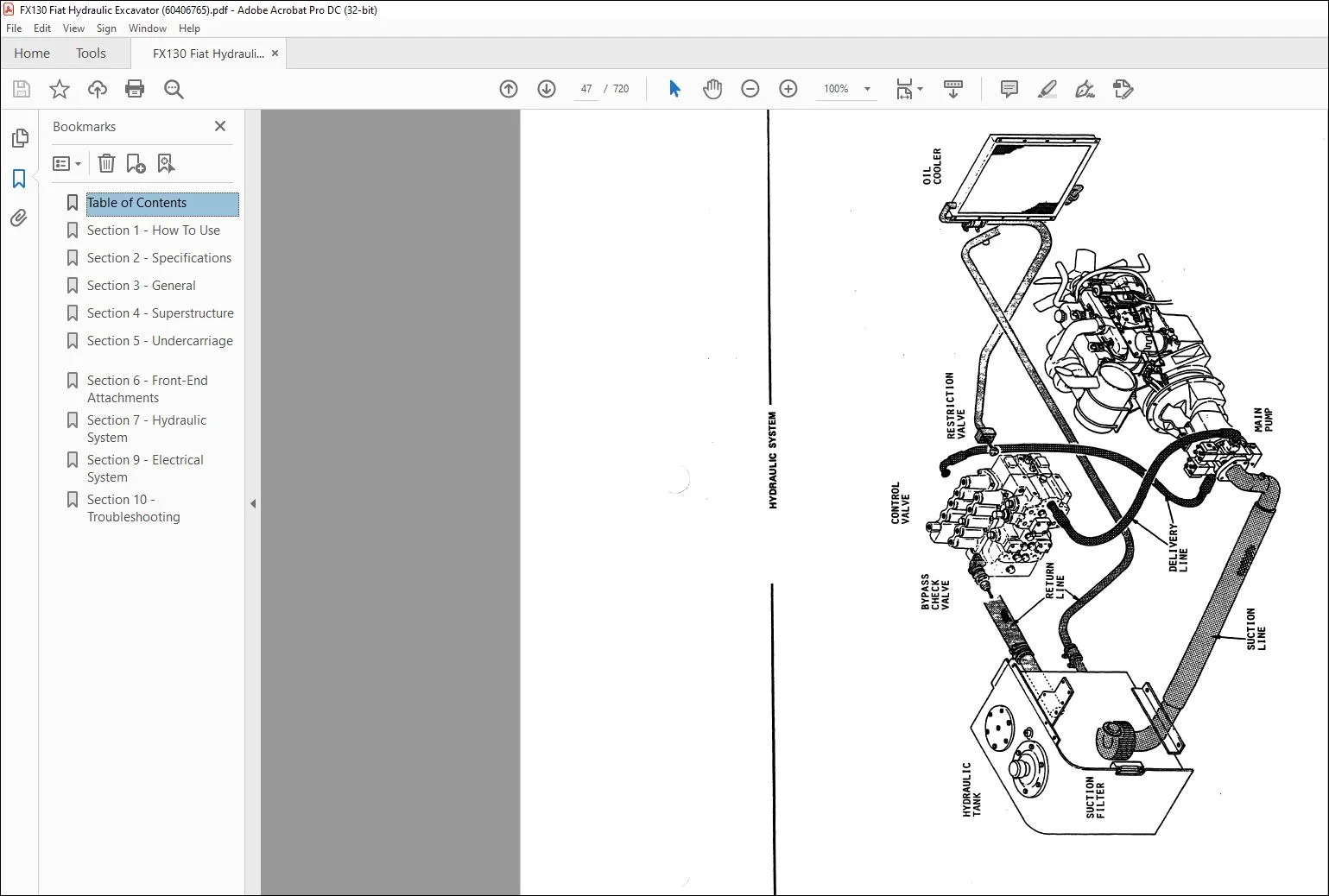

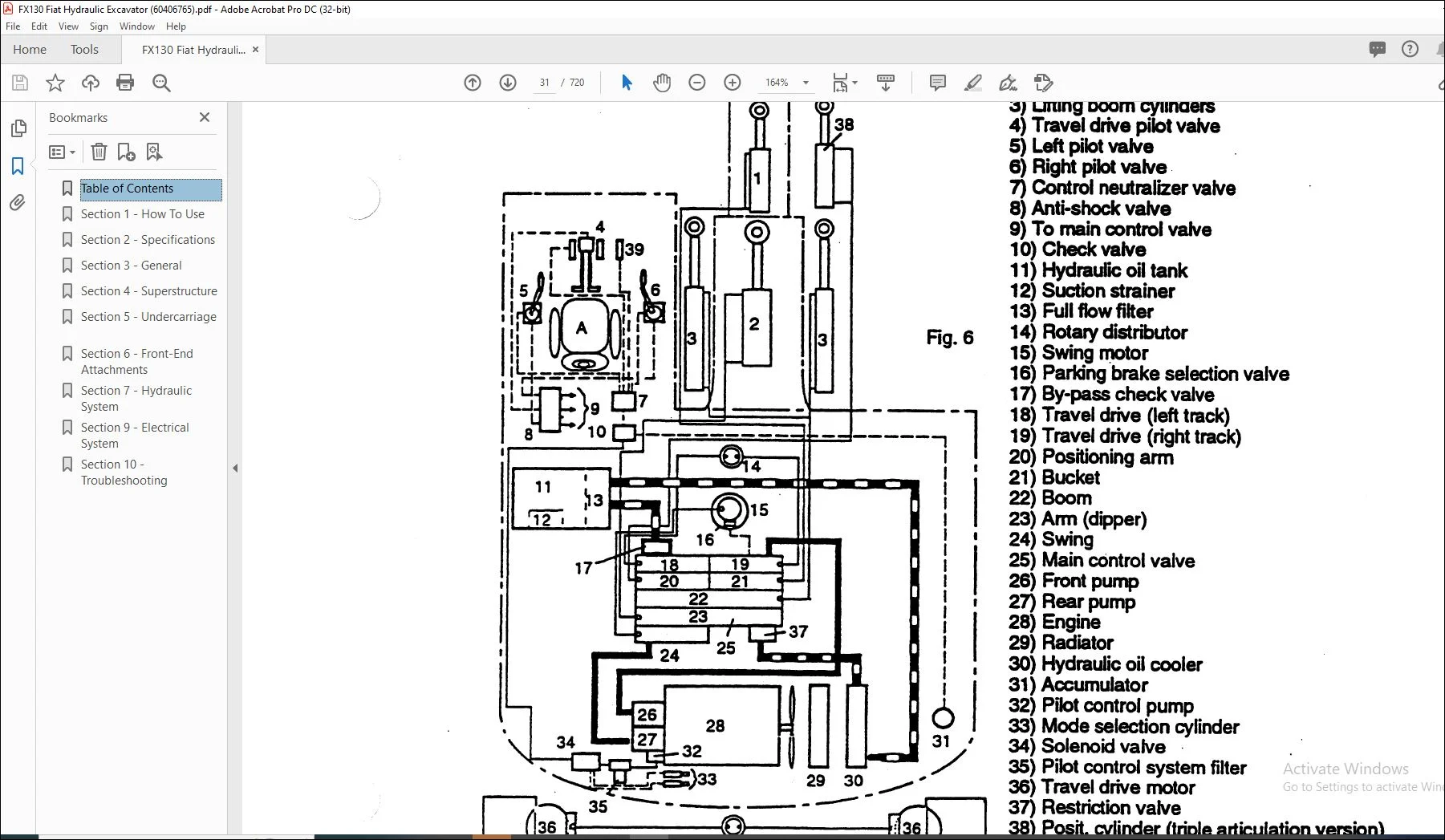

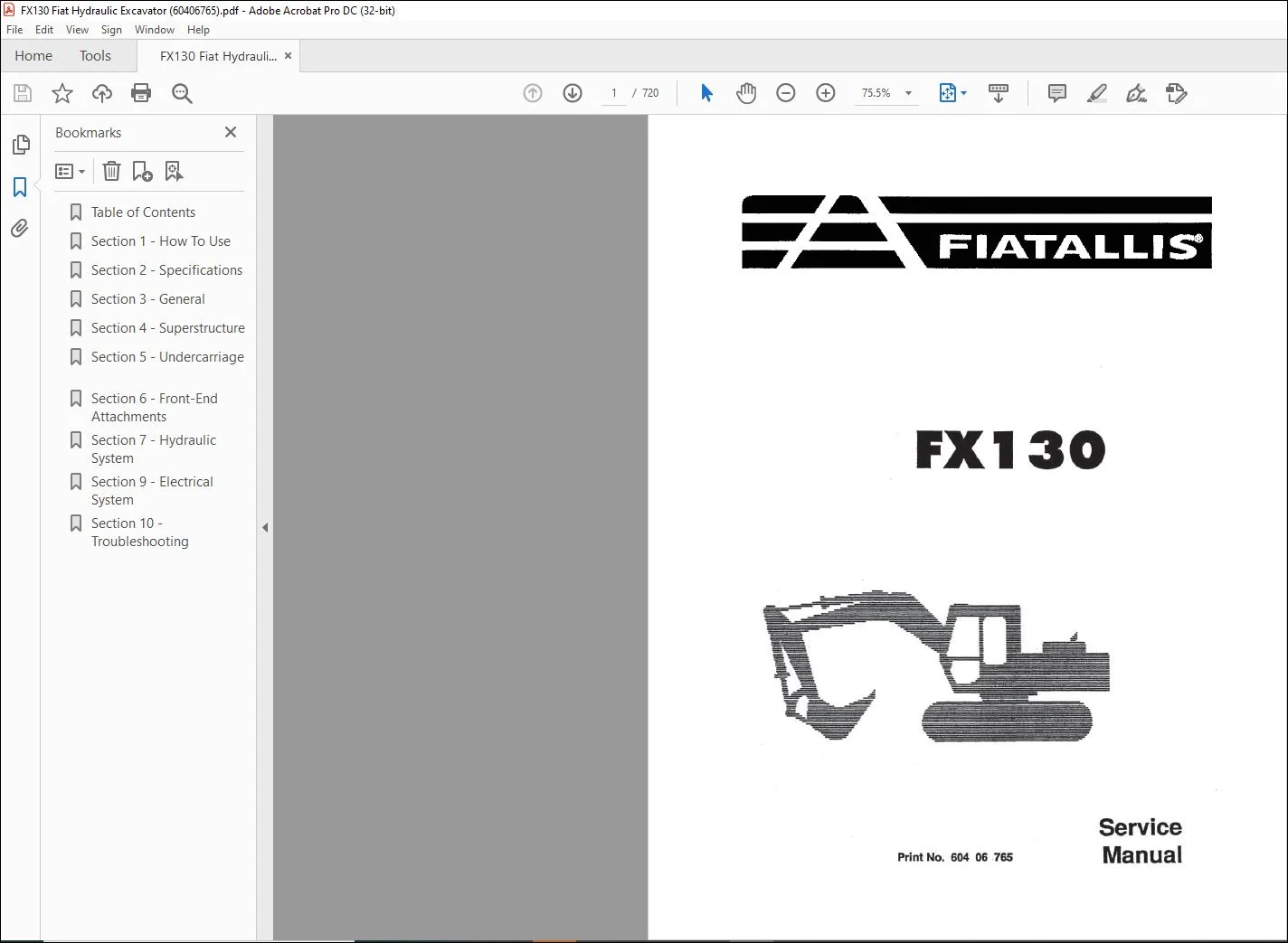

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Fiatallis FX 130 Excavator Service manual 60406765 – PDF DOWNLOAD
SAFETY RULES
GENERAL
- Study the Operation and Maintena’nce lnstruction Manual before staning, operating, maintaining, fueling, or servicing machine. Read .and head all machine-mounted safety signs before staning, operating: maintaining, fueling or servicing machine. Machine-mounted safety signs have been color co~ed· yellow with Ыасk Ьorder and lettering for WARNING and red with white border and l~ttering for DANGER points.
- Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Кеер head, ЬОdу, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate, service or maintain this machine.
- Always check work area for dangerous features. The following are. examples of dangerous work areas: slopes, overhangs,. timber demolitions. fire, high walls, drop-offs, back fills, ro1,1gh terrain, ditches, ridges, excavaticns. heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these.
- Never exceed the lifting capacity of the machine. An operator must know the machine’s capabllities. When working on sior,es_ or near drop-offs Ье alert to avoid loose or son conditions that could cause sudden tipping or Joss of control. Ве careful when the sprocket is_ und&r the саь: the direction of movement of the transport levers will Ье opposite of direction of machine movement. Know the working range of the machine.
- Always check height. width and weight restrictions in the working area. and Ье sure the machine will not exceed these Jimitations.
- Provide clearance for rear super-structure swing Ьу barricading area to discourage entry. Use recommended buckets for machine, taking into account weight of materia1, loadabllity and heaping characteristics of material, terrain and other pertinent job factors. When counterweights have Ьееn provided, do not work machine if they have Ьееn removed. Do not jump on or off machine. Кеер two hands and one foot, or two feet and one hand, in contact .
- with steps. grab rails and handles at all times. Do not use controls or hoses as handholds when climЬing on or off machine. Hoses and controls are.movaЫ~ and do not provide а solid support. Controls atso may Ье inadvenently moved causing accidental machine or · equipment movement. · Кеер operator·s companment stepping points.
- grab rails and handles clear of foreign objects, oil, grease, mud or snow accumuiatlon, to minlmlze the danger of slipping or stumЫing. Clean mud or greue from” shoes Ьefore attempting to mount or operate the machine. Ве careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety 0Ьoots or shoes that have а high slip resistant sole rnaterial. For your personal protection, do not attempt to climb on or off machine is in motion.
- Never Jeave the machine unattended with the engine ruмing. Always lock up machine when leaving it u1,attended. Retum keys to authorized security. Heed aD shutdown procedures of the Operation and Maintenance lnstruction Manual. Do not wear rings. wrist watches, jewelry, Joose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts.
- Do wear proper safery eQuipment as au- . thorized for the job. Examp~; herd hat. safety shoes. neavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators. Consult your employer for specific safety equipment requirements. Do not carry Joose oЬjects i.. pockets that might faU unnoticed. into open compartments. Do not use machlne to canv loose oЬjects Ьу means other than atiachments for carrying such OЬjects. No machine should ever Ье used as а work platfonn or
- scaffolding. Other unorthodox uses (such as pushing truckS or other machinery) should Ье avolded. Always Ье aware of presence of people in the work site. Adjust all mlrrors for visiЬility towards the rear of the machine. Never use the bucket or attachment as а man Jift or allow ridei:s on the machine. Do not operate machinery in а conclitlon of extreme fatigue or
- illness. Ве especially careful towaRIS the end of the shift. Оо not operate this machine without а Falling OЬject Protective Structure. Where noise exposure exce,dS 90 dВ”А for 8 houl’I. wear authorized ear protectlve equlpment per 1оса1 or national requirements that apply. Move carefully when under, in or near machine or’implements. Wear required protective
- equipment, such as hard hat, • safety glasses, safety shoes, ear protectors. То move а disaЬled machine, use а traUer or low ЬОу truck if availaьte. lf towing is ~. provicle warning signals as required Ьу 1оса1 rules and regulations and follow Qperation and Maintenance lnstructlon Manual recommendations. Load and unload on а .level area that gives full support to the · trailer wheels. Use ramps of adequate strenght, Jow angle and proper
TABLE OF CONTENTS:
Fiatallis FX 130 Excavator Service manual 60406765 – PDF DOWNLOAD
Table of Contents 11
Section 1 – How To Use 13
Section 2 – Specifications 27
Section 3 – General 37
Section 4 – Superstructure 71
Section 5 – Undercarriage 359
Section 6 – Front-End Attachments 473
Section 7 – Hydraulic System 515
Section 9 – Electrical System 575
Section 10 – Troubleshooting 623
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
- The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
- Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
