Fiatallis Cummins Engine FG75 FG85 FG95 Non-Articulated & Articulated Motor Graders Operation & Maintenance Manual 75314650 – PDF DOWNLOAD
FG 75.-R SIN 81U 01001 – 6 C 8,3
FG 85-R SIN 79Y 01001 – 6 CT 8,3
FG 95-R SIN 77L 01001 – 6 CT 8,3
FG 75-A SIN 80M 01001 – 6 C 8,3
FG 85-A SIN 78S 01001 – 6 CT 8,3
FG 95-A SIN 76A 01001 – 6 CT 8,3
GENERAL:
Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine. Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
- Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. This machine and its attachments are to operated only by a qualified operator stationed at the operator’s controls either seated or standing as conditions require.
- Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate, service or maintain this machine. Remember the rule of the road: Obey all traffic regulations.
- Use extra care at all intersections and rail crossings. Stop and look both ways at all railway crossings. Do not park in traffic areas. When traffic backs up, pull to side of road and allow vehicles to pass safely. Use hand signals or turn signals, if so equipped, when turning. Always check work area for dangerous features.
- The following are examples of dangerous work areas: slopes, overhangs, timber, demolitions, fire, high walls, dropoffs, back-fills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded maintenance and closed areas. Use extreme care when in areas such as these. An operator must know the machine’s capabilities. When working on slopes or near dropoffs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control.
- Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times. Do not use controls or hoses as handholds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support.
- Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator’s compartment, stepping points, grab rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling.
- Clean mud or grease from shoes before attempting to mount or operate the machine. Keep your windshield clear for maximum visibility – use wipers. Be alert for snow covered obstructions. Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material.

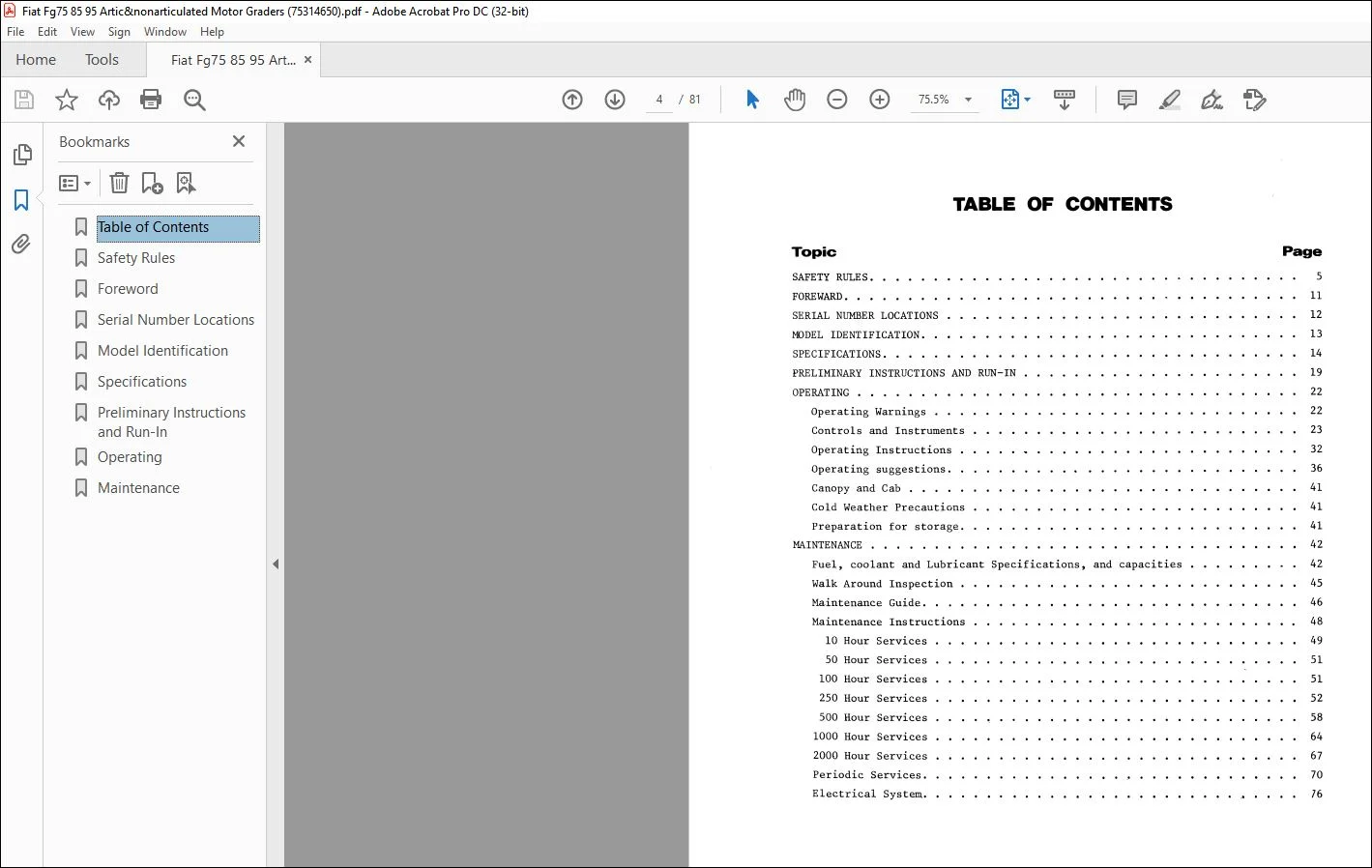

TABLE OF CONTENTS:
Fiatallis Cummins Engine FG75 FG85 FG95 Non-Articulated & Articulated Motor Graders Operation & Maintenance Manual 75314650 – PDF DOWNLOAD
SAFETY RULES
FOREWARD
SERIAL NUMBER LOCATIONS
MJDEL IDENTIFICATION
SPECIFICATIONS
PRELIMINARY INSTRUCTIONS AND RUN-IN
OPERATING
Operating Warnings
Controls and Instruments
Operating Instructions
Operating suggestions
Canopy and Cab
Cold Weather Precautions
Preparation for storage
MAINTENANCE
Fuel, coolant and Lubricant Specifications, and capacities •
Walk Around Inspection
Maintenance Guide
Maintenance Instructions
10 Hour Services
50 Hour Services
100 Hour Services
250 Hour Services
500 Hour Services
1000 Hour Services
2000 Hour Services
Periodic Services
Electrical System
