Fiatallis 8465 Engine Service Manual 60406543 – PDF DOWNLOAD

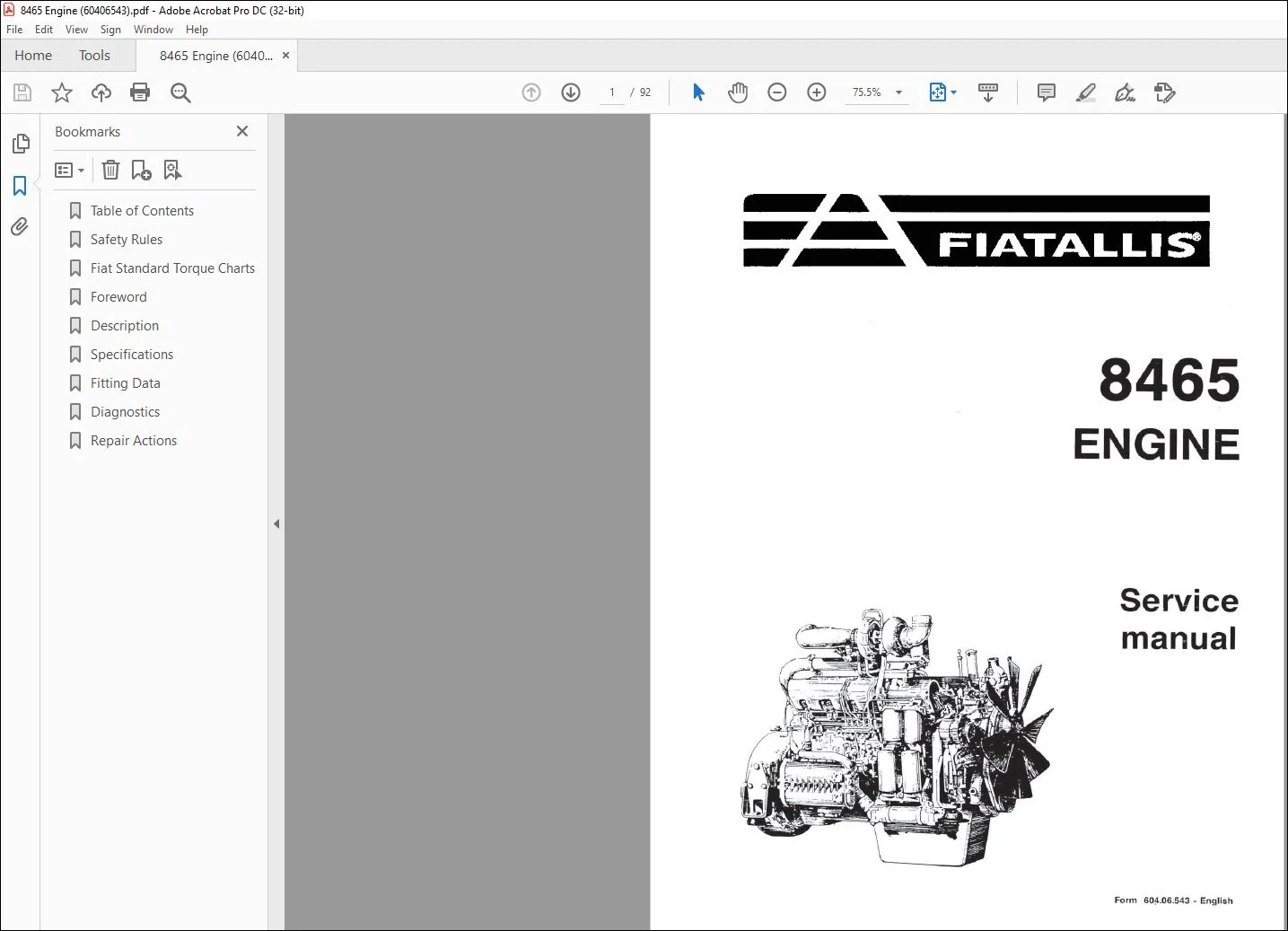

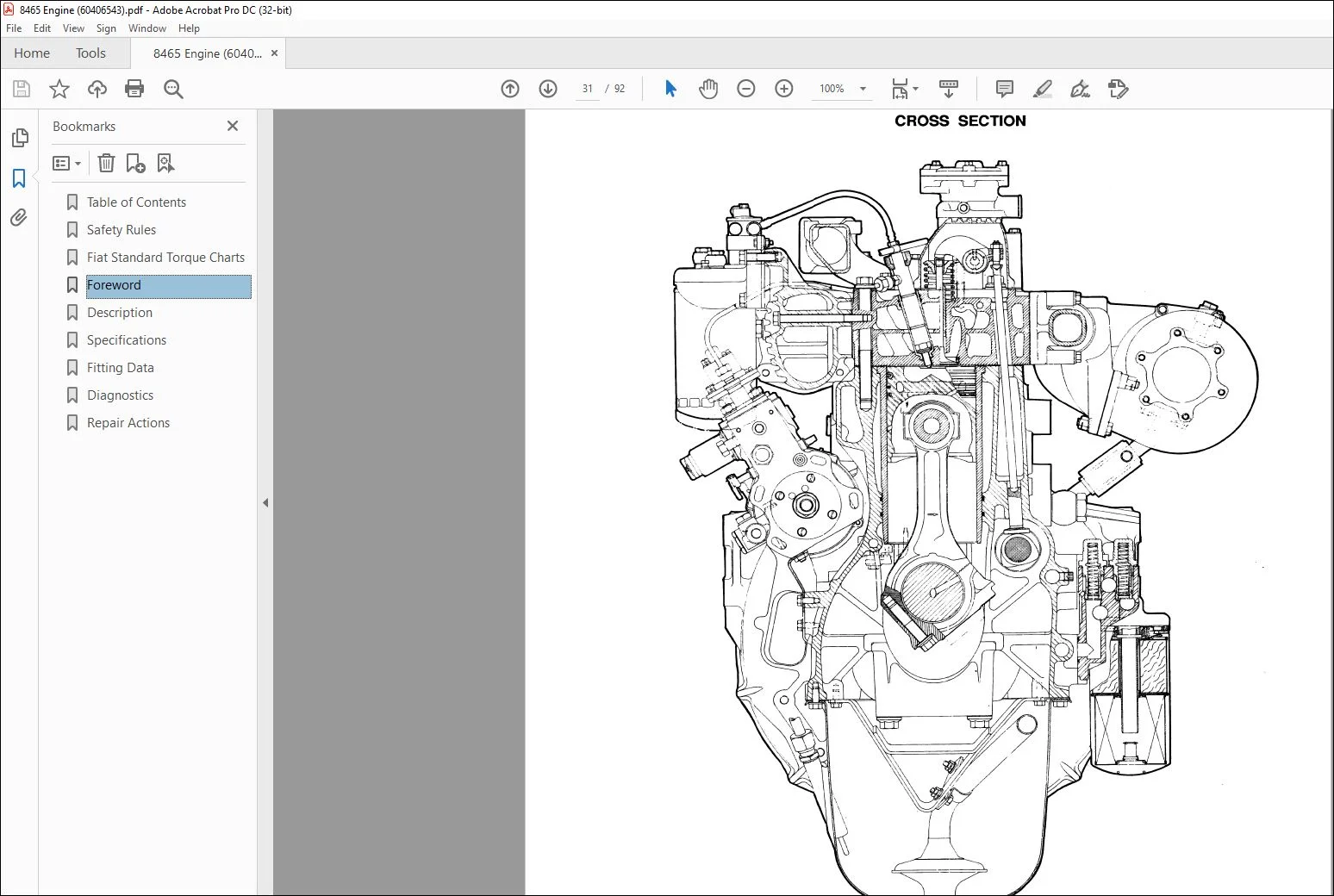

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Fiatallis 8465 Engine Service Manual 60406543 – PDF DOWNLOAD
GENERAL:
Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine. Read and heed all machine-mounted safety signs before starting. operating, maintaining, fueling or servicing machine. Machine-mounted safety signs have been color coded yeHow with black border and lettering for WARNING and red with white border and lettering for DANGER points.
- Never attempt to operate the machine or its tools from any position other than seated in the operator’S seat. Keep head, body, limbs, hands and feet inside operator’s compartment at all1imes to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate service or maintain this machine.
- Always chedl< work area for dangerous features. The following are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, back fills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas such as these.
- An operator must k,now the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control. Do not jump on or off machine. Keep two hands and one foot, or two .feet and one hand, in contact with steps grab rails and handles at all times.
- Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls atso may be inadvertently moved causing accidental machine or equipment movement. Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumutationto minimize the danger of slipping or stumbling.
- Clean mud or grease from shoes before attempting to mount or operate the machine. Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sote material. For your personal protection. Do not attempt to climb on or off machine while machine is in motion. Never leave the machine unattended with the engine running.
- Always lock up machine when leaving it unattended. Return keys to authorcized security. Heed all shut down procedures of the Operation and Maintenance Instruction Manual. Always set the parking brake when leaving the machine for any reason. Do not wear rings, wrist watches, jewelry, loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts.
- Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators. Consult your employer for specific safety equipment requirements. Do not carry loose objects in pockets that might fall unnoticed into open compartments.
- Do not use machine to carry loose objects by means other than attachments for carrying such objects. DO NOT CARRY RIDERS unless the machine is equipped for carrying people to reduce personal exposure to being thrown off. Do not operate machinery in a condition of extreme fatigue or illness.
- Be especially careful towards the end of the shift. Roll Over Protective Structures are required on wheel loaders, dozer tractors, track type loaders, graders and scrapers by local or national requirements. DO NOT operate this machine without a Roll Over Protective Structure.
- Do not operate a machine without a falling object protective structure (FOPS). Do not operate this machine without a rear canopy screen when machine is equipped with rear mounted towing winch. Seat belts are required to be provided with roll over protective structures or roll protection cabs by local or national regulations.
- Keep the safety belt fastened around you during operation. Where noise exposure exceeds 90 dBA for 8 hours, wear authorized ear protective equipment per local or national requirements that apply.

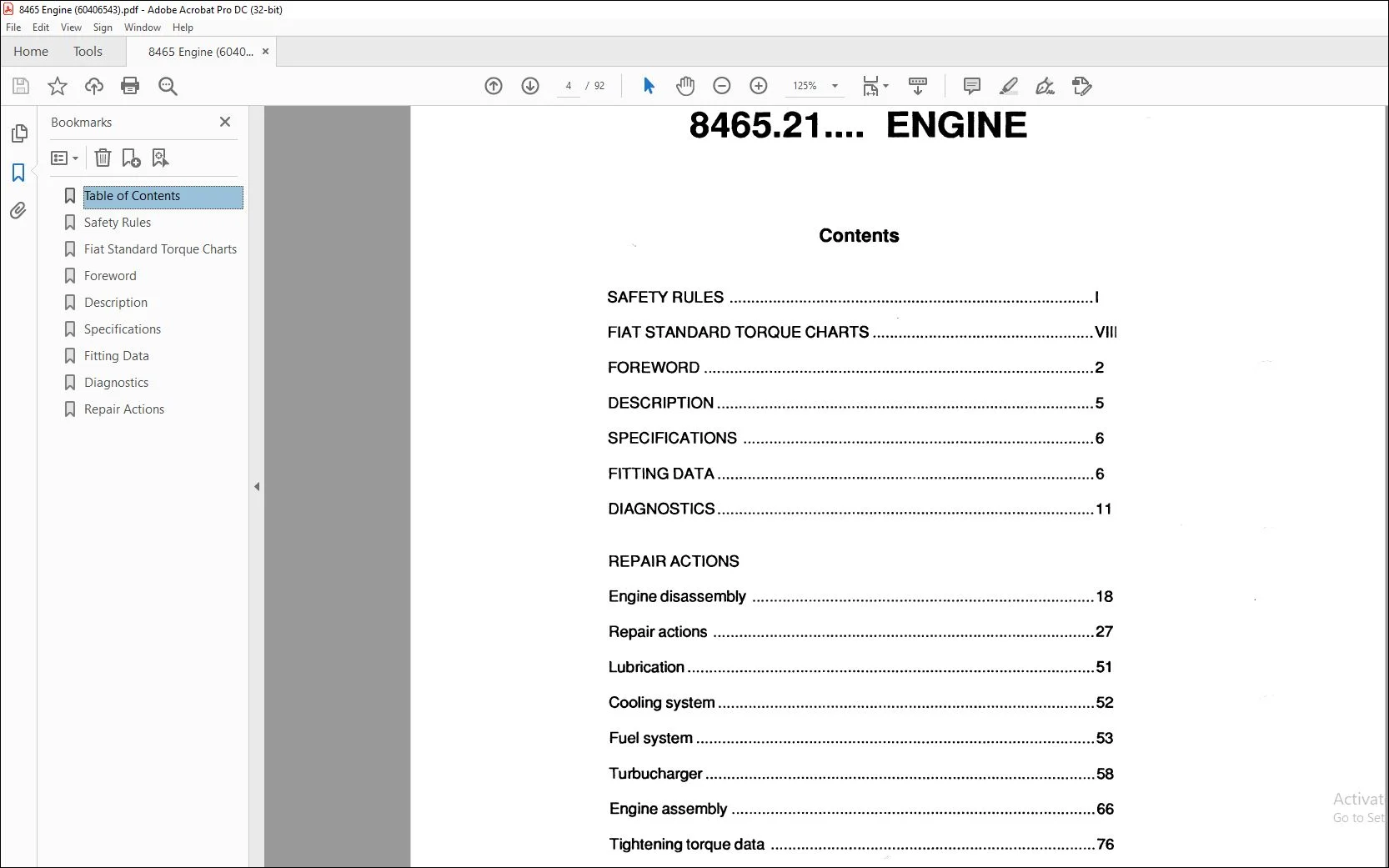

TABLE OF CONTENTS:
Fiatallis 8465 Engine Service Manual 60406543 – PDF DOWNLOAD
SAFETY RULES 1
FIAT STANDARD TORQUE CHARTS VIII
FOREWORD 2
DESCRIPTION 5
SPECIFICATIONS 6
FITTING DATA 6
DIAGNOSTICS 11
REPAIR ACTIONS
Engine disassembly 18
Repair actions 27
Lubrication 51
Cooling system 52
Fuel system 53
Turbucharger 58
Engine assembly 66
Tightening torque data 76
Service tools 77
VIDEO PREVIEW OF THE MANUAL:
