Fiatallis 65-B Motor Grader Service Manual 73125943 – PDF DOWNLOAD

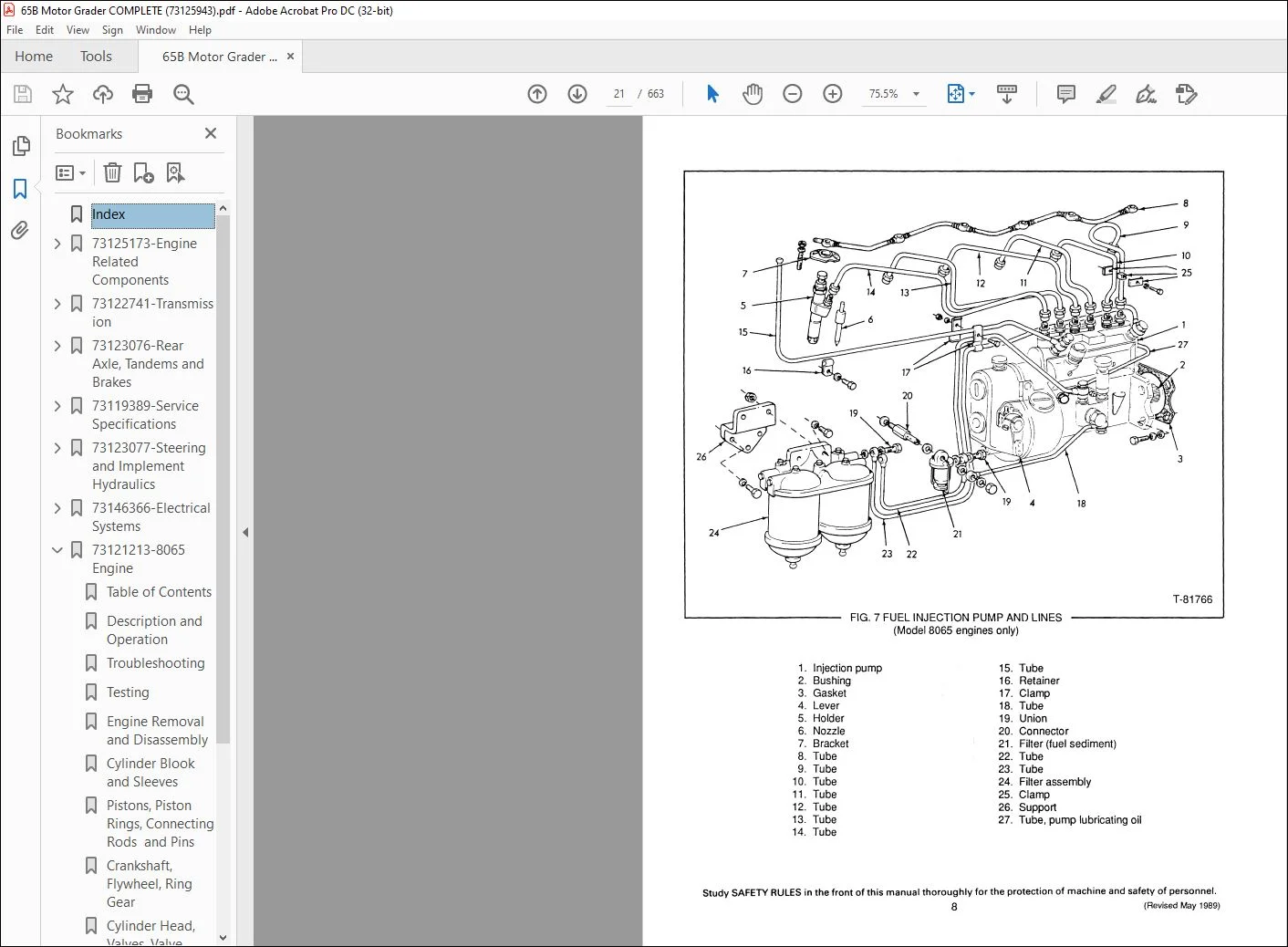

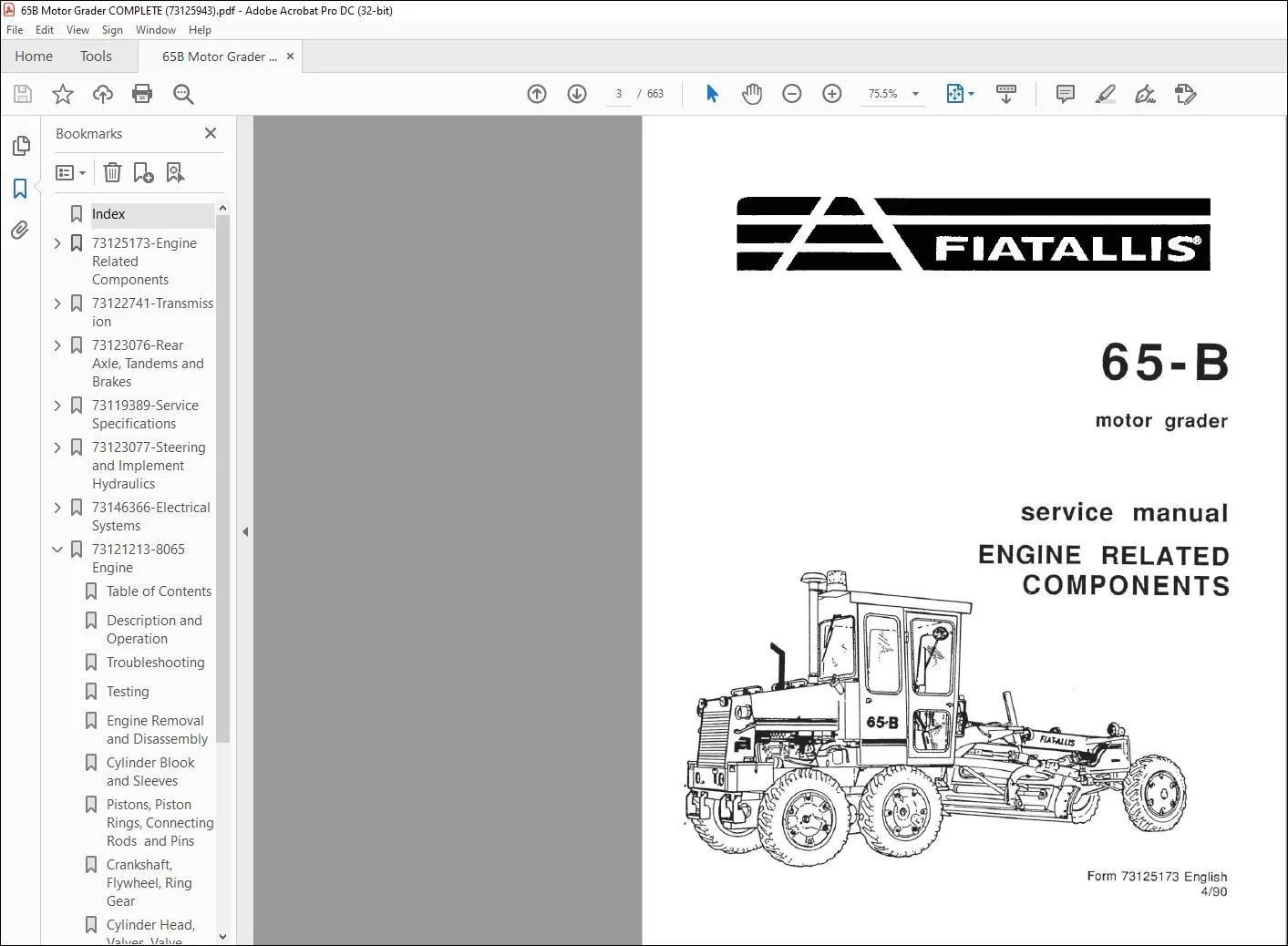

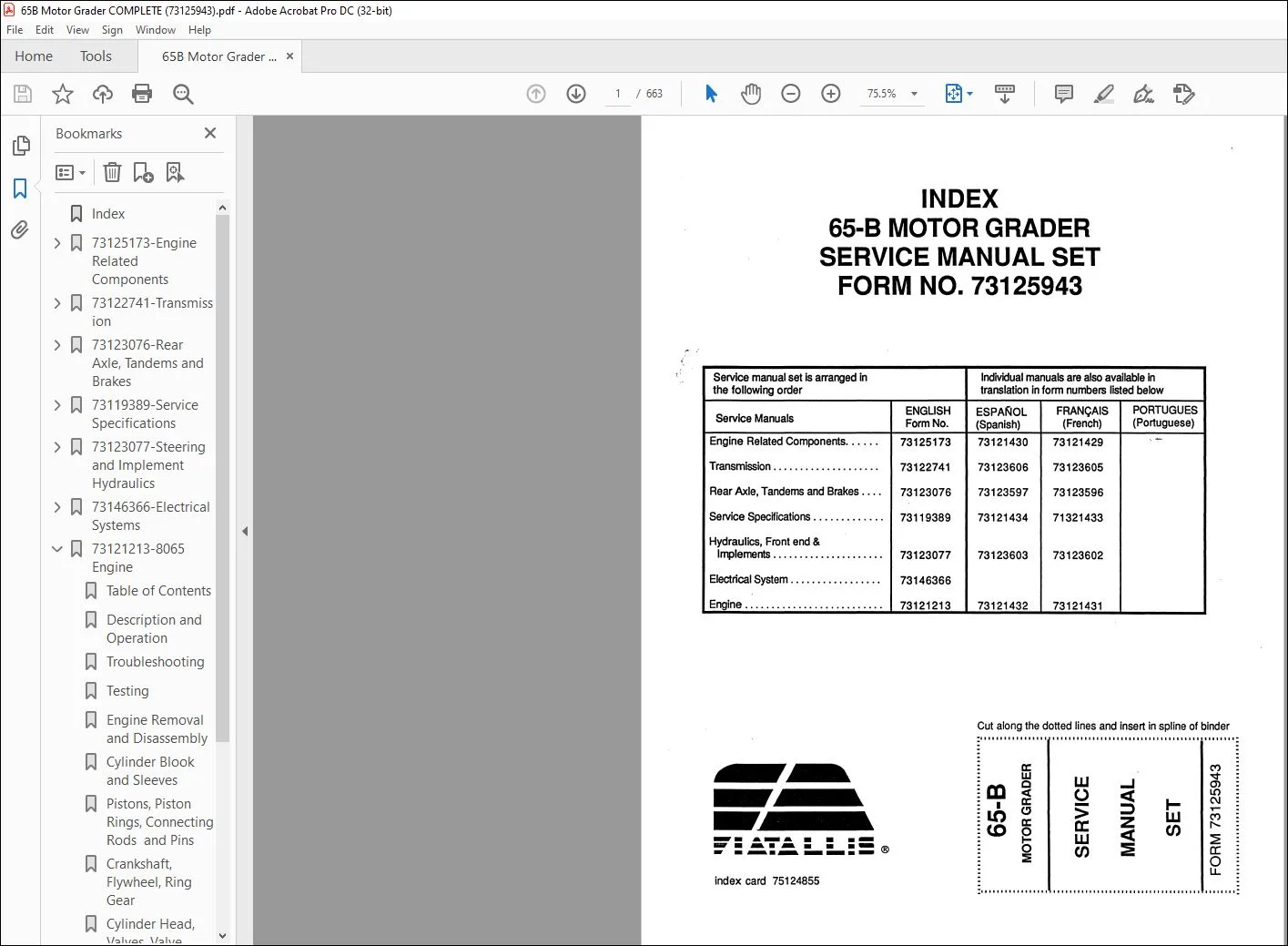

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Fiatallis 65-B Motor Grader Service Manual 73125943 – PDF DOWNLOAD
GENERAL:
Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine. Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
- Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment.
- Do not allow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features. The following are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, back fills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas.
- Use extreme care when in areas such as these. An operator must know the machine’s capabilities. When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control. Do not jump on or off machine.
- Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support.
- Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation tom inimize the danger of slipping or stumbling.
- Clean mud or grease from shoes before attempting to mount or operate the machine. Be careful of slippery ccnditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material. For your personal protection. Do not attempt to climb on or off machine while machine is in motion.
- Never leave the machine unattended with the engine running. Always lock up machine when leaving it unattended. Return keys to authorized security. Hee_d all shut down procedures of the Operation and Maintenance Instruction Manual. Always set the parking brake when leaving the machine for any reason.
- Do not wear rings, wrist watches, jewelry, loose or hanging apparel, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators. Consult your employer for specific safety equipment requirements.
- Do not carry loose objects in pockets that might fall unnoticed into open compartments. Do not use machine to carry loose objects by means other than attachments for carrying such objects. DO NOT CARRY RIDERSunless the machine is equipped for carrying people to reduce personal exposure to being thrown off. Do not operate machinery in a condition of extreme fatigue or illness.
- Be especially careful towards the end of the shift. Roll Over Protective Structures are required on wheel loaders, dozer tractors, track type loaders, graders and scrapers by local or national requirements.
- DO NOT operate this machine without a Roll Over Protective Structure. Do not operate a machine without a falling object protective structure (FOPS}. Do not operate this machine without a rear canopy screen when machine is equipped with rear mounted towing winch. Seat belts are required to be provided with roll over protective structures or roll protection cabs by local or national regulations. Keep the safety belt fastened around you during operation.
TABLE OF CONTENTS:
Fiatallis 65-B Motor Grader Service Manual 73125943 – PDF DOWNLOAD
SAFETY RULES
FOREWARD GENERAL
DESCRIPTION
MUFFLER AND AIR CLEANER
2.1 Muffler Removal
2. 2 Muffler Installation
2. 3 Air Cleaner Removal
2. 4 Air Cleaner Installation
TRANSMISSION AND FUEL FILTERS
3.1 Transmission Filter Removal
3. 2 Transmission Filter Installation
3. 3 Fuel Filters Removal
3. 4 Fuel Filters Installation
RADIATOR AND FAN
4. 1 Radiator Removal
4. 2 Radiator Installation
4. 3 Coolant Fan Removal
4. 4 Coolant Fan Installation
FAN AND ALTERNATOR BELTS
5. 1 Fan And Alternator Belt Removal
5. 2 Fan And Alternator Belt Installation
ST ARTER AND ALTERNATOR
6. 1 Starter Removal
6. 2 Starter Installation
6. 3 Alternator Removal
6. 4 Alternator Installation
TRANSMISSION HEAT EXCHANGER
7. 1 Heat Exchanger Removal
7. 2 Heat Exchanger Installation
ENGINE
8. 1 Engine Removal
8. 2 Engine Installation
TORQUE VALUES
VIDEO PREVIEW OF THE MANUAL:
