Fiatallis 65-B Motor Grader Operation & Maintenance Instruction Manual 73114342 – PDF DOWNLOAD

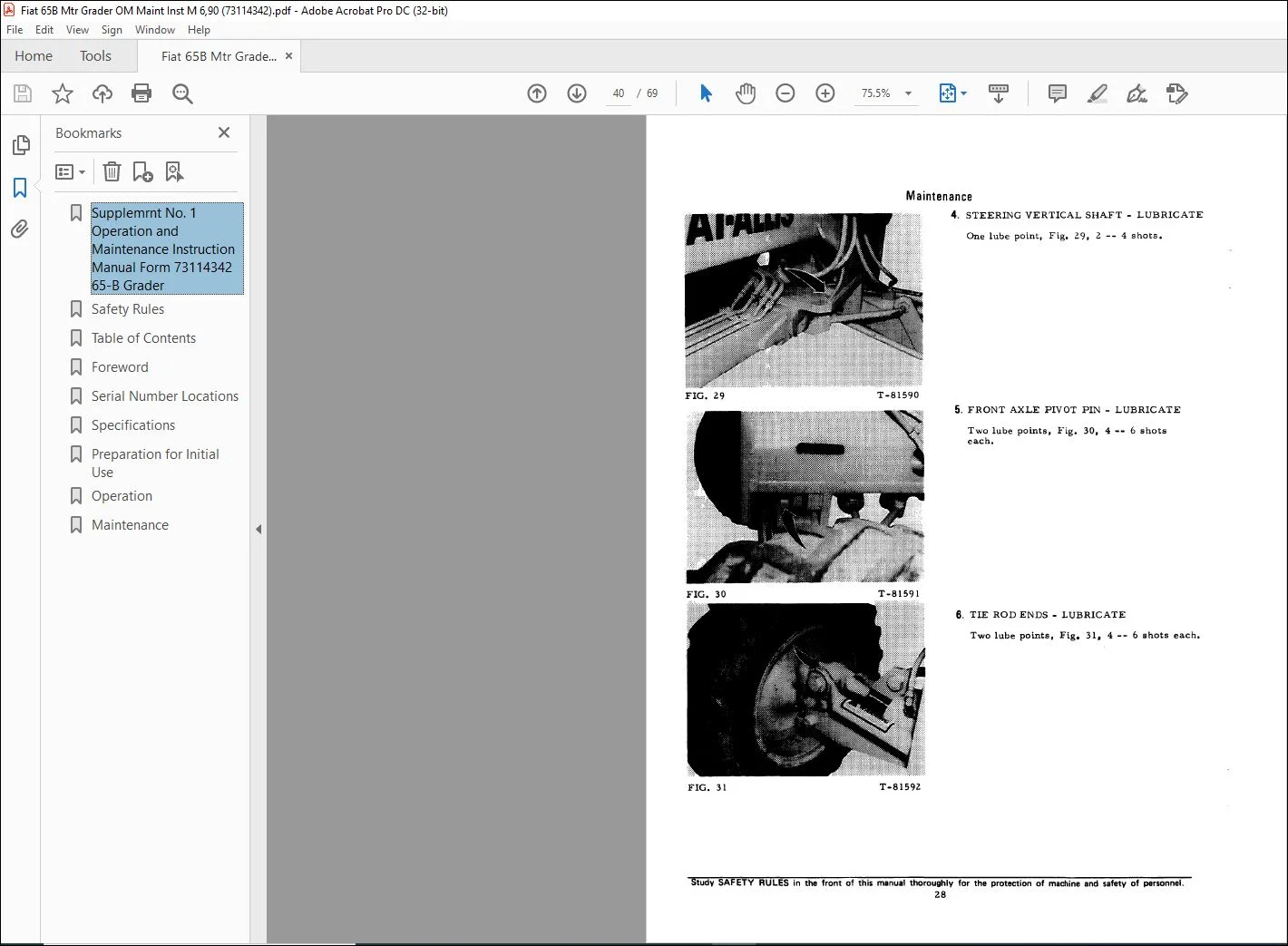

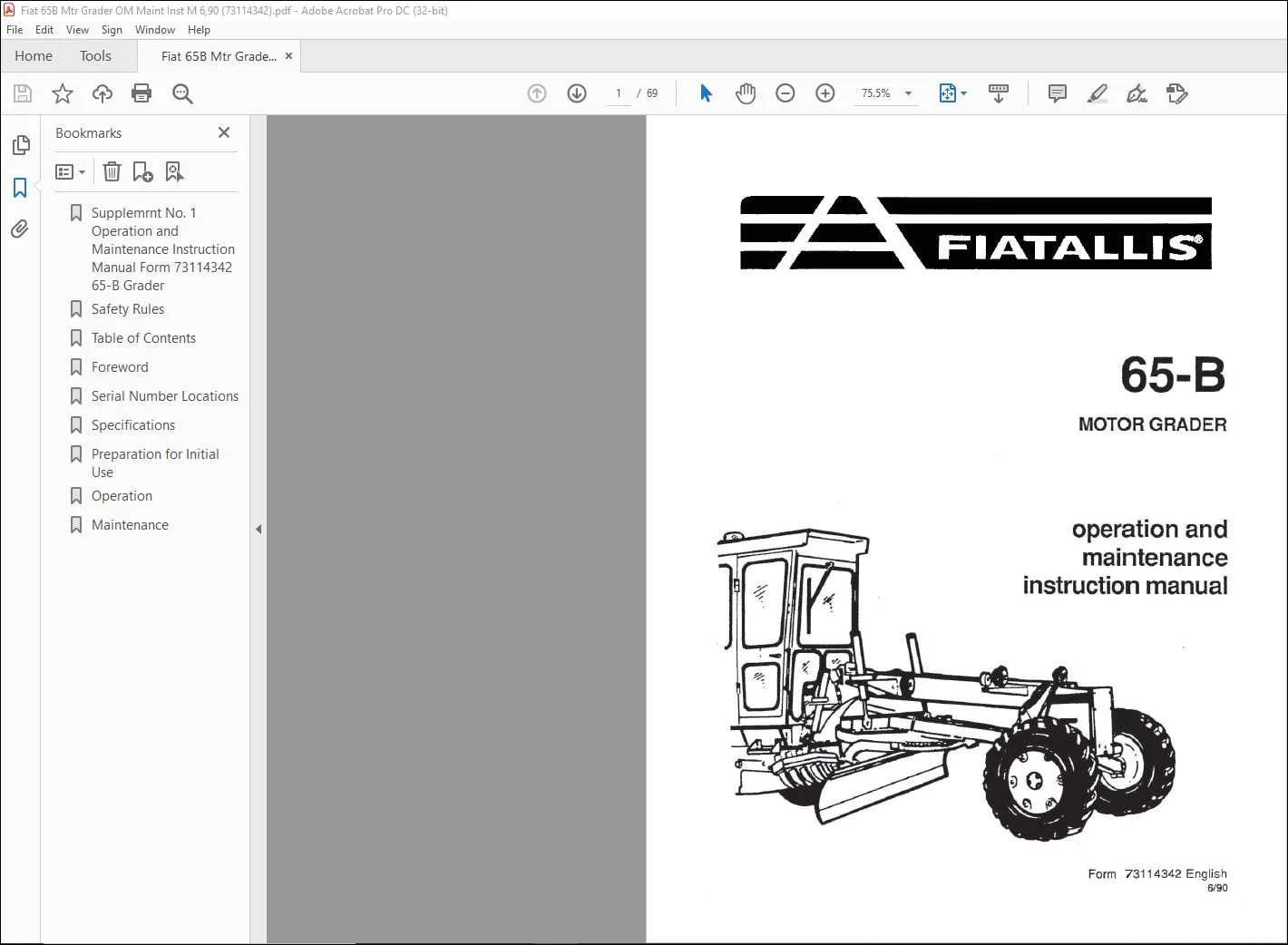

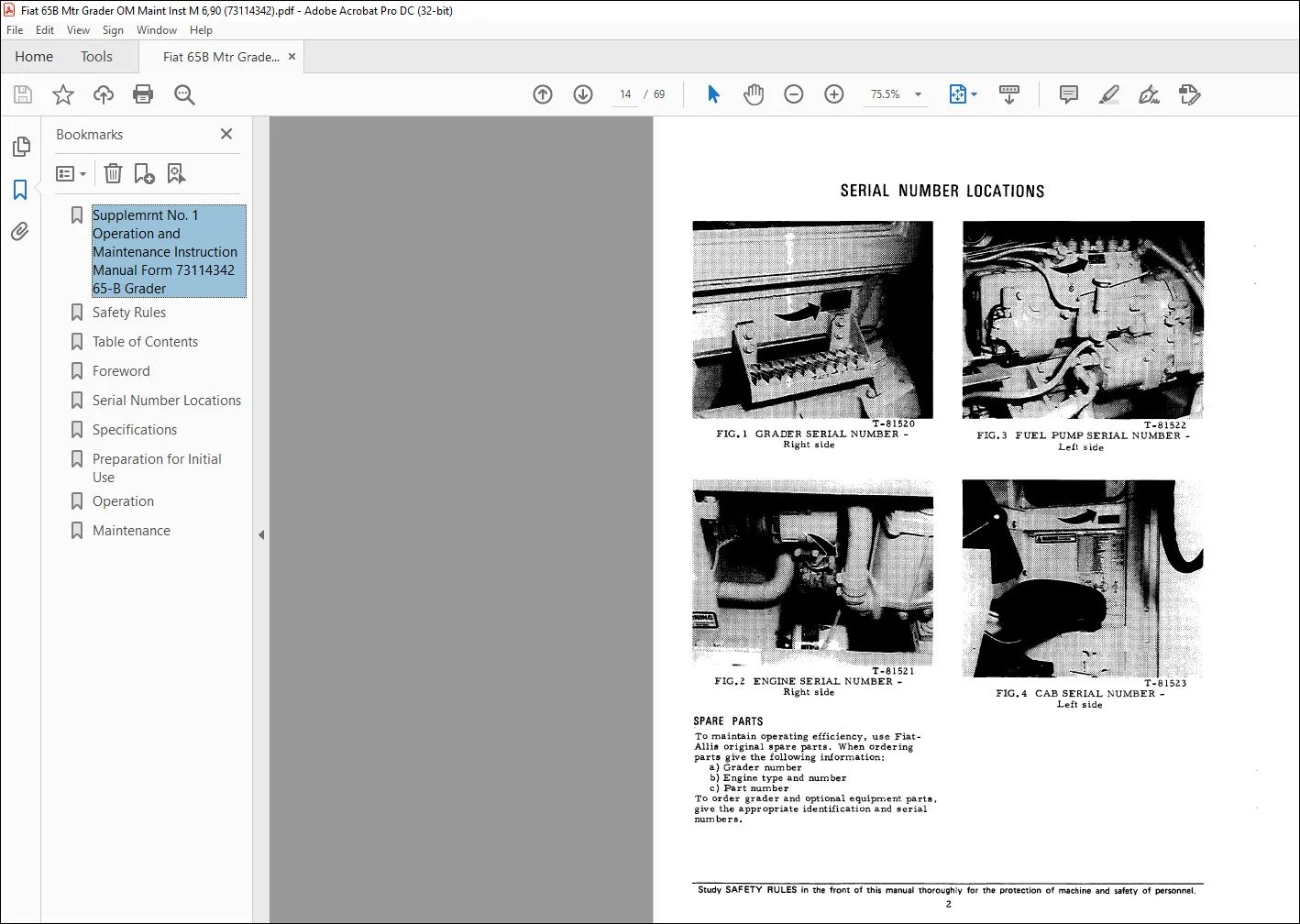

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
Fiatallis 65-B Motor Grader Operation & Maintenance Instruction Manual 73114342 – PDF DOWNLOAD
SIN 62S 02401 • UP
SIN 51 M 02401 • UP
SIN 75A 02801 • UP
SIN 68C 04000 • UP
GENERAL:
Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine. Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling or servicing machine.
- Machine-mounted safety signs have been color coded yellow with black border and lettering for WARNING and red with white border and lettering for DANGER points. Never attempt to operate the machine or its tools from any position ether than seated in the operator’s seat.
- Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment. Do not allow unauthorized personnel to operate service or maintain this machine. Always check work area for dangerous features.
- The following are examples of dangerous work areas: slopes, over hangs, timber, demolitions, fire, high walls, drop off, back fills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and closed areas. Use extreme care when in areas ~uch as these. An operator must know the machine’s capabilities.
- When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control. Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, in contact with steps grab rails and handles at all times.
- Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support. Controls also may be inadvertently moved causing accidental machine or equipment movement. Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimize the danger of slipping or stumbling.
- Clean mud or grease from shoes before attempting to mount or operate the machine. Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material. For your personal protection. Do not attempt to climb on or off machine while machine is in motion.
TABLE OF CONTENTS:
Fiatallis 65-B Motor Grader Operation & Maintenance Instruction Manual 73114342 – PDF DOWNLOAD
Safety rules I
Foreword 1
Serial Number Location 2
Specifications 4
Preparation and Initial Use 5
OPERATION
Controls and Instruments 7
Operating Wamings 13
Operating Instructions 14
Seat Adjustment 15
Operating Suggestions 17
Cab and Canopy 19
Cold Weather Precautions 20
Preparation for Storage _ 20
MAINTENANCE
Fuel, Lubricant Specifications and Capacities 21
Walk Around Inspection 23
Maintenance Guide 24
Maintenance Instructions 26
1 O Hour Services 27
50 Hour Services 32
250 Hour Services 33
500 Hour Services 38
1000 Hour Services 40
2000 Hour Services 43
Periodic Services 44
Electrical System 52
Cooling System Maintenance For Heavy Duty Engines 56
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
S.V
