Fiat Trattori 466-566-666-766 Workshop Manual (603.54.228.01) – PDF DOWNLOAD
FILE DETAILS:
Fiat Trattori 466-566-666-766 Workshop Manual (603.54.228.01) – PDF DOWNLOAD
Language : English
Pages : 137
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Fiat Trattori 466-566-666-766 Workshop Manual (603.54.228.01) – PDF DOWNLOAD
ROTARY SHAFT SEALS
To fit rotary shaft seals proceed as follows:
– Prior to fitting, soak the seals for at least half an hour in the fluid to be retained.
– Carefully clean the shaft and ensure that the contact surface is free from damage.
– Turn the end of the sealing lip towards the fluid. If of the thrower lip type, turn the grooves so that during shaft rotation the fluid tends to be thrown back.
– Smear the sealing lip with a very thin coat of lubricant (oil is better than grease) and pack the space between sealing lip and dust shield with grease. (applicable to double-lip seals).
– Fit the seals into their housing using a flat-ended tool or ram. Under no circumstances fit with a mallet or hammer.
– Avoid entry of the seal into the recess in a tilted position. Exert a firm and uniform pressure squarely on it and ensure that the seal is pressed fully home.
– To prevent sealing lip damage during fitting, use some sort of protection before sliding over the shaft.
O-RINGS
Lubricate each ring prior to fitting and, on reassembly, slide over the part but do not twist, otherwise leakage will result.
SEALING COMPOUNDS
On the mating surfaces indicated with X apply one of the following sealing compounds: RTV
SILMATE, RHODORSIL GARF 1 or LOCTITE PLASTIC GASKET.
Before applying the sealing compound, prepare the surfaces as follows:
– Using a wire brush, remove any deposits.
– Thoroughly degrease using one of the following detergents: Solvent, kerosene or hot water /soda solution.
BEARINGS
To fit bearings:
– Before installing on shafts, heat to 80°C to 90°C.
– Cool before pressing them into their seats.
ROLL PINS
When fitting straight roll pins ensure that they face in direction of work to stress the pin.
Coil roll pins can be installed in any position.
IMAGES PREVIEW OF THE MANUAL:

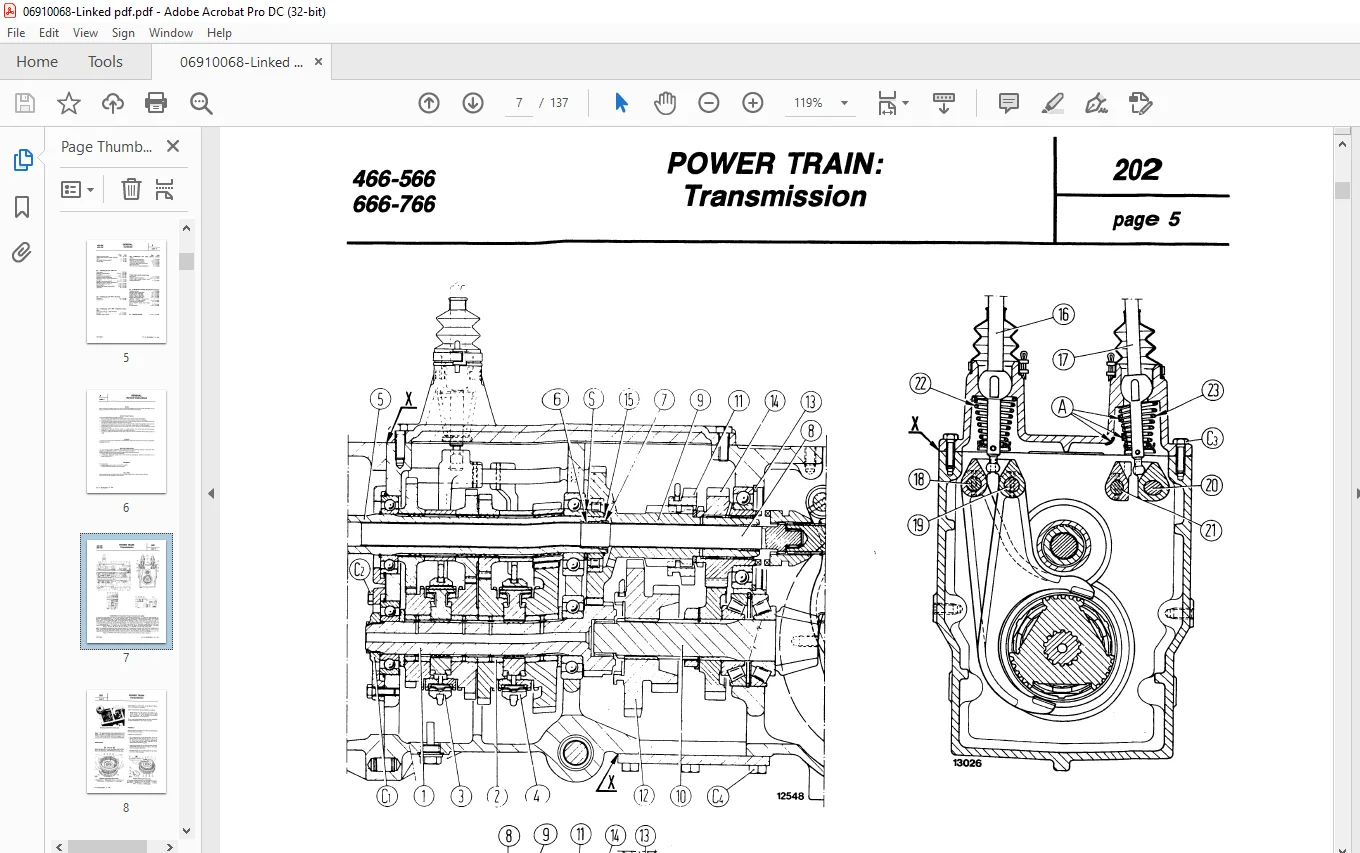

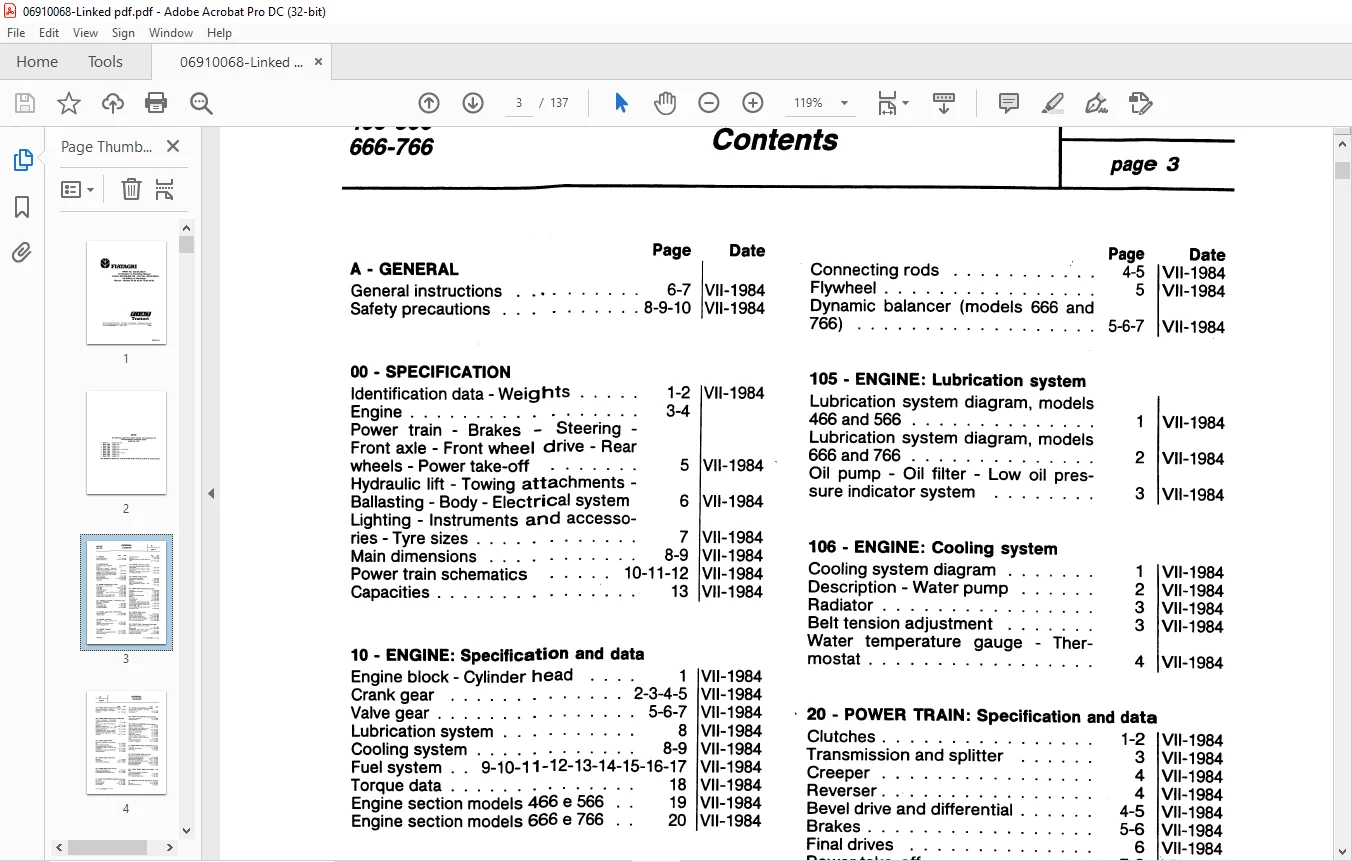

TABLE OF CONTENTS:
Fiat Trattori 466-566-666-766 Workshop Manual (603.54.228.01) – PDF DOWNLOAD
Fiatagri 1st Revision of Workshop Manual Models: 466, 566, 666, 766 and 1st Edition of Workshop manual models: 55-66, 60-66, 70-66, 80-66 .... 1 GENERAL: Contents ............................................................................................................................. 3 GENERAL: General Instructions ................................................................................................................. 6 Power Train: Transmission ..................................................................................................................... 7 Power Train: Creeper .......................................................................................................................... 9 FRONT AXLE - STEERING: Power Steering ......................................................................................................... 11 FRONT WHEEL DRIVE: Front Axle ................................................................................................................. 13 FRONT WHEEL DRIVE: Drive Shaft - Axle Drive .................................................................................................. 19 HYDRAULIC LIFT UNIT: Lift ..................................................................................................................... 21 HYDRAULIC LIFT UNIT: Lift Pump ................................................................................................................ 25 HYDRAULIC LIFT UNIT: Remote Control Valves .................................................................................................... 27 FIAT TRATTORI models: 55-66, 55-66 DT, 60-66, 60-66 DT, 70-66, 70-66 DT, 80-66, 80-66 DT ..................................................... 31 GENERAL: Contents ............................................................................................................................. 33 Specifications ................................................................................................................................ 37 ENGINE: Specification and Data ............................................................................................................... 51 ENGINE: Description and Preformance Data .................................................................................................... 73 ENGINE: Engine Block ......................................................................................................................... 75 ENGINE: Valve Gear ............................................................................................................................ 79 ENGINE: Crank Gear ............................................................................................................................ 81 ENGINE: Cooling System ........................................................................................................................ 83 POWER TRAIN: Specifications and Data .......................................................................................................... 85 POWER TRAIN: Clutch ........................................................................................................................... 91 POWER TRAIN: Transmission ..................................................................................................................... 97 POWER TRAIN: Bevel Drive and Differential .....................................................................................................101 POWER TRAIN: Brakes ...........................................................................................................................105 FRONT AXLE - STEERING: Specification and Data .................................................................................................107 FRONT AXLE - STEERING: Power Steering ........................................................................................................109 LIVE FRONT AXLE: Specification and Data .......................................................................................................111 FRONT WHEEL DRIVE: Front Axle .................................................................................................................113 HYDRAULIC LIFT UNIT: Specification and Data ...................................................................................................117 HYDRAULIC LIFT UNIT: Lift .....................................................................................................................121 HYDRAULIC LIFT UNIT: Attachment ...............................................................................................................127 ELECTRICAL SYSTEM: Specification and Data ....................................................................................................129 SERVICE TOOLS .................................................................................................................................133
