Fiat Allis FD14E CRAWLER TRACTOR SERVICE MANUAL
FILE DETAILS:
Fiat Allis FD14E CRAWLER TRACTOR SERVICE MANUAL
Size : 4796 MB
Format : PDF
Language : English
Brand: Fiat
Page: 718
Type of document: Service Manual
Model: Fiat Allis FD14E CRAWLER TRACTOR
DESCRIPTION:
Fiat Allis FD14E CRAWLER TRACTOR SERVICE MANUAL
GENERAL INFORMATION:
- Study the Operation and Maintenance Instruction Manual before starting, operating, maintaining, fueling, or servicing machine. Read and heed all machine-mounted safety signs before starting, operating, maintaining, fueling orservtcmg machine. Machine-mounted safety signs have been oolor coded yellow with black border and lettenng for WARNING and red with white border and lettering for DANGER points.
- Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at all times to reduce exposure to hazards outside the operator’s compartment.
- Do not allow unauthorized personnel to operate service or maintain this machne. Always check work area for dangerous features. The fodowng are examples of dangerous work areas: slopes, over- hangs, timber. demolitions, fire, high walls, dropoff, backfills, rough terrain, ditches, ridges, excavations, heavy traffic, crowded parking, crowded maintenance and dosed areas. Use extreme care when in areas such as these. An operator must know the machine’s capabilities.
- When working on slopes or near drop offs be alert to avoid loose or soft conditions that could cause sudden tipping or loss of control. Do not jump on or off machine. Keep two hands and one foot, or two feet and one hand, m contact with steps, grab rails and handles at all times.
- Do not use controls or hoses as handholds when dimbmg on or off machine. Hoses and controls are movable and do not provide a solid support Controls also may be inadvertently moved causing accidental machine or equpment movement.
- Keep operator’s compartment, stepping points, grab-rails and handles dear of foreign objects, oil, grease, mud or snow accumulation to mnmize the danger of slipping or stumbling.
- Clean mud or grease from shoes before attempting to mount or operate the machine. Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material. For your personal protection, do not attempt to cfimb on or off machine while machine is in motion.
- Never leave the machine unattended with the engine running. Always lock up machine when leaving it unattended. Return keys to authorized security. Heed all shutdown procedures of the Operation and Maintenance Instruction Manual.
- Always set the parking brake when leaving the machine for any reason. Do not wear rings, wrist watches, jewelry, loose or hanging apparel, such as ties, tom clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts. Wear proper safety equipment as authorized for the job. Examples: hard hats, safety shoes, heavy gloves, ear protectors, safety glasses or goggles, reflector vests, or respirators. Consult your employer for specific safety equpment requirements.
VIDEO PREVIEW OF THE MANUAL:

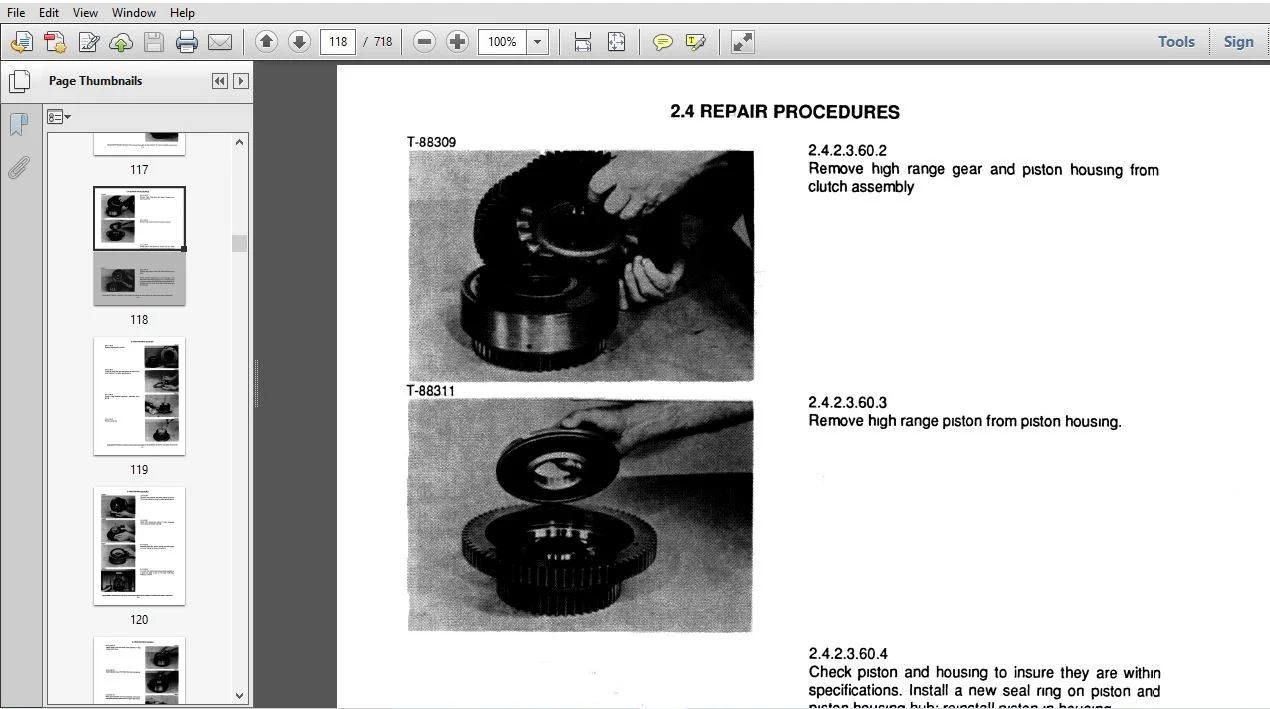

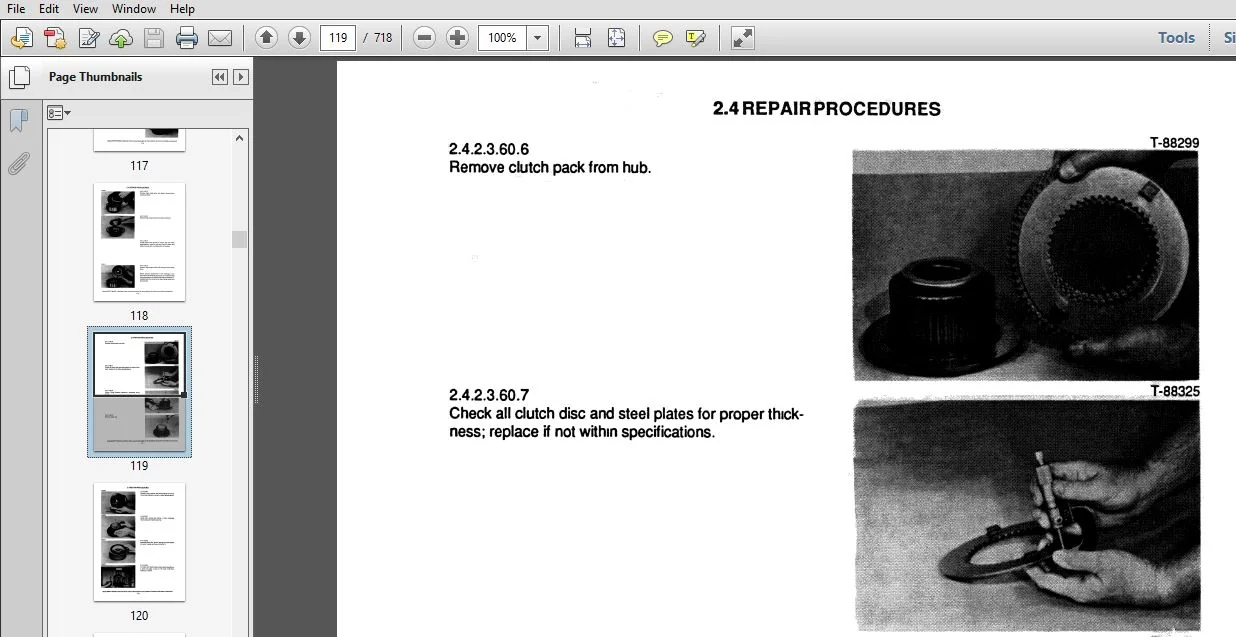

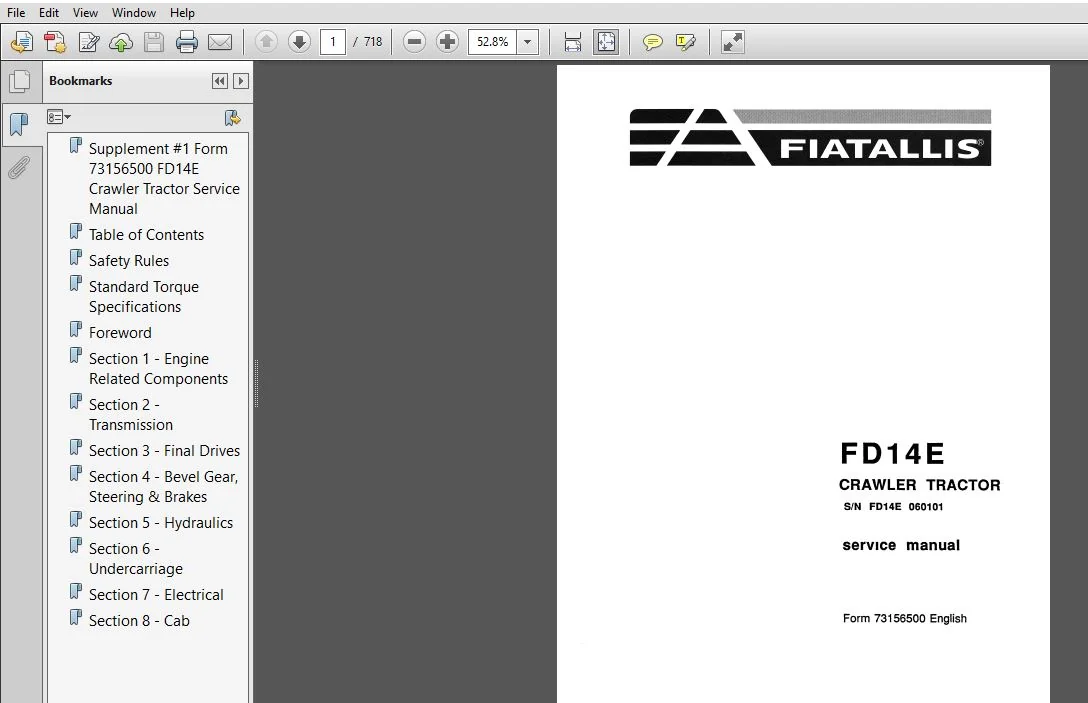

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Fiat Allis FD14E CRAWLER TRACTOR SERVICE MANUAL
Supplement #1 Form 73156500 FD14E Crawler Tractor Service Manual 3
Table of Contents 7
Safety Rules 8
Standard Torque Specifications 15
Foreword 19
Section 1 – Engine Related Components 21
Section 2 – Transmission 65
Section 3 – Final Drives 163
Section 4 – Bevel Gear, Steering & Brakes 211
Section 5 – Hydraulics 319
Section 6 – Undercarriage 387
Section 7 – Electrical 447
Section 8 – Cab 667
