FELLA EU RAMOS SM 210 Disc Mower Operators Manual PDF DOWNLOAD
FILE DETAILS:
FELLA EU RAMOS SM 210 Disc Mower Operators Manual PDF DOWNLOAD
Language : English
Pages :60
Downloadable : Yes
File Type : PDF

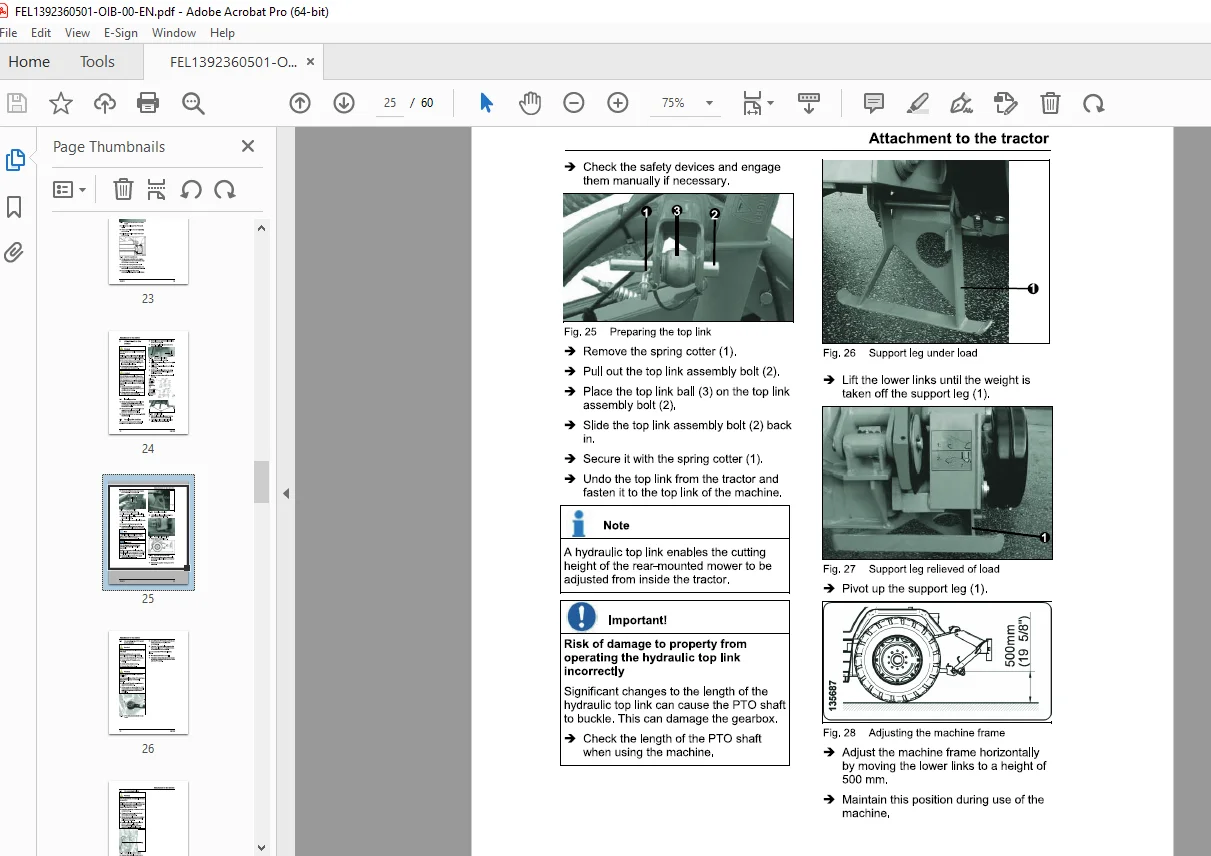

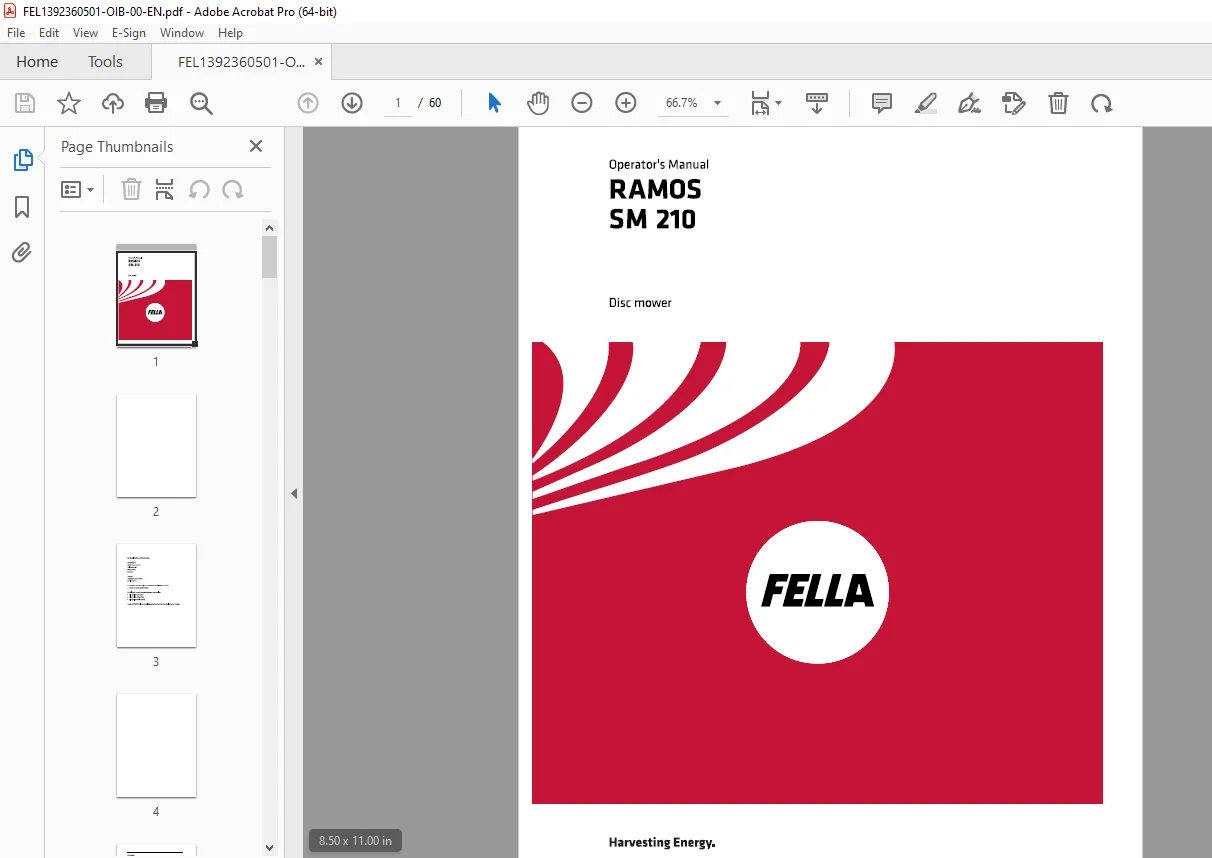

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
FELLA EU RAMOS SM 210 Disc Mower Operators Manual PDF DOWNLOAD
Introduction 3
2 Safety 5
2.1 Intended use 5
2.2 Reasonably foreseeable misuse 5
2.3 Warranty and liability 5
2.4 User qualifications 5
2.5 Warnings and symbols 6
2.6 Warning notices on the machine 7
2.7 Safety instructions 9
2.7.1 General safety instructions 9
2.7.2 Special safety instructions 11
3 Machine description 12
3.1 Product features 12
3.2 Notices on the machine 12
3.3 Special equipment 13
3.4 Machine components 14
4 Specifications 15
4.1 Machine data 15
4.2 Noise information 16
4.3 Axle loads, gross weight and minimum ballast required 17
5 Before initial operation 18
5.1 Assembling the machine 18
5.2 Adjusting the PTO shaft 18
6 Attachment to the tractor 20
6.1 Initial operation 20
6.2 Coupling the machine 20
6.3 Connecting the PTO shaft to the tractor 22
6.4 Connect hydraulics 23
6.5 Pull cable 23
7 Transport position and working position 24
7.1 Switching the machine to transport position 24
7.2 Switching the machine to working position 25
8 Using the machine 26
9 Settings 27
9.1 Adjusting cutting height 27
9.2 Adjusting the spring relief 27
9.3 Adjusting the lowering speed 28
9.4 Adjusting the swath guiding assembly 28
9.5 Adjusting the V-belt tension 28
10 Optional functions 29
10.1 Greater cutting height using anti-wear skids 29
10.2 Greater cutting height using contact wheels 29
11 Machine storage 30
SM 210 1
12 Rectifying faults
12.1 If the machine runs over an obstacle
12.2 Adjusting the impact guard
12.3 Replacing the driveGUARD
12.3.1 Preparatory work
12.3.2 Mower disc without feed drum
12.3.3 Mower disc with feed drum
12.3.4 Checks after replacing a driveGUARD element
13 Servicing
13.1 Maintenance intervals
13.2 Accessing the maintenance points
13.3 Cleaning
13.4 Tightening torques for nuts and bolts
13.5 Adhesive notices on the machine
13.6 PTO shaft
13. 7 Hydraulic system
13.8 Gearbox
13.8.1 Entry gearbox and cutter bar
13.9 Cutter blades
13.9.1 Checking the cutter blades
13.9.2 Checking the cutter-blade bolt
13.9.3 Replacing the cutter blades and/or cutter-blade bolt
13.9.4 Optional for retrofitted quick-change blade system
13.1 O Check the protective covers
13.11 Lubrication instruction
14 Index
