EZGO FREEDOM PDS FREEDOM FLEET GOLF CAR PDS FLEET GOLF CAR SHUTTLE2+2 SERVICE MANUAL – PDF DOWNLOAD
DESCRIPTION:
EZGO FREEDOM PDS FREEDOM FLEET GOLF CAR PDS FLEET GOLF CAR SHUTTLE2+2 SERVICE MANUAL – PDF DOWNLOAD
GENERAL
Many vehicles are used for a variety of tasks beyond the original intended use of the vehicle; therefore it is impossible to anticipate and warn against every possible combination of circumstances that may occur.
- No warnings can take the place of good common sense and prudent driving practices. Good common sense and prudent driving practices do more to prevent accidents and injury than all of the warnings and instructions combined.
- T he manufacturer strongly suggests that the owner-operator read this entire manual paying particular attention to the CAUT IONS and WARNINGS contained therein. It is further recommended that employees and other operators be encouraged to do the same.
- If you have any questions, contact your closest representative or write to the address on the back cover of this publication, Attention: Product Service Department. E-Z-GO Division of Textron reserves the right to make design changes without obligation to make these changes on units previously sold and the information contained in this manual is subject to change without notice.
- E-Z-GO Division of Textron is not liable for errors in this manual or for incidental or consequential damages that result from the use of the material in this manual. This vehicle conforms to the current applicable standard for safety and performance requirements.
- These vehicles are designed and manufactured for off-road use. They do not conform to Federal Motor Vehicle Safety Standards and are not equipped for operation on public streets. Some communities may permit these vehicles to be operated on their streets on a limited basis and in accordance with local ordinances.
- With electric powered vehicles, be sure that all electrical accessories are grounded directly to the battery (-) post. Never use the chassis or body as a ground connection. Refer to GENERAL SPECIFICATIONS for vehicle seating capacity.
- Never modify the vehicle in any way that will alter the weight distribution of the vehicle, decrease its stability or increase the speed beyond the factory specification. Such modifications can cause serious personal injury or death.
- Modifications that increase the speed and/or weight of the vehicle will extend the stopping distance and may reduce the stability of the vehicle. Do not make any such modifications or changes. T he manufacturer prohibits and disclaims responsibility for any such modifications or any other alteration which would adversely affect the safety of the vehicle.
- Vehicles that are capable of higher speeds must limit their speed to no more than the speed of other vehicles when used in a golf course environment. Additionally, speed should be further moderated by the environmental conditions, terrain and common sense.

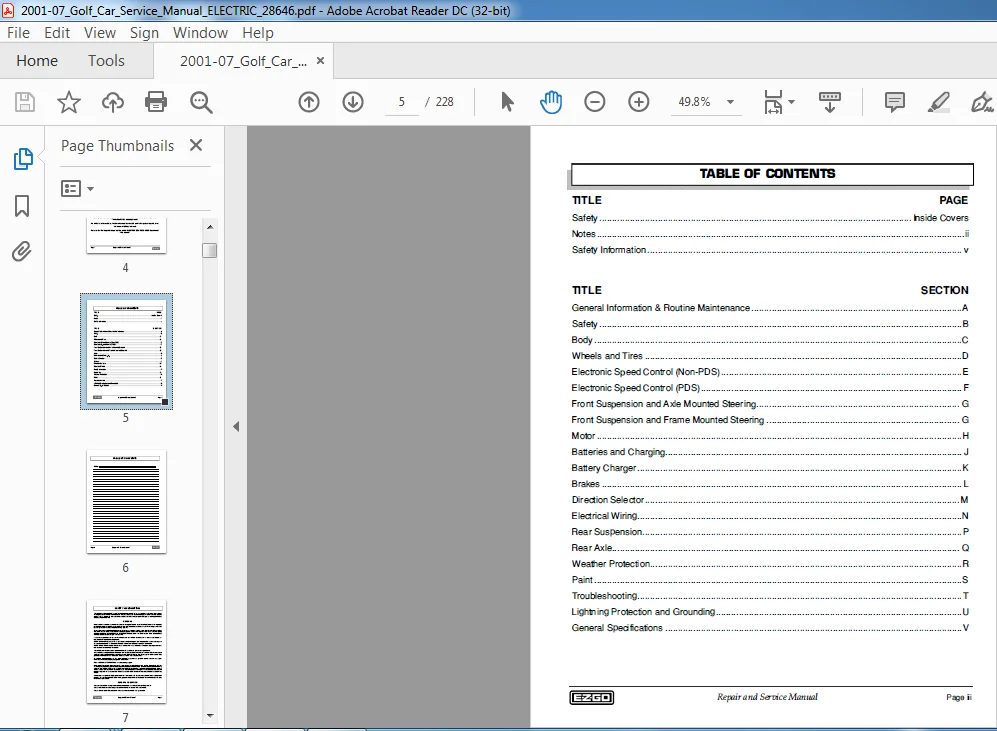

TABLE OF CONTENTS:
EZGO FREEDOM PDS FREEDOM FLEET GOLF CAR PDS FLEET GOLF CAR SHUTTLE2+2 SERVICE MANUAL – PDF DOWNLOAD
TITLE PAGE
Safety Inside Covers
Notes ii
Safety Information v
TITLE SECTION
General Information & Routine Maintenance A
Safety B
Body C
Wheels and Tires D
Electronic Speed Control (Non-PDS) E
Electronic Speed Control (PDS) F
Front Suspension and Axle Mounted Steering G
Front Suspension and Frame Mounted Steering G
Motor H
Batteries and Charging J
Battery Charger K
Brakes L

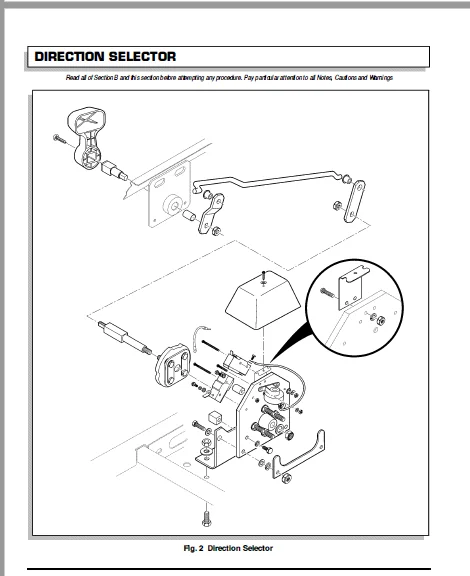

Direction Selector M
Electrical Wiring N
Rear Suspension P
Rear Axle Q
Weather Protection R
Paint S
Troubleshooting T
Lightning Protection and Grounding U
General Specifications V
VIDEO PREVIEW OF THE MANUAL:

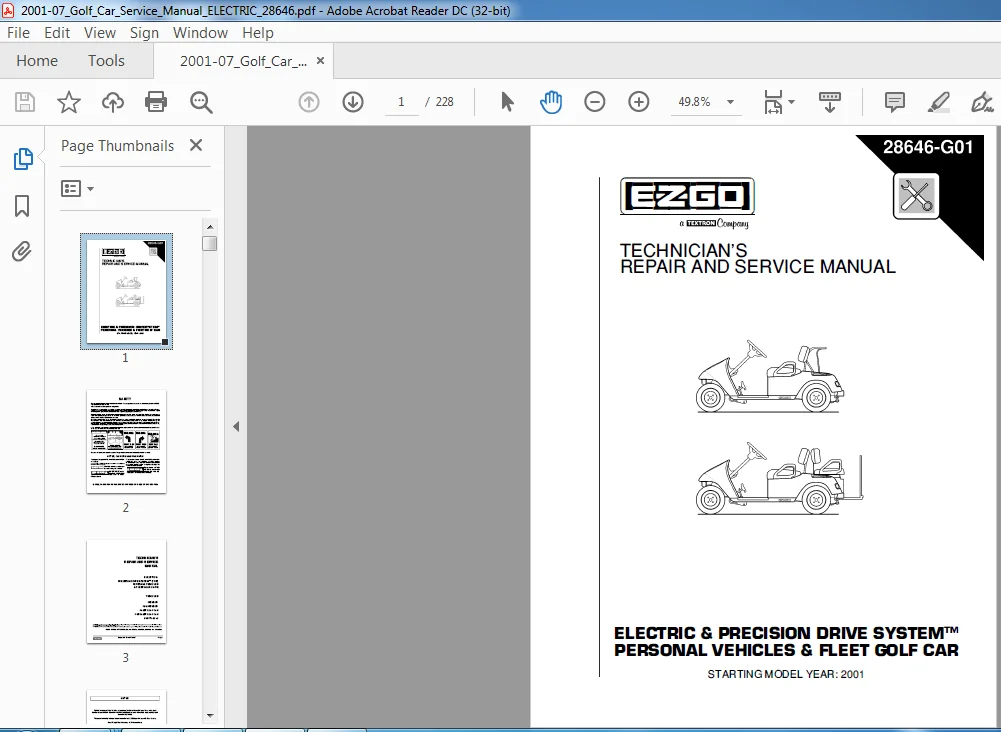

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
