Eaton Fuller Median Heavy Duty T-11605 Transmissions TRSM0200 Service Manual – PDF DOWNLOAD
DESCRIPTION:
Eaton Fuller Median Heavy Duty T-11605 Transmissions TRSM0200 Service Manual – PDF DOWNLOAD
The New Generation T-11605 series transmissions, like the proven T-905 series they supersede, are designed with five forward speeds and one reverse for medium to heavy duty on-highway vehicles. The significant difference, however, is that most of the coarse pitch conventional gearing of the T-905 series has been replaced by the fine pitch “multimesh” gearing of the New Generation Series.
- Multi-mesh gearing means there are two or three teeth per gear always in contact during torque transfer, instead of just one or two as with conventional gearing. With reduced stress on individual gear teeth, this multiple contact insures better distribution of engine torque through a smoother, less-nosier power flow that ultimately extends The twin countershaft design, which splits torque equally between the two shafts to provide a high torque capacity to weight ratio, remains unchanged.
- Because of torque splitting, each gear set carries only half the load, greatly reducing the face width of each gear. Only the countershaft gears which mate with multi-mesh mainshaft gears have been changed to the new gearing concept. Another unique design feature, also unchanged from the T-905 series, is the floating gear principle.
- The mainshaft gears, when not engaged, “float” between the countershaft gears, eliminating the need for gear sleeves and bushings. Only the 1stspeed and reverse gears are of the conventional gearing type. The remaining forward speed gears of the mainshaft have been changed to the new multi-mesh gearing concept. gear and bearing life.
TABLE OF CONTENTS:
Eaton Fuller Median Heavy Duty T-11605 Transmissions TRSM0200 Service Manual – PDF DOWNLOAD
Model Designations
Description
Specifications
Lubrication
Preventive Maintenance
Torque Recommendations
Timing
Precautions
Shifting Controls
Removal and Disassembly
Changing input Shaft
Reassembly and installation
Tool Reference
VIDEO PREVIEW OF THE MANUAL:

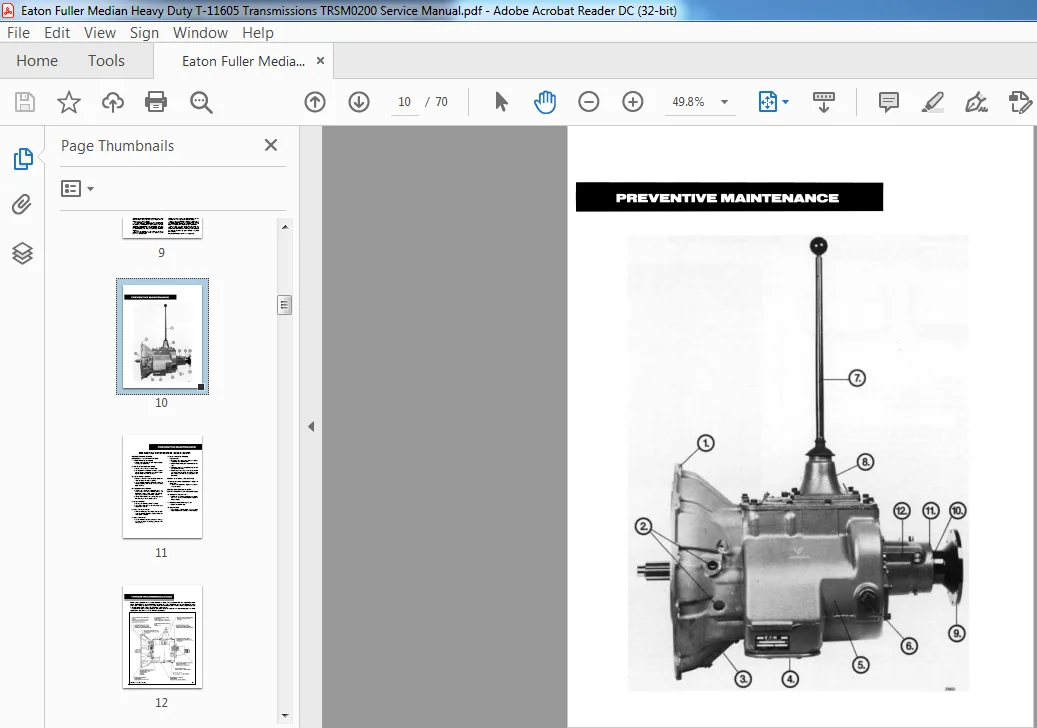

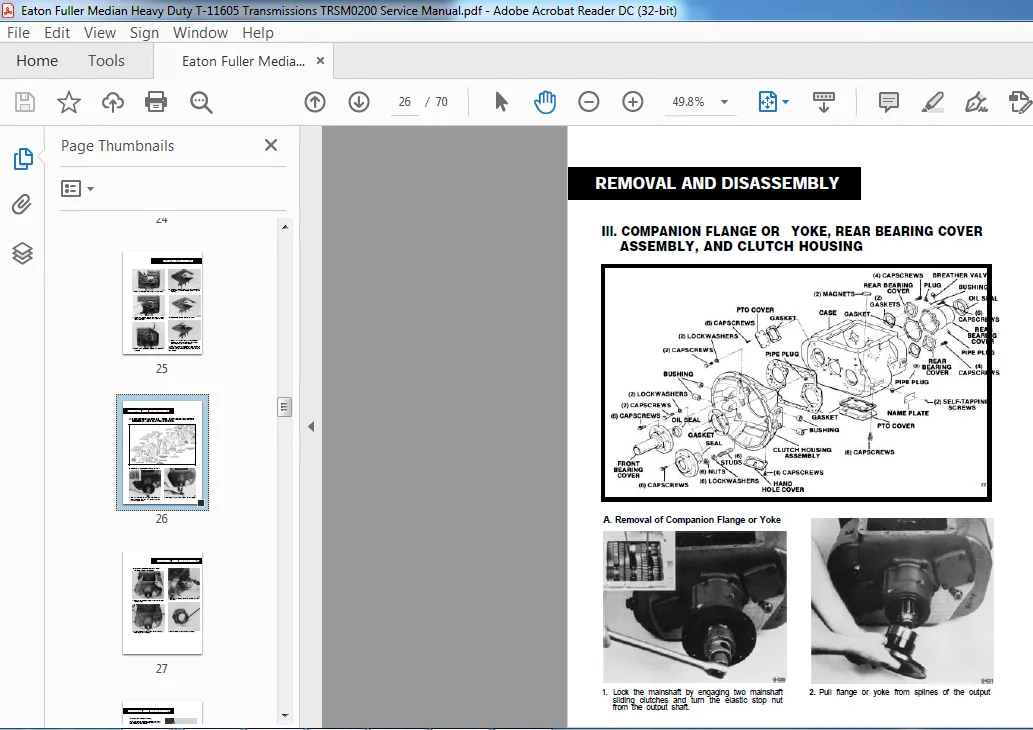

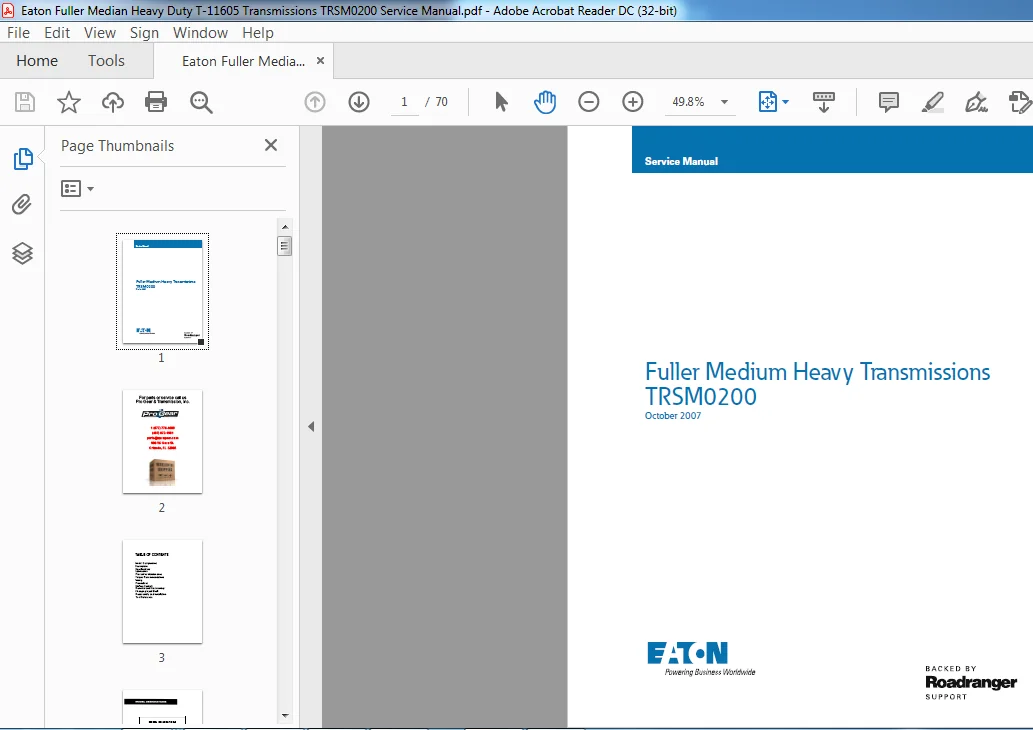

IMAGES PREVIEW OF THE MANUAL:
