Dynapac Vibratory roller CC950 Operating & Maintenance Instruction Manual 4812164101_A – PDF DOWNLOAD
FILE DETAILS:
Dynapac Vibratory roller CC950 Operating & Maintenance Instruction Manual 4812164101_A – PDF DOWNLOAD
Language : English
Pages : 143
Downloadable : Yes
File Type : PDF
Size: 12.8 MB
DESCRIPTION:
Dynapac Vibratory roller CC950 Operating & Maintenance Instruction Manual 4812164101_A – PDF DOWNLOAD

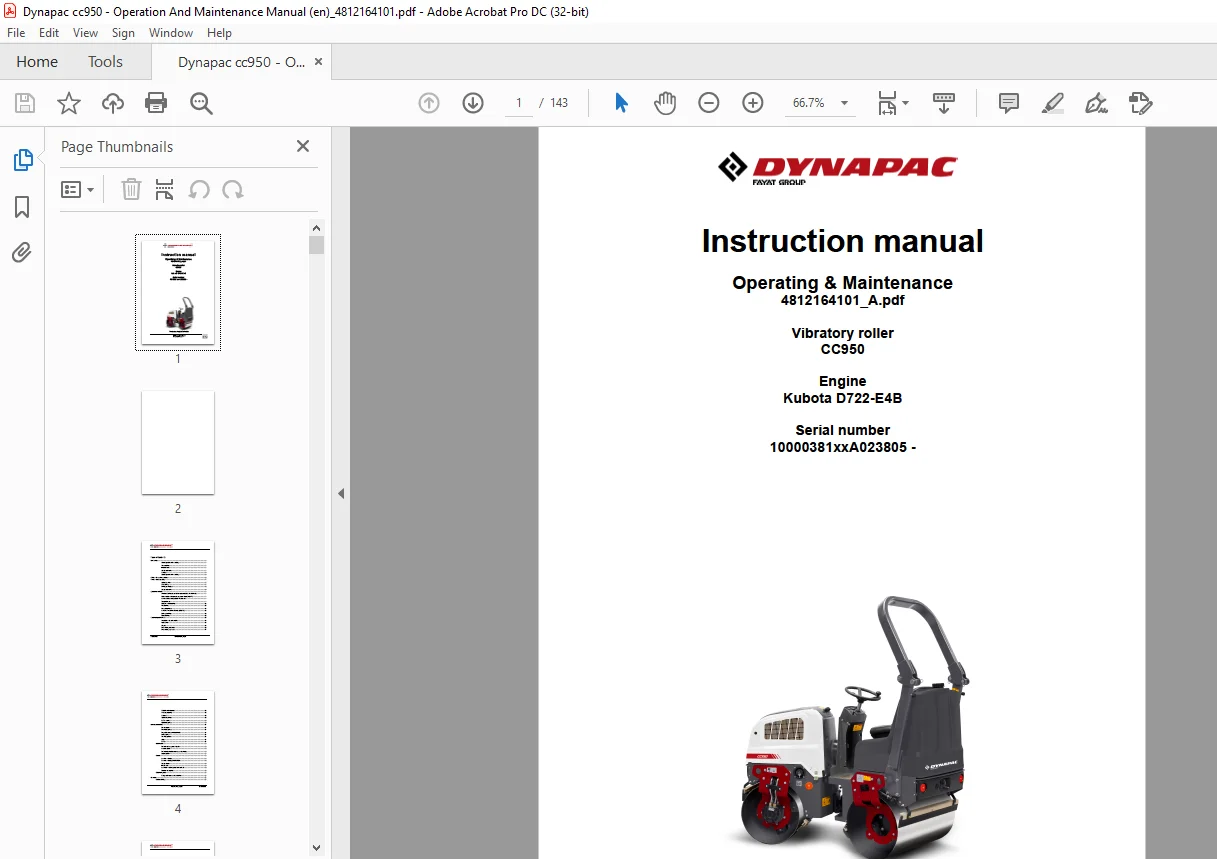

Operating & Maintenance
4812164101_A.pdf
Vibratory roller
CC950
Engine
Kubota D722-E4B
Serial number
10000381xxA023805
Introduction:
Signal symbols and meaning
The machine:
Dynapac CC950 is a vibratory tandem roller in the 1,5 metric tonnes class featuring 900 mm wide drums. The machine is equipped with drive and brakes on both drums, and vibration on front drum.
Intended use:
CC950 is primarily used for smaller compaction works, such as minor roads, sidewalks, cycle ways and minor parking places.
- This manual contains instructions for machine operation and maintenance.
- The machine must be correctly maintained for maximal performance.
- The machine should be kept clean so that any leakages, loose bolts and loose connections are discovered at as early a point in time as possible.
- Do not spray with high-pressure cleaner directly onto gaskets and bearing spacings in steering hitch and drum, and electronics.
- Inspect the machine every day, before starting. Inspect the entire machine so that any leakages or other faults are detected.
- Check the ground under the machine. Leakages are more easily detected on the ground than on the machine itself.

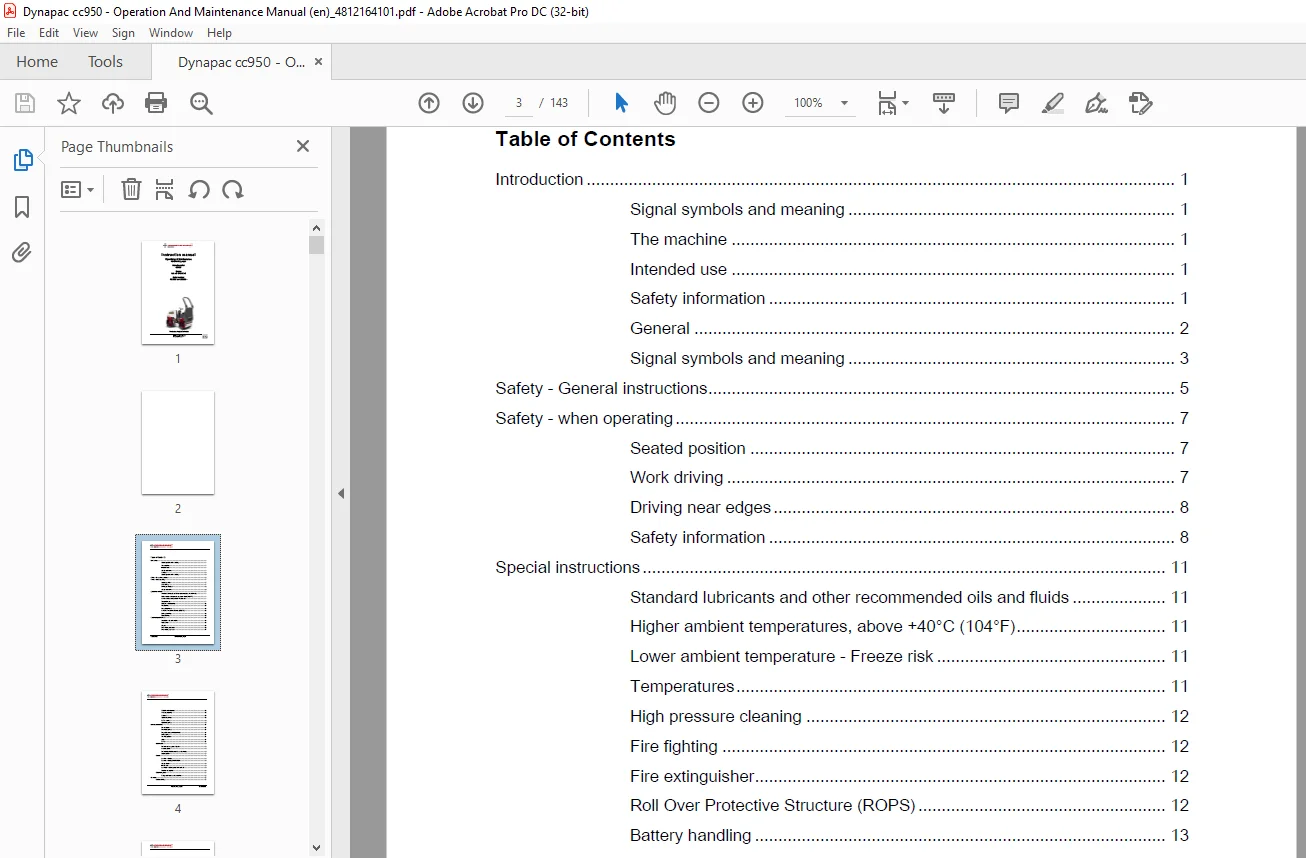

TABLE OF CONTENTS:
Dynapac Vibratory roller CC950 Operating & Maintenance Instruction Manual 4812164101_A – PDF DOWNLOAD
Introduction 1
Signal symbols and meaning 1
The machine 1
Intended use 1
Safety information 1
General 2
Signal symbols and meaning 3
Safety – General instructions 5
Safety – when operating 7
Seated position 7
Work driving 7
Driving near edges 8
Safety information 8
Special instructions 11
Standard lubricants and other recommended oils and fluids 11
Higher ambient temperatures, above +40°C (104°F) 11
Lower ambient temperature – Freeze risk 11
Temperatures 11
High pressure cleaning 12
Fire fighting 12
Fire extinguisher 12
Roll Over Protective Structure (ROPS) 12
Battery handling 13
Jump starting 13
Technical specifications 15
Vibrations – Operator station 15
Noise level 15
Slopes 15
Dimensions, side view 16
Dimensions, top view 17
4812164101_A pdf 2022-02-09
Weights and volumes 18
Working capacity 18
General 18
Tightening torque 19
ROPS – bolts 20
Hydraulic system 20
Machine description 21
Diesel engine 21
Electrical system 21
Propulsion system/Transmission 21
Brake system 21
Steering system 21
Seat 21
ROPS 21
Identification 22
Product and component plates 22
Machine plate 23
Product identification number on the frame 23
Engine plates 24
Decals 25
Location – decals 25
Location – decals, CALIFORNIA 26
Safety decals 26
Info decals 29

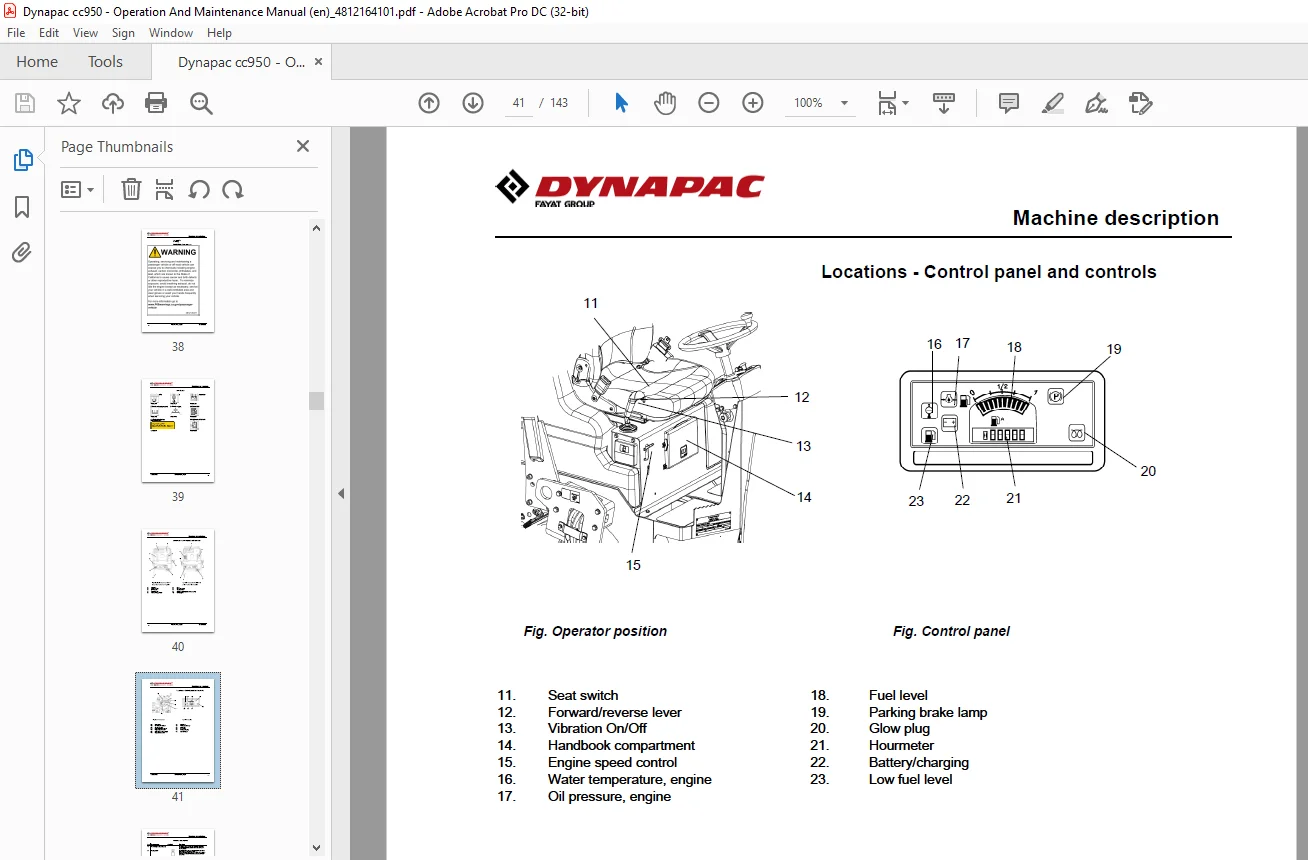

Locations – Control panel and controls 30
Function description 32
Electrical system 34
Relays and fuses on the machine 34
Operation 37
Before starting 37
2022-02-09 4812164101_A pdf
Battery isolation switch – On 37
Operator’s seat – Adjusting 37
Instruments and lamps – Checking 38
Sprinkler – Check 39
On machine with pressurized sprinkler system: 39
Parking brake 40
Emergency stop 40
Interlock 41
Operator position 42
View 43
Starting 44
Starting the engine 44
Driving 45
Operating the roller 45
Interlock/Emergency stop/Parking brake – Check 46
Vibration 46
Manual vibration – Switching on 46
Braking 47
Service brake 47
Reserve brake 47
Emergency stop 48
Switching off 48
Parking 49
Chocking the drums 49
Battery disconnector 49
Long-term parking 51
Engine 51
Battery 51
Air cleaner, exhaust pipe 51
Sprinkler system 51
4812164101_A pdf 2022-02-09
Fuel tank 51
Hydraulic reservoir 52
Steering cylinder, hinges, etc 52
Engine coolant 52
Hoods, tarpaulin 52
Miscellaneous 53
Locking the articulation 53
Lifting the roller 53
Unlocking the articulation 53
Transport 54
Securing CC950 for loading 55
Securing
CC950 for loading (Side along the trailer) 57
Retractable ROPS (Optional) 59
Towing/Recovering 59
Towing the roller 60
Releasing the brake 61
Operating instructions – Summary 63
Preventive maintenance 65
Acceptance and delivery inspection 65
Warranty 65
Maintenance – Lubricants and symbols 67
Maintenance symbols 69
Maintenance – Maintenance schedule 71
Service and maintenance points 71
General 72
Every 10 hours of operation (Daily) 72
After the FIRST 50 hours of operation 73
Every 50 hours of operation 73
Every 200 / 600 / 1400 / 1800 hours of operation 74
2022-02-09 4812164101_A pdf
Every 400 / 800 / 1200 / 1600 hours of operation 74
Every 1000 hours of operation 75
Every 2000 hours of operation 76
Service – Checklist 77
Maintenance, 10h 79
Diesel engine Check oil level 79
Hydraulic reservoir cap – Check 80
Warning lamps – Check 80
Water tank – Filling 81
Sprinkler system – Check, cleaning 82
On machine with pressurized sprinkler system: 82
Sprinkler system/Drum
Cleaning of sprinkler nozzle 83
Air circulation – Check 83
Air cleaner – check 84
Coolant, Level check – filling 85
Refueling 86
Scrapers, spring-action (Optional)
Checking – Adjustment 86
Scrapers, fixed
Checking – Setting 87
Brakes – Check 88
Maintenance – 50h 89
Engine oil and oil filter – Change 90
Hydraulic fluid filter – Change 91
Engine’s fuel filter – Change 91
Belt tension on the hydraulic vibration and steering pump drive belt –
Check 92
Engine’s fuel filter – Chean 93
Fuel pipes – Check 94
Air cleaner – Clean 94
4812164101_A pdf 2022-02-09
Rubber elements and fastening screws – Check 95
Fan belt tension – Check 95
Water seperator – Drain 96
Belt tension on the hydraulic vibration and steering pump drive belt –
Check 96
Drum bearing seat – Check and lubrication 96
Maintenance – 200 / 600 / 1400 / 1800 h 97
Forward / Reverse controls and joints
– Check and lubrication 97
Engine oil and oil filter – Change 98
Outside radiator core – Chean 99
Radiator hoses and clamp bands – Check 99
Intake air line – Check 100
Maintenance – 400 / 800 / 1200 / 1600 h 101
Engine’s fuel filter – Change 101
Water seperator in fuel tank – Clean 102
Forward / Reverse controls and joints
– Check and lubrication 102
Engine oil and oil filter – Change 104
Outside radiator core – Chean 105
Radiator hoses and clamp bands – Check 105
Intake air line – Check 106
Fan belt tension – Check 106
Air cleaner filter element – Change 107
Hydraulic reservoir cap – Check 107
Steering joint – Check 108
Front drum – Checking the oil level 108
Belt tension on the hydraulic vibration and steering pump drive belt –
Check 109
Maintenance – 1000h 111
Forward / Reverse controls and joints
– Check and lubrication 111
2022-02-09 4812164101_A pdf
Outside / Inside radiator core – Clean 112
Fan belt – Change 113
Engine oil and oil filter – Change 114
Engine valve clearance – Check 115
Cooling freezing point – Check 115
Air cleaner filter element – Change 116
Hydraulic reservoir cap – Check 116
Hydraulic fluid filter – Change 117
Steering joint – Check 117
Front drum – Changing the oil 118
Front drum – Checking the oil level 118
Valve gasket – Change 119
Belt tension on the hydraulic vibration and steering pump drive belt –
Check 119
Maintenance – 2000h 121
Water tank – Cleaning 121
On machines equipped with a pressurized sprinkler system: 121
Outside / Inside radiator core – Clean 122
Fan belt – Change 123
Engine’s fuel filter – Change 123
Engine oil and oil filter – Change 124
Engine breather valve – Change 125
Fuel tank – Cleaning 125
Engine valve clearance – Check 126
Cooling freezing point – Check 126
Air cleaner filter element – Change 127
Hydraulic fluid filter – Change 127
Hydraulic reservoir cap – Check 128
Hydraulic reservoir – fluid change 129
Steering joint – Check 130
4812164101_A pdf 2022-02-09
Front drum – Changing the oil 130
Forward / Reverse controls and joints
– Check and lubrication 131
Belt tension on the hydraulic vibration and steering pump drive belt –
Check
