DYNAPAC CC224CHF Spare Parts Catalogue SCC224CHF-2EN2 – PDF DOWNLOAD
TABLE OF CONTENTS:
DYNAPAC CC224CHF Spare Parts Catalogue SCC224CHF-2EN2 – PDF DOWNLOAD

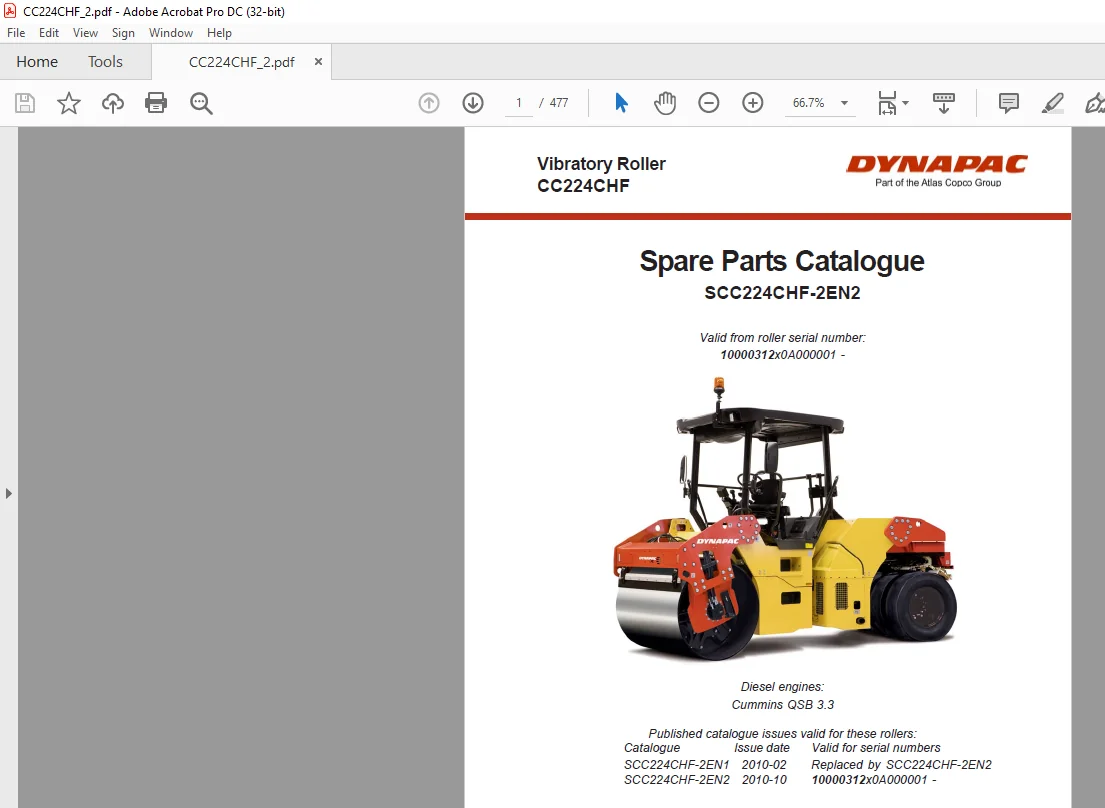

Vibratory Roller
CC224CHF
Spare Parts Catalogue
SCC224CHF-2EN2
Valid from roller serial number:
10000312x0A000001
Diesel engines:
Cummins QSB 3.3
Published catalogue issues valid for these rollers:
Catalogue Issue date Valid for serial numbers
SCC224CHF-2EN1 2010-02 Replaced by SCC224CHF-2EN2
SCC224CHF-2EN2 2010-10 10000312x0A000001 –
CC224CHF SN 10000312x 0A000001 – 2
Service kits 4
4700950174 Service kit 50h, Cummins QSB 3.3 6
4700939076 Service kit 250 / 750 h 8
4700950175 Service kit 500h, Cummins QSB 3.3 10
4700950176 Service kit 1000h, Cummins QSB 3.3 12
Repair kits 14
4812155792 Eccentric shaft kit CC224HF/324HF/384HF 16
4812155791 Scraper kit CC224HF/234HF 18
4812155158 Shock absorber kit, drum CC224HF/324HF/384HF 20
Frame 22
Front frame 24
Front frame module 26
4700391023 Steering cylinder 28
Steering hitch lock 30
Tank structure module 32
Sprinkler tank structure mount 34
4700391307 Cover 36
Hose support 38
Hitch module 40
Steering hitch 42
Grab handle module 44
Rear frame 46
Rear frame 48
Cover 50
Engine structure, module 52
Engine structure 54
Engine cover, left 56
Engine cover, right 58
Hose support 38
Radiator assembly 60
Fan assembly 62
Noise suppression plates 64
4700396638 Noise suppression kit, covers 66
Stabilizer module 68
Sprinkler system 70
Sprinkler pump module 72
Sprinkler pump 74
Sprinkler pump 76
Sprinkler pump, backup 78
Filling pipe 80
Locking device module 82
Water hoses 84
Emulsion tank module 86
Emulsion tank mount 88
Sprinkler pump module, emulsion 90
Sprinkler pump mount Up to 0A004000 92
Sprinkler box cpl 94
Sprinkler pump mount From 0A004001 96
Sprinkler box cpl 94
Sprinkler pipe module, wheel 98
TC 2
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Sprinkler pipe 100
End frame, front 102
End frame, front 104
Frame assy 106
Fork, vibration side 108
Fork, propulsion side 110
Cover plate 112
Hose clamp, propulsion side 114
Hose clamp, vibration side 116
Step, vibration side 118
Scraper module, without nozzles 120
Scraper assy 122
Scraper module, with nozzles 124
Scraper assy with nozzles 126
4700394340 Scraper bracket, cpl 128
Grab handle, release 130
Grab handle, release 132
Grab handle, lift 134
Grab handle, lift offset/cocoa mat 136
Eyelet module 138
Cocoa mat module 140
Cocoa mat assembly 142
Cocoa mat bracket module 144
Cocoa mat bracket 146
Process mirrors 148
End frame, rear 150
End frame, rear 152
Frame assy 154
Combi unit, basic kit 156
4700394922 Gear 158
Hydraulic motor 160
Connection block 162
Micro switch 164
Wheel module 166
Wheel 168
Wheel spacer module 170
Scraper bracket 172
Scraper module 174
Scraper assy 176
Step assy 178
Cover plate 112
SMV-sign 180
Protecting covers 182
Drum 184
Drum 186
Drum bearing 188
Drive unit 190
4700392453 Drum gear 192
Vibrating unit 194
Engine 196
Engine room 198
Engine 200
TC 3
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Engine module 202
Air cooler hoses 206
Water cooler hoses 208
Air cleaner module 210
Air cleaner hose module 212
Muffler 214
Exhaust pipe module 216
Fuel hose module 218
Charge air cooler 220
Water cooler 222
Expansion tank assembly 224
Coolant hoses 226
Hydraulic system 228
Hydraulic system, front drum 230
Hydraulic system, frame 232
Hydraulic system, engine room 234
Hydraulic valve module 236
Hydraulic valve 238

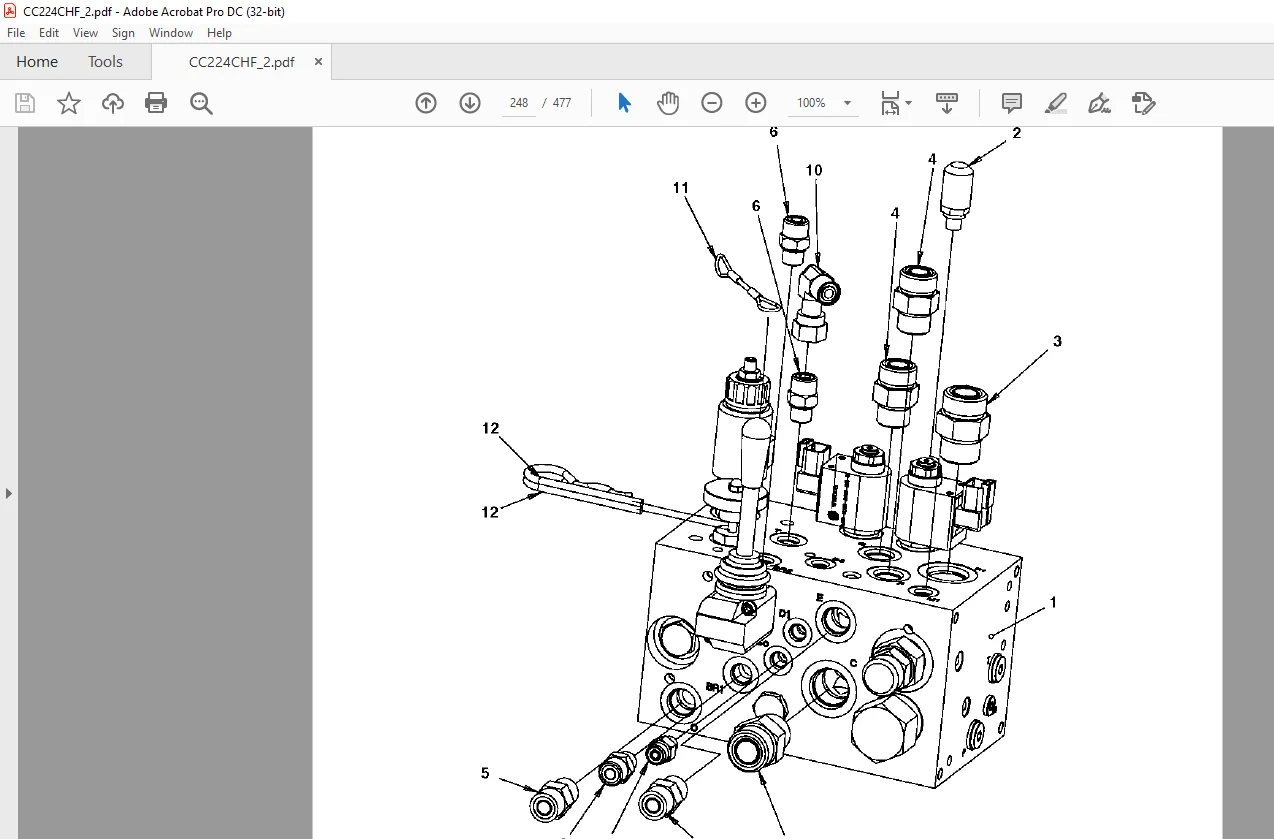

4700395924 Hydraulic valve 240
Hydraulic pump module 242
Hydraulic pump 244
Hydraulic system, steering Std 246
Hose bracket 248
Hydraulic steering, sliding seat 250
Steering, slideable 252
Hydraulic valve module, offset/combi 254
Hydraulic valve 256
4700391017 Hydraulic valve 258
Electrical equipment 260
Electric cables, power supply 262
Battery disconnector 264
Battery disconnector 266
Electric cables, power supply cab 268
Electric cables, engine – ECU 270
Standard ECU module 272
Standard ECU assembly 274
Electric cables, sensors/ horn/ back-up alarm 276
Horn module 278
Horn 280
Back-up alarm module 282
Back-up alarm 284
Tachograph 286
Tachograph holder module 288
Cable harness kit 290
Power supply module 292
Driving & side direction lights 294
Driving lights, front RH 296
Driving lights, front LH 298
Steering column switch module 300
Cable harness and switch module 302
Registration plate light module 304
Registration plate light 306
TC 4
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Driving lights, rear 308
Turn signals 310
Rotating beacon, working light 312
Rotating beacon module 314
Rotating beacon module 316
Rotating beacon mount 318
Working light module H3 320
Working light module Xenon 322
Drivers platform 324
Platform, no cab 326
Platform with 4-post ROPS 328
Rear covers 330
Platform no ROPS 332
Cover module 334
Manual box 336
Hand rail, left 338
Hand rail 340
Hand rail, right 342
Hand rail 344
Hand rail 346
Lunch box module 348
Canopy option 350
Canopy assy 352
Bracket 354
Cab, asymmetric 356
4700390865 Cab, cpl 358
Cab frame, right side 360
General parts 362
Windshield wiper, front 364
Windshield wiper, rear 366
Windshield washer reservoir 368
Electric equipment 370
Door frame 372
4700395806 Door 374
Cab screens 376
Rear covers 330
Air channel 378
Heater unit 380
Heater 382
Heater controls 384
Manual box 336
Cab heater system 386
Heater hoses 388
Cab noise cover 390
Radio and cd player 392
Rear view mirror module 394
Drivers seat 396
Seat frame structure 398
Seat frame 400
Steering column 402
Seat, galon suspensioned 404
Seat, fabric suspensioned 406
Controls, slidable and turning 408
TC 5
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Cross sliding 410
Carrier 412
Drive control, cpl 414
Drive control 416
Display unit 418
Control panel cover 420
Decals 422
Decals 424
Optional equipment 426
Air conditioning 428
Compressor module 430
Compressor complete 432
Condensor module 434
Condensor 436
Evaporator module 438
4700393584 Evaporator unit 440
Hose kit AC 442
Hose kit AC 444
Hose kit Compressor 446
Hose kit AC 448
ACC module 450
ACC controls 452
Belt guard module 454
Fire extinguisher/First Aid Cushion 456
Fire extinguisher assembly 458
