Dynapac CC102C Spare Parts Catalogue SCC102C-2EN3 – PDF DOWNLOAD
TABLE OF CONTENTS:
Dynapac CC102C Spare Parts Catalogue SCC102C-2EN3 – PDF DOWNLOAD
Vibratory Combination Roller
CC1 02C
Spare Parts Catalogue
SCC1OZC-2EN3
Valid from roller serial number:
*607 77500*- *607 77762* CC102C DEUTZ
*60727500* – *60 727762* CC102C ISUZU
Diesel engines:
DEUTZ F2L 2011
ISUZU 3LD1 PW—05
Published catalogue issues valid for these rollers:
Catalogue Issue date Valid for serial numbers
SCC 102C—2EN1 2004-07 Replaced by SCC 102C—2EN2
SCC 102C—2EN2 2005-03 Replaced by SCC 102C—2EN3
SCC 102C—2EN3 2006-07 See above
CC102C SN 601X7500 – 601X7762 2
Service kits 4
Service kits 6
938542 Service kit, Deutz F2L 1011F/2011, F3L 2011 50 h 8
938539 Service kit, Isuzu 50 h 10
938543 Service kit, Deutz F2L 1011F/2011, F3L 2011 500 h 12
938540 Service kit, Isuzu 500 h 14
938544 Service kit, Deutz F2L 1011F/2011 1000 h 16
938541 Service kit, Isuzu 1000 h 18
Repair kits 20
Repair kits 22
938908 Eccentric shaft kit 24
938892 Drum rotation kit 26
938913 Scraper kit CC102 – (12 mm) 28
938885 Shock absorber kit, drum 30
938575 Steering hitch kit 32
Frame 34
Frames 36
Scrapers, standard drum Up to 601X7649 38
Scrapers, STD From 601X7650 Up to 601X9029 40
Scrapers, STD From 601X9030 42
Scrapers, spring loaded, front drum Up to 601X7649 44
Scrapers, spring loaded From 601X7650 46
Scrapers, wheels 48
Steering hitch 50
Structure DEUTZ, F2L Up to 601X8206 52
Structure DEUTZ, F2L From 601X8207 56
Structure ISUZU 60
Sprinkler system Front tank 64
Sprinkler, front/rear Up to 601X7649 66
Sprinkler, front/rear From 601X7650 70
Drum 72
Drum 74
Wheels 76
Engine 78
Engine DEUTZ F2L 2011 80
Engine ISUZU 3LD1 PW-05 84
Cooling system ISUZU 86
Intake system DEUTZ 88
Intake system ISUZU 90
Fuel system DEUTZ 92
Fuel system ISUZU 94
Exhaust system DEUTZ 96
Exhaust system ISUZU 98
Hydraulic system 100
Hydraulic diagram 102
Propulsion system DEUTZ, ISUZU 104
372352 Hydraulic pump, propulsion 108
Rotating group, valves, charge pump 110
TC 2
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Control unit, cpl 112
375631 Hydraulic motor, propulsion, drum 114
375632 Hydraulic motor, propulsion 116
380736 Junction block 118
Vibration system DEUTZ 120
Vibration system ISUZU 122
359524 Hydraulic pump, vibration DEUTZ 126
375649 Hydraulic pump, vibration ISUZU 128
370173 Vibration valve ISUZU 130
Steering system Up to 601X7956 132
Steering system From 601X7957 Up to 601X8939 134
Steering system From 601X8940 136
902099 Steering valve 138
374603 Steering cylinder 140
Brake system DEUTZ / ISUZU 142
Electrical equipment 144
Electrical equipment DEUTZ Up to 601X7525 146
Electrical equipment DEUTZ From 601X7526 150
Electrical equipment ISUZU 154
Control panel 158
Electric battery switch DEUTZ 162
Interlock 164
Interlock Loxam From 601X8311 166
Sprinkler timer 168
Driving & side direction lights Up to 601X7576 170
Driving & side direction lights From 601X7577 174
Working lights 178
Licence plate light, parking lights 180
Rotating beacon 182
Drivers platform 184
Drivers platform 186
Control panel 188
Arm rests, seat belt, laterally adjusting 190
Comfort drivers seat, laterally adjusting and seat belt 192
Bench 194
Engine and forward/reverse controls DEUTZ 196
Engine and forward/reverse controls ISUZU 198
F/r controls dual, control panel mounted 200
F/r control dual left side, platform mounted 202
Rops and fops 204
Decals 206
Plates and decals, ce-marking approved 208
Standard equipment 212
Standard equipment 214
Optional equipment 216
Cab, exterior Up to 601X8560 218
Cab, interior Up to 601X8560 224
Cab, heater Up to 601X8560 226
Canopy 228
SMV sign 230
Tool equipment 232
Noise suppression DEUTZ , 78 dB Up to 601X8206 234
TC 3
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Noise suppression DEUTZ , 78 dB From 601X8207 236
Noise suppression DEUTZ , 73 dB Up to 601X8206 238
Noise suppression DEUTZ , 73 dB From 601X8207 240
Noise suppression ISUZU 242
Back-up alarm 244
Rear mirror 246
Combination water supply 248
Combination water supply 2 rear sprinkler pipes 250
Brake release, propulsion motor 252
Cassette receiver 254
Towing valve 256
Flow divider 258
Vibration shut-off, front drum DEUTZ 260
Vibration shut-off, front drum ISUZU 262
Automatic vibration control 264
Service brake 266
Driving, restriction 268
Bio-hydraulic oil lock Old design 270
Service kits 4
Service kits 6
938542 Service kit, Deutz F2L 1011F/2011, F3L 2011 50 h 8
938539 Service kit, Isuzu 50 h 10
938543 Service kit, Deutz F2L 1011F/2011, F3L 2011 500 h 12
938540 Service kit, Isuzu 500 h 14
938544 Service kit, Deutz F2L 1011F/2011 1000 h 16
938541 Service kit, Isuzu 1000 h 18
Repair kits 20
Repair kits 22
938908 Eccentric shaft kit 24
938892 Drum rotation kit 26
938913 Scraper kit CC102 – (12 mm) 28
938885 Shock absorber kit, drum 30
938575 Steering hitch kit 32
Frame 34
Frames 36
Scrapers, standard drum Up to 601X7649 38
Scrapers, STD From 601X7650 Up to 601X9029 40
Scrapers, STD From 601X9030 42
Scrapers, spring loaded, front drum Up to 601X7649 44
Scrapers, spring loaded From 601X7650 46
Scrapers, wheels 48
Steering hitch 50
Structure DEUTZ, F2L Up to 601X8206 52
Structure DEUTZ, F2L From 601X8207 56
Structure ISUZU 60
Sprinkler system Front tank 64
Sprinkler, front/rear Up to 601X7649 66
Sprinkler, front/rear From 601X7650 70
Drum 72
Drum 74
Wheels 76
Engine 78
Engine DEUTZ F2L 2011 80
Engine ISUZU 3LD1 PW-05 84
Cooling system ISUZU 86
Intake system DEUTZ 88
Intake system ISUZU 90
Fuel system DEUTZ 92
Fuel system ISUZU 94
Exhaust system DEUTZ 96
Exhaust system ISUZU 98
Hydraulic system 100
Hydraulic diagram 102
Propulsion system DEUTZ, ISUZU 104
372352 Hydraulic pump, propulsion 108
Rotating group, valves, charge pump 110
TC 2
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Control unit, cpl 112
375631 Hydraulic motor, propulsion, drum 114
375632 Hydraulic motor, propulsion 116
380736 Junction block 118
Vibration system DEUTZ 120
Vibration system ISUZU 122
359524 Hydraulic pump, vibration DEUTZ 126
375649 Hydraulic pump, vibration ISUZU 128
370173 Vibration valve ISUZU 130
Steering system Up to 601X7956 132
Steering system From 601X7957 Up to 601X8939 134
Steering system From 601X8940 136
902099 Steering valve 138
374603 Steering cylinder 140
Brake system DEUTZ / ISUZU 142
Electrical equipment 144
Electrical equipment DEUTZ Up to 601X7525 146
Electrical equipment DEUTZ From 601X7526 150
Electrical equipment ISUZU 154
Control panel 158
Electric battery switch DEUTZ 162
Interlock 164
Interlock Loxam From 601X8311 166
Sprinkler timer 168
Driving & side direction lights Up to 601X7576 170
Driving & side direction lights From 601X7577 174
Working lights 178
Licence plate light, parking lights 180
Rotating beacon 182
Drivers platform 184
Drivers platform 186
Control panel 188
Arm rests, seat belt, laterally adjusting 190
Comfort drivers seat, laterally adjusting and seat belt 192
Bench 194
Engine and forward/reverse controls DEUTZ 196
Engine and forward/reverse controls ISUZU 198
F/r controls dual, control panel mounted 200
F/r control dual left side, platform mounted 202
Rops and fops 204
Decals 206
Plates and decals, ce-marking approved 208
Standard equipment 212
Standard equipment 214
Optional equipment 216
Cab, exterior Up to 601X8560 218
Cab, interior Up to 601X8560 224
Cab, heater Up to 601X8560 226
Canopy 228
SMV sign 230
Tool equipment 232
Noise suppression DEUTZ , 78 dB Up to 601X8206 234
TC 3
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
Noise suppression DEUTZ , 78 dB From 601X8207 236
Noise suppression DEUTZ , 73 dB Up to 601X8206 238
Noise suppression DEUTZ , 73 dB From 601X8207 240
Noise suppression ISUZU 242
Back-up alarm 244
Rear mirror 246
Combination water supply 248
Combination water supply 2 rear sprinkler pipes 250
Brake release, propulsion motor 252
Cassette receiver 254
Towing valve 256
Flow divider 258
Vibration shut-off, front drum DEUTZ 260
Vibration shut-off, front drum ISUZU 262
Automatic vibration control 264
Service brake 266
Driving, restriction 268
Bio-hydraulic oil lock Old design 270

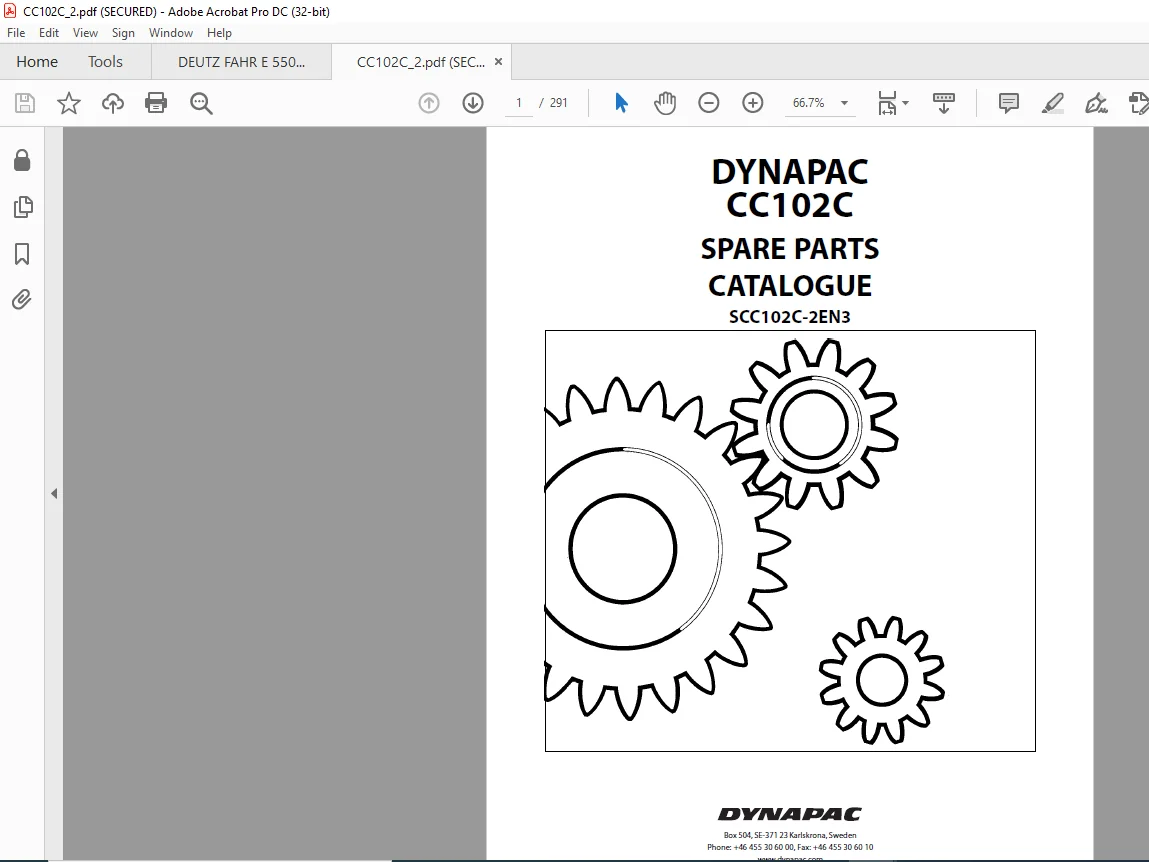

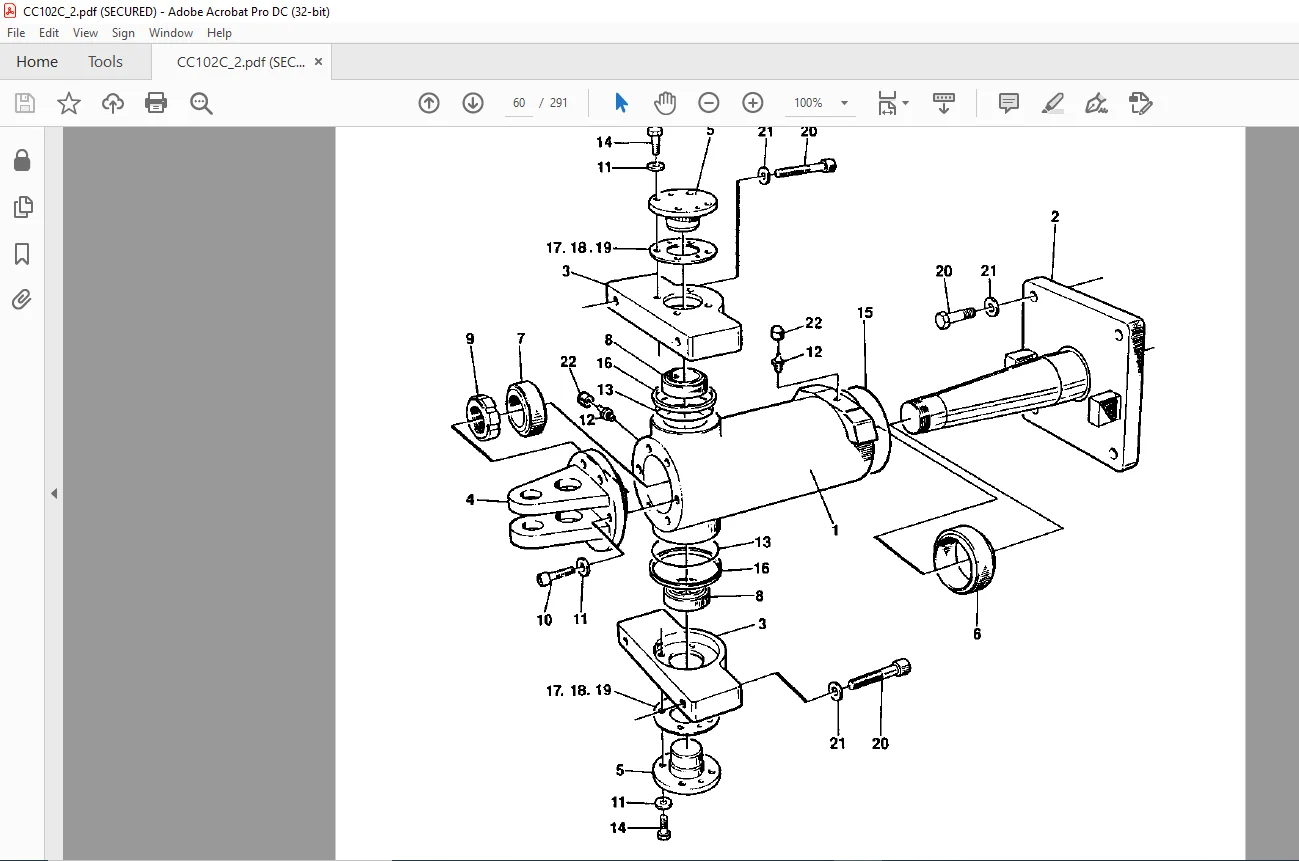

IMAGES PREVIEW OF THE MANUAL:
