Dynapac CC1000 Vibratory Roller Spare parts Catalogue Manual – PDF DOWNLOAD
FILE DETAILS:
Dynapac CC1000 Vibratory Roller Spare parts Catalogue Manual – PDF DOWNLOAD
Language : English
Pages :180
Downloadable : Yes
File Type : PDF

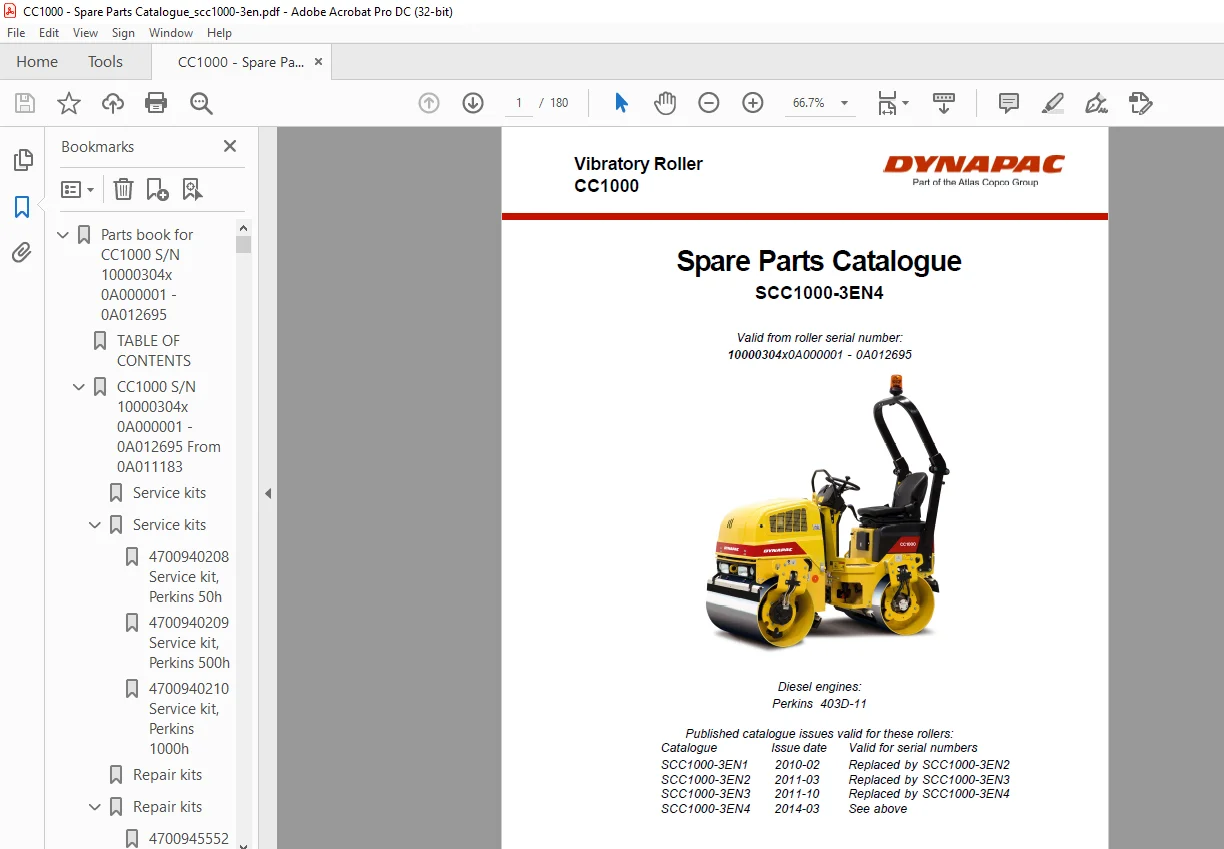

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Dynapac CC1000 Vibratory Roller Spare parts Catalogue Manual – PDF DOWNLOAD
SCC1000-3EN4
Valid from serial number:
10000304x0A000001 – 0A012695
Diesel engines:
Perkins 403D-11
Published catalogue issues valid for these rollers:
Catalogue Issue date Valid for serial numbers
SCC1000-3EN1 2010-02 Replaced by SCC1000-3EN2
SCC1000-3EN2 2011-03 Replaced by SCC1000-3EN3
SCC1000-3EN3 2011-10 Replaced by SCC1000-3EN4
SCC1000-3EN4 2014-03 See above
SCC624HF-2EN1
CC1000 S/N 10000304x 0A000001 – 0A012695 2
Service kits 4
4700940208 Service kit, Perkins 50h 6
4700940209 Service kit, Perkins 500h 8
4700940210 Service kit, Perkins 1000h 10
Repair kits 12
4700945552 Shock absorber kit, drum 14
4700940673 Scraper blade, kit 16
4700945928 Repair kit, Steering hitch 18
4700945710 Eccentric shaft kit 20
4700945711 Drum rotation kit 22
Frame 24
Frames 26
4700377621 Hitch 28
Scrapers 30
Engine hood 32
Sprinkler system Up to A004853 34
Sprinkler system From A004854 36
Drum 38
Drum 40
Engine 42
Engine Perkins 403D-11 44
Cooling system 48
Exhaust system 50
Fuel system 52
Air intake system 54
Hydraulic system 56
Hydraulic propulsion and brake system motor 58
4700387270 Hydraulic motor 60
Hydraulic propulsion and brake system pump Up to 0A012638 62
4700387269 Hydraulic pump 64
Rotary group 66
Port plate 68
Pressure valve 70
4812156761 Pressure valve 72
Gear pump 74
Control mechanism 76
Hydraulic propulsion and brake system pump From 0A012639 Up to 0A012680 78
Hydraulic propulsion and brake system pump From 0A012681 Up to 0A012681 62
TC 2
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
4700387269 Hydraulic pump 64
Rotary group 66
Port plate 68
Pressure valve 70
4812156761 Pressure valve 72
Gear pump 74
Control mechanism 76
Hydraulic propulsion and brake system pump From 0A012682 Up to 0A012688 78
Hydraulic propulsion and brake system pump From 0A012689 Up to 0A012689 62
4700387269 Hydraulic pump 64
Rotary group 66
Port plate 68
Pressure valve 70
4812156761 Pressure valve 72
Gear pump 74
Control mechanism 76
Hydraulic propulsion and brake system pump From 0A012690 78
Hydraulic vibration 80
4700390316 Hydraulic motor 82
4700395520 Hydraulic pump 84
Hydraulic steering 86
4700387274 Steering valve 88
4700387275 Hydraulic cylinder 90
Hydraulic propulsion and brake system pump 62
4700387269 Hydraulic pump 64
Rotary group 66
Port plate 68
Pressure valve 70
4812156761 Pressure valve 72
Gear pump 74
Control mechanism 76
Electrical equipment 92
Electrical equipment 94
Electrical equipment From A003970 Up to A007191 96
Electrical equipment From A007192 98
Control panel, relays 100
Driving lights Option 102
Driving lights Option 104
Working lights Option 106
Rotating beacon with Rops Option 108
Back-up alarm 110
Drivers platform 112
Drivers seat 114
Drivers seat From 0A010689 116
F/R- and throttle control Up to 0A011033 118
TC 3
TABLE OF CONTENTS Page
Dynapac Compaction Equipment AB
F/R- and throttle control From 0A011034 Up to 0A012638 120
F/R- and throttle control From 0A012369 122
Forward and reverse control handle Up to 0A011033 124
4812118838 Forward / Reverse Control From 0A011034 126
Dual forward/reverse control Option Up to 0A011182 128
Dual forward/reverse control Option From 0A011183 130
Rops Option 132
377256 Cup holder Option 134
Decals and documentation 136
Decals and documentation 138
Standard equipment 140
Standard equipment 142
Optional equipment 144
Battery disconnector 146
Water tank, option 148
SMV-sign 150
SMV-sign Mounting on watertank 152
SMV-sign on high water tank 154
Registrations – plate with light 156
Hydraulic vibration, shut off front/rear drum 158
4700387276 Combination valve 160
Rear view mirror 162
Tool equipment 164
