DYNAPAC CA6500 Vibratory Roller Parts Catalog Manual 4812163172 PDF DOWNLOAD
FILE DETAILS:
DYNAPAC CA6500 Vibratory Roller Parts Catalog Manual 4812163172 PDF DOWNLOAD
Language : English
Pages : 556
Downloadable : Yes
File Type : PDF
TABLE OF CONTENTS:
DYNAPAC CA6500 Vibratory Roller Parts Catalog Manual 4812163172 PDF DOWNLOAD

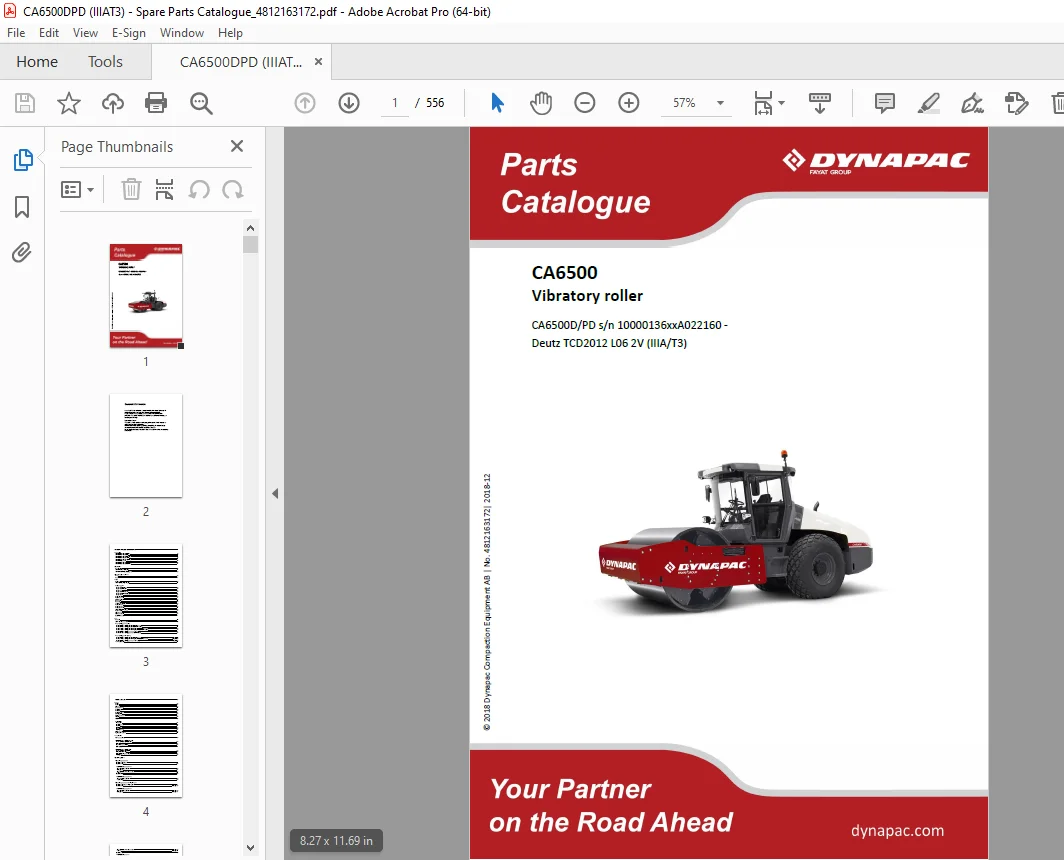

CA6500D/PD s/n 10000136xxA022160 –
Deutz TCD2012 L06 2V (IIIA/T3)
CA6500D/PD (IIIA/T3) SN 10000136xxA022160 – 1
Service kits
4812156993 Service kit, 50h Plus 3
4812156994 Service kit, 500h 5
4812157363 Service kit, 500h Plus 7
4812156995 Service kit, 1000h 9
4812157277 Service kit, 1000h Plus 11
4812157254 Start up kit 13
4812158053 Service kit, 2000h 15
4812157255 Service kit, 2000h Plus 17
Repair kits
Eccentric shaft kit 19
4812157275 Drum rotation kit 21
4812157276 Shock absorber kit, drum 23
General – Keys and others
Fuses 25
Keys 27
Frame
Frame, front 29
4812117507 Steering hitch, cpl 31
Scrapers, option
Scraper module Hardox 33
Scraper module Rubber 35
Scraper assy 37
Scraper module PD Hardox 39
Scraper module PD Heavy duty 41
Scraper mount 43
Frame, rear 45
Frame rear module 47
Cover assembly 49
Step module 51
Step assy 53
Tool box module, Option 55
Engine structure 57
Engine hood module 59
Engine hood mount 61
4812118994 Lock handle, cpl 63
Fender module 65
Hinge module 67
Gas spring module 69
Safety link module 71
Drum
Drum, cpl 73
4812111831 Drum gear, cpl 76
Drum cartridges (D-version)
4812157393 Drum cartridge, vibration side (D/PD version) 79
4812157394 Drum cartridge, vibration side (VM/VP 3-class) 81
4812157784 Drum cartridge with shaft nut, vibration side (D/PD version) 83
4812157785 Drum cartridge with shaft nut, vibration side (VM/VP 3-class) 85
4812157390 Drum cartridge, drive side (D/PD version) 87
4812157391 Drum cartridge, drive side (VM/VP 3-class) 89
Drum cartridges (PD-version)
4812157393 Drum cartridge, vibration side (D/PD version) See page 79
4812157784 Drum cartridge with shaft nut, vibration side (D/PD version) See page 83
4812157390 Drum cartridge, drive side (D/PD version) See page 87
Tooth wheel module 91
Vibration motor adapter 93
Engine
Engine 95
Engine 97
Diesel engine 99
Belt guard module 101
Bracket module 103
Air cleaner 105
Air cleaner module 107
Cooling system 109
Cooler stand module 111
Hose kit 113
Hoses 115
Fuel system
Fuel system 117
Fuel tank module 119
Fuel tank 121
Brackets assy 123
Hoses 125
Draining module 127
Exhaust system 129
Expansion tank module 131
Transmission
Rear axle and wheels 133
4812111832 Rear axle Limited-Slip
4812111832 Rear axle Limited-Slip 135
Differential 137
Central housing and brakes 139
Hub reduction 141
4812111833 Rear axle No-Spin
4812111833 Rear axle No-Spin 143
Differential with no-spin 145
Differential housing and brakes 147
Planet gear 149
Hydraulic systems
Hydraulic system, drum
Hydraulic system, drum 151
Hydraulic motor 153
4812116969 Hydraulic motor
4812116969 Hydraulic motor 155
Rotary group 157
4812157180 Flush & boost pressure valve 159
Lock ring 161
Hydraulic motor 163
4812112200 Hydraulic motor
4812112200 Hydraulic motor 165
Loop flushing 169
Hydraulic system, drum Anti-spin option
Hydraulic system, drum Anti-spin option 171
Hydraulic motor See page 153
4812116969 Hydraulic motor
4812116969 Hydraulic motor See page 155
Rotary group See page 157
4812157180 Flush & boost pressure valve See page 159
Lock ring See page 161
Hydraulic motor 173
4812112202 Drum motor
4812112202 Drum motor 175
Drum motor. Front section 177
Loop flushing 179
Drum motor. Rear section 181
Hydraulic system, rear axle
Hydraulic system, rear axle 183
Hydraulic motor 185
4812122932 Hydraulic motor 187
Hose holder 191
Hydraulic system, rear axle Anti-spin option
Hydraulic system, rear axle Anti-spin option 193
Hydraulic motor 195
4812112213 Rear axle motor
4812112213 Rear axle motor 197
Front section 199
Loop flushing 201
Rear section 203
Hose holder See page 191
Hydraulic system, oil tank
Hydraulic system, oil tank 205
Hydraulic oil tank assembly 207
Hydraulic valve module 211
4812120840 Hydraulic valve 213
Hose holder assy kit 215
Fan module, front 217
Fan module, rear 219
Hydraulic system, engine room
Hydraulic system, engine room 221
Hydraulic pump module 223
4812112171 Hydraulic pump
4812112171 Hydraulic pump 225
End cap, cpl 229
Hydraulic pump module 231
4812112175 Hydraulic pump
4812112175 Hydraulic pump 233
Rotary group 235
Hydraulic adjustment 237
4/3 Pilot valve 239
Hydraulic oil filter assy 241
Hydraulic pump module 243
4812118150 Hydraulic pump, steering 245
Hydraulic system, engine room Adjustable frequency, Eco opti
Hydraulic system, engine room Adjustable frequency, Eco opti 247
Hydraulic pump module See page 223
4812112171 Hydraulic pump
4812112171 Hydraulic pump See page 225
End cap, cpl See page 229
Hydraulic pump 249
4812112181 Hydraulic pump
4812112181 Hydraulic pump 251
Rotary group 253
Control hydraulic 255
Sub plate 257
Cover with accessories 259
Control module 261
Hydraulic oil filter assy See page 241
Hydraulic pump module, Eco 263
4812118151 Hydraulic pump 265
Hydraulic pump module See page 243
4812118150 Hydraulic pump, steering See page 245
Hydraulic system, frame rear
Hydraulic system, frame rear 267
Connector kit 269
Connector kit 271
Hydraulic system, steering
Hydraulic system, steering 273
Hydraulic cylinder 275
4812121947 Hydraulic cylinder 277
4812120830 Hydraulic cylinder 279
Steering valve module 281
Hydraulic hoses, steering 283
Emergency steering option
Emergency steering option 285
4812112188 Hydraulic pump Emergency steering unit 287
4812112236 Hydraulic valve 289
Electrical equipment
Electric cables, power supply, 1-pole
Electric cables, power supply, 1-pole 291
Battery module 293
Battery disconnector module 295
Electric cables, power supply, 2-pole, option
Electric cables, power supply, 2-pole, option 297
Battery module See page 293
Battery disconnector, 2-pole 299
Electric cables, engine ECU, horn, back-up alarm
Electric cables, engine ECU, horn, back-up alarm 301
ECU, inclination sensor, power converter 303
Standard ECU assembly 305
Power converter module 307
Inclination sensor module 309
Horn module 311
Back-up alarm module 313
Back-up alarm module, Quacker 315
Bracket module 317
Cable harness kit Power supply cab
Cable harness kit Power supply cab 319
Driving & side direction lights, number plate light, option
Driving & side direction lights, number plate light, option 321
Steering column switch module 323
Cable harness kit 325
Registration plate light module 327
Registration plate light 329
Holder, Registration plate light 331
Reversing light, option
Reversing light module 333
DCA/GPS equipment module, option
DCA/GPS equipment module, option 335
Holder 337
GPS equipment module 339
GPS equipment assy 341
Computer 343
Tachograph, option
Tachograph, option 345
Holder assy 347
Power supply module 349
Speed sensor, frequency sensor, option
Speed sensor, frequency sensor, option 351
Pulse sensor module (6-pol) 353
Pre-heater installation, option
Pre-heater installation, option 355

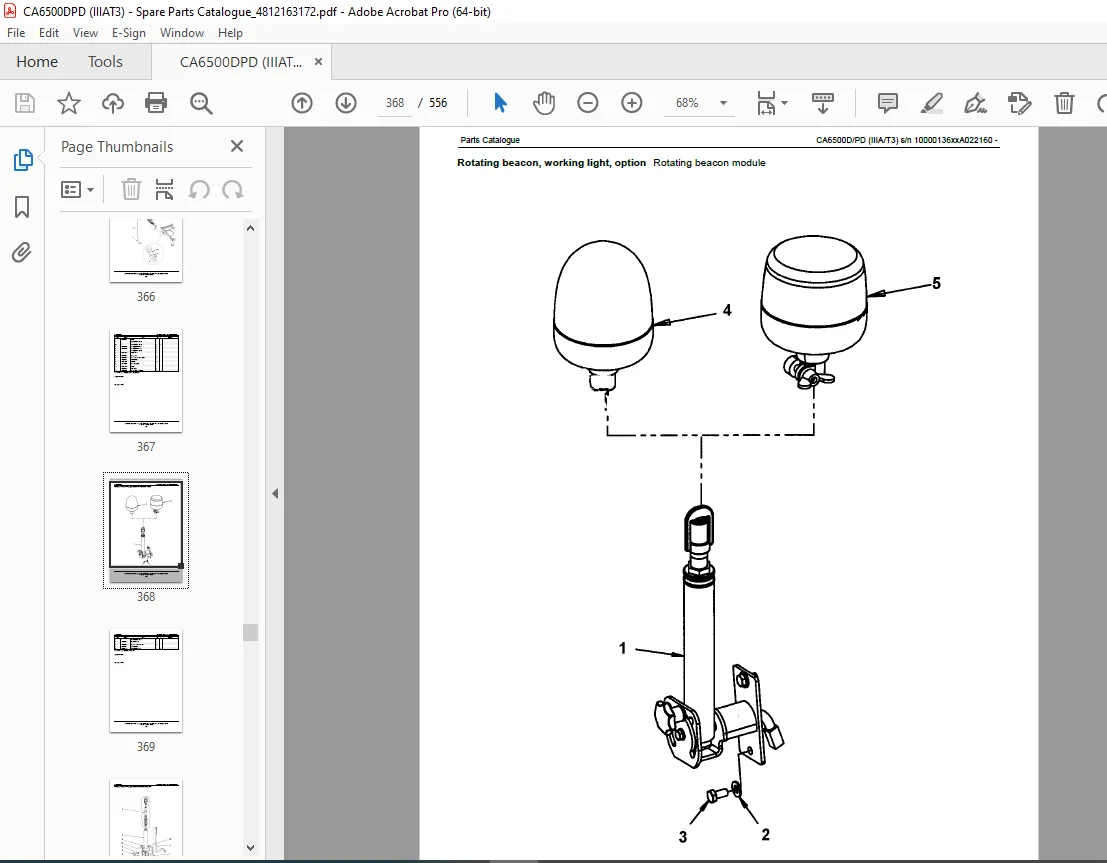

Rotating beacon, working light, option
Rotating beacon, working light, option 357
Rotating beacon module 359
Bracket, Rotating beacon 361
Working light module H3 363
Cable harness, emergency steering, option
Cable harness, emergency steering, option 365
Displacement shift
Displacement shift 367
Compaction meter, option
Compaction meter, option 369
Power supply 371
External emergency stop, option
External emergency stop, option 373
Drivers platform
Platform, rops
Platform, rops 375
4812120544 Platform with 4-post ROPS
4812120544 Platform with 4-post ROPS 377
Basic kit Rops, roof, front handrail 379
Rear cover 381
Handrail 383
Cab, basic kit 385
Manual box 387
Decals basic kit 389
Cab symmetric module
Cab symmetric module 391
4812119364 Cab, cpl Comfort
4812119364 Cab, cpl Comfort 393
Screens 395
4812115202 Cab door, cpl 397
4812115200 Sliding screen, left hand 399
Windshield wiper 401
Roof 403
Heater assy 405
Hose kit heater 407
Cab cable harness 409
Cab Interior 411
Heater controls 413
Cab, electrical equipment 415
Emergency hammer, hook 417
Cab, rear cover 419
Cab, front cover 421
Floor mat 423
Step light, front wiper switches 425
Cab, basic kit See page 385
Air channel 427
Sun-blind, inner light 429
4812119365 Cab, cpl Basic
4812119365 Cab, cpl Basic 431
Screens See page 395
4812115202 Cab door, cpl See page 397
4812115200 Sliding screen, left hand See page 399
Windshield wiper See page 401
Hose kit heater See page 407
Roof See page 403
Heater assy See page 405
Cab cable harness See page 409
Cab, electrical equipment See page 415
Cab Interior See page 411
Heater controls See page 413
Emergency hammer, hook See page 417
Cab, rear cover 433
Cab, front cover 435
Wiper switch, front 437
Cab, basic kit See page 385
Manual box See page 387
Decals basic kit See page 389
Car stereo module, option 439
Rear view mirror 441
Rear view mirror module 443
Hose assy kit, heater 445
Drivers seat
Drivers seat 447
Seat frame structure 449
4700391163 Steering column 451
Seat frame adapter module, rotating 453
Seat frame adapter module, fixed 455
Seat comfort, fabric suspensioned 457
Seat, galon suspensioned 459
Floor cassette module 461
Seat belts
Seat belt 2″ 463
Seat belt 3″ 465
Seat belt 2″ with reminder 467
Seat belt 3″ with reminder 469
Control module 471
Forward reverse control module 473
Display unit 475
Control panel cover 477
Decals
Decals 479
Decals 483
Optional equipment
Air conditioning
Air conditioning 485
Drying filter module 487
4812114257 Drying filter assy 489
Condensor assembly 491
ACC module 493
4812113624 ACC kit 495
AC module 497
4812113623 Evaporator, cpl 499
Hose assy kit for AC 501
4812114973 Compressor kit 503
Compressor module AC 505
Hose assy kit for AC 507
Level sensor module, option
Level sensor module, option 509
Fire extinguisher/First Aid Cushion
Fire extinguisher/First Aid Cushion 511
Fire extinguisher 513
SMV-sign
SMV-sign 515
Cooling box module
Cooling box module 517
Lunch box
Lunch box 519
Dyn@Link module 521
4812013038 GPS module 523
Compaction meter (DCM) 525
Dyn@lyzer 527
Appendix B:Parts Index 529
