Dynapac CA610D Vibratory Roller Spare Parts Catalogue Manual 4812273256 – PDF DOWNLOAD
FILE DETAILS:
Dynapac CA610D Vibratory Roller Spare Parts Catalogue Manual 4812273256 – PDF DOWNLOAD
Language : English
Pages :239
Downloadable : Yes
File Type : PDF
TABLE OF CONTENTS:
Dynapac CA610D Vibratory Roller Spare Parts Catalogue Manual 4812273256 – PDF DOWNLOAD
CA610D T2, 6BTAA5.9-C170 0C004239 – 2
Service kits 4
4812273269 Service kit, 50h 6
4812271760 Service kit, 250/750h 8
4812273270 Service kit, 500h 10
4812273271 Service kit, 1000h 12
Repair kits 14
4700938562 Steering hitch kit 16
4700945657-AEccentric shaft kit 18
4700938891 Drum rotation kit 20
4700938883 Shock absorber kit, drum 22
4812271761 Shock aborber kit CA510/CA610 Plus 24
4700940662 F/R control button kit 26
Frame 28
Frames 30
Scrapers, Spring Steel 32
Hitch 34
Structure 36
Drum 38
Drum 40
Drum cartridge Vibration side 42
Drum cartridge Drive side 44
Drum gear 46
Engine system 48
4812269792 Engine assy 50
4812269790 Diesel engine 6BTAA5.9-C170 52
Cooling system 54
Combustion air system 58
Fuel system 60
Exhaust system 62
Transmission 64
Rear axle and wheels 66
4700385100 Rear axle Limited slip 68
Differential with limited slip 70
Differential housing and brakes 72
Planet gear 74
4700383856 Rear axle No-Spin, Option 76
Differential with no-spin 78
TC 2
TABLE OF CONTENTS Page
Dynapac (China) Compaction & Paving Equipment Co., Ltd.
Differential housing and brakes 80
Planet gear 82
Hydraulic system 84
Propulsion system, Front 86
4700389564 Hydraulic motor 88
End cap 90
Propulsion system, Rear 92
4700380830 Propulsion pump 96
4700373361 Propulsion motor 102
Vibration system 106
4700393695 Vibration pump Up to ECN 11301 108
Rotating group, cpl 110
4700936609 Valve block, cpl 112
4700380146 Hydraulic motor, vibration 114
Steering system 116
4700392027 Steering cylinder 118
Brake system 120
Hydraulic oil tank 122
Central test panel hydraulic Option 124
Electrical equipment 126
Electrical system 128
Instrument panel 130
Instrument panel 130
Working lights Option 132
Rotating beacon Option 134
Drivers platform 136
Drivers platform 138
Control panel 140
Throttle control 142
Forward and reverse control 144
Steering column 146
Canopy Option 148
Rops and fops 150
Cab mounting 152
4812270812 Cab assy 154
4812270814 Door assy 156
Windscreen, cpl 158
General parts 160
4812269976 Rotating beacon 162
Cab electric 164
Decals 166
Standard equipment 170
TC 3
TABLE OF CONTENTS Page
Dynapac (China) Compaction & Paving Equipment Co., Ltd.
4812273254 CA610D Manual complete, EN 172
4812273255 CA610D Manual complete, CN 174
4812273262 CA610PD Manual complete, EN 176
4812273263 CA610PD Manual complete, CN 178
Optional equipment 180
Tool equipment 182
4812265746 Fire extinguisher assy. 184
Heater Simple cab 186
4700379394 Heater box 188
4812269767 Prooftyre option 190
4812270033 Wheel with all-weather prooftyre Liquid filled 192
4812270032 Wheel with all-weather prooftyre 194
4812273532 Air conditioner mount 196
4812274350 Compressor cpl. 198
4812265842 Condensor 200
4812265845 Receiver driver 202
4812265847 Evaporimeter 204

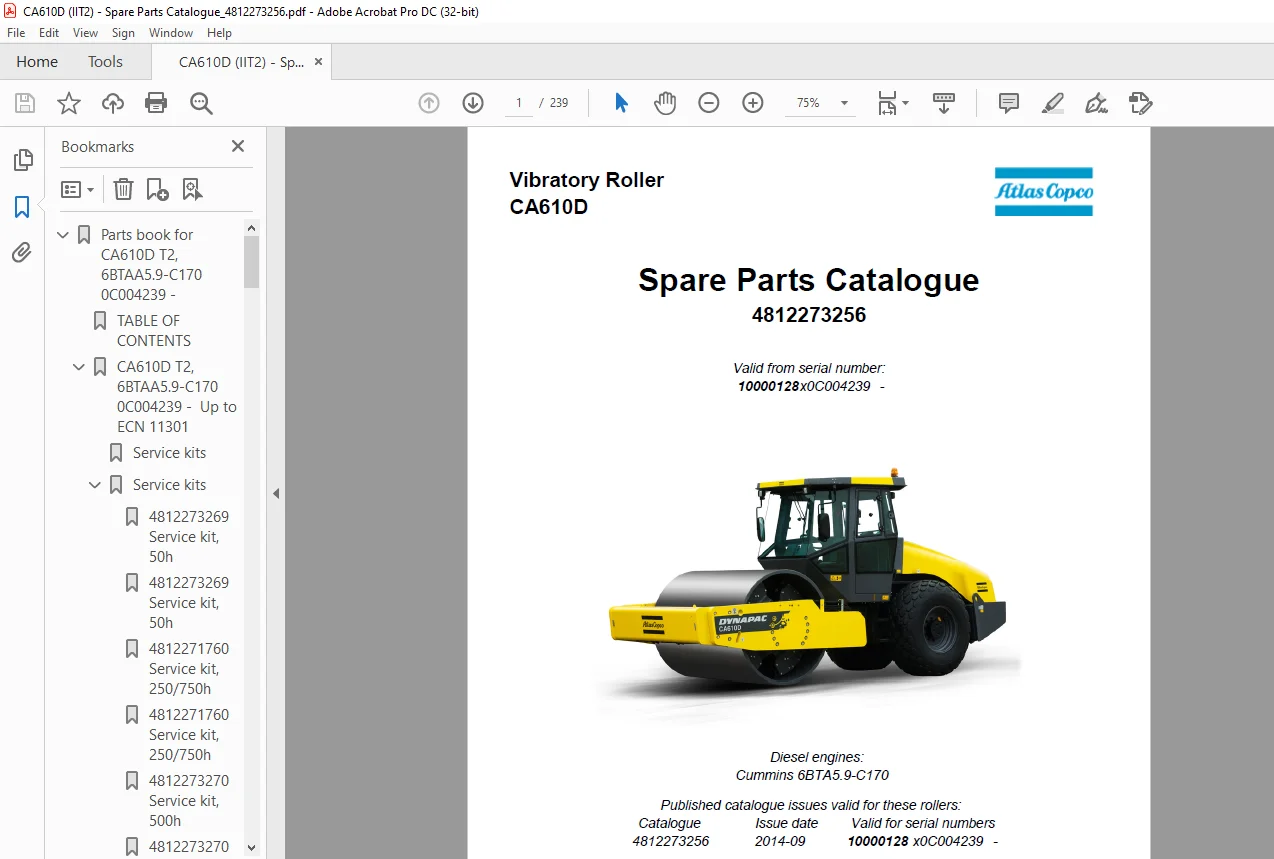

IMAGES PREVIEW OF THE MANUAL:
