Daewoo Doosan MT27 MT30 (RS) ADT Operation & Maintenance Manual – PDF DOWNLOAD
DESCRIPTION:
Daewoo Doosan MT27 MT30 (RS) ADT Operation & Maintenance Manual – PDF DOWNLOAD
FOREWORD
Operating & Maintenance Manual 1-4 INTRODUCTION. This manual describes procedures for operating, handling, lubricating, maintenance, checking and adjustment. It will help the operator to realize peak performance through effective, economical and safe machine operation and maintenance.
1. Read this manual carefully before operating the machine.
2. Continue studying the manual until proper operating is completely converted into personal habit.
3. This manual describes the basic techniques. The operator skill will increase with correct knowledge of machine operation.
4. Operation, inspection and maintenance should be carefully carried out, and safety must be given first priority.
The manufacturer can not be held responsible for damage or injury caused through improper handling, operation and utilization of the dump truck in other ways than those described in this manual.
Nor can the manufacturer be held responsible for unauthorized modifications or the neglect of local or national government regulations. This Operating & Maintenance Manual may contain attachment and optional equipment that not are available in your area.
Please consult your local MOXY dealer for those items you may require.
GENERAL DESCRIPTION.
Moxy MT27 / MT30 are articulated, constant 6-wheel drive dump trucks suitable for earthmoving at sites, both on- and off-road condition as well as in-terrain travel. The wide range of optional equipment allows the dump truck to be applied in several different applications
1. Dump body
2. Operator cab
3. Fuel tank
4. Engine bonnet
5. Head, parking and
direction light
6. Hydraulic tank
7. Air cleaner
8. Rear frame
1. GENERAL PRECAUTIONS.
See also Precautions for maintenance. Observe all rules, precautions and instructions related to each job and work site. Use suitable clothing, and safety shoes, helmet, gloves, etc if necessary. Use handrails and steps when entering and getting off the truck. Do not jump! Clean off grease, oil, snow and dirt to avoid slippery truck surfaces. Be aware of and confirm the presence of safety devices such as fire extinguisher, first aid kit, warning triangle, etc. Learn how to use them. Keep the cabin tidy and secure loose objects. Clean the windows, mirrors and lights and adjust mirrors to obtain best visibility. Check the site and determine dangerous areas. Take every precaution for safe operation to avoid accidents and dangerous incidents. Do not operate the truck if failures, damages or other discrepancies are detected.
2. OPERATION PRECAUTIONS.
Further details in Operating instructions. Before driving the dump truck, check that no persons or objects are in the area. Fasten the seat belt and be seated during travel. Standing up is dangerous! Concentrate and evaluate surroundings. Stop the dump truck if you are uncertain of operation safety. Slow driving is required to ensure that operation can be done without hazards, especially in curves, narrow roads, hills/cliffs, bumpy or slippy ground, or if the visibility is restricted. Pay attention and keep a safe distance from other vehicles and nearby people. Be sure that no persons or objects are situated in the articulation area before turning or behind the truck before reversing or tipping.
3. MACHINE TURNING.
This articulated dump truck has two frames and the design allows unrestricted turning between front and rear chassis. Overturn of one frame while the other remains is possible. It is possible that the operator will not receive warning signs of an overturn, therefore: 1. Avoid high speed turning and hard braking in curves. 2. Reduce speed, avoid sudden turning if travelling across slopes is necessary. 3. The rear chassis stability decreases when tipping. Be alert when body is raised. Do not travel with raised body!
4. MACHINE KNOWLEDGE.
Learn how to use the control devices, instruments and warning devices. Be sure you understand the meaning of the CAUTION signs and other warnings. Always know the dimension and performance limits of your machine. Remember the check points and checking method of fluid levels.
TABLE OF CONTENTS:
Daewoo Doosan MT27 MT30 (RS) ADT Operation & Maintenance Manual – PDF DOWNLOAD
Front page..................................... 5 Table of contents.............................. 7 Chapter 1 - FOREWORD........................... 8 Introduction............................... 8 General description........................ 8 Chapter 2 - SAFETY INSTRUCTIONS................ 9 Contents................................... 10 1. General precautions..................... 11 2. Operation precautions................... 11 3. Machine turning......................... 11 4. Machine knowledge....................... 11 5. Emergency exit.......................... 12 6. Emergency steering...................... 12 7. Machine inclination..................... 12 8. Operation of brakes..................... 13 9. Wading.................................. 13 10. Optional: Exhaust heated body.......... 13 11. Optioanl: Top tailgate................. 14 12. Engine bonnet.......................... 14 13. Body support........................... 15 14. Service position....................... 15 15. Brkae blocks........................... 16 16. Articulation lock...................... 16 17. Lifting/Hoisting....................... 16 18. Truck transportion..................... 17 19. Welding................................ 17 20. High pressures......................... 17 21. Safety labels.......................... 18 Chapter 3 - OPERATING CONTROLS................. 23 Contents................................... 24 Dashboard.................................. 25 Instruments................................ 26 Warning/Indicator lights................... 29 Switches................................... 31 Controls................................... 34 Other cab equipment........................ 40 Chapter 4 - RUNNING IN PERIOD.................. 43 Contents................................... 44 Running in operation....................... 45 Running in services........................ 46 Chapter 5 - OPERATING INSTRUCTIONS............. 49 Contents................................... 50 1. Starting the engine..................... 51 2. Operating the machine................... 52 3. Stopping the engine..................... 60 4. Parking the machine..................... 60 5. Loading and tipping..................... 61 6. Tyre handling........................... 62 7. Cold weather............................ 63 8. Long term storage....................... 63 9. Battery power aid....................... 64 10. Towing the machine..................... 64 11. External air filling................... 65 12. Manual release of parking brake........ 65 13. Tyre filling point..................... 65 14. Trouble shooting....................... 66 Chapter 6 - LUBRICANTS......................... 71 Contents................................... 72 Lubrication schedule....................... 73 Oil specification sheet.................... 75 Filling capacities......................... 76 Transmission oil list...................... 77 Chapter 7 - MAINTENANCE........................ 81 Contents................................... 82 Precautions for maintenance................ 83 Maintenance table.......................... 84 8 hours/Daily service...................... 85 40 hours/Weekly service.................... 93 250 hours service.......................... 95 500 hours service..........................100 1000 hours service.........................103 2000 hours service.........................108 Maintenance when required..................111 Chapter 8 - TECHNICAL DATA.....................115 Contents...................................116 Measurements...............................117 Engine.....................................118 Transmission...............................118 Drive line.................................118 Hydraulic system...........................119 Air system.................................119 Tire inflations............................119 Electrical system..........................120 Metering conversion table..................121 Tool kit content...........................121 Performance chart..........................122 Engine brake capacity chart................123 Optional: Retarder brake capacity chart....124 Torque limits for bolts....................125 Reference information......................125 Consumable parts...........................125 Periodic service...........................126
VIDEO PREVIEW OF THE MANUAL:

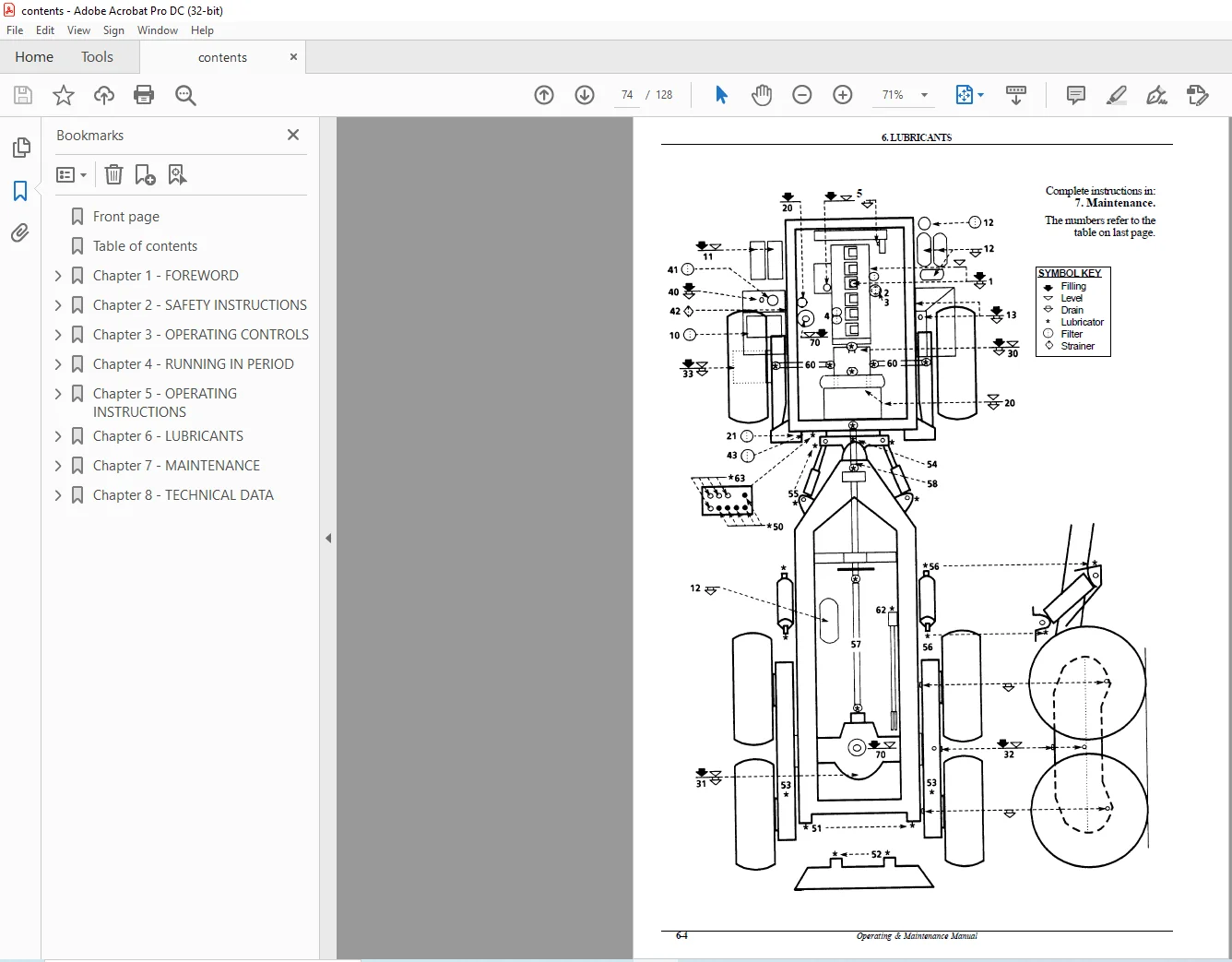

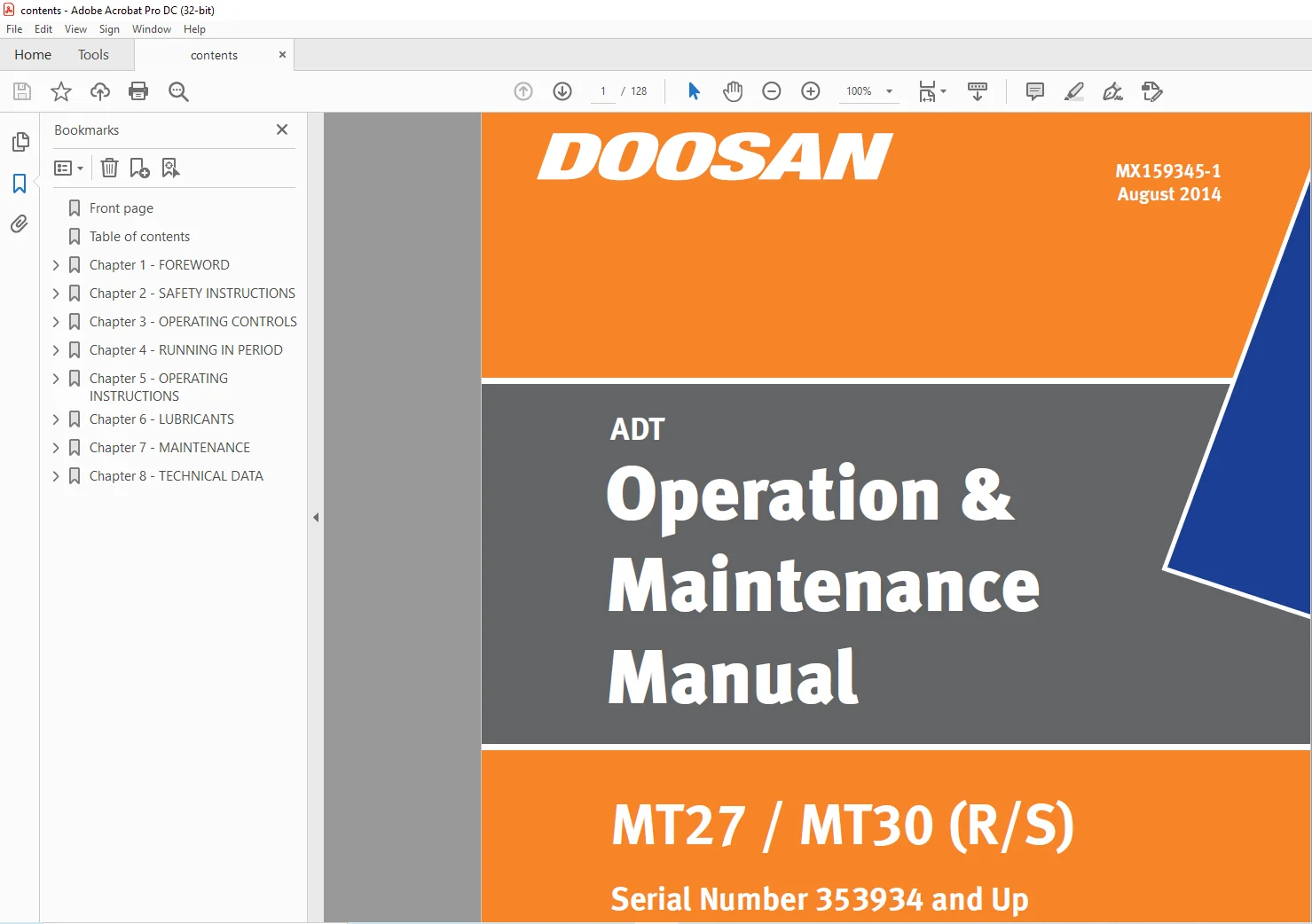

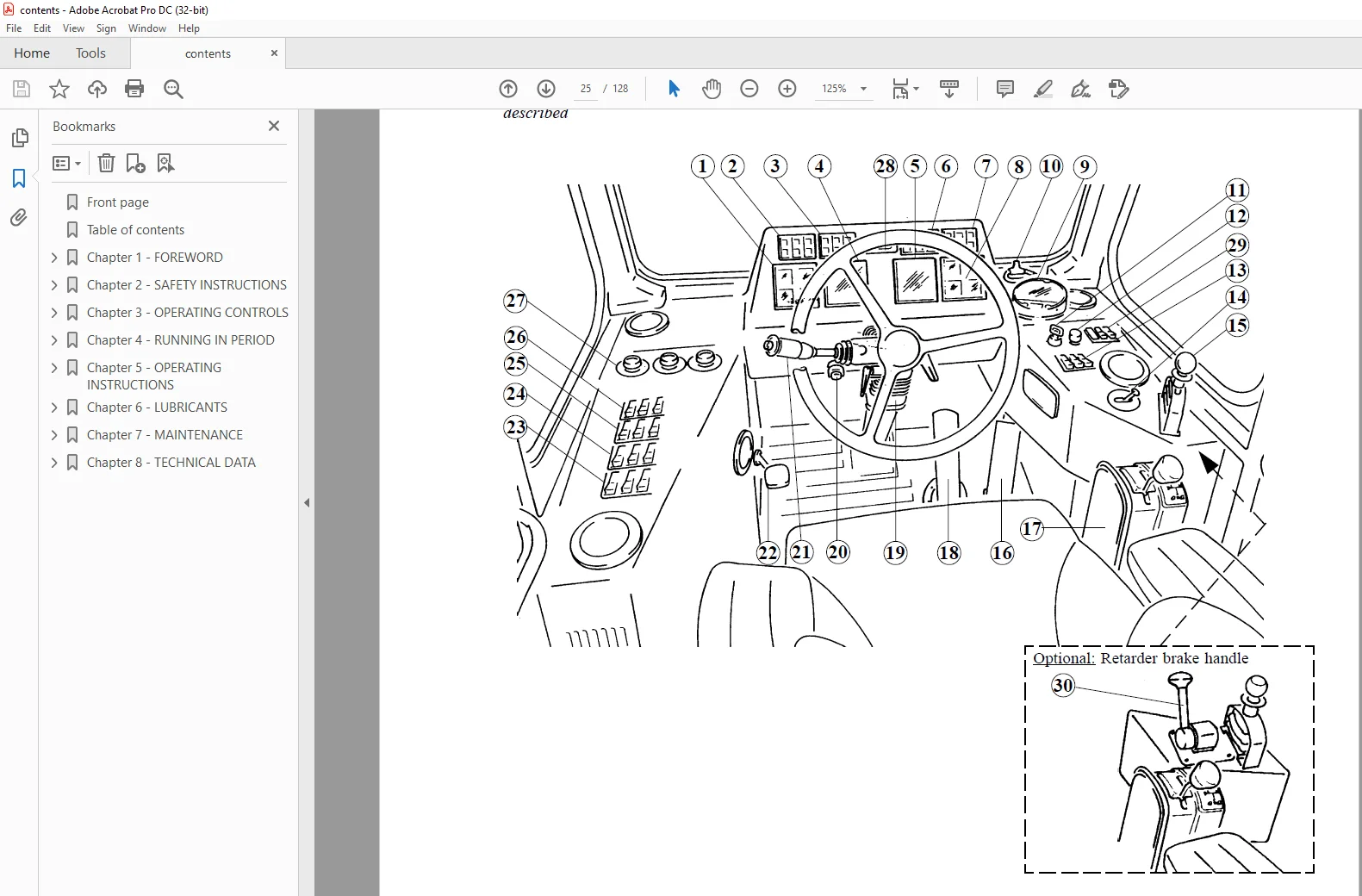

IMAGES PREVIEW OF THE MANUAL:
