Daewoo Doosan D1146, D1146T & DEO8TIS DISEL ENGINE shop manual 65.99897-8056 – PDF DOWNLOAD
DESCRIPTION:
Daewoo Doosan D1146, D1146T & DEO8TIS DISEL ENGINE shop manual 65.99897-8056 – PDF DOWNLOAD
- Daewoo reserves the right to improve our products in a continuing process to provide the best possible product to the market place. These improvements can be implemented at any time with no obligation to change materials on previously sold products.
- It is recommended that consumers periodically contact their distributors for recent documentation on purchased equipment. This documentation may include attachments and optional equipment that is not available in your machine’s package.
- Please call your distributor for additional items that you may require. Illustrations used throughout this manual are used only as a representation of the actual piece of equipment, and may vary from the actual item.
FOREWORD
- This maintenance manual is designed to serve as a reference for DAEWOO Heavy Industries Ltd’ s (here after DAEWOO’s) customers and distributors who wish to gain basic product knowledge on DAEWOO’s 01146, D1146TI and DE08TIS Diesel engine.
- This economical and high-performance diesel engine (6 cylinders, 4 strokes, in-line, direct injection type) has been so designed and manufactured to be used for the overland transport or industrial purpose. That meets all the requirements such as low noise, fuel economy, high engine speed, and durability.
- To maintain the engine in optimum condition and retain maximum performance for a long time, CORRECT OPERATION and PROPER MAINTENANCE are essential. In this manual, the following symbols are used to indicate the type of service operations to be performed
During engine maintenance, please observe following instructions to prevent environmental damage ;
• Take old oil to an old oil disposal point only.
• Ensure without fail that oil and diesel fuel will not get into the sea or rivers and canals or the ground
• Treat undiluted anti-corrosion agents, antifreeze agents, filter element and cartridges as special waste.
• The regulations of the relevant local authorities are to be observed for the disposal of spent coolants and special waste.
- If you have any question or recommendation in connection with this manual, please do not hesitate to contact our head office, dealers or authorized service shops near by your location for any services. For the last, the content of this maintenance instruction may be changed without notice for some quality improvement. Thank you
1. GENERAL INFORMATION
1.1. General Repair Instructions
1. Before performing service operation, disconnect the grounding cable from the battery for reducing the chance of cable damage and burning due to short ~circuiting.
2. Use covers for preventing the components from damage or pollution.
3. Engine oil and anti~ freeze solution must be handled with reasonable care as they cause paint damage.
4. The use of proper tools and special tools where specified is important to efficient and reliable service operation.
5. Use genuine DAEWOO parts necessarily.
6. Used cotter pins, gaskets, O-rings, oil seals, lock washer and self ~lock nuts should be discarded and new ones should be prepared for installation as normal function of the parts can not be maintained if these parts are reused
. 7. To facilitate proper and smooth reassemble operation, keep disassembled parts neatly in groups. Keeping fixing bolts and nut separate is very important as they vary in hardness and design depending on position of installation.
8. Clean the parts before inspection or reassembly. Also clean oil ports, etc. using compressed air to make certain they are free from restrictions.
9. Lubricate rotating and sliding faces of parts with oil or grease before installation.
10. When necessary, use a sealer on gaskets to prevent leakage.
11. Carefully observe all specifications for bolts and nuts torques.
12. When service operation is completed, make a final check to be sure service has been done property.
1.2. Engine Specific Character
1.2.1. Toroidal combustion mode
- (D1146) The D1146 engine is operated in the toroidal combustion mode that was developed by this company with AVL Co. Australia. The feature of this mode in the fundamental structure is that there are combustion chambers in the centers of piston heads and swirling passages in the cylinder heads.
- This swirling passages when intake stroke generates the strong swirling motion in the combustion chambers by giving the intake air a big moment, and when compression stroke, the special piston’s shapes causing very complicated and distorted flows by means of eddy current and squashed flows will make the air and fuel mix more smoothly.
- Also, when explosion stroke, a considerable output increase came to be expected with the accomplishment of nearly perfect combustion by the more smooth mixing of air and fuel which was injected through multi-nozzles in the combustion chamber. This engine by means of Toroidal Combustion Mode has the specific character such as quiet and stable revolutional motion, multi-purpose application, economical fuel and oil consumption, etc
1.2.2. OMEGA combustion bowl (D1146TI, DEOSTIS)
The OMEGA combustion bowl is a unit designed to perform high efficiency, low emission combustion. As the rim around the combustion bowl port of the upper of the piston has been machined in a smaller size than the interior of the combustion bowl, strong swirl is produced in the combustion bowl and strong squish flow makes the fuel be mixed more sufficiently with air. Due to the application of OMEGA combustion system and optimal utilization of intake and exhaust port configuration within the cylinder head, the D1146TI, DEOSTIS diesel engines discharge very low level of hazardous exhaust gases such as smoke, nitrogen oxide, hydrocarbon, or carbon monoxide and thus ensure high performance and low fuel consumption.
1.2.3. Oil gallery cooling type piston (DEOSTIS)
Oil gallery cooling is used for the piston of DE08TIS diesel engine. When thermal loading is high, piston cooling by means of an oil gallery in the crown is normally necessary to prevent crown cracking and ring sticking. The design of the gallery, the design and location of the oil spray nozzle and the quantity of oil flowing in the gallery are critical in order to achieve the desired temperature reduction. The cross section shape of the gallery should be designed to achieve sufficient oil movement to maximize cooling efficiency
TABLE OF CONTENTS:
Daewoo Doosan D1146, D1146T & DEO8TIS DISEL ENGINE shop manual 65.99897-8056 – PDF DOWNLOAD
CONTENTS
1. GENERAL INFORMATION ……………………………………………………………………………………… 1
1.1. General Repair Instructions
1 .2. Engine Specific Character
1.3. Engine Specifications
1.4. Engine Assembly
2. MAJOR MAINTENANCE ……………………………………………………………………………………….. 13
2.1. Preventive Maintenance
2.2. Diagnosis and Remedy
2.3. Engine Inspection
3. MAINTENANCE ………….. .. ………………………………………………………………………………………. 30
3.1 . Engine Disassembly
3.2. Inspection and Measurement
on Major Parts
3.3. Engine Reassembly
3.4. Breaking In
4. MAINTENANCE OF MAJOR COMPONENTS ………………………………………………………. 90
4.1. Cooling System
4.2. Lubrication System
4.3. Fuel Injection Pump
4.4. Turbocharger
5. SPECIAL TOOL LIST ………………………………………………………………………………………….. 123
• APPENDIX
VIDEO PREVIEW OF THE MANUAL:

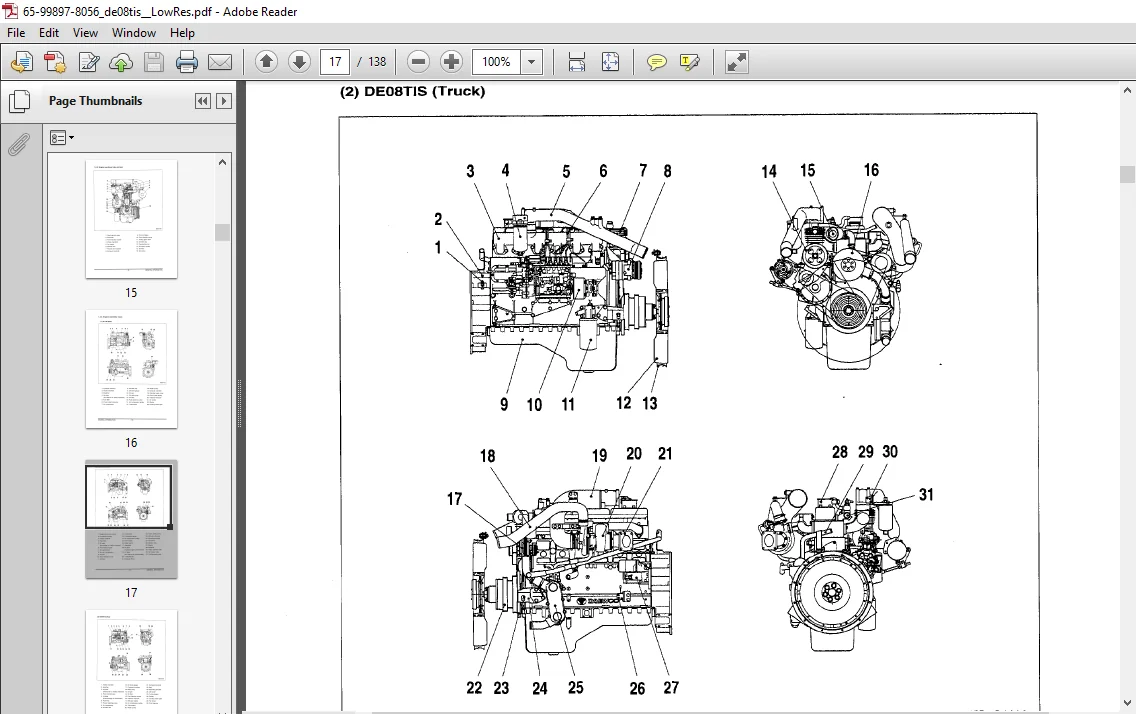

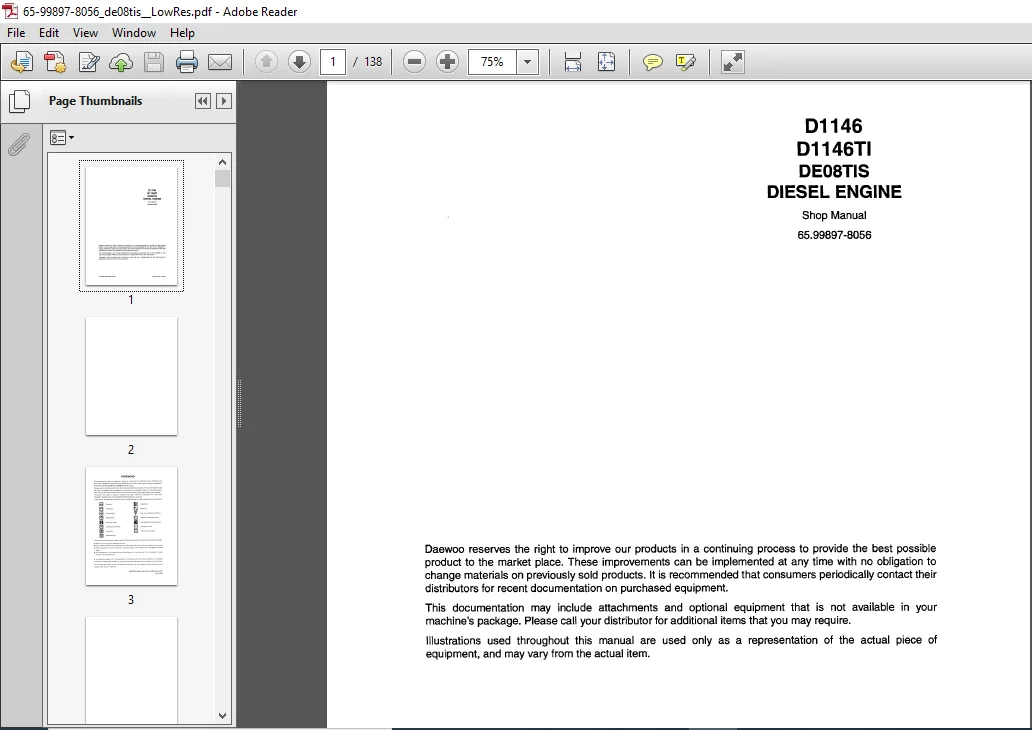

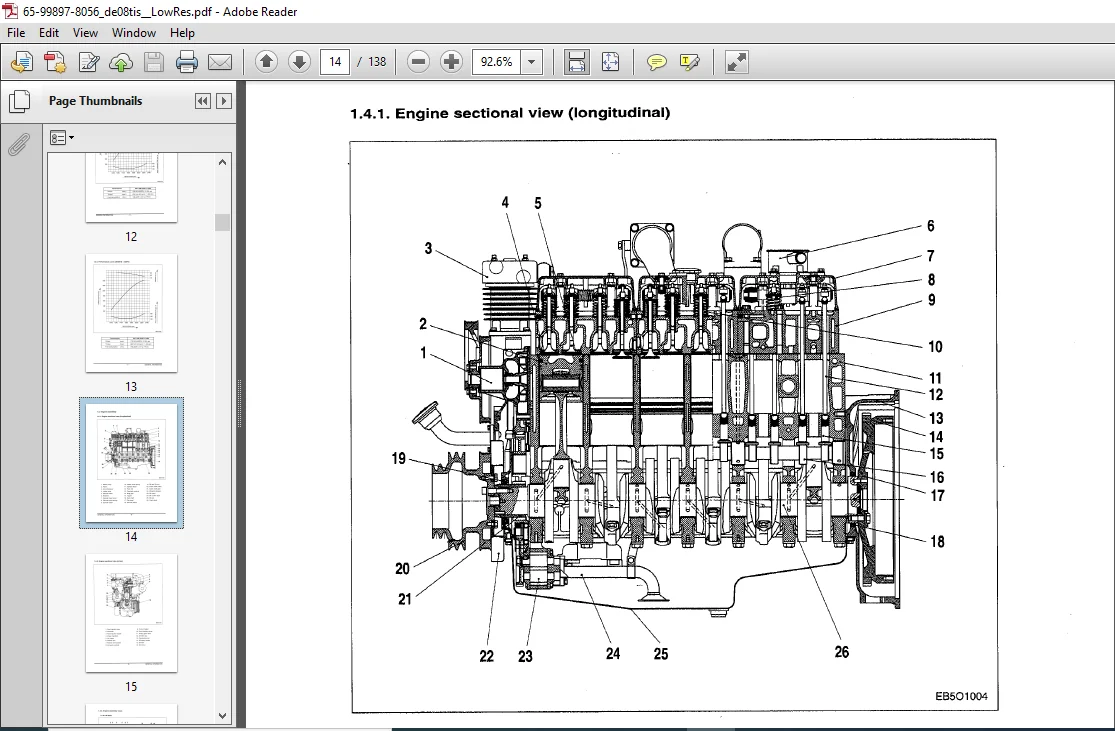

IMAGES PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
- The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
- Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
