Crown Forklift TC 3000 SERIES Parts Manual 812741-006 – PDF DOWNLOAD
FILE DETAILS:
Crown Forklift TC 3000 SERIES Parts Manual 812741-006 – PDF DOWNLOAD
Language : English
Pages :86
Downloadable : Yes
File Type : PDF
TABLE OF CONTENTS:
Crown Forklift TC 3000 SERIES Parts Manual 812741-006 – PDF DOWNLOAD
TC 3000 SERIES 1
Table of contents 3
Introduction 5
Covers 5
Drive Unit 5
Electrical System 5
Brake System 5
Steering 5
Platform 5
Miscellaneous 6
Introduction 7
Important custommer information 9
Models10
Covers11
Covers Part 1 – 412
Covers Part 2 – 414
Covers Part 2 – 416
Covers Part 3 – 418
Covers Part 4 – 420
Retractable Step22
Battery Compartment24
Caster Assembly or Skid26
Load Wheel28
Drive Unit31
Drive Unit32
Gear Unit34
Drive Motor36
Electrical System39
Connector Housing and Connectors40
Electrics Part 1 – 242
Electrics Part 2 – 244
Contactor46
Control Handle Part 1 – 348
Control Handle Part 2 – 350
Control Handle Part 3 – 352
Switch, PPCS54
Emergency Disconnect & Battery Connector56
Dashboard58
Brake System61
Brake62
Steering65
Steer Unit66
Platform69
Floor Assembly70
Knee and Back Padding72
Cover74
Side Pocket and Handle, Backrest76
Grab Handle, Backrest78
Miscellaneous81
Hitch82
Labels and Decals84

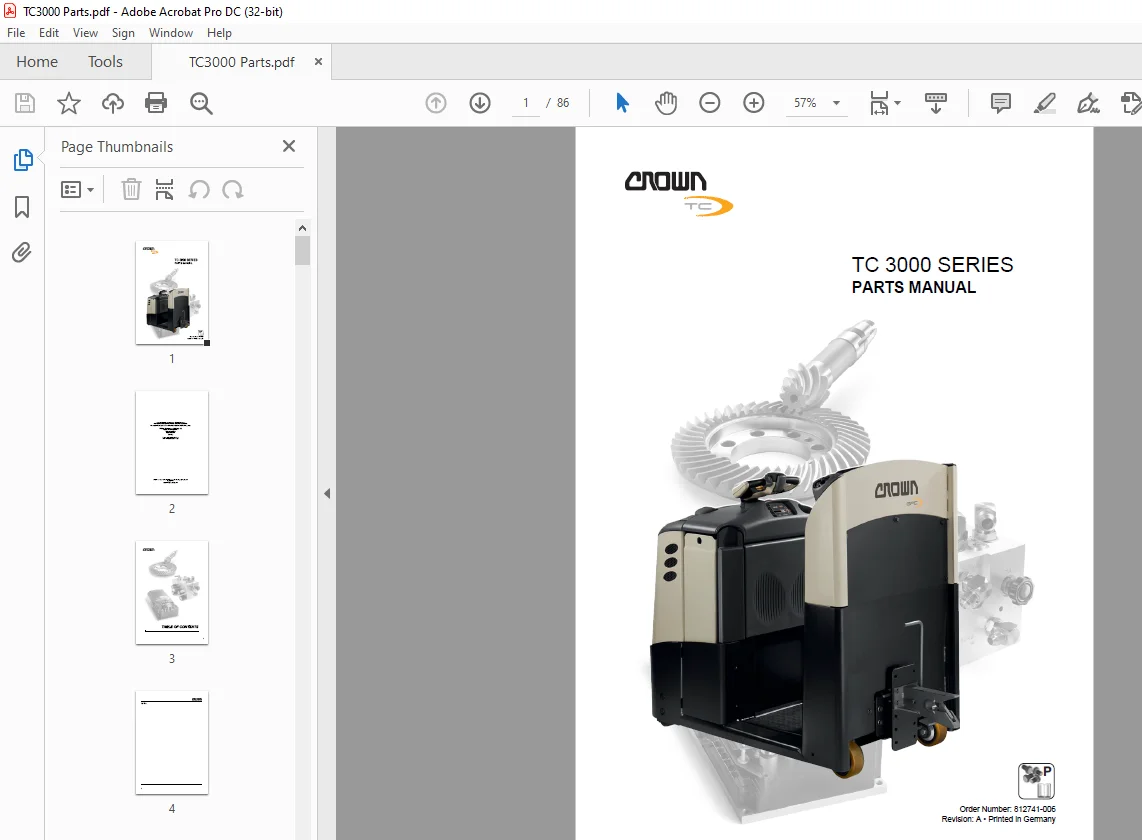

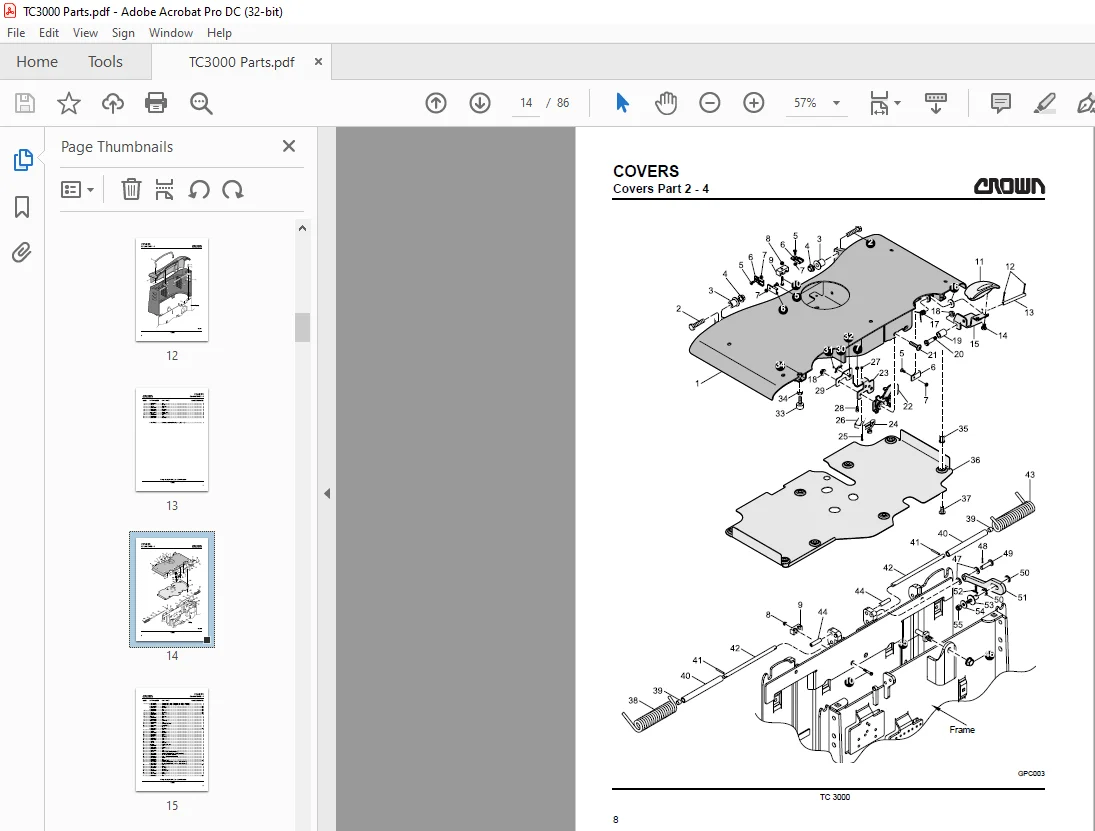

IMAGES PREVIEW OF THE MANUAL:
