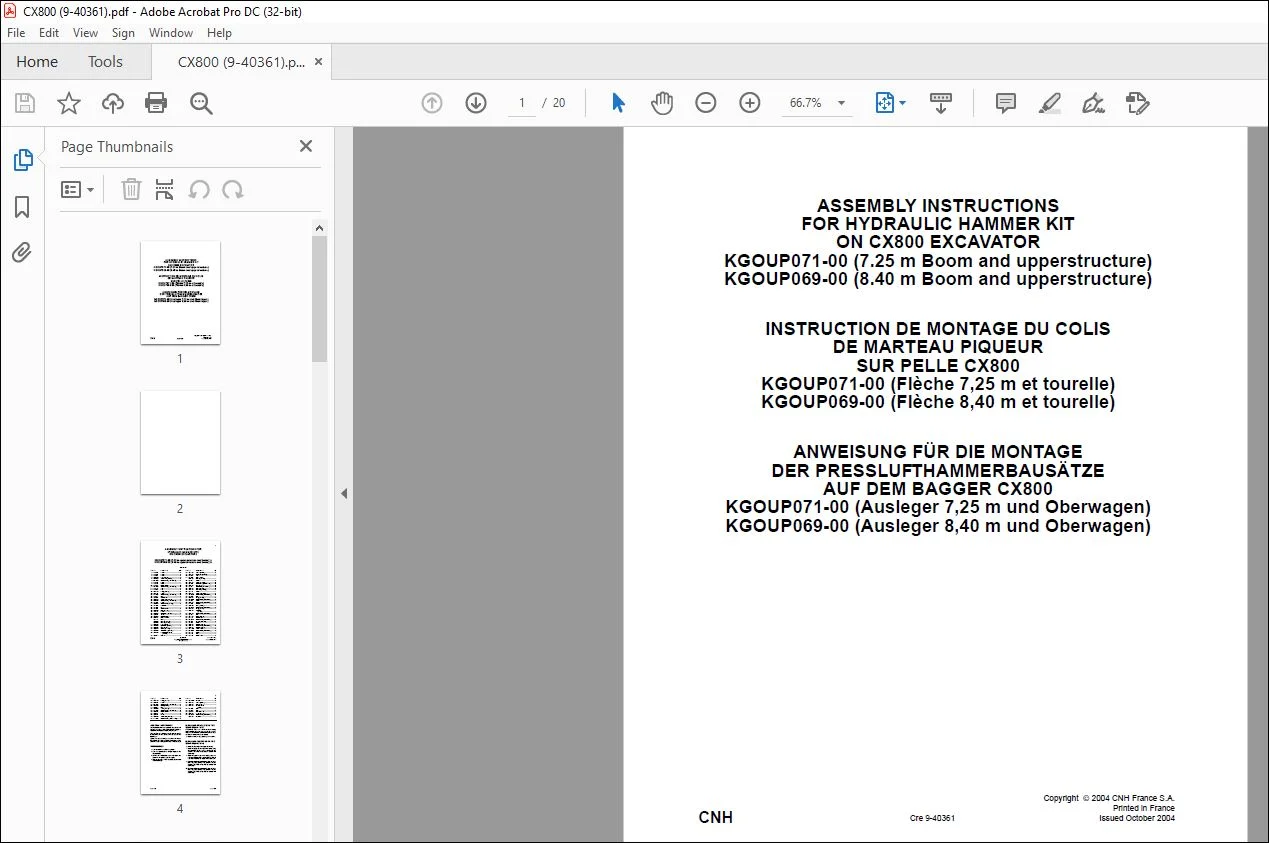

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
CNH CX800 Excavator Hydraulic Hammer Kit Assembly Instructions Manual 9-40361 EN_FR_DE – PDF DOWNLOAD
GENERAL INFORMATION
The illustrations for these assembly instructions will
be found in the last pages. Separate the last pages to
consult the illustrations while reading the text.
The reference numbers and let ters in these
instructions are the same as those used in the
illustrations.
Special torque set t ings are shown in these
instructions. If a torque setting is not shown, use the
standard torque setting shown in the Service Manual.
PREPARATION
1. Park the machine on flat, hard ground.
2. Turn the upperstructure at right angles to the
undercarriage.
3. Extend the attachment to the maximum and
lower it to the ground. Stop the engine.
4. Release pressure in the hydraulic system (see
Service Manual).
TABLE OF CONTENTS:
CNH CX800 Excavator Hydraulic Hammer Kit Assembly Instructions Manual 9-40361 EN_FR_DE – PDF DOWNLOAD
ASSEMBLY INSTRUCTIONS FOR
HYDRAULIC HAMMER KITS
ON CX800 EXCAVATORS
KGOUP071-00 (7.25 m upperstructure and boom); a
KGOUP069-00 (8.40 m upperstructure and boom); b
PARTS LIST
ITEM P/N DESCRIPTION Qty ITEM P/N DESCRIPTION Qty
1. KUV0048 Bracket ……………………………………………..4
2. KUV0056 Bracket ……………………………………………..6
3. KUV0067 Bracket ……………………………………………..2
4. 162659A1 Plug (BRJ0174)………………………………….4
6. 150814A1 Washer W16 (KHN0297)……………………32
7. 627-16050 Screw M16x50 (102R016Y050R) …………8
8. KUV0217 RH pipe ……………………………………………1
9. KUV0219 LH pipe……………………………………………..1
10. KUV0055 Retaining clamp ……………………………….24
11. 827-16090 Screw M16x90 (102R016Y090R) ……….24
12a. KUV0135 Pipe………………………………………………….2
12b. KUV0064 Pipe………………………………………………….2
13. 168211A1 O-ring (LBQ5008)……………………………….7
14. KTJ0169 Clamp …………………………………………….14
15. 862-16050 Screw M16x50 (108R016Y050R) ……….28
16. KUV0051 Hose…………………………………………………2
17. KRJ5864 Control pedal……………………………………..1
18. 150604A1 Washer W10 (KHJ0183) ……………………..4
19. 166052A1 Screw M10x25 (105R010Y025R) …………2
20. KHJ1643 Bracket ……………………………………………..1
21. 165404A1 Screw M10x20 (KHJ1104) ………………….2
22. KHJ1614 Floor carpet ……………………………………….1
23. KHJ1629 Pedal ………………………………………………..1
24. KHJ1820 Screw M10x25 …………………………………..2
25. 169357A1 Decal (KHP1465) ……………………………….1
26. KHJ2127 Bracket ……………………………………………..1
27. 166345A1 Screw M8x16 (105R008Y016R) …………..2
28. KHJ0652 Adaptor……………………………………………..1
29. 156554A1 Elbow (KHJ0640) ……………………………….2
30. KUJ0395 Batch of 3 hoses
KTJ1786 Hose Y1 ……………………………………………1
164236A1 Hose P5 (KAJ3183) ……………………………1
159019A1 Hose D5 (KNJ1699) ……………………………1
31. 159002A1 Plug (KHJ0363)………………………………….1
32. 150913A1 Elbow union (KHJ0341) ………………………2
33. 161483A1 Hose (KBJ2346)…………………………………1
34. 165405A1 Coupler (KHR1957)…………………………….1
35. 156559A1 Screw M6x12 (KHR1252) ……………………1
36. 159899A1 Pressure contact switch
(KHR1493)……………………………………1
37. KHR3350 Harness…………………………………………….1
38. 152127A1 Adaptor (KNJ0758)……………………………. 2
39. 150933A1 Elbow union (KHJ0348)……………………… 1
40. KHJ0994 Adaptor ……………………………………………. 1
41. KUJ0396 Batch of 1 hose
152709A1 Hose Y2 (KNJ1069)…………………………… 1
42. KHJ1951 Bracket ……………………………………………. 3
43. 153081A1 Washer M8 (KAJ1500) ………………………. 6
44. 627-8012 Screw M8x12 (102R008Y012R)………….. 6
45. 150860A1 Base (KHR0319) ………………………………. 6
46. 840-168 Screw M6x8 (145T006S008R)……………… 6
47. 150496A1 Clip L=250 (KHH0142) ………………………. 6
48. 150071A1 Clip L=380 (KAR0017)……………………….. 2
49. KUJ0113 Bracket …………………………………………… 1
50. 150811A1 Washer W12 (KHN0296) ………………….. 12
51. 627-12040 Screw M12x40 (102R012Y040R)………… 6
52. KUJ0247 Pipe ………………………………………………… 1
53. 164450A1 O-ring (LBQ5222) ……………………………… 8
54. 862-14040 Screw M14x40 (108R014Y040R)………. 16
55. KUJ0392 Bracket ……………………………………………. 1
56. 165929A1 Screw M16x50 (105R016Y050R)………… 4
57. KSJ2740 Manifold …………………………………………… 1
58. 163435A1 Cover (KSJ2363) ………………………………. 1
59. 862-16030 Screw M16x30 (108R016Y030R)………… 4
60. 154640A1 O-ring (LBQ0602) ……………………………… 1
61. 162656A1 Safety valve
(KSJ2292) …………………………………… 1
62. 166373A1 Screw M16x40 (105R016Y040R)………… 4
63. KUJ0261 Hose ……………………………………………….. 1
64. 150124A1 Clamp (KTJ0029) ……………………………… 6
65. KUJ0112 Retaining clamp………………………………… 2
66. 827-12090 Screw M12x90 (102R012Y090R)………… 2
67. 829-1412 Nut M12 (162R012VR) ………………………. 2
68. KUJ0263 Bracket ……………………………………………. 1
69. 163436A1 Manifold (KSJ2362) …………………………… 1
70. 166352A1 Screw M12x30 (105R012Y030R)………. 12
71. 162667A1 Manifold (KSJ2372) …………………………… 1
72. 184-014VR Washer SW14…………………………………… 4
73. 862-14090 Screw M14x90 (108R014Y090R)………… 4
74. KUJ0119 Bracket ……………………………………………. 1
75. KUJ0159 Filter………………………………………………… 1
76. KUJ0155 Hydraulic clamp ………………………………… 2
2
Cre 9-40361 Issued 10-04
ITEM P/N DESCRIPTION Qty ITEM P/N DESCRIPTION Qty
77. 154721A1 O-ring (LBQ1003)……………………………….2
78. KUJ0253 Bracket ……………………………………………..1
79. 627-12035 Screw M12x35 (102R012Y035R) …………2
80. 157582A1 Elbow (KHJ0346) ……………………………….2
81. KUJ0441 Hose…………………………………………………1
82. 157856A1 Clamp (KRJ4117)……………………………….6
83. 862-10030 Screw M10x30 (108R010Y030R) ……….12
84. KUJ0252 Retaining clamp …………………………………4
85. KUJ0034 Plate…………………………………………………2
86. KUJ0036 Spacer………………………………………………4
87. 150409A1 Washer M10 (KEH0114) ……………………..6
88. 814-10100 Screw M10x100 (102R010Y100R) ……….2
89. 162R010VR Nut M10 …………………………………………… 2
90. 159047A1 Adaptor (BDJ0218)……………………………. 1
91. 168048A1 Hose (KTJ1893) ……………………………….. 1
92. 151046A1 Protective sheath
(KSA0389)…………………………………… 1
93. KUJ0250 Hose ……………………………………………….. 1
94. KUJ0265 Hose ……………………………………………….. 2
95. KHR3353 Electrical harness ……………………………… 1
96. 159497A1 T-piece (KHJ0869)…………………………….. 2
97. 827-10090 Screw M10x90 (102R010Y090R)………… 2
153591A1 Loctite 262 ……………………………………….. 1
