Clark Forklift CFY40B, CFYR40B, CFY50B English O-125 Operator’s Manual
Video Preview:

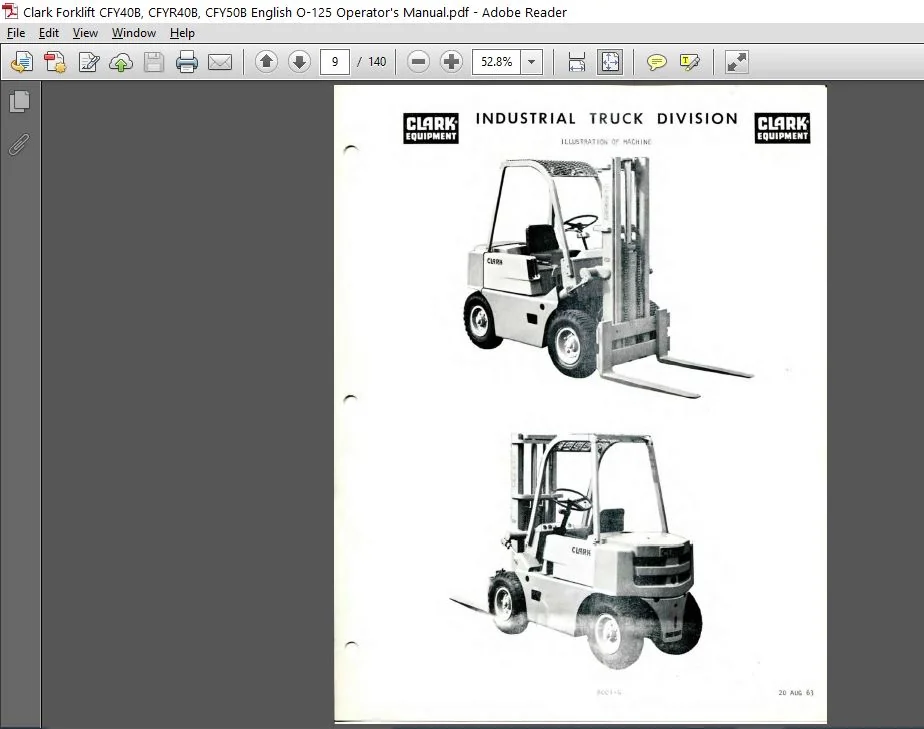

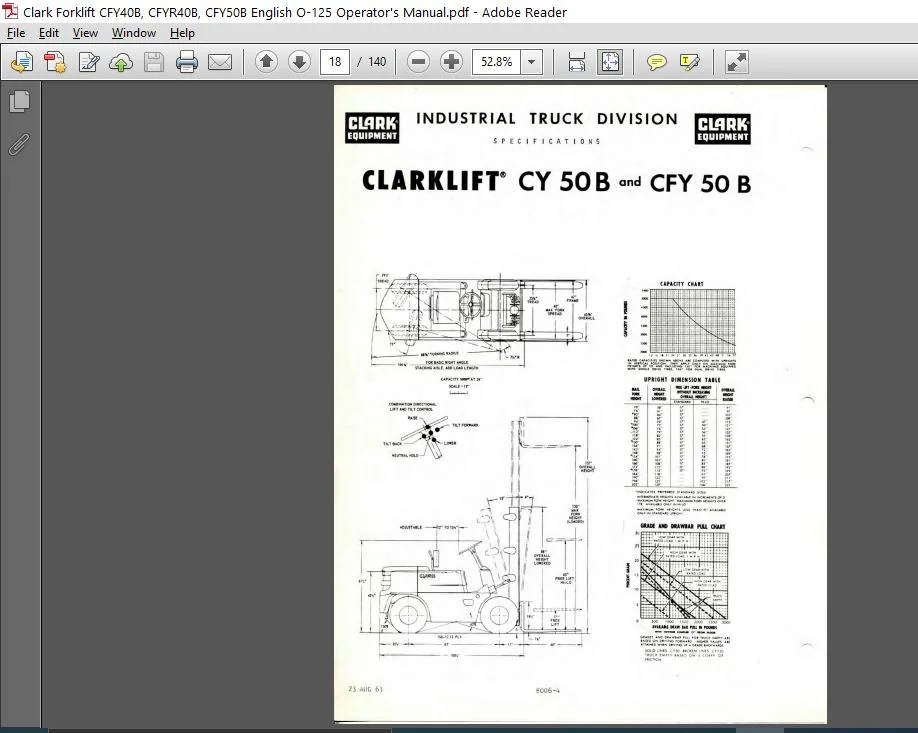

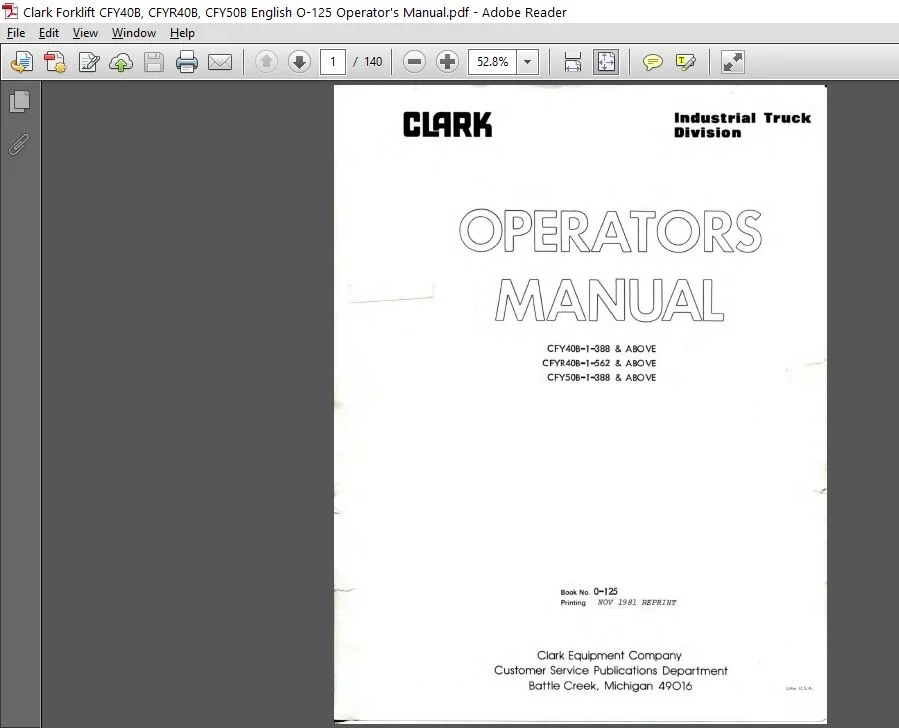

Image Preview:
Description:
Clark Forklift CFY40B, CFYR40B, CFY50B English O-125 Operator’s Manual
- SAFETY INSTRUCTIONS FOR MAINTAINING INDUSTRIAL TRUCKS Powered industrial trucks may become hazardous if adequate maintenance is neglected. Therefore, adequate maintenance facilities, personnel and procedures should be provided.
- Maintenance and inspection of all powered industrial trucks should be performed in conformance with the rec01M1endation in this manual and the following practices. 1. A scheduled preventive maintenance, lubrication, and inspection system should be followed.
- 2. Only qualified and authorized personnel should be permitted to maintain, repair, adjust, and inspect industrial trucks. J. Before leaving The Truck: A. Stop truck. B. Fully lower the load engaging means.
- c. Place directional controls in neutral. D. Apply the parking brake. E. Stop the engine or F. lock the control or G. Block the wheels if 4. Before Working On Truck: turn off ignition truck is power.
- circuit. on a ramp, or being worked on. A. Raise wheels free of floor or disconnect power source. 8. Use chocks or other positive truck positioning devices. C. Block load engaging means, innermast(s), or chassis before working under them.
- Before working on engine fuel system of gasoline powered trucks with gravity feed fuel systems, be sure fuel shutoff valve ls closed. Before ?10rking on engine fuel system of LP gas powered trucks, close LP gas cylinder valve and run engine until fuel in system is depleted and engine stops running.
- Operation to check performance of the truck or attachments should be conducted in an authorized, safe clearance area. S. Before Starting To Operate The Truck: A. Be in operating position.
- 8. Depress clutch (or brake pedal on automatic transmission and electric trucks). C. Place directional controls in neutral. D. Start engine or turn on power. E. Before operating truck, check functioning of I ift and tilt systems, directional and speed controls, steering, warning devices, brakes, and any attachment. (If used) F. Release parking brake.
Table Of Contents:
Clark Forklift CFY40B, CFYR40B, CFY50B English O-125 Operator’s Manual
1000 Hour Lubrication & Preventive Maintenance Illustration
Engine Tune Up; Air Cleaner, Fuel Pump
Engine Tune Up; Cylinder Head Stud Nuts I ntake and Exhaust Manifolds,
Crankcase Ventilation; I ntake and Exhaust Valve Clearance adjustments
Engine Tune Up; I ntake and Exhaust Valve Clearance adjustments
Engine Tune Up; Compression test, Spark Plugs
Engine Tune Up; Distributor
Engine Tune Up; Tach Dwell Meter
Engine Tune Up; Contact Point adjustment; I gnition Timing
Engine Tune Up; Vacuum Test and Carburetor adjustment
Engine Tune Up; Governor adjustment
Starting Motor inspect
Generator inspect
Wheel Beari ngs clean and repack; adjust
Axle Ends clean and repack
Bleeding Brake System
Brake adjustment
Hand Brake adjustment
Cool ing System inspect and clean
Transmission, Axle Adaptor drain and refi I I
Main Hydraulic System Pressure checks
Upright Roi ler lubrication and adjustments
T R 0 U B L E S H 0 0 T I N G G U I D E
Page Description
TS 001 Engine
TS 251 Fuel System
TS 301 Clutch
TS 321 Cooling System
TS 341 I gn i ti on Sys tern
TS 361 Starter
TS 38 1 Generator
TS 401 Battery & Horn
TS 421 Transmission
TS 483 Drive Axle
TS 521 Steering Axle
TS 541 Brake System
TS 653 Hydraulic System
