CLAAS LEXION 560 – 510 Auger Auger Fingers Fitting Instructions MANUAL_DE_EN_FR – PDF DOWNLOAD
DESCRIPTION:
CLAAS LEXION 560 – 510 Auger Auger Fingers Fitting Instructions MANUAL_DE_EN_FR – PDF DOWNLOAD
INTRODUCTION
These instructions describe the safe and timesaving work sequence for retrofitting the finger roller. Retrofitting of the LEXION 560 – 540 combine harvesters, with the supplementary kit part no. 91007594, is possible from the machine number range 58400011. Retrofitting of the LEXION 530 – 510 combine harvesters, with the supplementary kit part no. 91007619, is possible from the machine number range 58300011. The standard mounting time is approx. 15 man hours. See page 4.1 for the shipping package. Observe the »Safety Rules« in the applicable operator’s manual.
TABLE OF CONTENTS:
CLAAS LEXION 560 – 510 Auger Auger Fingers Fitting Instructions MANUAL_DE_EN_FR – PDF DOWNLOAD
1 Introduction
Introduction 11
2 Contents
Contents 21
3 General
information
Important 31
Identification of warnings and danger signs 32
Correct use 32
4 Shipping Package
Shipping Package 41
Supplementary kit parts no 91007594 for
LEXION 560 – 540 and parts no 91007619 for
LEXION 530 – 510 41
5 Installation
Installing the finger roller 51
Preparing the installation 51
Opening the chaff spreader 51
Opening the chaff spreader completely 52
Removing the chaff spreader transition pan 53
Removing the top sieves 53
Removing the straw walker return pan 55
Removing the straw walker racks 56
Fitting the special tool (custom-made) 59
Installing the cover plate 511
Installing the finger roller 512
Fitting the bearing plate to the left 514
Fitting the drive flange to the right 515
Fitting the bearing plate to the right 516
Aligning the finger roller 516
Fitting the finger roller drive 519
Installing the v-belt pulley of the finger roller drive 519
Fitting the upper jockey pulley of the finger roller drive 520
Fitting the front jockey pulley of the finger roller drive 520
Fitting the rear v-belt pulley 521
Fitting the tensioning unit 521
Removing the straw walker drive belt 521
Putting on and adjusting the finger roller drive belt 523
Fitting the rotation speed pick-up 524
Installing the straw walker racks 525
Installing the straw walker return pan 526
Installing the top sieves 527
Installing the chaff spreader transition pan 528
Folding in the chaff spreader 528
Putting on and tensioning the straw walker drive belt 529
Adjusting the multiple finger 530

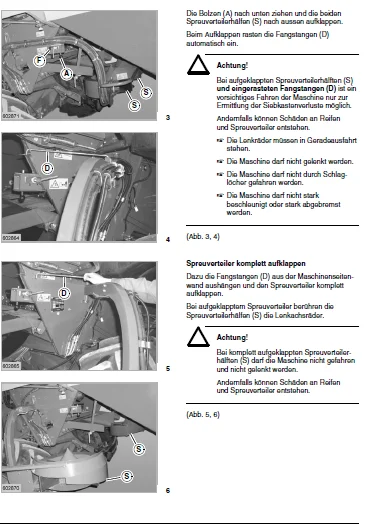

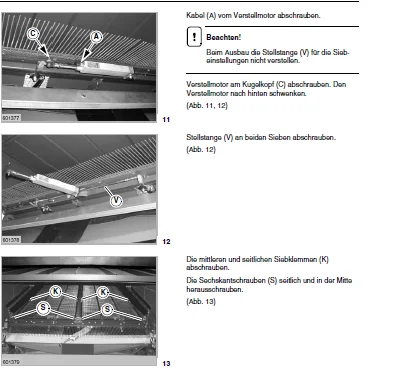

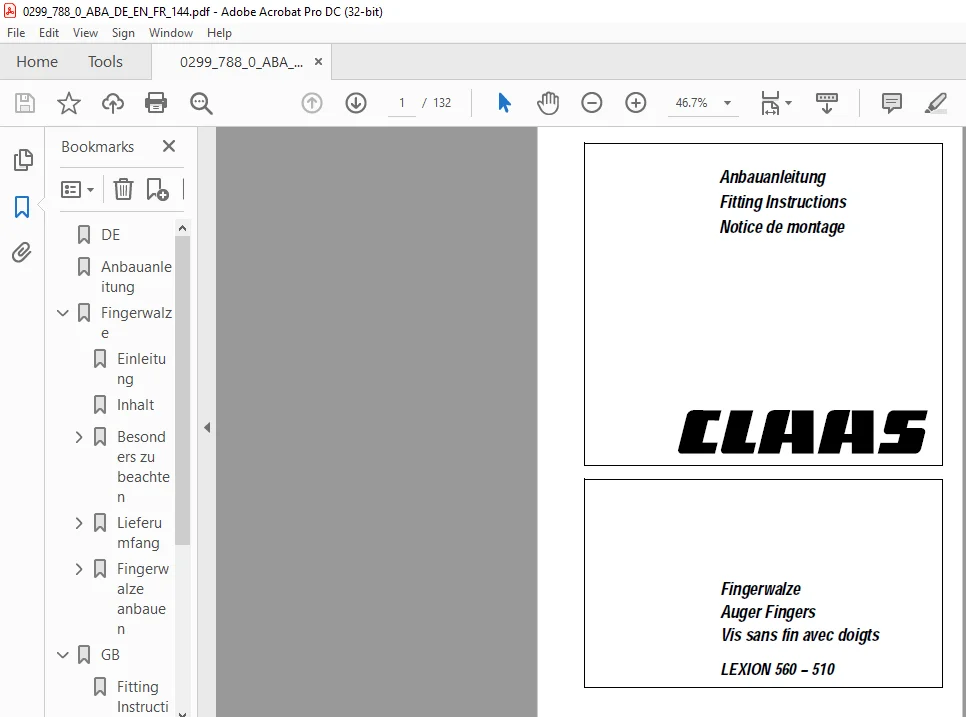

IMAGES PREVIEW OF THE MANUAL:
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
S.M
