CLAAS GRAMMER seat suspension MSG95A(L) Repair manual – PDF DOWNLOAD
DESCRIPTION:
CLAAS GRAMMER seat suspension MSG95A(L) Repair manual – PDF DOWNLOAD
Notes on these instructions
This repair manual includes information and instructions on how to perform repair work on the seat suspension MSG95A(L) of GRAMMER seats for the following models:
● Cable harness of seat suspension incl. U-profile and socket
● Cable harness for seat suspension with direct seat connection
- The repair of the upper seat part is described in the respective repair manual for the upper seat part to which a reference is made, if required. Example: Remove the cable of the seat occupancy detection system at the upper seat part (see repair manual for upper seat part). The seat suspension MSG95A(L) with U-profile and socket forms the basis for illustrations in
- this repair manual. In the case of technical deviations in work procedures (due to different seat suspension designs), refer to the current text or individual chapters of the manual. Each chapter starts with a list of all preparatory work to be completed before starting repair. These preparations are described in separate chapters and shall be carried out without the
- preparatory steps described there. At the beginning of each description for repair you will find an overview diagram. All parts included in the overview diagrams within one chapter are consecutively numbered starting with “1”. Each component is referred to by the same number throughout the document. With the help of these overview diagrams, an experienced technician will gain a quick overview
- For spare part orders, please use the numbers stated in the latest issue of the relevant spare parts catalogue. The description of the work procedures refers to the removed seat suspension and the dismounted upper part of seat. Depending on the individual installation situation, some work may also be performed on the installed seat suspension
- and/or with upper seat part. For this reason, check the environment of the installed seat suspension for this possibility before starting work. The safety instructions of the specific vehicle manufacturer and those stated in Chapter 1 of this repair manual must be strictly observed. This repair manual also includes some information on
- delivery options, if these require further explanation. Since the scope of delivery depends on the specific customer order, the actual seat suspension design may deviate from the descriptions and illustrations in this manual. If not stated otherwise, the directional indications “front, back” and “right, left” refer to the installed seat suspension
- regarded in the driving direction of the vehicle. The document layout is suitable for later use of this repair manual via CD-ROM / INTERNET / INTRANET. A navigation line was entered below the heading for this. This navigation line includes the Chapter titles and it allows the user to jump directly to these Chapters after the corresponding hyperlinks have been set

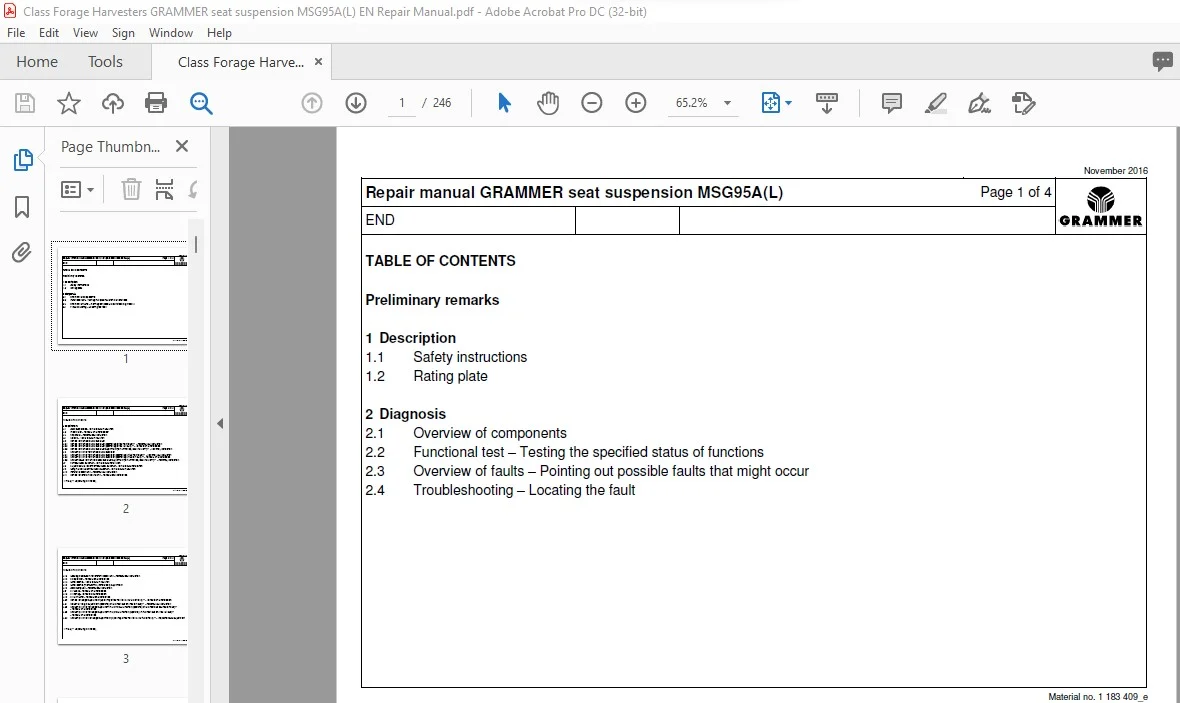

TABLE OF CONTENTS:
CLAAS GRAMMER seat suspension MSG95A(L) Repair manual – PDF DOWNLOAD
Preliminary remarks
1 Description
1.1 Safety instructions
1.2 Rating plate
2 Diagnosis

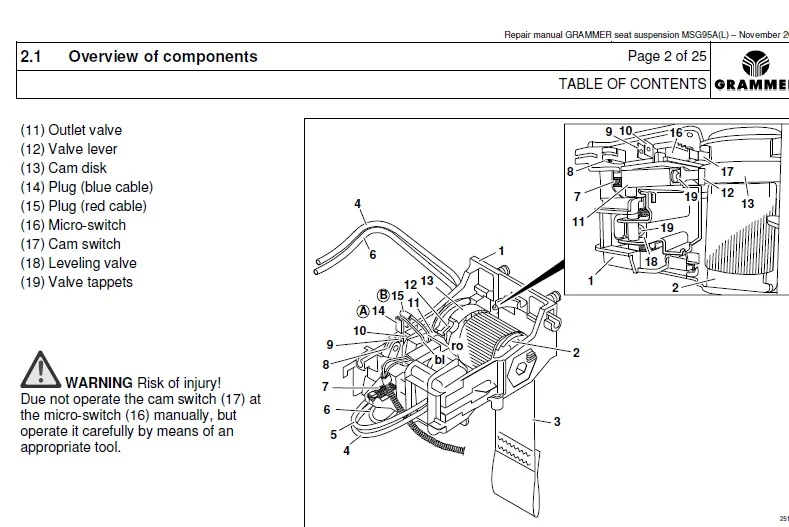

2.1 Overview of components
2.2 Functional test – Testing the specified status of functions
2.3 Overview of faults – Pointing out possible faults that might occur
2.4 Troubleshooting – Locating the fault
3 Repair work
3.1 Seat suspension – removal and installation
3.2 Front cover – removal and installation *
3.3 Top cover – removal and installation
3.4 Bellows – removal and installation
3.5 Handle for vertical shock absorber
3.5.1 Handle for vertical shock absorber (Operating at the front side) ** – removal and installation
3.5.2 Handle for vertical shock absorber (Operating at the left side) ** – removal and installation
3.5.3 Handle for vertical shock absorber adjustment (left activation, facelift variant) ** – removal, installation
3.6 Bowden pull wire for vertical shock absorber
3.6.1 Bowden pull wire for vertical shock absorber (Operating at the front side) ** – removal and installation
3.6.2 Bowden pull wire for vertical shock absorber (Operating at the left side) ** – removal and installation
3.6.3 Bowden cable for vertical shock absorber adjustment (left activation, facelift variant) ** – removal, installation
3.7 Vertical shock absorber – removal and installation
3.8 Adjustment device for vertical shock absorber – removal and installation
3.9 Longitudinal horizontal shock absorber – removal and installation
3.10 Fore/aft isolator unit – removal and installation
3.11 Handle for fore/aft isolator unit – removal and installation
3.12 Locking mechanism for fore/aft isolator unit – removal and installation
3.13 Compressor – removal and installation
3.14 Level control – removal and installation
3.15 Level control (micro-switch, outlet valve) adjustment
3.16 Secondary belt – removal and installation
3.17 Air hoses – removal and installation
3.18 Air spring – removal and installation
3.19 Air distributor – removal and installation
3.20 Handle for height adjustment (Operating at the front side and the left side) ** – removal and installation
3.21 Holder for height adjustment (Operating at the front side and the left side) ** – removal and installation
3.22 Bowden pull wire for height adjustment in downward direction (Operating at the front side and the left side) **
– removal and installation
3.23 Bowden pull wire for height adjustment in upward direction (Operating at the front side and the left side) **
– removal and installation
3.24 Bowden pull wires for height adjustment (Operating at the front side and the left side) ** – inspection and adjustment
3.25 Cable harness of vehicle connection – removal and installation
3.26 Cable harness of seat suspension (incl. U-profile) – removal and installation
3.26.1 Cable harness of seat suspension (incl. U-profile and socket) ** – removal and installation
3.26.2 Cable harness of seat suspension (with direct seat connection) ** – removal and installation
3.27 Upper suspension part (Operating at the front side and the left side) ** – removal and installation
3.28 Lower suspension part – removal and installation
3.29 Swinging structure – disassembly and assembly
3.30 Worn parts – replacement
3.31 Vertical shock absorber – left cover (facelift variant) removal, installation *
3.32 Fore/aft isolator – left cover (facelift variant) removal, installation
