Cat TH336 TH337 TH40 TH407TH414 TH514 TH417 Telehandler PowerSynchro Transmission Parts Manual – PDF DOWNLOAD
DESCRIPTION:
Cat TH336 TH337 TH40 TH407TH414 TH514 TH417 Telehandler PowerSynchro Transmission Parts Manual – PDF DOWNLOAD
S/N TDE00100 & After
S/N TDF00100 & After
S/N TBX00100 & After
S/N TBY00100 & After
S/N TBZ00100 & After
S/N TBW00100 & After
S/N TBT00100 & After
GENERAL INFORMATION
1. MACHINE IDENTIFICATION
- Caterpillar machines are identified by Product Identification Numbers (PIN). Some components included in a machine may be identified by Serial Numbers (S/N). Typical components that will be serialized include engines, transmissions, bulldozers, and rippers.
- The machine and engine are further identified by arrangement numbers and in some cases modification numbers. These numbers are shown on the product identification plate(s) and on the master plate in the operator’s compartment.
- Caterpillar dealers need all of these numbers to determine accurate parts identification.
Effective First Quarter 2001 the Caterpillar Product Identification Number (PIN) will change from 8 to 17 characters.
- In an effort to provide uniform equipment identification, Caterpillar and other construction equipment manufacturers are moving to comply with the latest version of the product identification numbering standard. Non-road machine PINs are defined by ISO 10261.
- The new PIN format will apply to all Caterpillar machines and generator sets. The PIN plates and frame marking will display the 17 character PIN. The new format will look like the following
Where:
- Caterpillar’s World Manufacturing Code (characters 1-3)
- Machine Descriptor (characters 4-8)
- Check Character (character 9) 4
- Machine Indicator Section (MIS) or Product Sequence Number (characters 10-17). These were previously referred to as the Serial Number. Machines and generator sets produced before First Quarter 2001 will maintain their 8 character PIN format. Components such as engines, transmissions, axles, etc. and work tools will continue to use an 8 character Serial Number (S/N).
2. ORDERING PARTS
- When replacement parts are required for this product Caterpillar recommends using Caterpillar replacement parts or parts with equivalent spec ifications including, but not limited to, physical dimensions, type, strength and material.
- Failure to heed this warning сап lead to prema ture failures, product damage, personal injury or death.
Quality Caterpillar replacement parts are available from Caterpillar dealers throughout the world.
- Their parts inventories are up to date and include all parts normally required to protect your investment in Caterpillar machines.
- Dealers may offer repair kits or remanufactured parts to allow selection of the most effective repair alternative for a particular situation. When ordering parts, your order should specify the quantity, part number, part name, and the serial number/product identification number of the machine for which the parts are needed
3. PARTS MANUAL ORGANIZATION
Product information in this manual is presented as “information elements” that represent all of the components for the specific model. Engine Arrangement and Seat Group are examples of information elements.
4. TABLE OF CONTENTS
A table of contents (TOC) is found at the beginning of the manual. The TOC lists each section of the manual with a complete list of all information elements organized as they appear in the manual
5. CAPTIONS
- Captions located at the top of each page of an information element identify the part number and part name along with additional descriptive information. PIN and S/N information found in each caption should be used to select correct information for a specific machine.
- Field replacement options, identification of optional attachment components, and where used (“part of”) information is also provided. The first line of a caption is shown in larger type font to indicate the beginning of an information element.
- Captions for additional pages that may be required to illustrate an information element will be shown in standard type font and will include the term (contd.).
6. NON-SERVICED PARTS
In some instances it is necessary to display non-serviced parts that are a link to a lower level serviceable consist lists. These non-serviced part numbers are shown in italic type indicating that they are not available.
7. PARTS LIST REFERENCE NUMBERS
- Numbers shown in the Ref No column correspond to numbers used in the associated graphic(s). An alphabetic suffix may be added to a reference number to identify lower level consist items.
- Numbers shown in the Graphic Ref column refer to the graphic number identifier displayed in the lower left corner of each illustration. The Graphic Ref number may be used in combination with the item Ref No to determine the correct part number.
- There may be intentional omission of a Ref No in a consist list as information is updated to reflect the latest serviceable part numbers
8. INDENTED PART NAMES
When a part name is indented in a parts list, it is part of (included in) the group or assembly under which it is indented.
9. ILLUSTRATION REFERENCE LETTERS
When necessary, illustrations contain reference letters (A, B, C etc.) that are intended to track lines and harnesses from one point to another. They are also used to show where to reconnect illustrations that have been separated
10. ABBREVIATIONS AND SYMBOLS
O.D. – Outside Diameter
I.D. – Inside Diameter
A – Not Part Of This Group
B – Use As Required
C – Change From Previous Type
D – Order By The Meter
E – Order By The Centimeter
F – Not Shown
G – Order By The Inch
I – See Hose Fabrication Guide
M – Metric Part
R – Remfg Part May Be Available
Y – Separate Illustration
Z – Not Serviced Separately
NOTE:
Continuing improvement and advancement of product design may cause changes to your machine which may not be included in this publication. Whenever a question arises regarding your Caterpillar product or this publication, please consult your Caterpillar dealer for the latest available information
TABLE OF CONTENTS:
Cat TH336 TH337 TH40 TH407TH414 TH514 TH417 Telehandler PowerSynchro Transmission Parts Manual – PDF DOWNLOAD
31200493_A_PowerSynchro Trans_CAT_Parts.... 1 General Information.................... 3 Table of Contents...................... 5 4 Speed Transmission................... 7 5 Speed Transmission...................27
VIDEO PREVIEW OF THE MANUAL:

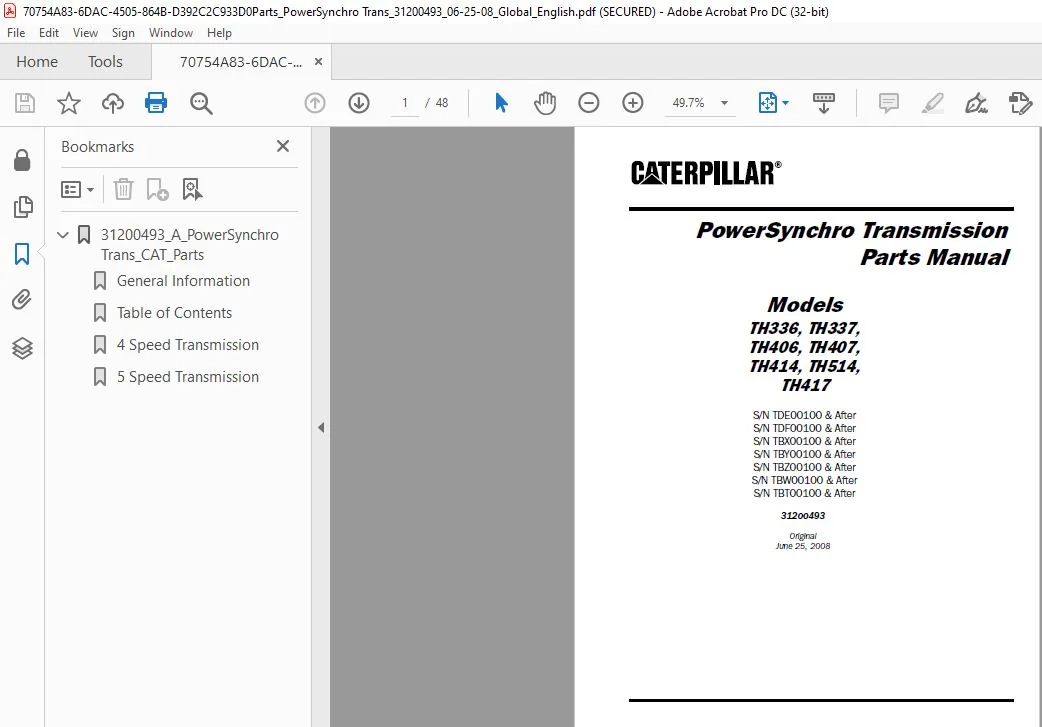

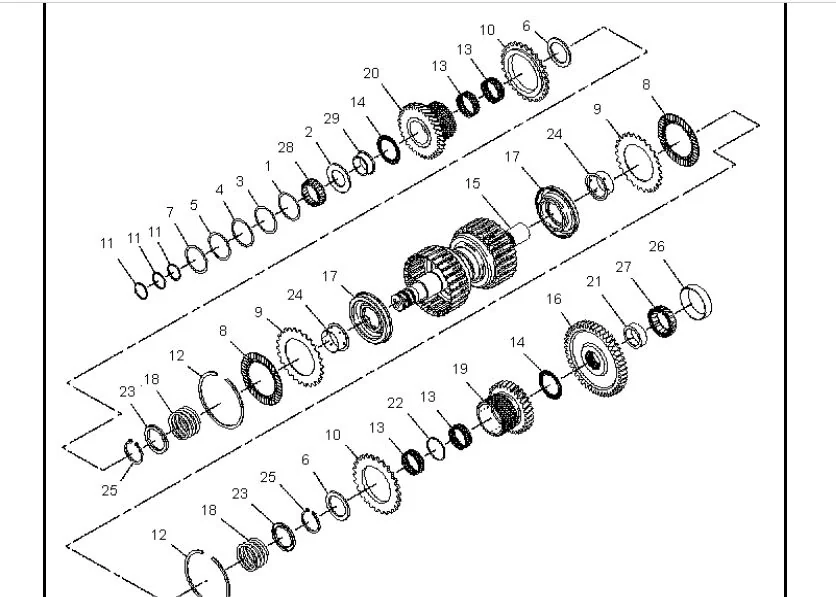

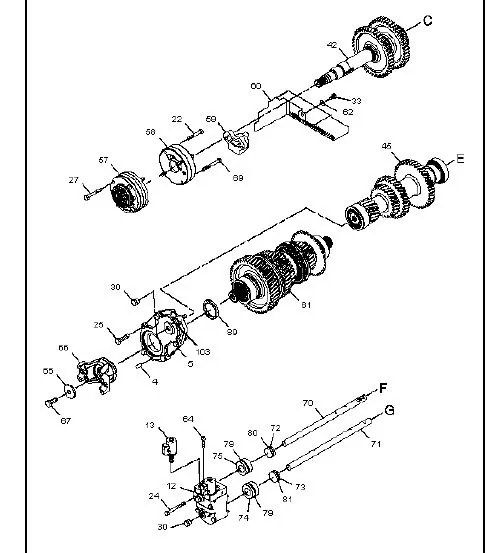

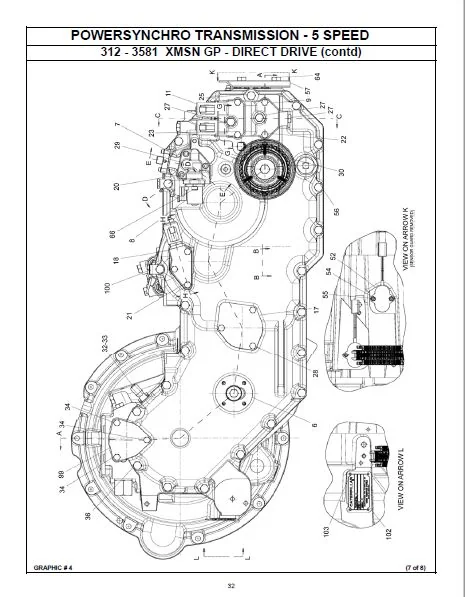

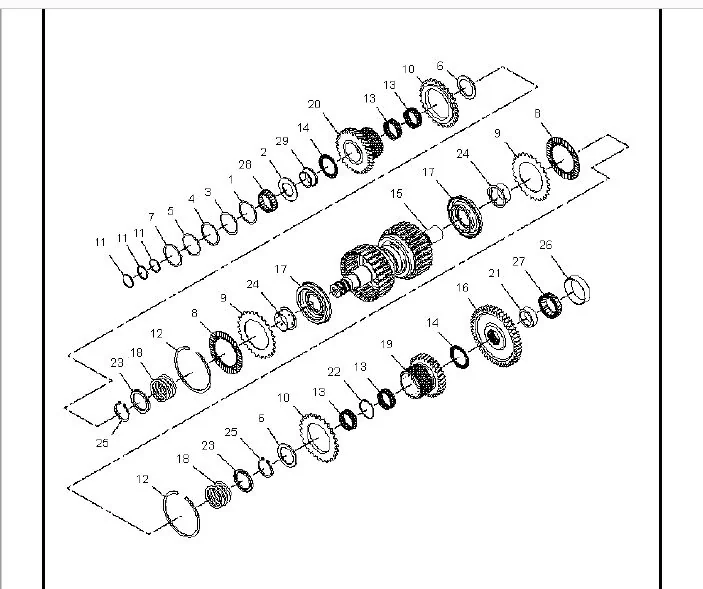

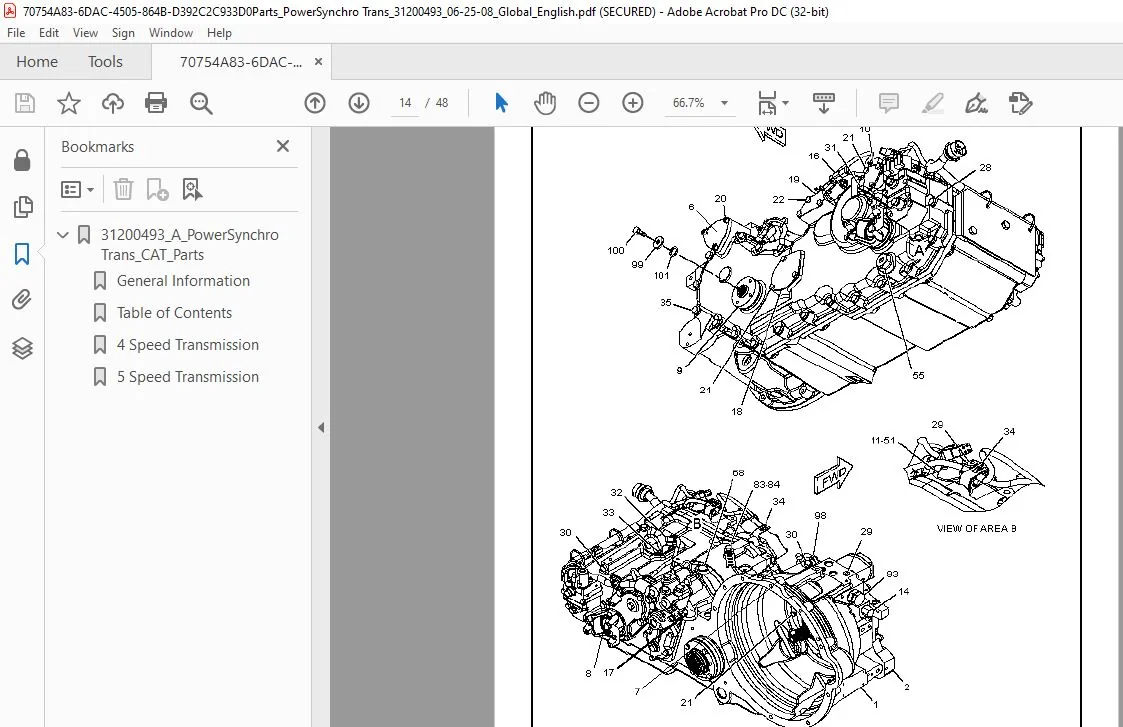

IMAGES PREVIEW OF THE MANUAL:
