CAT SH660 D Roof Support Carrier Operation Manual SN 5003740 – PDF DOWNLOAD
FILE DETAILS:
CAT SH660 D Roof Support Carrier Operation Manual SN 5003740 – PDF DOWNLOAD
Language : English
Pages : 93
Downloadable : Yes
File Type : PDF

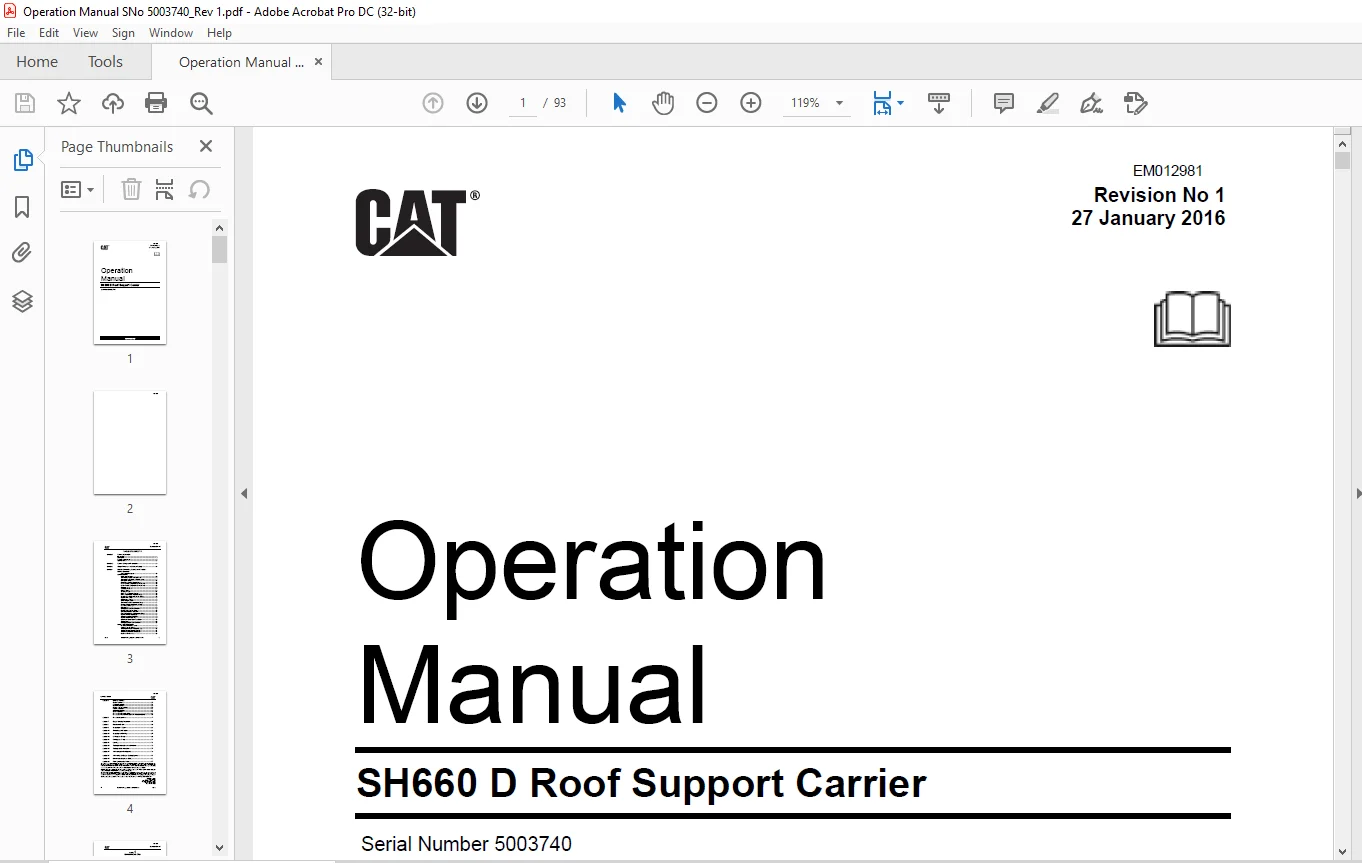

IMAGES PREVIEW OF THE MANUAL:

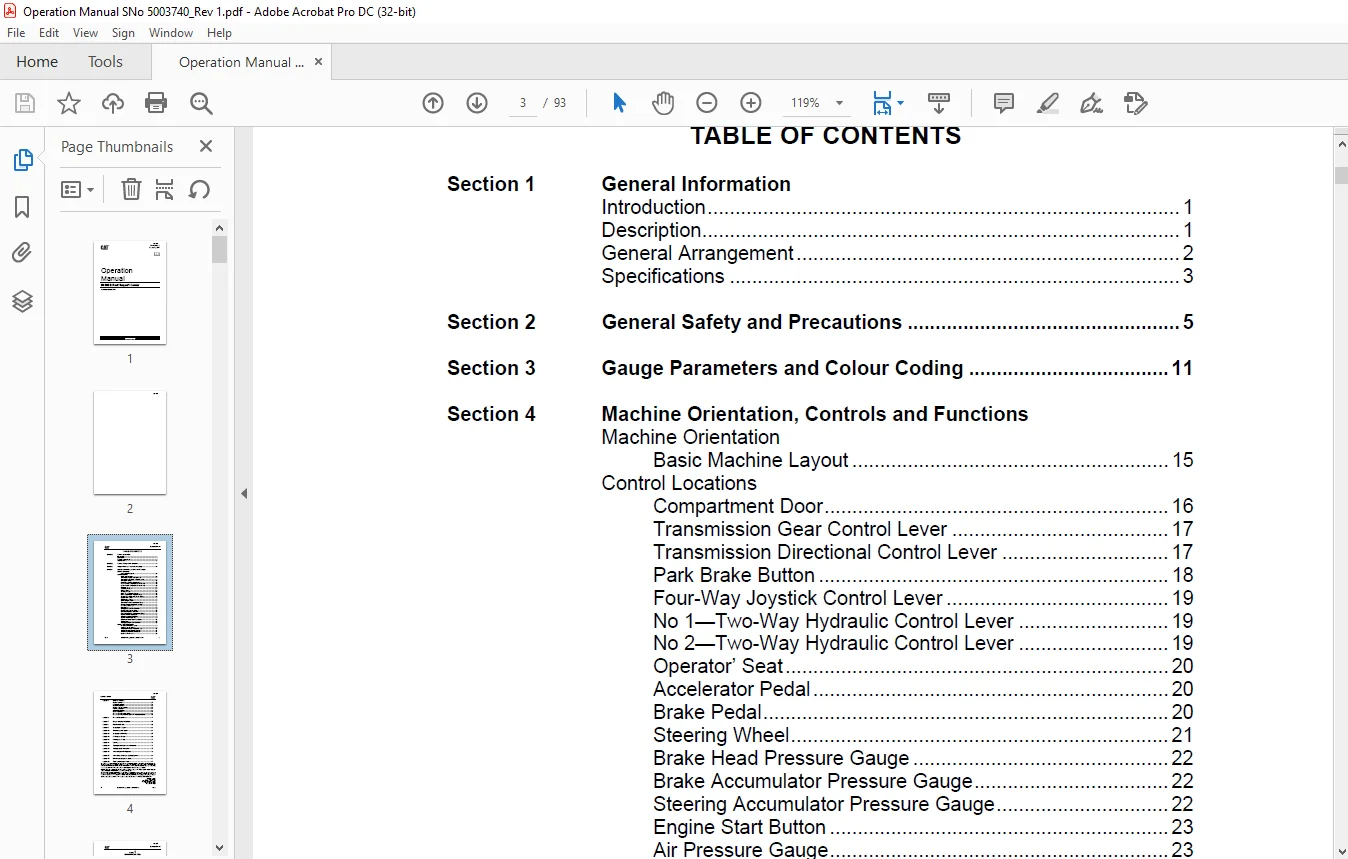

TABLE OF CONTENTS:
CAT SH660 D Roof Support Carrier Operation Manual SN 5003740 – PDF DOWNLOAD
Section 1 General Information
Introduction 1
Description 1
General Arrangement 2
Specifications 3
Section 2 General Safety and Precautions 5
Section 3 Gauge Parameters and Colour Coding 11
Section 4 Machine Orientation, Controls and Functions
Machine Orientation
Basic Machine Layout 15
Control Locations
Compartment Door 16
Transmission Gear Control Lever 17
Transmission Directional Control Lever 17
Park Brake Button 18
Four-Way Joystick Control Lever 19
No 1—Two-Way Hydraulic Control Lever 19
No 2—Two-Way Hydraulic Control Lever 19
Operator’ Seat 20
Accelerator Pedal 20
Brake Pedal 20
Steering Wheel 21
Brake Head Pressure Gauge 22
Brake Accumulator Pressure Gauge 22
Steering Accumulator Pressure Gauge 22
Engine Start Button 23
Air Pressure Gauge 23
On/Off Toggle Switch 23
Transmission Oil Temperature Gauge 24
Engine Coolant Temperature Gauge 24

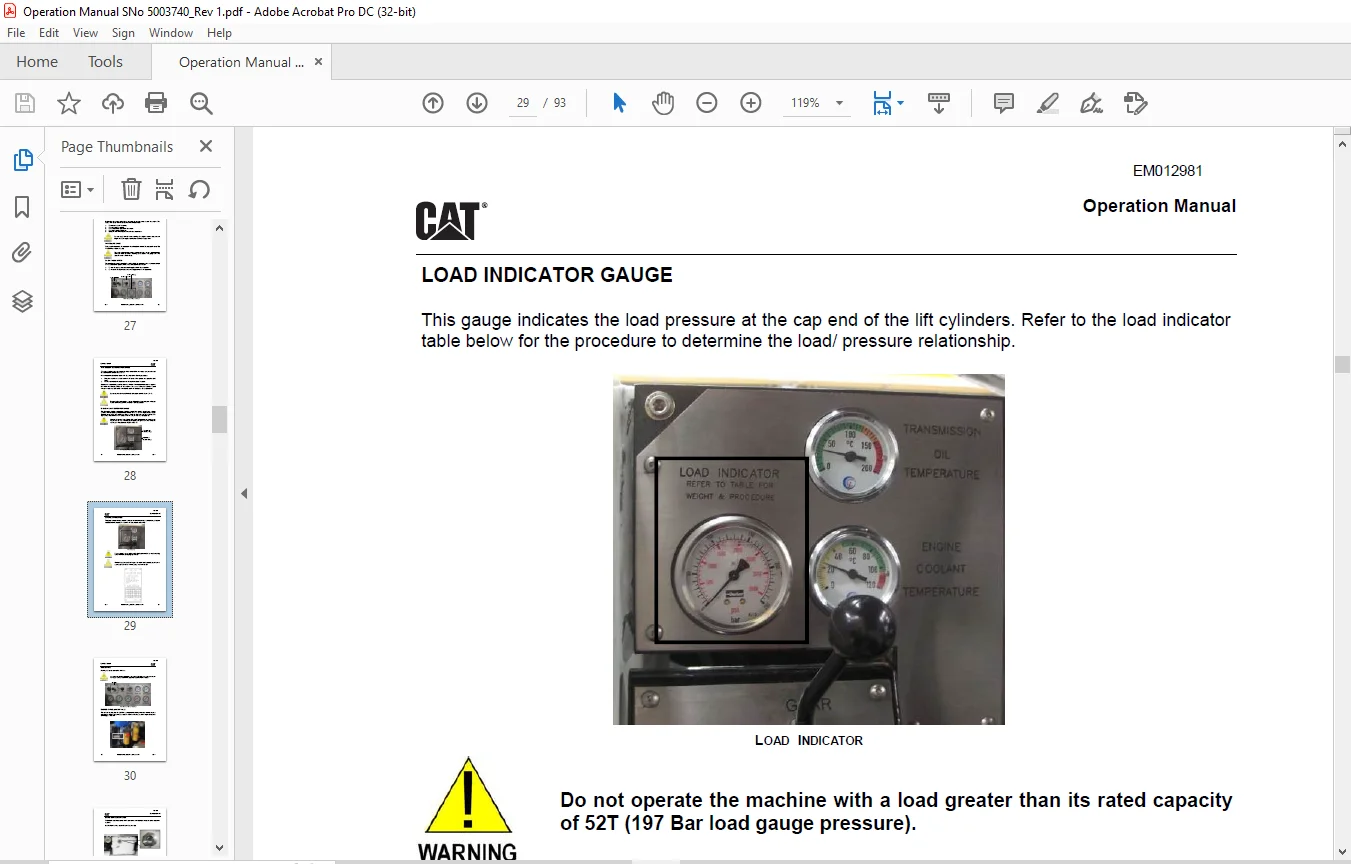

Load Indicator Gauge 25
Horn Button 26
Emergency Fuel Shut Off Valve 26
Engine Service Hour Meter 27
Air Cleaner Service Indicator 27
Exhaust Outlet Gas Temperature Gauge 28
Engine Oil Pressure Gauge 28
Shutdown System Test Valve 29
Engine Fuel Primer Pump 29
Attachment Quick Connects Button 30
Trailer Eject 30
Emergency Intake Shut Off Valve 30
Power Assist Trail Controls
Power Assist Control Lever 32
Clutch Pressure Gauge 32
Trailer Brake Head Pressure Gauge 33
Trailer Forward Pressure Gauge 34
Trailer Reverse Pressure Gauge 34
Machine Winch Lines 35
EM012981
Operation Manual
ii SH660 D Roof Support Carrier Serial No 5003740 Rev 0
Section 5 Machine Isolation
Engine Isolation 37
Pneumatic Isolation 38
Hydraulic Isolation 39
Engine Coolant Isolation 40
Electrical Isolation 41
Articulation Isolation 42
Lift Arm Isolation 43
Exhaust Conditioner Isolation 44
Exhaust Conditioner Make Up Tank Pressure Isolation 45
Section 6 Pre-Start Procedure 47
Section 7 Engine Starting Procedure 57
Section 8 Post Start Checks 59
Section 9 Stopping the Engine 63
Section 10 Tramming the Machine 65
Section 11 Stopping and Braking 67
Section 12 Driving on a Ramp 69
Section 13 Parking on a Ramp 71
Section 14 Loading 73
Section 15 Towing the Machine when Disabled 75
Section 16 Towing with the Machine 77
Section 17 Air Venting the Fuel System 79
Section 18 Air Venting the Engine Cooling System 81
Section 19 Diesel Control System (DCS) 83
Section 20 Fluid Specification Table 87
DESCRIPTION:
CAT SH660 D Roof Support Carrier Operation Manual SN 5003740 – PDF DOWNLOAD
General Information:
INTRODUCTION:
- The operation of heavy mining machinery can be hazardous. To ensure safe operation,
operators and personnel must be alert, competent, correctly trained, tested and licensed in
the principles, capabilities and correct operating and isolation procedures of the machinery. - This manual is designed to provide the SH660 D Roof Support Carrier operator with the
proper information regarding the machine’s instrumentation, operating controls and general
safe working procedures. All operators of this machine must be conversant with the
information contained within this manual before operating the machine. - To ensure safe and efficient operation, the SH660 D Roof Support Carrier must be
adequately maintained by the operators and service personnel. To achieve this, the
operator’s pre-start inspection procedure contained in Section 6 of this manual must be
performed before any use of this machinery is undertaken. - Any abnormalities should be reported immediately to service personnel to avoid costly
machine repairs, production downtime and unsafe operation of the machine.
DESCRIPTION:
- The SH660 D is a 55000 kg high capacity Shield Hauler. It has been designed for lifting and
carrying heavy pieces of equipment and machinery in underground coal mines. Its main
function is the carrying and placing of longwall equipment and shields. The machine comes
standard with a set of fork tines and winch for this purpose. - The motive force is provided by a 172 kW CAT C7 turbocharged four-stroke inline six
cylinder flameproof diesel engine package. - Flameproofing of the system includes an inlet flametrap, and a wet bath exhaust system,
complete with exhaust purifier and dual particulate filtration. - The machine has a pneumatic starting and safety interlock system coupled to a Diesel
Control System (DCS), which is an intrinsically safe electronic monitoring and shutdown
system that prevents the engine running outside of the predetermined safe operating
parameters. - The engine power output is connected to the constant four-wheel drive system via a
transfer case (drop box) coupled to the engine flywheel, and a four speed Dana/Spicer
36000 Series transmission providing power to heavy duty Kessler outboard planetary drive
axles through bevel gear and pinion.
