CAT Bucyrus Unit Rig Mining Truck P100 Operation & Maintenance Manual BI007311 – PDF DOWNLOAD
INTRODUCTION:

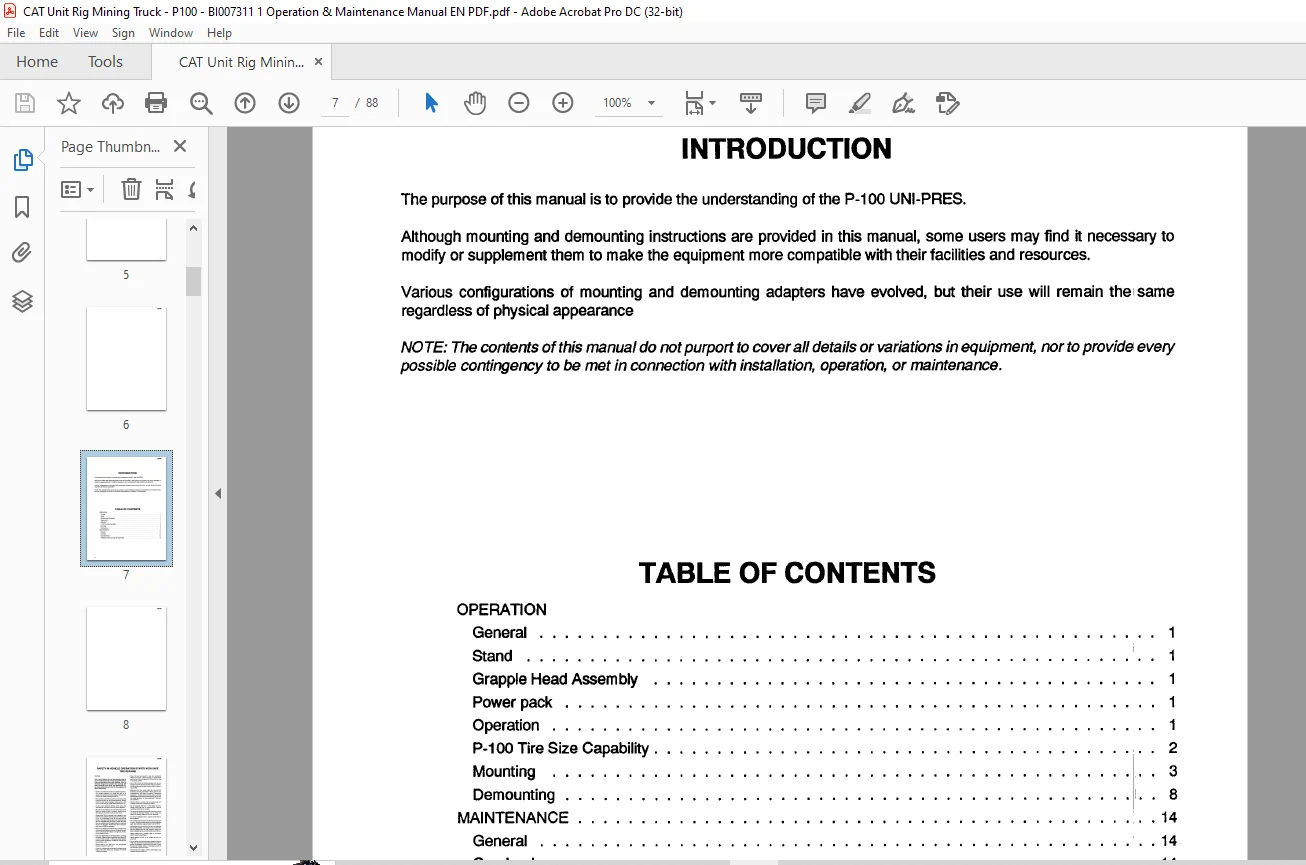

- The purpose of this manual is to provide the understanding of the P-1OO UNI-PRES.
- Although mounting and demounting instructions are provided in this manual, some users may find it necessary to
modify or supplement them to make the equipment more compatible with their facilities and resources. - Various configurations of mounting and demounting adapters have evolved, but their use will remain the isame
regardless of physical appearance.
SAFETY IN VEHICLE OPERATION STARTS WITH SAFE TIRE REPAIRS
• Never run a vehicle on one tire of a dual tire assembly. The carrying capacity of a single
tire and rim is dangerously exceeded, and operating a vehicle in this manner can result in
damage to the rim.
• Don’t reinflate a tire that has been run flat without first inspecting the tire, rim, and wheel
assembly. Double check the lock ring for damage; make sure that it is secure in the base rim
gutter before inflating the tire.
• Always place hardwood blocks under each jack, regardless of how hard or firm the ground
appears.
• Block the tire and wheel on the other side of the vehicle before you place the jack in position;
always secure with adequate blocking in case the jack moves.
• Always allow all air to exhaust from a single tire and both tires of a dual tire assembly prior
to removing any of the rim components, such as the nuts and rim clamps. Make sure that
the valve core is removed and all air is exhausted from the tire(s). Check the valve stem by
inserting a wire through the stem to make sure that it is not plugged. Remove the valve cores
from both tires of a dual tire assembly.
• Remove the bead seat band slowly to prevent it from dropping off and falling on your foot.
Support the band with your thigh and roll it slowly to the ground, protect ing you back and toes.
• Keep your fingers clear of rim flanges when unseating the beads Slant the demounting bead tool
about 10° to keep it firmly in place. A demounting tools applies pressure to the rim flanges. If
it slips off, it can fly with enough force to kill.
• Always stand to one side when you are applying hydraulic pressure to any tool.
• Check rim components periodically for fatigue cracks Replace all cracks, badly worn, damaged, or
severely rusted components.
TABLE OF CONTENTS:
CAT Bucyrus Unit Rig Mining Truck P100 Operation & Maintenance Manual BI007311 – PDF DOWNLOAD
OPERATION
General
Stand
Grapple Head Assembly
Power pack
Operation
P-1OO Tire Size Capability

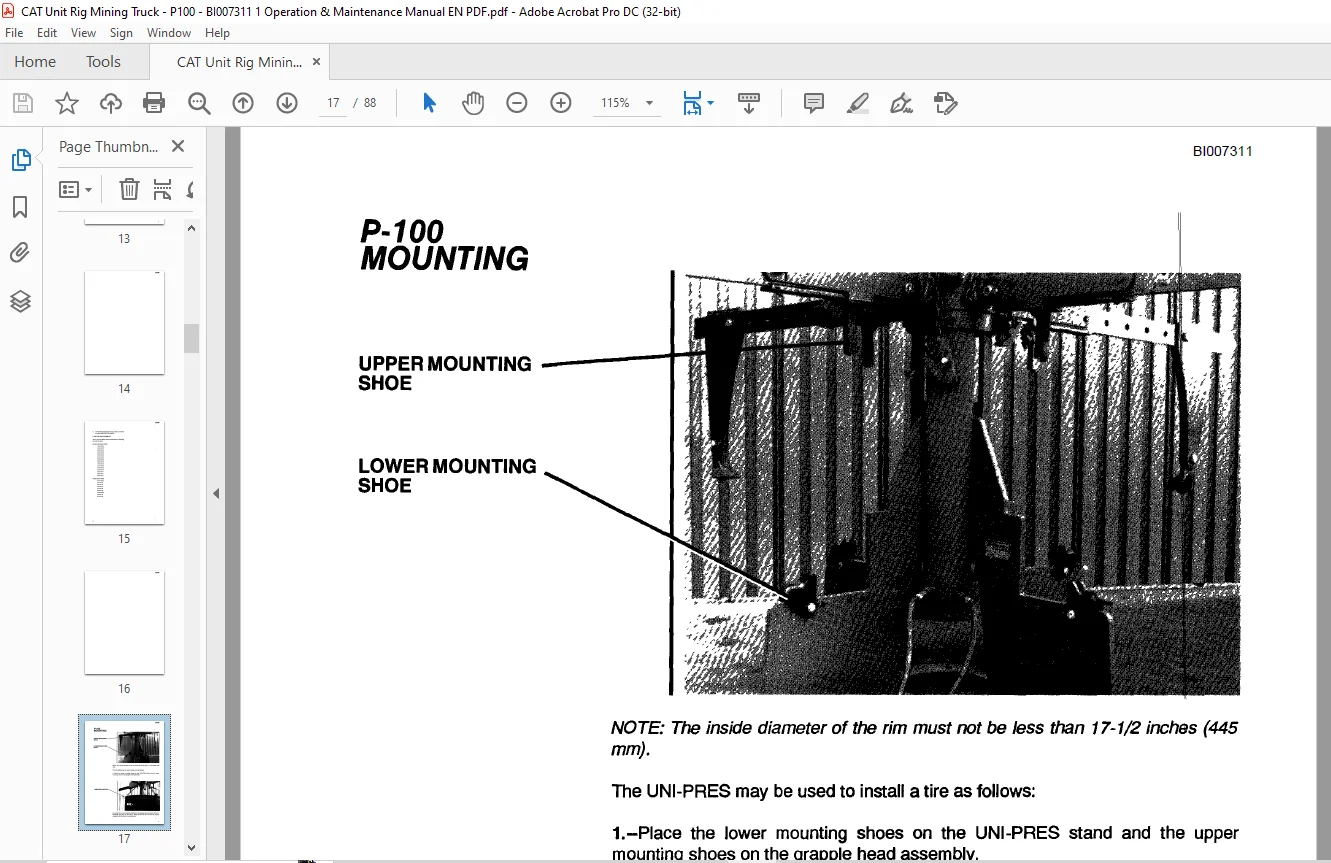

Mounting
Demounting
MAINTENANCE
General
Overhaul
Illustrated Parts
Welding Process for High Strength Steel
