Case IH Tractor 930 Series Service Manual 9-74911

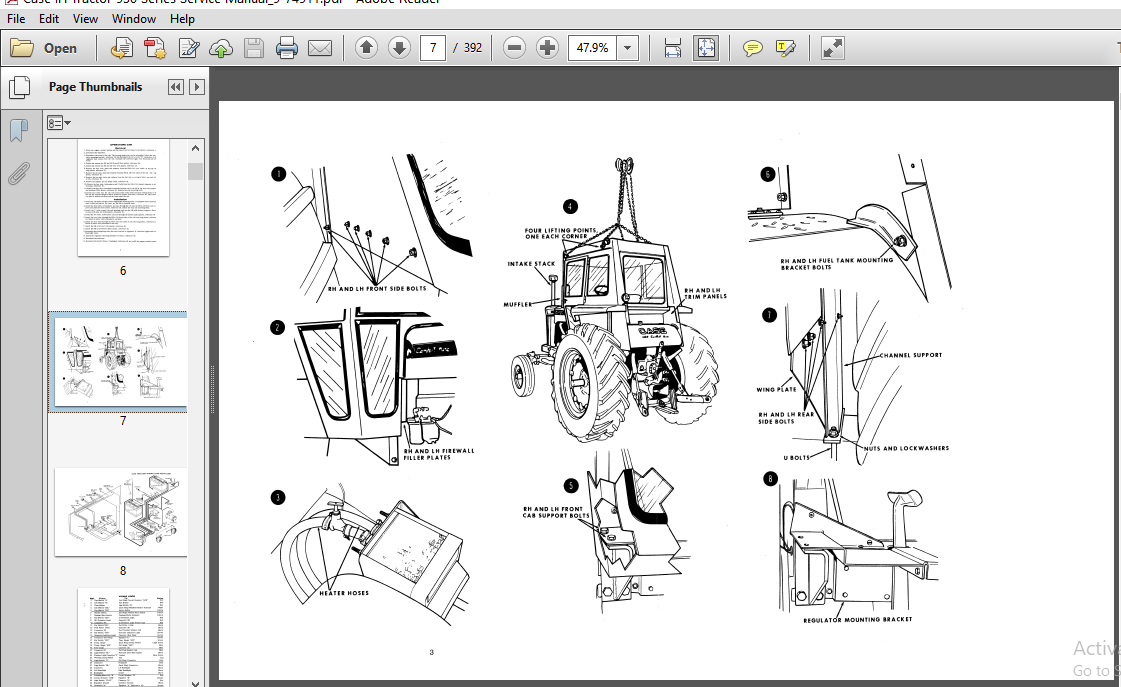

SAMPLE PAGE FROM THE MANUAL:
1.Drain the engine coolant system and disconnect the two hoses to the heater, reference (3).
2. Disconnect the batteries.
3.Disconnect the wires to the cab. The warning lamp wire can be uncoupled. Unbolt the regu- lator mounting bracket, reference (8) and disconnect the wire to the “B” connection on the regulator that comes from the cab. Uncouple the cultivator light, rear flood and tail light wires.
4. Unboit and remove the RH and LH firewall filler plates, reference (2).
5.Unboit and remove the RH and LH rear trim panels, reference [4).
6.Remove the four nuts, bolts and washers from the RH 8: Lil rear sides of the cab and wing plates, reference (7).
7.Remove the six nuts, bolts and washers from the RH 8: Lil front sides of the cab and wing plates, reference (1).
8.Remove the two nuts, bolts and washers from the fuel tank mounting bracket, one each side of cab, reference (6).

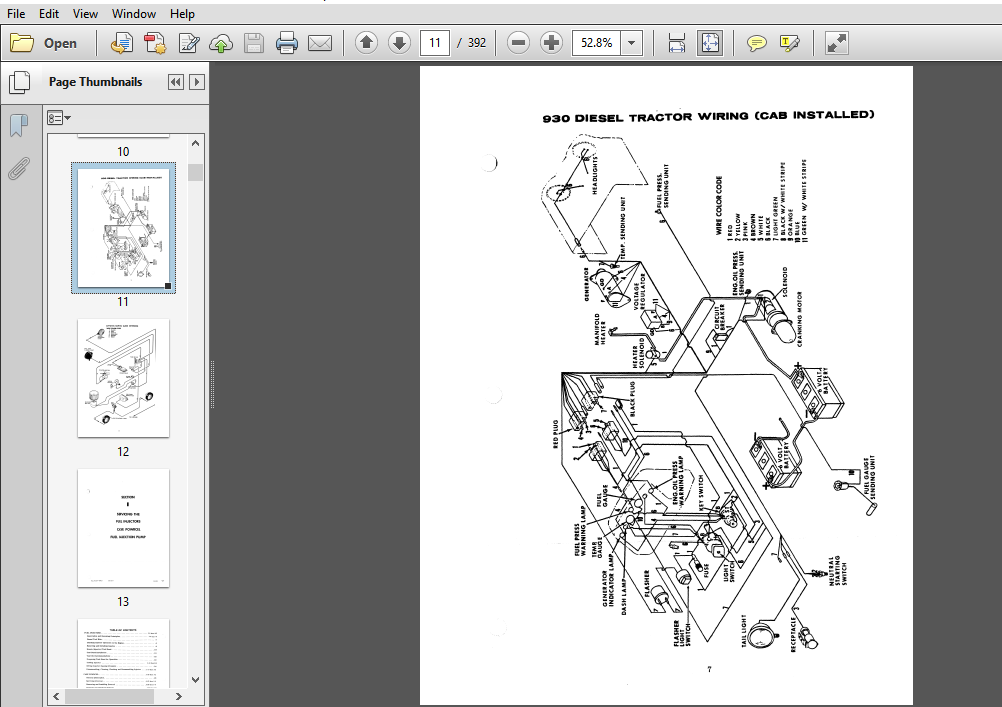

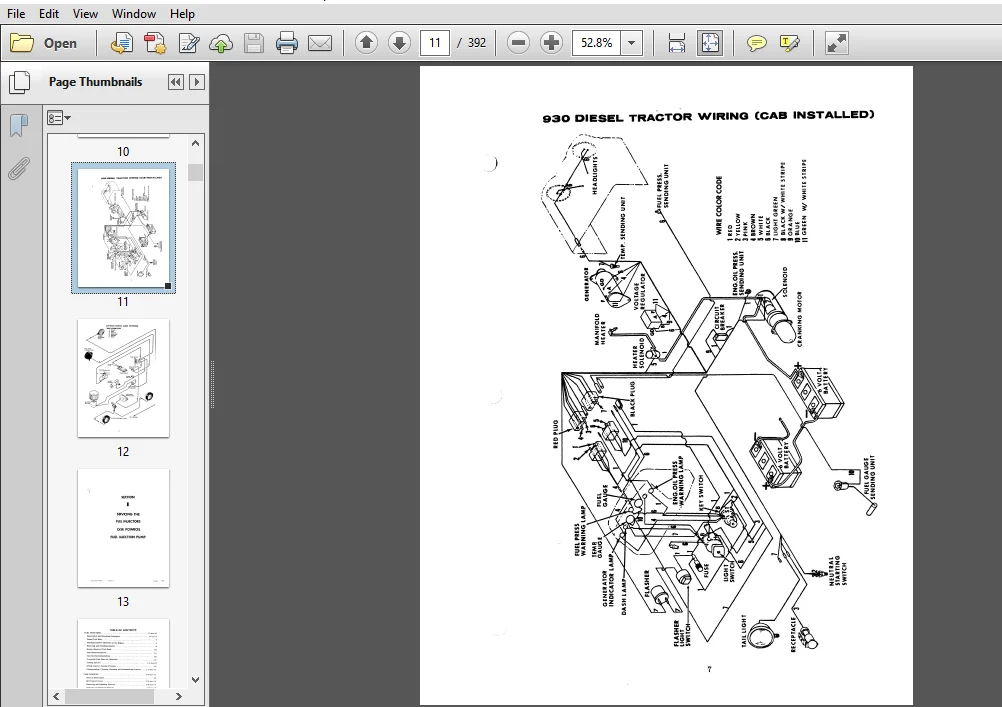

SCREENSHOT OF THE MANUAL:
TABLE OF CONTENTS:
- Case IH Tractor 930 Series Service Manual 9-74911
Specifications,General
(engine wear limits, torque
specifications)
Specifications, Electrical
(charging circuit, cranking circuit,
ignition system, wiring diagrams)
Diesel Engine Cylinder Head Assembly
(rocker arms, manifolds, valves)
LP Gas Engine Cylinder Head Assembly
(rocker arms, manifolds, valves)
Assemblies in the Engine Block
(011 Dummpiswns, cannecting rods,
sleeves, rings, crankshaft,camshaft,
lifters, injection pump drive)
Spark Ignition Governor
Diesel Fuel Injectors
CaseDiesel Powroel
Diesel Fuel InjectiOn Pump
(adjustments timing, linkage)
LP Gas Regulator and Carburetor
HydraulicCylinders
Hydraulic Pump and Control Valve
PowerSteeringSystem
PowerSteeringPump
(pressure check, pump relief valve)
Transmission
(drake linings and drums)
TractionClutch
(hand and foot)
PTOClutch
