Case IH Tractor 8820, 8830 Windrower COMPLETE Service Manual 8-98061R0
FILE DETAILS:
Case IH Tractor 8820, 8830 Windrower COMPLETE Service Manual_8-98061R0
Size : 172 MB
Format : PDF
Language : English
Number of Pages : 772 pages
Brand: Case IH
Type of machine: Tractor
Type of document: Service Manual
Model: 8820, 8830 Windrower COMPLETE
Part No: 8-98061R0
DESCRIPTION:
To Our Customer:
- We appreciate your confidence in our farm equipment and thank you for your patronage. in preparing this manual. we hope we have fumlshed you with a valu- able tool for operating and maintaining this fine ma- chine. Use this manual as your guide. Practicing the instructions given here will resutt in many years of dependable service from your machine.
- Your Dealer can give you assistance with pans and specially trained personnel to assist you in repair and maintenance. Call your Dealer if you need any assistance or information.
Introduction:
- This service manual has been prepared with the latest service information available at the time of publication. Read the service manual carefully before doing any service onthis machine. This manual Is one of the most important tools available to the service technician.
- “Right” and “Left” as used throughout this manual is determined by facing in the direction the machine will travel when in use.
- The photos, Illustrations. and data used in this manual were current at the time of printing, but due to possmle production changes. your machine can vary slightly. The Manufacturer reserves the right to redesign and change the machine as necessary without notification.

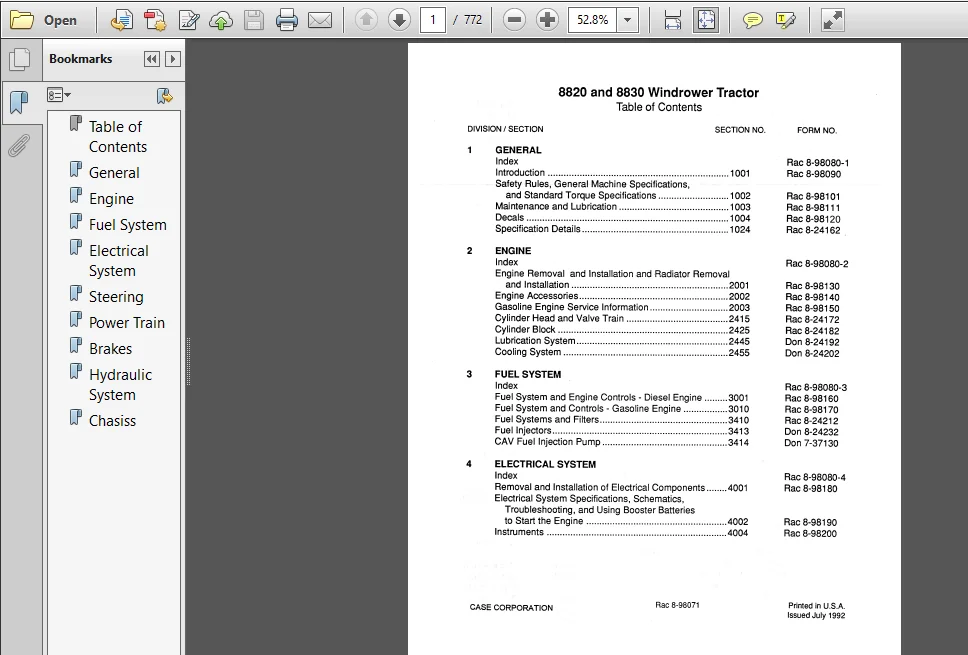

TABLE OF CONTENTS:
Case IH Tractor 8820, 8830 Windrower COMPLETE Service Manual 8-98061R0
GENERAL
Index
Introduction
Safety Rules, General Machine Specifications,
and Standard Torque Specifications
Maintenance and Lubrication
Decals
Specification Details
ENGINE
Index
Engine Removal and Installation and Radiator Removal
and Installation
Engine Accessories:
Gasoline Engine Service Information
Cylinder Head and Valve Train
Cylinder Block
Lubrication Systemi
Cooling System
FUEL SYSTEM
Index
Fuel System and Engine Controls – Diesel Engine
Fuel System and Controls – Gasoline Engine
Fuel Systems and Filters:
Fuel Injectorst
CAV Fuel Injection Pump:
ELECTRICAL SYSTEM
Index
Removal and Installation of Electrical Components
Electrical System Specifications, Schematics
Troubleshooting, and Using Booster Batteries
to Start the Engine
Instruments
STEERING
index
Removal and Installation of Steering Components
Steering Control Linkage Troubleshooting and Adjustment
POWER TRAIN
Index
Ground Drive Hydraulic System Specifications,
Operation, Schematics, Troubleshooting, and Tests
Charge Pump
Tandem Pump
Ground Drive Motors
Travel Control Linkage and Servo Control Valve
Chain Cases
Wheels and Tires
BRAKES
Index
Parking Brake
HYDRAULIC SYSTEM
Index
Grain Tractor Hydraulic System Specifications, Operation,
Schematics, Troubleshooting, and Tests 8C
Hay Tractor Hydraulic System Specifications, Operation,
Schematics, Troubleshooting, and Tests
Cleaning the Hydraulic System
Reel Drive Pump, Draper Header Pump, and
Pump Controls – Grain Tractor
Reel Dn’ve Pump and Pump Controls – Hay Tractor
Header and Reel Lift Valve and Bypass Valve
Grain TractorBC
Header Lift and Flotation Valve, Guard Angie Control
Valve, Reel Lift Control Valve, and Bypass Valve
Hay Tractor
Accumulator – Hay Tractor
Cylinders
CHASSIS
Index
Removal and Installation of Air Conditioning and
Heater Components
Air Conditioning Troubleshooting and System Checks
Air Conditioning System
Cab and Platform
Header Drive
Walking Beam

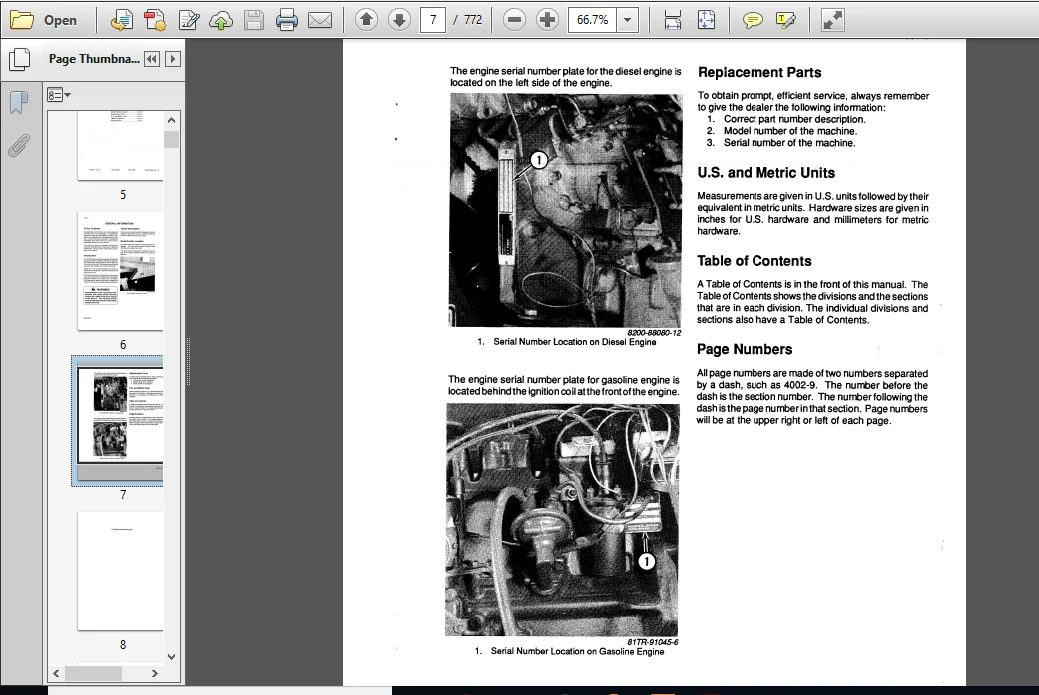

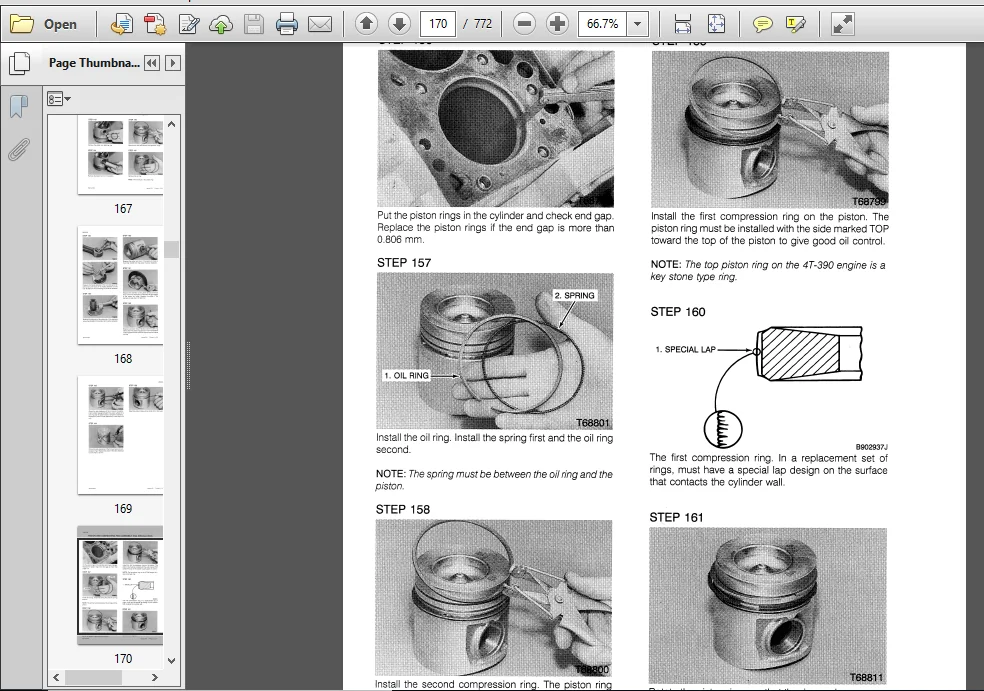

SCREENSHOT OF THE MANUAL:
VIDEO PREVIEW:
