Case 430 Construction King Loader & Backhoe Operators Manual 9-1462 – PDF DOWNLOAD
DESCRIPTION:
Case 430 Construction King Loader & Backhoe Operators Manual 9-1462 – PDF DOWNLOAD
The Case Model 112311 Loader on the 430 Construction King
Wheel Tractor is a rugged perfectly balanced combination. Here
are some of the outstanding features of the machine.
1. HEAVY DUTY CONSTRUCTION. The Tractor is ruggedly built
with a 7000 lb. capacity (dynamic loading) front axle, high
torque Case-built engine, and many other features for trouble
free operation. The Loader frame is of heavy box-welded construction.
All moving parts pivot on hardened steel pins with
replaceable bushings at all critical wear points.
2. TROUBLE-FREE HYDRAULIC CONTROLS. An engine driven
hydraulic pump delivers oil to a dual control valve. Fingertip
controls easily and quickly control the bucket. A float
position built into the control valve allows the bucket to follow
the contour of the ground for perfect leveling. The oil circulates
through a full-flow filter to trap any floating dirt or grit in the
system.
3. EASY STEERING AND MANUEVERING. Hydrostatic steering
with no mechanical linkage between the steering wheel and front
axle makes Tractor handling practically effortless even with
a full bucket. Only two and three fourthsturns of the steering
wheel turns the wheels full right to full left. Heavy duty, double
disc, fully enclosed brakes, operate on differential side gears
for added leverage and service accessibility.
4. BUCKET FEATURES. This heavily reinforced bucket has
exceptionally high reach making it easy to load trucks or hoppers
without spillage. Three different buckets with built in spill
guard provide a size to meet the requirements of any job.
The bucket has a 35° roll back at ground level for full buckets
when loading. The new bucket hinge arrangement couples
fast dump times with maximum breakout.
TABLE OF CONTENTS:
Case 430 Construction King Loader & Backhoe Operators Manual 9-1462 – PDF DOWNLOAD
- Section I — Loader
- Introduction
- Serial Numbers
- General Specifications
- Lubrication
- Operating Instructions
- Preventive Maintenance
- Extra Equipment
- Section II — Backhoe
- Introduction
- Serial Number Location
- General Specifications
- Lubrication
- Operating Instructions
- Preventive Maintenance
- Extra Equipment

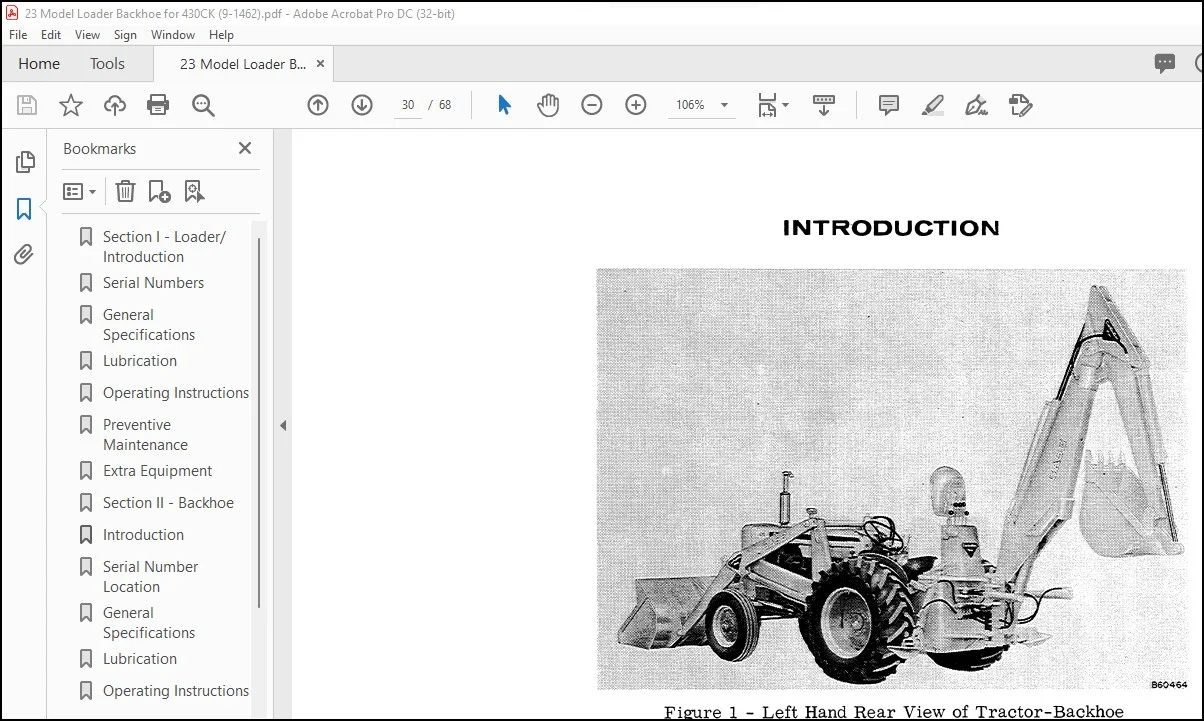

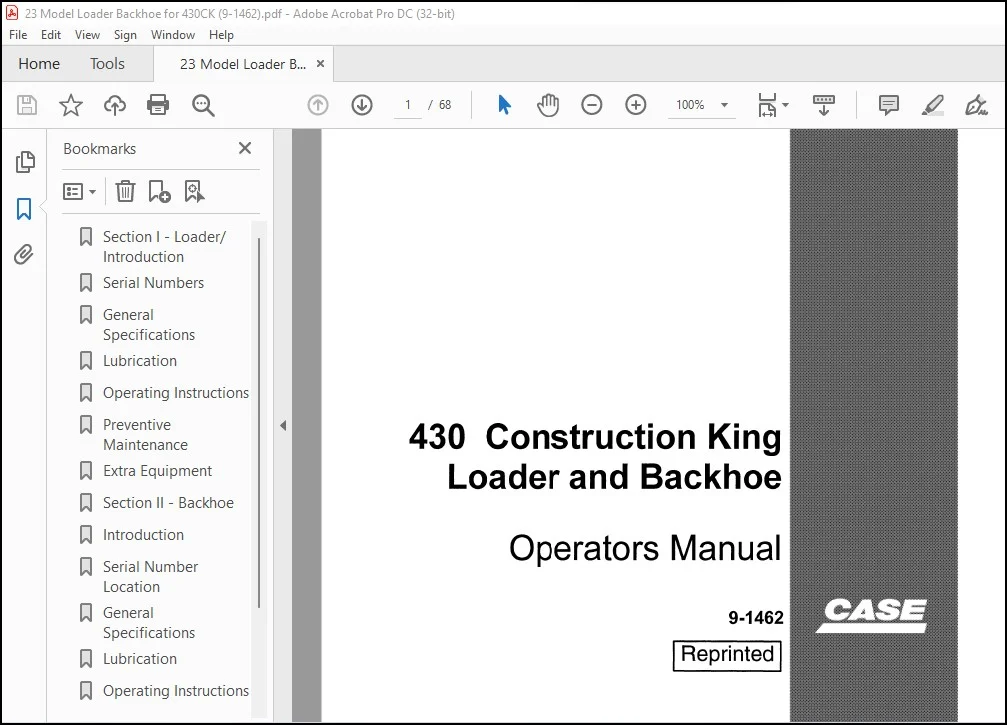

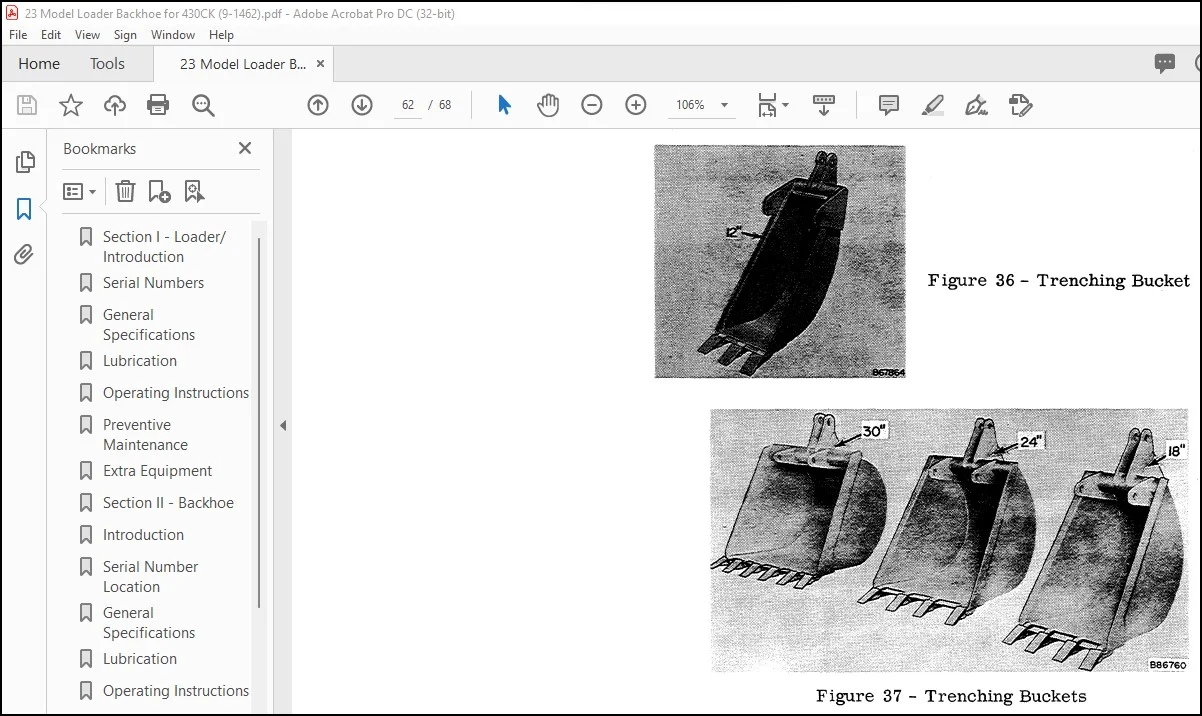

IMAGES PREVIEW OF THE MANUAL:
