Case 3550 Crawler Dozer Service Manual 84414747B – PDF DOWNLOAD
DESCRIPTION:
Case 3550 Crawler Dozer Service Manual 84414747B – PDF DOWNLOAD
SAFETY RULES :
– Do not allow unauthorised personnel to operate service
or maintain this machine.
– Do not wear rings, wrist watches, jewellery, loose or
hanging apparels, such as ties, torn clothing, scarves,
unbuttoned or unzipped jackets that can catch on moving
parts. Wear proper safety equipment as recommended
for the job. Examples: hard hat, heavy gloves,
ear protection, safety glasses or goggles, reflector vests,
respirator. Consult your employer for specific safety
equipment requirements.
– Keep operator’s compartment, stepping points, grabrails
and handles clear of foreign objects, oil, grease,
mud or snow accumulation to minimise the danger of
slipping or stumbling. Clean mud or grease from shoes
before attempting to mount or operate the machine.
– Do not jump on or off the machine. Keep two hands and
one foot, or two feet and one hand in contact with step
grab rails and handles at all times.
– Do not use controls or hoses as hand holds when
climbing on or off machine. Hoses and controls are
movable and do not provide a solid support. Also,
controls may be inadvertently moved causing accidental
machine or equipment movement.
– Never attempt to operate the machine or its tools from
any position other than seated in the operator’s seat.
– Keep head, body, limbs, hands and feet inside operator’s
compartment at all times, to reduce exposure to
hazards outside the operator’s compartment.
– Be careful of slippery conditions on stepping points,
hand rails, and on the ground. Wear safety boots or
shoes that have a high slip resistant sole material.
– Do not leave the machine until it is completely stopped.
– Check the seat safety belt at least twice a year. If there
are signs of wear or fraying or other signs of weakness
that could lead to failure, replace it
TABLE OF CONTENTS:
Case 3550 Crawler Dozer Service Manual 84414747B – PDF DOWNLOAD
GENERALITIES SECT. 0
ENGINE SECT. 1
TRANSMISSION SECT. 2
FINAL DRIVES SECT. 3
BRAKES AND STEERING DIFFERENTIAL SECT. 4
UNDERCARRIAGE SECT. 5
DOZING EQUIPMENT
HYDRAULIC SYSTEM SECT. 6
ELECTRICAL SYSTEM SECT. 7

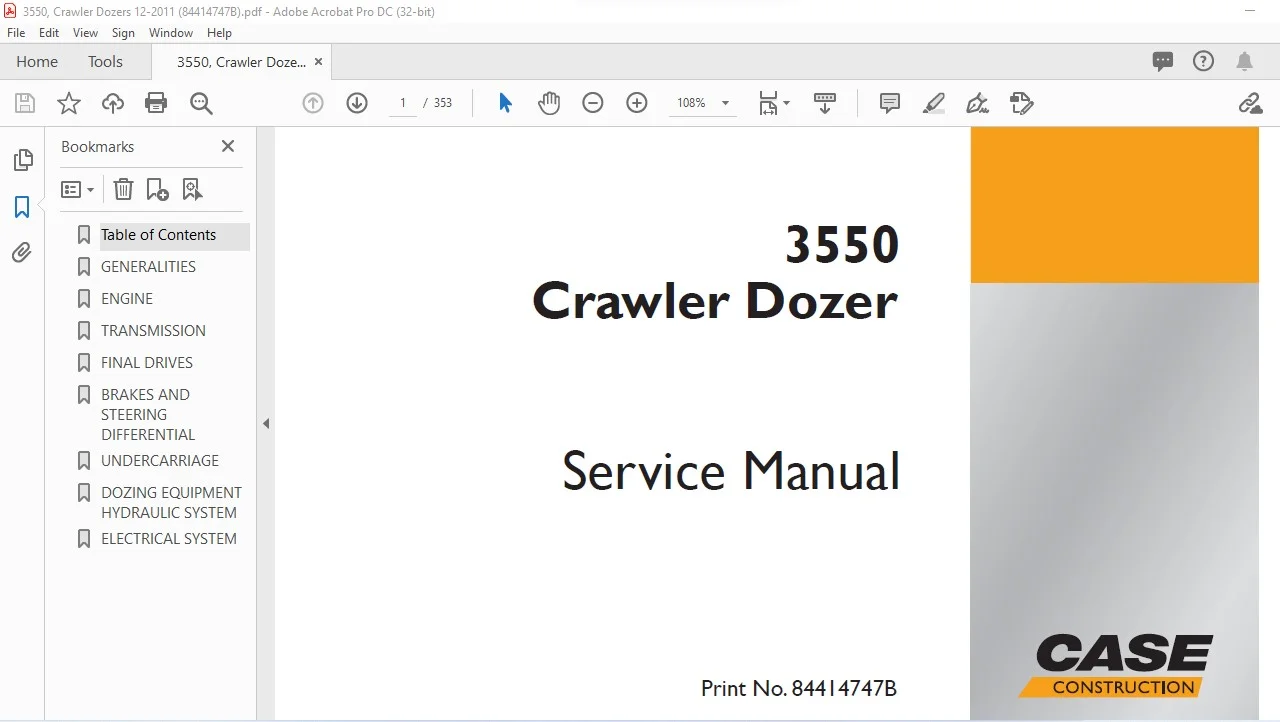

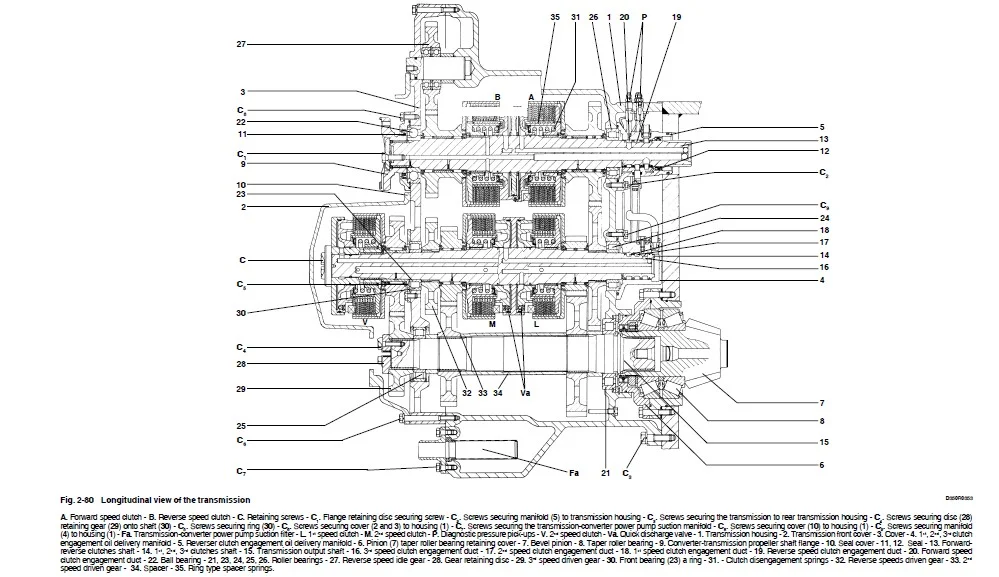

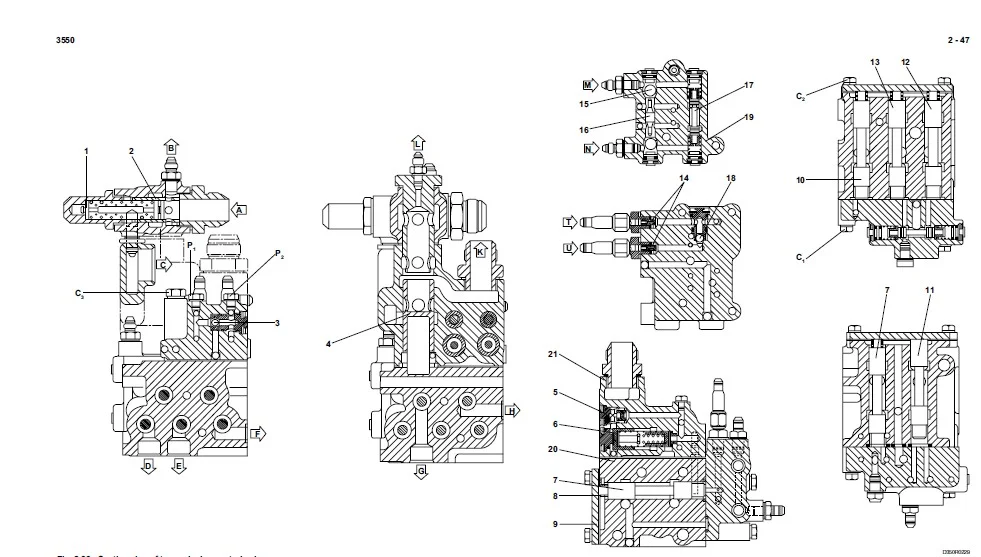

IMAGES PREVIEW OF THE MANUAL:
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
- This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
- Require some other service manual or have any queries: please WRITE to us at [email protected]
