Case 3550 Crawler Dozer Operator’s Manual 84415679 – PDF DOWNLOAD
DESCRIPTION:
Case 3550 Crawler Dozer Operator’s Manual 84415679 – PDF DOWNLOAD
GENERALITIES :
- Study carefully this Manual before starting, operating, maintaining, fuelling or servicing the machine. Read and heed all safety rules before any intervention. Do not allow unauthorised personnel to operate service or maintain this machine. Do not operate the machine if not feeling in good health conditions.
- Do not wear rings, wrist watches, jewellery, loose or hanging apparels, such as ties, torn clothing, scarves, unbuttoned or unzipped jackets that can catch on moving parts. Wear proper safety equipment as recommended for the job. Examples: hard hat, heavy gloves, ear protection, safety glasses or goggles, reflector vests, respirator.
- Consult your employer for specific safety equipment requirements. Keep operator’s compartment, stepping points, grab-rails and handles clear of foreign objects, oil, grease, mud or snow accumulation to minimise the danger of slipping or stumbling. Clean mud or grease from shoes before attempting to mount or operate the machine.
- Do not jump on or off the machine. Keep two hands and one foot, or two feet and one hand in contact with step grab rails and handles at all times. Do not use controls or hoses as hand holds when climbing on or off machine. Hoses and controls are movable and do not provide a solid support.
- Also, controls may be inadvertently moved causing accidental machine or equipment movement. Never attempt to operate the machine or its tools from any position other than seated in the operator’s seat. Keep head, body, limbs, hands and feet inside operator’s compartment at all times, to reduce exposure to hazards outside the operator’s compartment.
- Be careful of slippery conditions on stepping points, hand rails, and on the ground. Wear safety boots or shoes that have a high slip resistant sole material. Do not leave the machine until it is completely stopped. Check the seat safety belt at least twice a year. If there are signs of wear or fraying or other signs of weakness that could lead to failure, replace it.
STARTING:
- NEVER START NOR OPERATE AN UNSAFE MACHINE. Before operating a machine, always ensure that any unsafe condition has been satisfactorily remedied. Check brakes, steering and attachment controls before moving. Advise the proper maintenance authority of any malfunctioning part or system.
- Be sure all protective guards or panels are in place, and all safety devices provided are in place and in good operating conditions. Be sure exposed personnel in the area of operation are clear of the machine before moving it or its attachments. WALK COMPLETELY AROUND the machine before mounting. Sound horn.
- Before starting machine, check, adjust and lock the operator’s seat for maximum comfort and control of the machine. Fasten your seat belt (when provided). Obey all flag signals and signs.
- Due to the presence on the machine of flammable fluids, never check or fill fuel reservoirs or batteries near open flames, smoking materials or sparks. REMEMBER THAT STARTING FLUID IS FLAMMABLE. Follow strictly the recommendations printed on containers and in the Operation and Maintenance Manual.
- DO NOT PUNCTURE OR BURN CONTAINERS. Containers must be stored in fresh, well ventilated places, out of reach of unauthorised persons. Follow strictly the instructions provided by the Manufacturer. Never use these products near open flames, smoking materials or sparks.

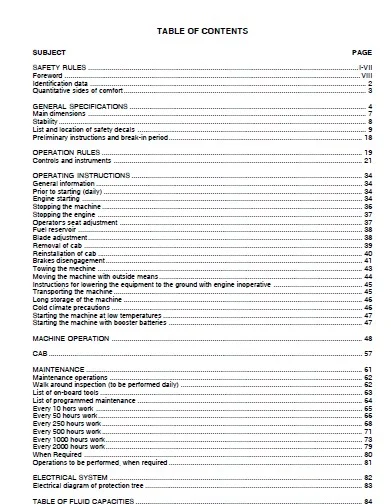

TABLE OF CONTENTS:
Case 3550 Crawler Dozer Operator’s Manual 84415679 – PDF DOWNLOAD
SAFETY RULES ……………………………………………………………………………………………………………………….. I-VII
Foreword …………………………………………………………………………………………………………………………………… VIII
Identification data ………………………………………………………………………………………………………………………….. 2
Quantitative sides of comfort …………………………………………………………………………………………………………… 3
GENERAL SPECIFICATIONS ………………………………………………………………………………………………………… 4
Main dimensions …………………………………………………………………………………………………………………………… 7
Stability ………………………………………………………………………………………………………………………………………… 8
List and location of safety decals …………………………………………………………………………………………………….. 9
Preliminary instructions and break-in period …………………………………………………………………………………….. 18
OPERATION RULES …………………………………………………………………………………………………………………… 19
Controls and instruments ……………………………………………………………………………………………………………… 21
OPERATING INSTRUCTIONS ……………………………………………………………………………………………………… 34
General information ……………………………………………………………………………………………………………………… 34
Prior to starting (daily) ………………………………………………………………………………………………………………….. 34
Engine starting ……………………………………………………………………………………………………………………………. 34
Stopping the machine …………………………………………………………………………………………………………………… 36
Stopping the engine …………………………………………………………………………………………………………………….. 37
Operator’s seat adjustment …………………………………………………………………………………………………………… 37
Fuel reservoir ……………………………………………………………………………………………………………………………… 38
Blade adjustment …………………………………………………………………………………………………………………………. 38
Removal of cab …………………………………………………………………………………………………………………………… 39
Reinstallation of cab …………………………………………………………………………………………………………………….. 40
Brakes disengagement …………………………………………………………………………………………………………………. 41
Towing the mechine …………………………………………………………………………………………………………………….. 43
Moving the machine with outside means …………………………………………………………………………………………. 44
Instructions for lowering the equipment to the ground with engine inoperative ……………………………………… 45
Transporting the machine ……………………………………………………………………………………………………………… 45
Long storage of the machine …………………………………………………………………………………………………………. 46
Cold climate precautions ………………………………………………………………………………………………………………. 46
Starting the machine at low temperatures ……………………………………………………………………………………….. 47
Starting the machine with booster batteries …………………………………………………………………………………….. 47
MACHINE OPERATION ………………………………………………………………………………………………………………. 48
CAB …………………………………………………………………………………………………………………………………………… 57
MAINTENANCE ………………………………………………………………………………………………………………………….. 61
Maintenance operations ……………………………………………………………………………………………………………….. 62
Walk around inspection (to be performed daily) ……………………………………………………………………………….. 62
List of on-board tools ……………………………………………………………………………………………………………………. 63
List of programmed maintenance …………………………………………………………………………………………………… 64
Every 10 hors work ……………………………………………………………………………………………………………………… 65
Every 50 hours work…………………………………………………………………………………………………………………….. 66
Every 250 hours work…………………………………………………………………………………………………………………… 68
Every 500 hours work…………………………………………………………………………………………………………………… 71
Every 1000 hours work …………………………………………………………………………………………………………………. 73
Every 2000 hours work …………………………………………………………………………………………………………………. 79
When Required …………………………………………………………………………………………………………………………… 80
Operations to be performed, when required …………………………………………………………………………………….. 81
ELECTRICAL SYSTEM ……………………………………………………………………………………………………………….. 82
Electrical diagram of protection tree ……………………………………………………………………………………………….. 83
TABLE OF FLUID CAPACITIES ……………………………………………………………………………………………………. 84

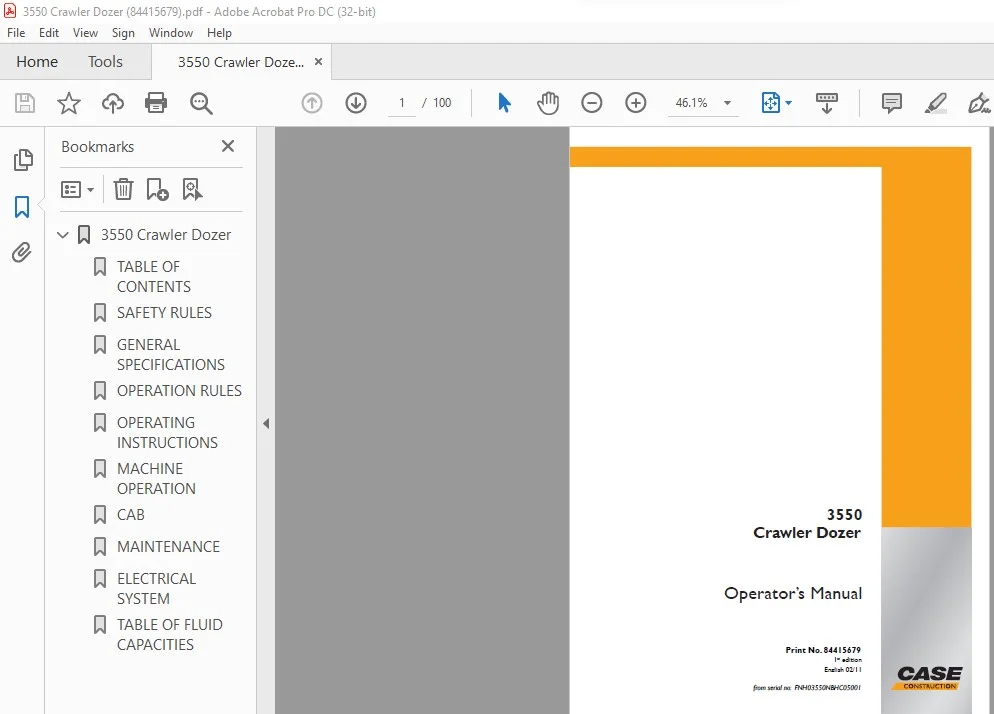

IMAGES PREVIEW OF THE MANUAL:
