Case 350 Crawler Operators Manual 9-2057 – PDF DOWNLOAD
DESCRIPTION:
Case 350 Crawler Operators Manual 9-2057 – PDF DOWNLOAD
Pre-Starting Tips
1. Wear the proper safety equipment – avoid loose clothing. If
you feel that additional safety equipment is required, notify
your foreman.
2. Always carry a fire extinguisher and first aid kit.
3. Familiarize yourself with the local terrain, under ground cables,
gas lines, mains, etc.
4. Know the hand signals, flags or signs to be used on the job site.
5. Visually check out your crawler for leaks and broken, missing or
malfunctioning parts.
6. Be sure the operator’s area is free of oil, ice ·or loose objects.
7. Check that the parking brake is set and the transmission is in
neutral before starting the engine.
Operational Tips
8. Clear the area of all unauthorized people.
9. Never operate the crawler in a closed shed or garage without
proper ventilation.
10. Do not operate the crawler or its controls from any position
other than the operator’s seat.
11. After the engine is started, observe the instruments for proper
indications.
12. Test steer the crawler for proper operation and braking.
13. Be extremely careful when working on banks or hillsides.

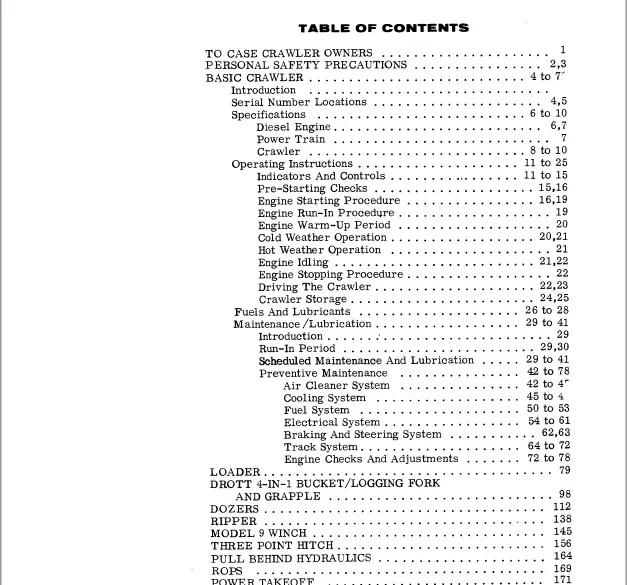

TABLE OF CONTENTS:
Case 350 Crawler Operators Manual 9-2057 – PDF DOWNLOAD
TO CASE CRAWLER OWNERS 1
PERSONAL SAFETY PRECAUTIONS 2,3
BASIC CRAWLER4 to r
Introduction
Serial Number Locations 4,5
Specifications 6 to 10
Diesel Engine 6, 7
Power Train7
Crawler 8 to 10
Operating Instructions 11 to 25
Indicators And Controls ,11 to 15
Pre-Starting Checks 15,16
Engine Starting Procedure 16,19
Engine Run-In Procedtire 19
Engine Warm-Up Period 20
Cold Weather Operation 20,21
Hot Weather Operation 21
Engine Idling 21,22
Engine Stopping Procedure 22
Driving The Crawler 22,23
Crawler Storage24,25
Fuels And Lubricants 2 6 to 28
Maintenance /Lubrication 29 to 41
Introduction ; 2 9
Run-In Period 29,30
Scheduled Maintenance And Lubrication 29 to 41
Preventive Maintenance42 to 78
Air Cleaner System42 to 4rCooling
System 45 to 4
Fuel System 50 to 53
Electrical System 54 to 61
Braking And Steering System 62,63
Track System 64 to 72
Engine Checks And Adjustments72 to 78
LOADER 79
DROTT 4-IN-1 BUCKET/LOGGING FORK
AND GRAPPLE 98
DOZERS – 112
RIPPER138
MODEL 9 WINCH 145
THREE POINT HITCH 156
PULL BEHIND HYDRAULICS 164
ROI’S 169
POWER TAKEOFF171
ALPHABETICAL INDEX 181

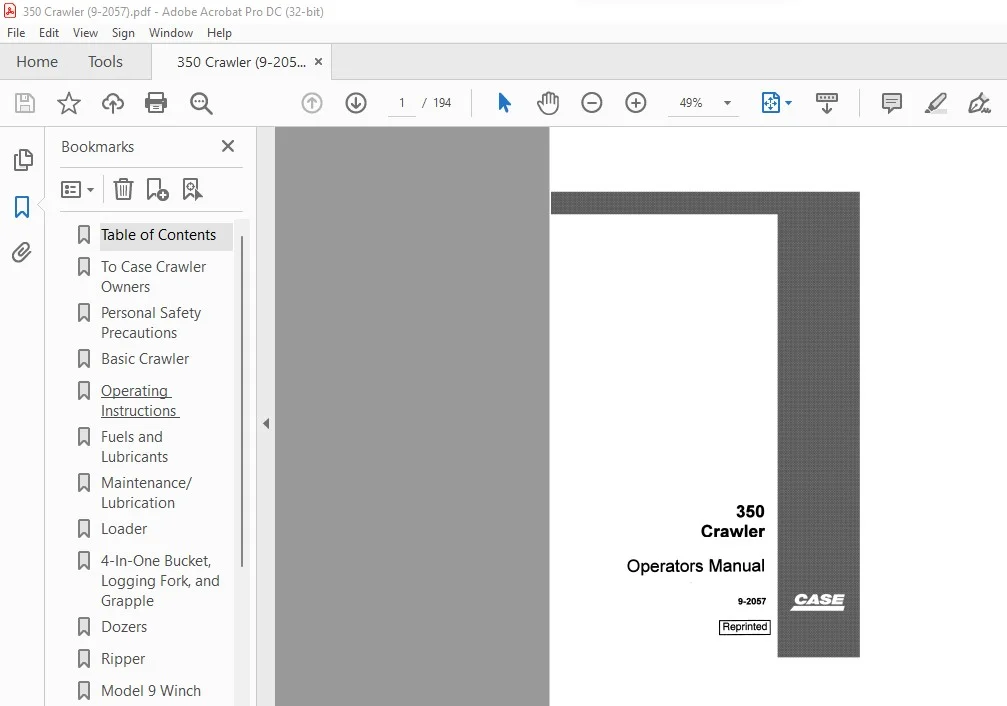

IMAGES PREVIEW OF THE MANUAL:
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
