Case 1021F 1121F Tier 4 Wheel Loader Service Repair Manual
VIDEO PREVIEW:

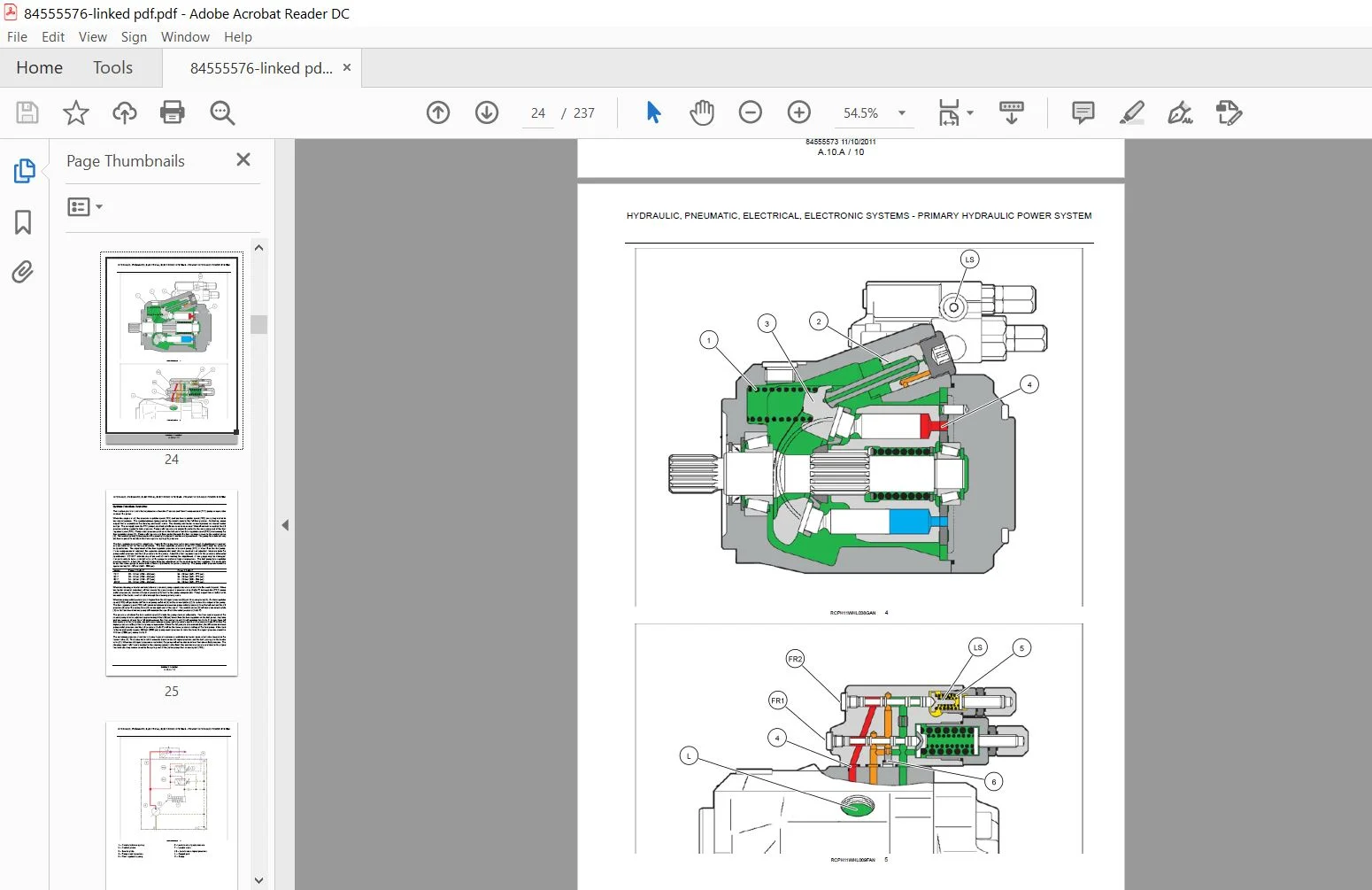

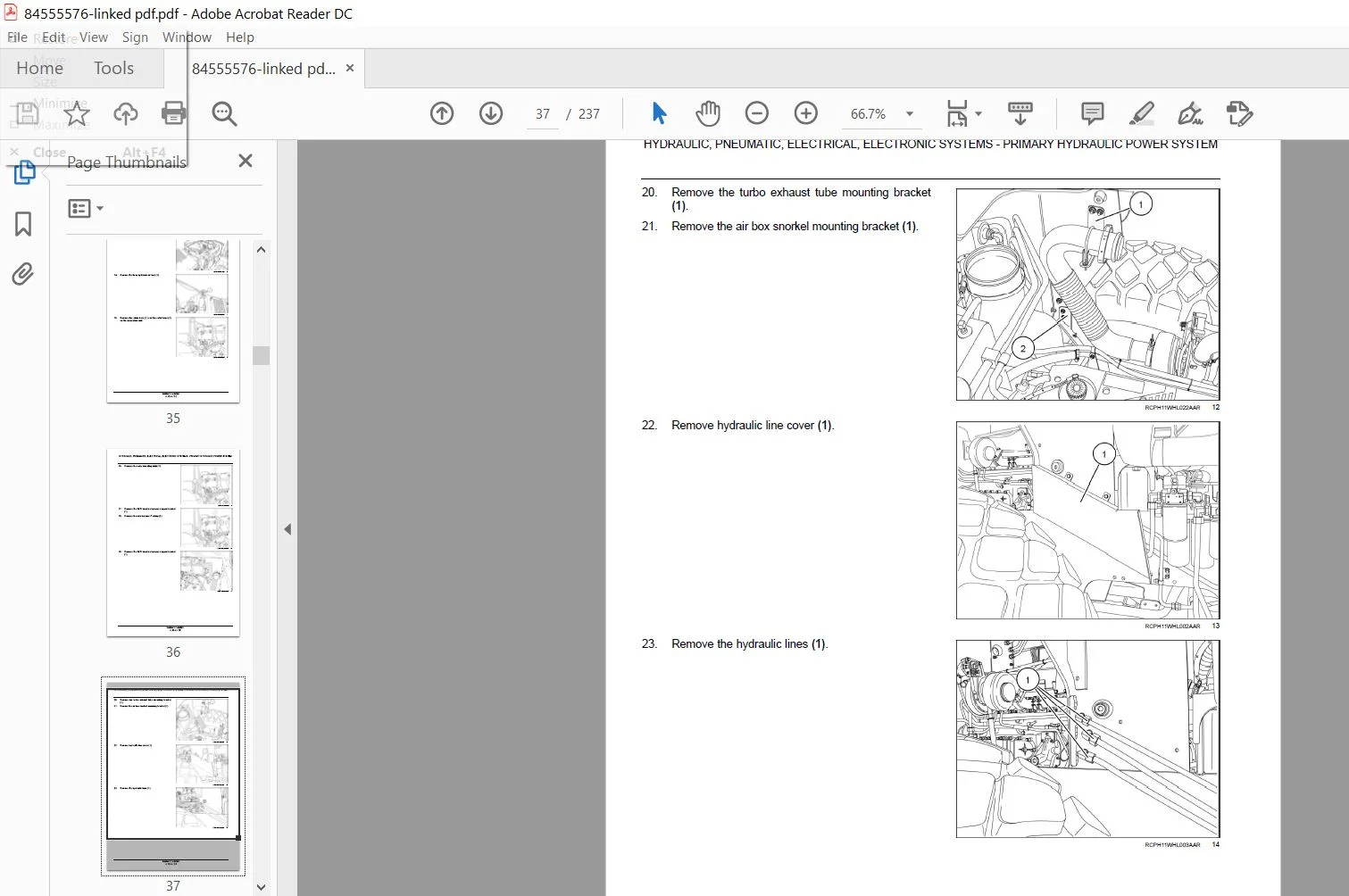

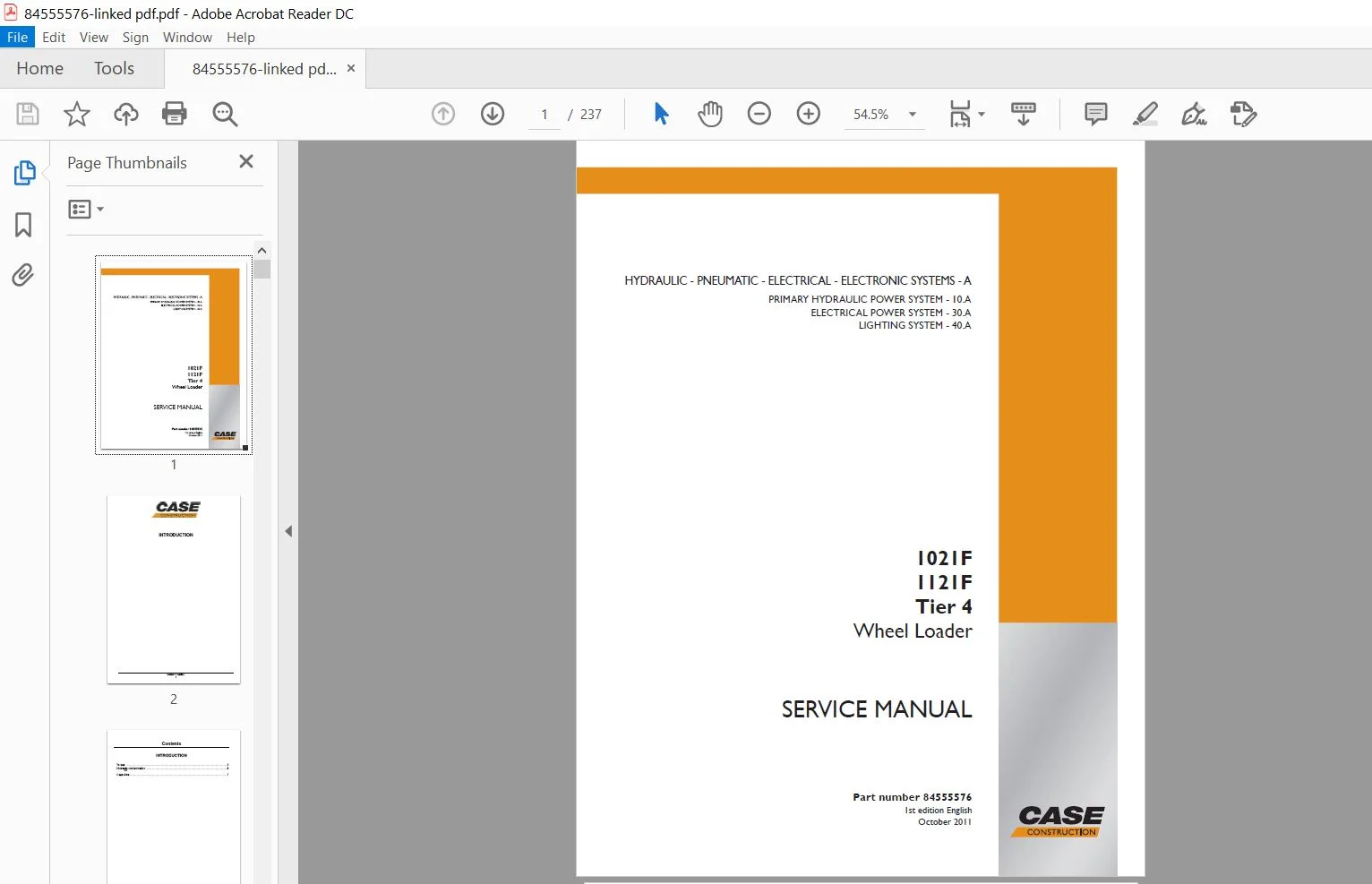

SCREENSHOOTS OF THE MANUAL:
DESCRIPTION:
Case 1021F 1121F Tier 4 Wheel Loader Service Repair Manual
- Wheel loaders built in 2011 and after can be equipped with Selective Catalytic Reduction (SCR) engine exhaust emission control system. With this system, the engines operate as efficiently as possible. During normal operation the diesel engine generates certain pollutants. Federal law has regulated the levels of these exhaust components that a vehicle is allowed to emit. Pollutants generated in the normal operation of the engines require after treatment.
- The SCR system converts the pollutants to harmless nitrogen and water. A diesel engine operates most efficiently at higher combustion temperatures. Unfortunately, the higher combustion temperatures generate increased levels of nitrogen oxides (NOx). A sensor determines the NOx level in the exhaust stream and reports this information to the Engine Controller.
- To reduce the NOx level the system adds a urea based Diesel Exhaust Fluid (DEF) to reduce the pollutant. The NOx sensor monitors the exhaust to assure the system meets regulations. An alarm sounds and a warning displays on the Advanced Instrument Cluster (AIC) if the system malfunctions. Operator Cautions DEF fluid mishandling causes SCR system problems.
- It is preferable to dispense DEF directly from factory containers. If refillable containers are required to handle DEF, make sure that it does not have traces of other contaminating liquids. Water and oil do not mix.
- Petroleum contamination causes problems. Make sure that dirty containers are not used. Replace the tank filler cap after filling. Dirty fluid causes premature filter plugging.
TABLE OF CONTENTS:
Case 1021F 1121F Tier 4 Wheel Loader Service Repair Manual
INTRODUCTION……………………………………….. 3
HYDRAULIC, PNEUMATIC, ELECTRICAL, ELECTRONICSYSTEMS – A…. 15
PRIMARY HYDRAULIC POWER SYSTEM – 10.A……………… 15
ELECTRICAL POWER SYSTEM – 30.A……………………. 57
LIGHTING SYSTEM – 40.A……………………………209
HYDRAULIC, PNEUMATIC, ELECTRICAL, ELECTRONICSYSTEMS – A…. 3
ELECTRONIC SYSTEM – 50.A…………………………. 3
FAULT CODES – 50.A……………………………….31
HYDRAULIC – PNEUMATIC – ELECTRICAL – ELECTRONIC SYSTEMS – A….2
FAULT CODES – 50.A………………………………………2
ENGINE AND PTO IN – B…………………….. 3
ENGINE – 10.A………………………… 3
FUEL AND INJECTION SYSTEM – 20.A……….. 37
AIR INTAKE SYSTEM – 30.A………………. 41
EXHAUST SYSTEM Emissions control – 40.B…. 49
ENGINE COOLANT SYSTEM – 50.A……………117
LUBRICATION SYSTEM – 60.A………………139
STARTING SYSTEM – 80.A…………………147
TRANSMISSION, DRIVE AND PTO OUT – C…………161
POWER COUPLING Fixed coupling – 10.B…….161
TRANSMISSION Powershift – 20.E………….187
AXLES, BRAKES AND STEERING – D………………………………………. 3
FRONT AXLE – 10.A………………………………………………. 3
REAR AXLE – 12.A………………………………………………..123
STEERING Hydraulic – 20.C………………………………………..129
SERVICE BRAKE Hydraulic – 30.C……………………………………143
PARKING BRAKE Hydraulic – 32.C……………………………………203
WHEELS AND TRACKS Wheels – 50.C…………………………………..221
FRAME AND CAB – E…………………………………………………..227
SHIELD – 20.A…………………………………………………..227
USER CONTROLS AND SEAT – 32.A…………………………………….243
USER CONTROLS AND SEAT Operator seat – 32.C………………………..261
USER PLATFORM – 34.A…………………………………………….265
ENVIRONMENT CONTROL Heating system – 40.B………………………….305
ENVIRONMENT CONTROL Air-conditioning system – 40.C………………….311
ENVIRONMENT CONTROL Heating, ventilation and air-conditioning – 40.D….327
SAFETY SECURITY ACCESSORIES Safety – 50.B………………………….337
HITCH AND WORKING TOOL – H…………………………………………..345
SINGLE ARM Lift – 40.B…………………………………………..345
PLEASE NOTE:
- This is not a physical manual but a digital manual – meaning no physical copy will be couriered to you. The manual can be yours in the next 2 mins as once you make the payment, you will be directed to the download page IMMEDIATELY.
- This is the same manual used by the dealers inorder to diagnose your vehicle of its faults.
- Require some other service manual or have any queries: please WRITE to us at [email protected]
