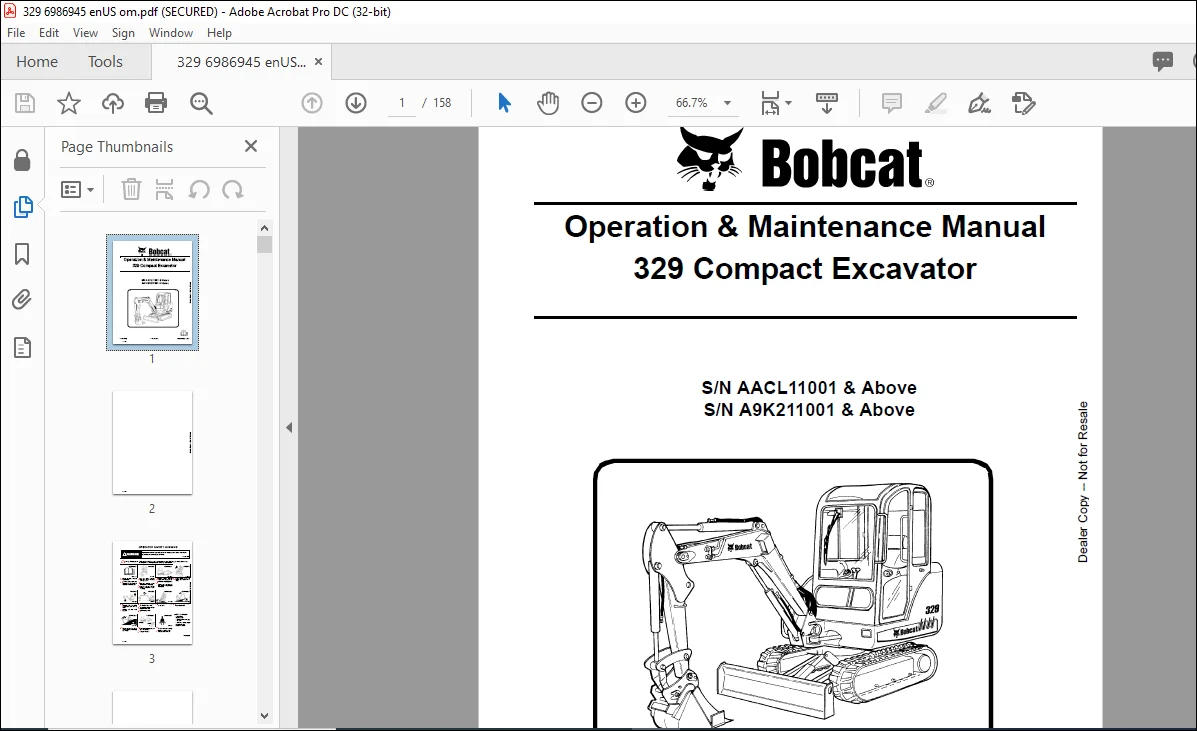

Bobcat Compact Excavator 329 Operation & Maintenance Manual 6986945 – PDF DOWNLOAD
FILE DETAILS:
Bobcat Compact Excavator 329 Operation & Maintenance Manual 6986945 – PDF DOWNLOAD
Language : English
Pages : 158
Downloadable : Yes
File Type : PDF
Size: 4.37 MB
DESCRIPTION:
Bobcat Compact Excavator 329 Operation & Maintenance Manual 6986945 – PDF DOWNLOAD
FOREWORD
This Operation & Maintenance Manual was written to give the owner/operator instructions on the safe operation and maintenance of the Bobcat Excavator. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR MACHINE. If you have any questions, see your Bobcat dealer.
SAFETY INSTRUCTIONS
Before Operation
- Carefully follow the operating and maintenance instructions in this manual. The Bobcat excavator is highly maneuverable and compact.
- It is rugged and useful under a wide variety of conditions. This presents an operator with hazards associated with off highway, rough terrain applications, common with Bobcat excavator usage. The Bobcat excavator has an internal combustion engine with resultant heat and exhaust.
- All exhaust gases can kill or cause illness so use the excavator with adequate ventilation. The dealer explains the capabilities and restrictions of the Bobcat excavator and attachment for each application. The dealer demonstrates the safe operation according to Bobcat instructional materials, which are also available to operators.
- The dealer can also identify unsafe modifications or use of unapproved attachments. The attachments and buckets are designed for a Rated Lift Capacity. They are designed for secure fastening to the Bobcat excavator. The user must check with the dealer, or Bobcat literature, to determine safe loads of materials of specified densities for the machine – attachment combination.
The following publications and training materials provide information on the safe use and maintenance of the Bobcat machine and attachments:
TABLE OF CONTENTS:
Bobcat Compact Excavator 329 Operation & Maintenance Manual 6986945 – PDF DOWNLOAD

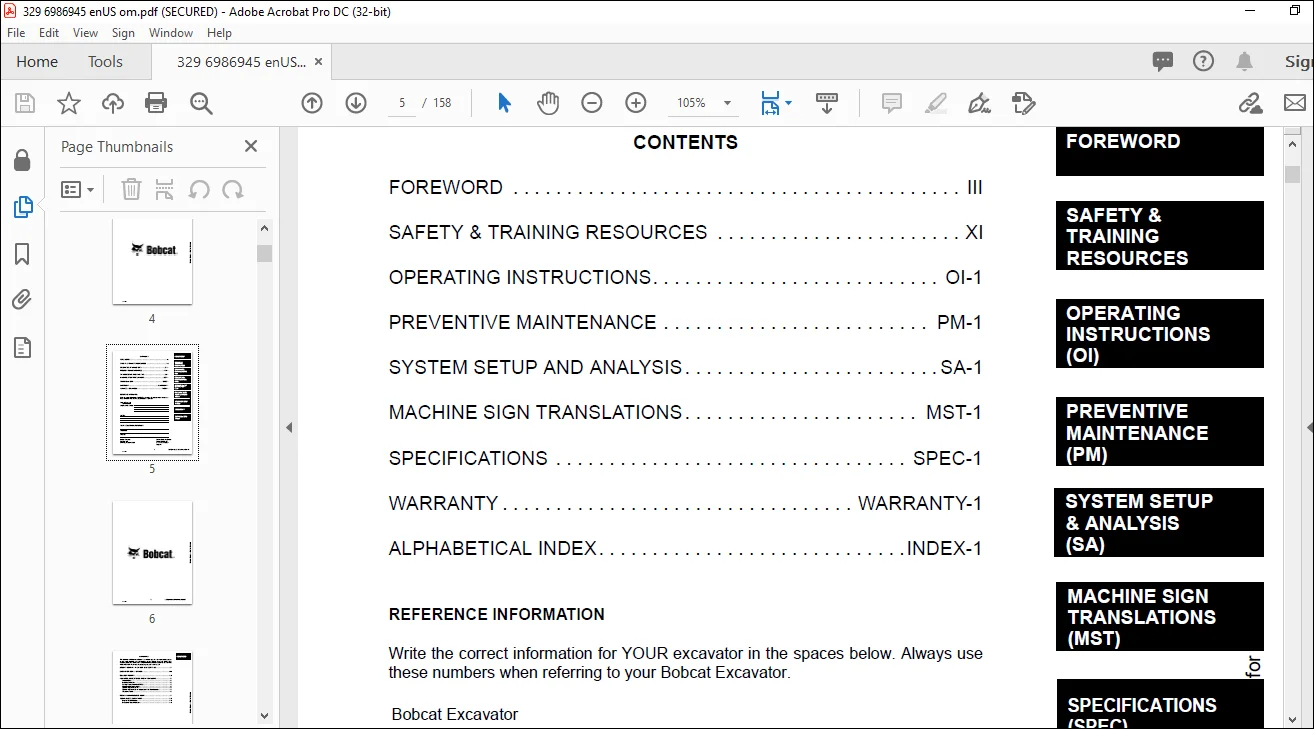

CONTENTS 5
FOREWORD 7
BOBCAT COMPANY IS ISO 9001:2000 CERTIFIED 9
REGULAR MAINTENANCE ITEMS 9
SERIAL NUMBER LOCATIONS 11
Excavator Serial Number 11
Engine Serial Number 11
DELIVERY REPORT 11

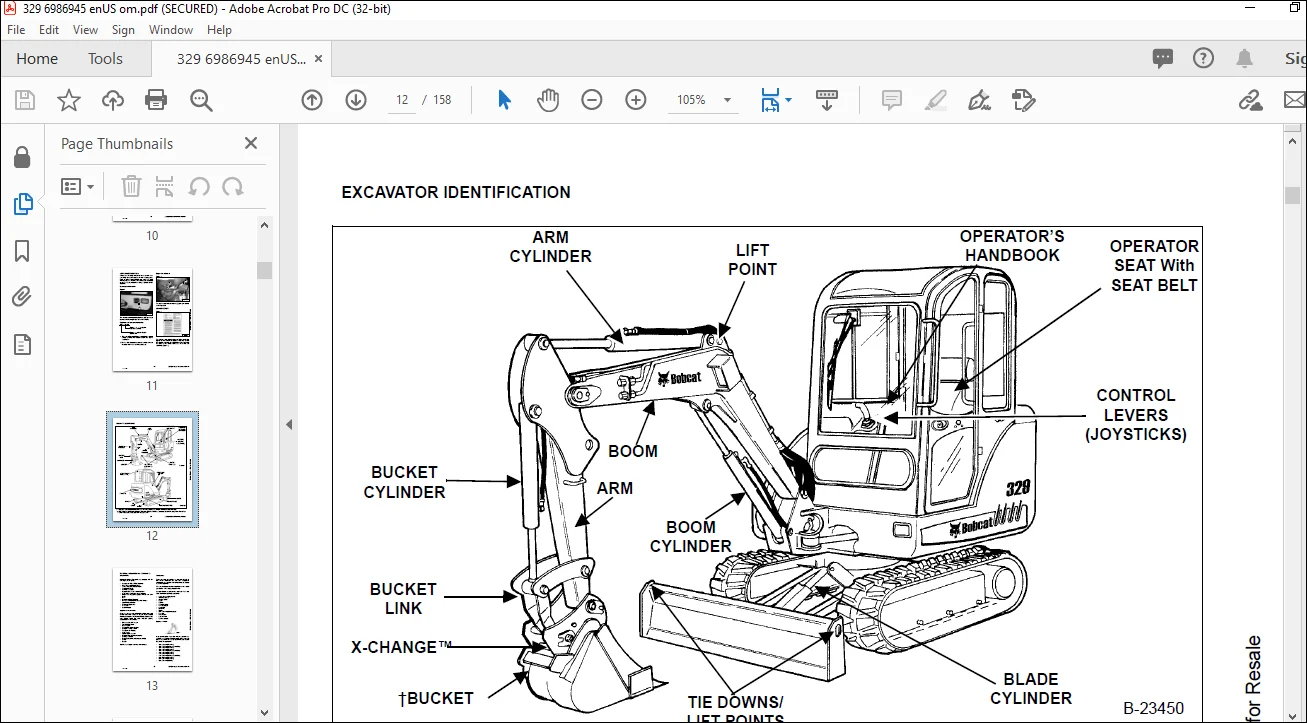

EXCAVATOR IDENTIFICATION 12
FEATURES, ACCESSORIES AND ATTACHMENTS 13
Standard Items 13
Options and Accessories 13
Attachments 13
Buckets Available 13
Falling Object Guards (FOGS) 14
Special Applications Kit 14
Special Applications Kit Inspection And Maintenance 14
SAFETY & TRAINING RESOURCES 15
SAFETY INSTRUCTIONS 17
Before Operation 17
Safe Operation Is The Operator’s Responsibility 18
Safe Operation Needs A Qualified Operator 18
Avoid Silica Dust 19
FIRE PREVENTION 19
Maintenance 19
Operation 19
Electrical 19
Hydraulic System 20
Fueling 20
Starting 20
Spark Arrestor Exhaust System 20
Welding And Grinding 20
Fire Extinguishers 20
MACHINE SIGNS (DECALS) 21
PUBLICATIONS AND TRAINING RESOURCES 23
OPERATING INSTRUCTIONS 25
INSTRUMENTS AND CONSOLES 27
Cab Interior Light (If Equipped) 27
Left Console 27
Right Console 28
Function Icons 29
STD / ISO Selector Valve 30
Upperstructure Slew Lock 30
Raising And Lowering The Console 31
Two-Speed Travel 31
OPERATOR CANOPY (ROPS / TOPS) 32
Description 32
OPERATOR CAB (ROPS / TOPS) 32
Description 32
Cab Door 33
Front Window 34
Front Wiper 35
Window Washer Reservoir 35
Right Side Window 36
Heating, Ventilation And Air Conditioning Duct 37
TRAVEL CONTROLS 38
Description 38
Forward And Reverse Travel 38
Turning 38
HYDRAULIC CONTROLS 40
Description 40
STANDARD Control Pattern 40
ISO Control Pattern 41
Quick Couplers (If Equipped) 42
Auxiliary Hydraulics 43
Relieve Hydraulic Pressure (Excavator And Attachment) 43
Return To Tank Valve (If Equipped) 43
BLADE CONTROL LEVER 44
Operation 44
BOOM SWING PEDAL 44
Operation 44
DAILY INSPECTION 45
Daily Inspection And Maintenance 46
PRE-STARTING PROCEDURE 47
Operation & Maintenance Manual And Operator’s Handbook Locations 47
Entering The Excavator 47
Seat Adjustment 48
Seat Belt Adjustment 48
Control Console 49
STARTING THE ENGINE 50
Key Switch 50
Keyless 51
Cold Temperature Starting 52
Warming The Hydraulic System 53
STOPPING THE ENGINE AND LEAVING THE EXCAVATOR 54
Procedure 54
Emergency Exits 55
ATTACHMENTS 56
Installing And Removing The Attachment (Pin-On X- Change) 56
Installing And Removing The Attachment (Bolt-On X- Change) 62
Installing And Removing The Attachment (Pin-On Attachment) 68
OPERATING PROCEDURE 69
Inspect The Work Area 69
Lowering The Work Equipment (Engine STOPPED) 69
Operating On Public Roads 69
Lifting A Load 70
Excavating 71
Boom Swing 73
Backfilling 74
Driving The Excavator 74
Operating On Slopes 75
Operating In Water 77
Avoiding Track Damage 77
TOWING THE EXCAVATOR 77
Procedure 77
LIFTING THE EXCAVATOR 78
Procedure 78
TRANSPORTING THE EXCAVATOR ON A TRAILER 79
Loading And Unloading 79
Fastening 79
PREVENTIVE MAINTENANCE 81
MAINTENANCE SAFETY 83
SERVICE SCHEDULE 85
Chart 85
CONTROL CONSOLE LOCKOUTS 86
Inspection And Maintenance 86
SEAT BELT 87
Inspection And Maintenance 87
MOTION ALARM SYSTEM (IF EQUIPPED) 88
Description 88
Inspecting 88
Adjusting Switch Position 88
TAILGATE 89
Opening And Closing 89
Adjusting The Bumper 89
Adjusting The Latch 89
RIGHT SIDE COVER 90
Opening And Closing 90
Adjusting The Latch 90
CAB FILTERS 91
Cleaning And Maintenance 91
AIR CLEANER SERVICE 92
Daily Check 92
Replacing Filter Elements 92
FUEL SYSTEM 94
Fuel Specifications 94
Biodiesel Blend Fuel 94
Filling The Fuel Tank 95
Fuel Filters 96
Draining The Fuel Tank 96
Removing Air From The Fuel System 97
ENGINE LUBRICATION SYSTEM 98
Checking And Adding Engine Oil 98
Engine Oil Chart 98
Removing And Replacing Oil And Filter 99
ENGINE COOLING SYSTEM 100
Cleaning 100
Checking Level 100
Removing And Replacing Coolant 101
ELECTRICAL SYSTEM 102
Description 102
Fuse And Relay Location / Identification 102
Battery Maintenance 103
Using A Booster Battery (Jump Starting) 104
Removing And Installing Battery 105
HYDRAULIC SYSTEM 106
Checking And Adding Fluid 106
Hydraulic Fluid Chart 106
Removing And Replacing Hydraulic Filters 107
Removing And Replacing Hydraulic Fluid 108
SPARK ARRESTOR MUFFLER 109
Cleaning Procedure 109
TRACK TENSION 110
Adjusting 110
TRAVEL MOTOR 112
Checking And Adding Oil 112
Removing And Replacing Oil 112
ALTERNATOR BELT 113
Belt Adjustment 113
Belt Replacement 113
X-CHANGE 114
Inspection And Maintenance 114
TRACK ROLLER AND IDLER LUBRICATION 114
Procedure 114
BUCKET 115
Bucket Teeth Removal And Installation 115
LUBRICATING THE EXCAVATOR 116
Lubrication Locations 116
PIVOT PINS 118
Inspection And Maintenance 118
EXCAVATOR STORAGE AND RETURN TO SERVICE 119
Storage 119
Return to Service 119
SYSTEM SETUP AND ANALYSIS 121
DIAGNOSTIC SERVICE CODE 123
Service Codes List 123
DISPLAY CONTROLLER PANEL SETUP 124
Passwords 124
Password Entry (For Starting and Operating the Machine) 124
Changing The Owner or Operator Password 124
Password Lockout Feature 125
Job Clock 125
RPM 125
Viewing Service Codes (Key Switch) 126
Viewing Service Codes (Keyless) 126
MACHINE SIGN TRANSLATIONS 127
WARNING (6808185) 129
LIFT CHART (7125436) 130
SERVICE SCHEDULE (7151799) 133
WARNING (6807776) 136
WARNING (6804114, 6577754, 6809832, 6804233) 138
WARNING (6815945) 139
WARNING (6808474) 139
WARNING (6815915) 140
USING THE X-CHANGE SYSTEM (7102651) 141
WARNING (6809829) 144
JOYSTICK CONTROL PATTERN SELECTOR LEVER (6815957) 144
SPECIFICATIONS 145
EXCAVATOR SPECIFICATIONS 147
Dimensions 147
Performance 149
Controls 149
Engine 149
Hydraulic System 150
Hydraulic Cylinders 150
Hydraulic Cycle Times 150
Electrical 150
Instrumentation 150
Drive System 151
Slew System 151
Undercarriage 151
Crawler Track Design 151
Capacities 151
Fuel Tank 151
Tracks 151
Type 151
Ground Pressure 151
WARRANTY 153
ALPHABETICAL INDEX 157
