Bobcat Box Blade Box Blade Laser Operation & Maintenance Manual 6901435 (07-18) – PDF DOWNLOAD
FILE DETAILS:
Bobcat Box Blade Box Blade Laser Operation & Maintenance Manual 6901435 (07-18) – PDF DOWNLOAD
Language : English
Pages :114
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Bobcat Box Blade Box Blade Laser Operation & Maintenance Manual 6901435 (07-18) – PDF DOWNLOAD
(Box Blade) S/N 657400101 & Above
(Box Blade Laser) S/N 657500101 & Above
FOREWORD
This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation and maintenance of the Bobcat attachment. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR BOBCAT ATTACHMENT. If you have any questions, see your Bobcat dealer. This manual may illustrate options and accessories not installed on your Bobcat attachment.
SAFETY INSTRUCTIONS
Operator must have instructions before operating the machine. Untrained operators can cause injury or death.
Safe Operation Needs A Qualified Operator
For an operator to be qualified, he or she must not use drugs or alcoholic drinks which impair alertness or coordination while working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate a machine and the attachment.
A Qualified Operator Must Do The Following:
Understand the Written Instructions, Rules and Regulations
- The written instructions from Bobcat Company include the Delivery Report, Operation & Maintenance Manual, Operator’s Handbook, Safety Manual and machine signs (decals).
- Check the rules and regulations at your location. The rules may include an employer’s work safety requirements. Regulations may apply to local driving requirements or use of a Slow Moving Vehicle (SMV) emblem. Regulations may identify a hazard such as a utility line.
Have Training with Actual Operation
- Operator training must consist of a demonstration and verbal instruction. This training is given by your Bobcat dealer before the product is delivered.
- The new operator must start in an area without bystanders and use all the controls until he or she can operate the machine and attachment safely under all conditions of the work area. Always fasten seat belt before operating.
Know the Work Conditions
- Know the weight of the materials being handled. Avoid exceeding the machine load capacities. Material which is very dense will be heavier than the same volume of less dense material. Reduce the size of load if handling dense material.
- The operator must know any prohibited uses or work areas, for example, he or she needs to know about excessive slopes.
- Know the location of any underground lines. Call local utilities or the TOLL FREE phone number found in the Call Before You Dig section of this manual.
- Wear tight fitting clothing. Always wear safety glasses when doing maintenance or service. Safety glasses, respiratory equipment, and hearing protection are required for some work. See your Bobcat dealer about Bobcat safety equipment for your machine.
SAFETY INSTRUCTIONS (CONT’D)
Use Safety Rules
- Read and follow instructions in the machine and the attachment’s / implement’s Operation & Maintenance Manual before operating.
- Check for underground lines before operating attachment / implement (if applicable).
- In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
- Check that the attachment mounting pins and hardware are installed correctly and securely fastened (if equipped).
- Check that the loader is securely installed to the compact tractor using the correct pins and hardware.
- Check that the Bob-Tach® levers are in the locked position and the wedges are fully engaged into the mounting holes of the attachment (if applicable).
- Check that the implement is securely fastened to the machine.
- Depress brake pedals (or make sure parking brake is engaged) and make sure all the machine controls are in the NEUTRAL position before starting the machine. • Always start the machine from the operator’s seat.
- Operate the attachment / implement according to the Operation & Maintenance Manual.
- When learning to operate the attachment / implement, do it at a slow rate in an area clear of bystanders.
- DO NOT permit personnel to be in the work area when operating the machine and attachment / implement.
- The attachment / implement must be used ONLY on approved machines. See your Bobcat dealer for updated list of approved attachments / implements for each machine model.
- DO NOT modify equipment or add attachments / implements that exceed manufacturer’s specifications.
- DO NOT make any adjustments or repairs on the machine or attachment / implement while the engine is running.
- Keep shields and guards in place. Replace if damaged.

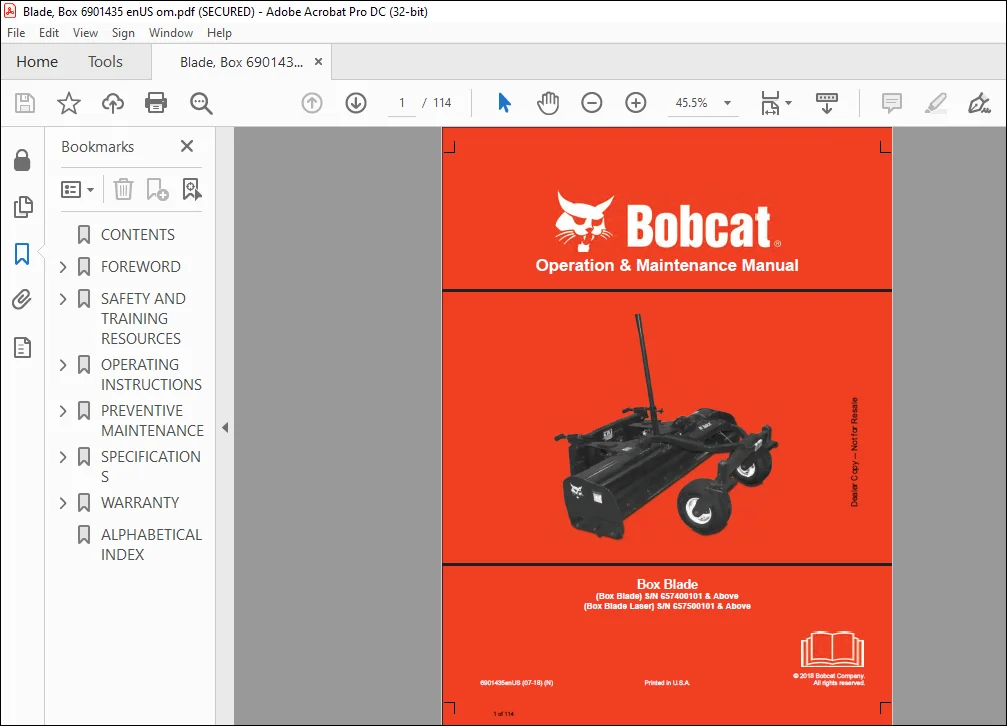

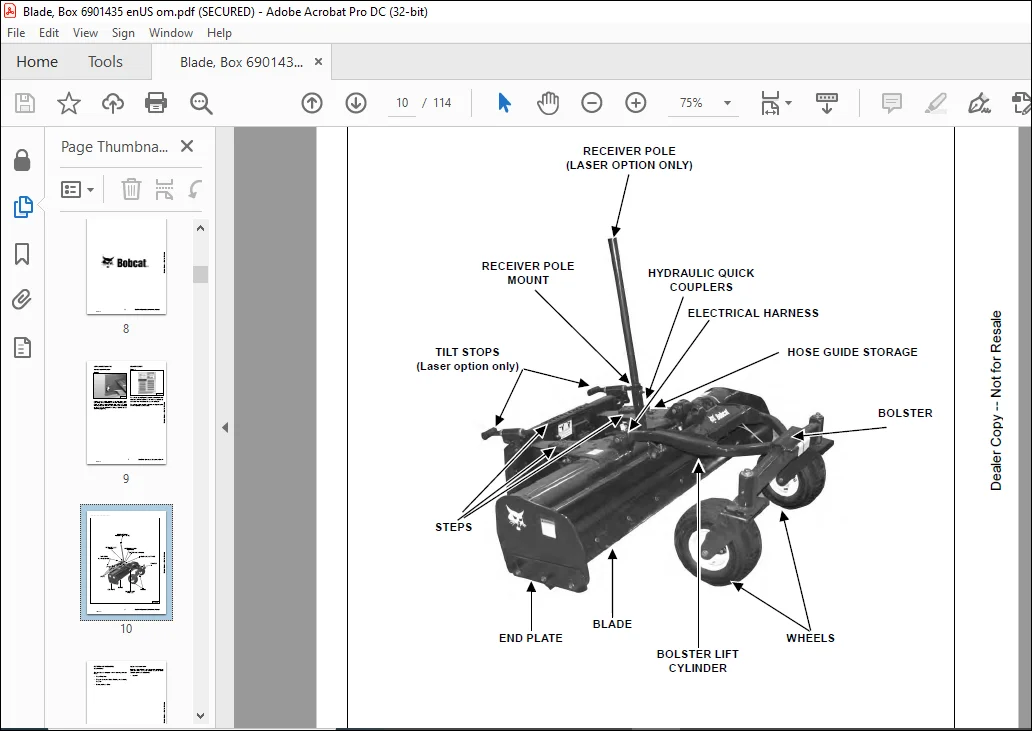

IMAGES PREVIEW OF THE MANUAL:

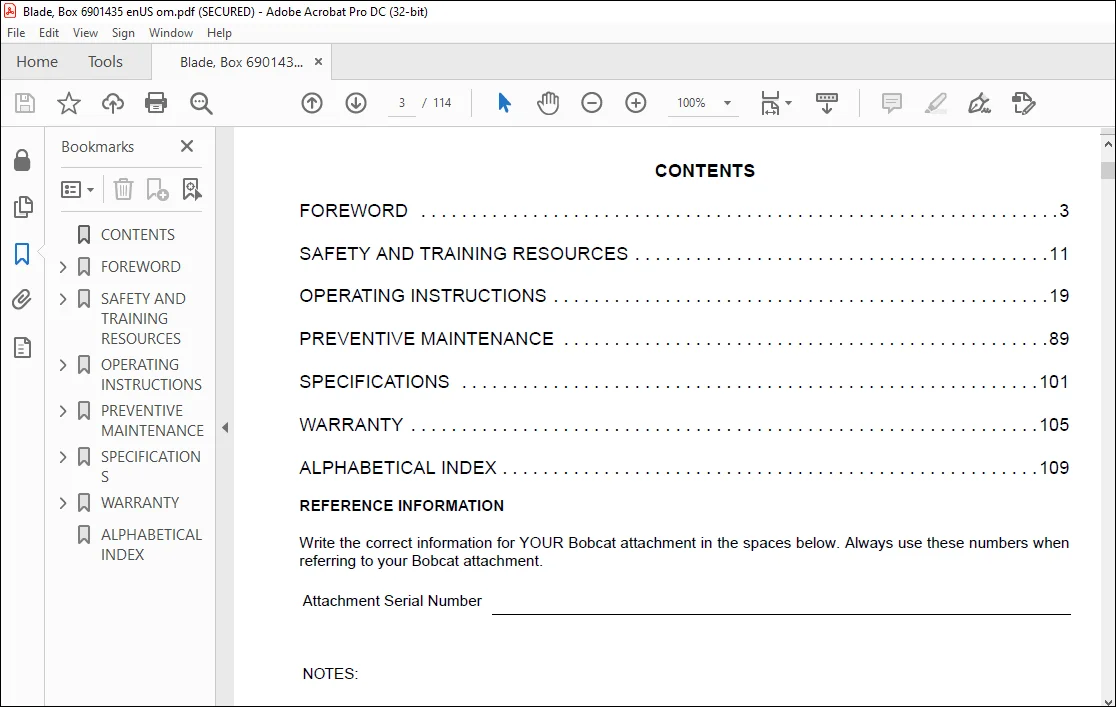

TABLE OF CONTENTS:
Bobcat Box Blade Box Blade Laser Operation & Maintenance Manual 6901435 (07-18) – PDF DOWNLOAD
CONTENTS 3
FOREWORD 5
BOBCAT COMPANY IS IS0 9001 CERTIFIED 7
SERIAL NUMBER LOCATION 9
Attachment Serial Number 9
DELIVERY REPORT 9
ATTACHMENT IDENTIFICATION 10
FEATURES AND ACCESSORIES 11
Standard Items 11
Options And Accessories 11
SAFETY AND TRAINING RESOURCES 13
SAFETY INSTRUCTIONS 15
Safe Operation Is The Operator’s Responsibility 15
Safe Operation Needs A Qualified Operator 15
Use Safety Rules 16
Call Before You Dig 16
Avoid Silica Dust 16
FIRE PREVENTION 17
Maintenance 17
Operation 17
Electrical 17
Hydraulic System 17
Fueling 17
Starting 17
Spark Arrester Exhaust System 17
Welding And Grinding 18
Fire Extinguishers 18
PUBLICATIONS AND TRAINING RESOURCES 19
ATTACHMENT SIGNS (DECALS) 20
OPERATING INSTRUCTIONS 21
INITIAL SETUP 23
Pole Installation And Set-Up (Laser Option) 23
Receiver Installation And Set-Up (Laser Option) 24
DAILY INSPECTION 25
Attachment Mounting Frame 25
Bob-Tach 26
OPERATING PROCEDURE WITH LOADERS 29
Approved Loader Models And Requirements 29
Machine / Attachment Setup 30
Entering And Exiting The Loader 34
Installation 35
Hydraulic Quick Couplers 43
Electrical Harness 44
Control Functions 45
Operation With The Loader 51
Removal 59
OPERATING PROCEDURE WITH UTILITY WORK MACHINES 62
Approved Work Machine Models And Requirements 62
Machine / Attachment Set-up 63
Entering And Exiting The Work Machine 65
Installation 66
Hydraulic Quick Couplers 75
Electrical Harness 76
Control Functions 76
Operation With The Work Machine 78
Removal 85
LIFTING THE ATTACHMENT 89
Procedure 89
TRANSPORTING THE ATTACHMENT ON A TRAILER 89
Fastening 89
TRANSPORTING THE ATTACHMENT AND MACHINE ON A TRAILER 90
Loading And Fastening 90
PREVENTIVE MAINTENANCE 91
TROUBLESHOOTING 95
Chart 95
Chart (GCR Receiver) 96
Chart (BLR2 Receiver) 97
Chart (Laser Beacon) 98
REGULAR MAINTENANCE ITEMS 99
Cutting Edge 99
LUBRICATING THE ATTACHMENT 99
Lubrication Locations 99
REMOVAL AND INSTALLATION OF CUTTING EDGE 100
Procedure 100
ATTACHMENT STORAGE AND RETURN TO SERVICE 101
Storage 101
Return To Service 101
SPECIFICATIONS 103
BOX BLADE SPECIFICATIONS 105
Dimensions 105
Performance 106
Hydraulic System 106
WARRANTY 107
WARRANTY 109
ALPHABETICAL INDEX 111
