Bobcat Backhoe 7BH 9BH Operation & Maintenance Manual – PDF DOWNLOAD
FILE DETAILS:
Bobcat Backhoe 7BH 9BH Operation & Maintenance Manual – PDF DOWNLOAD
Language : English
Pages :104
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Bobcat Backhoe 7BH 9BH Operation & Maintenance Manual – PDF DOWNLOAD
(7BH) S/N B3BG00101 & Above
(9BH) S/N B38Y00101 & Above
FOREWORD
This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation and maintenance of the Bobcat backhoe. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR BOBCAT BACKHOE. If you have any questions, see your Bobcat dealer
SAFETY INSTRUCTIONS
Operator must have instructions before operating the machine. Untrained operators can cause injury or death.
Safe Operation Needs A Qualified Operator
For an operator to be qualified, he or she must not use drugs or alcoholic drinks which impair alertness or coordination while working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate a machine and the attachment.
A Qualified Operator Must Do The Following:
Understand the Written Instructions, Rules and Regulations
- The written instructions from Bobcat Company include the Delivery Report, Operation & Maintenance Manual, Operator’s Handbook, Safety Manual and machine signs (decals).
- Check the rules and regulations at your location. The rules may include an employer’s work safety requirements. Regulations may apply to local driving requirements or use of a Slow Moving Vehicle (SMV) emblem. Regulations may identify a hazard such as a utility line.
Have Training with Actual Operation
- Operator training must consist of a demonstration and verbal instruction. This training is given by your Bobcat dealer before the product is delivered.
- The new operator must start in an area without bystanders and use all the controls until he or she can operate the machine and attachment safely under all conditions of the work area. Always fasten seat belt before operating.
Know the Work Conditions
- Know the weight of the materials being handled. Avoid exceeding the machine load capacities. Material which is very dense will be heavier than the same volume of less dense material. Reduce the size of load if handling dense material.
- The operator must know any prohibited uses or work areas, for example, he or she needs to know about excessive slopes.
- Know the location of any underground lines. Call local utilities or the TOLL FREE phone number found in the Call Before You Dig section of this manual.
- Wear tight fitting clothing. Always wear safety glasses when doing maintenance or service. Safety glasses, respiratory equipment, and hearing protection are required for some work. See your Bobcat dealer about Bobcat safety equipment for your machine.
SAFETY INSTRUCTIONS (CONT’D)
Use Safety Rules
- Read and follow instructions in the machine and the attachment’s / implement’s Operation & Maintenance Manual before operating.
- Check for underground lines before operating attachment / implement (if applicable).
- In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
- Check that the attachment mounting pins and hardware are installed correctly and securely fastened (if equipped).
- Check that the loader is securely installed to the compact tractor using the correct pins and hardware.
- Check that the Bob-Tach® levers are in the locked position and the wedges are fully engaged into the mounting holes of the attachment (if applicable).
- Check that the implement is securely fastened to the machine.
- Depress brake pedals (or make sure parking brake is engaged) and make sure all the machine controls are in the NEUTRAL position before starting the machine. • Always start the machine from the operator’s seat.
- Operate the attachment / implement according to the Operation & Maintenance Manual.
- When learning to operate the attachment / implement, do it at a slow rate in an area clear of bystanders.
- DO NOT permit personnel to be in the work area when operating the machine and attachment / implement.
- The attachment / implement must be used ONLY on approved machines. See your Bobcat dealer for updated list of approved attachments / implements for each machine model.
- DO NOT modify equipment or add attachments / implements that exceed manufacturer’s specifications.
- DO NOT make any adjustments or repairs on the machine or attachment / implement while the engine is running.
- Keep shields and guards in place. Replace if damaged.

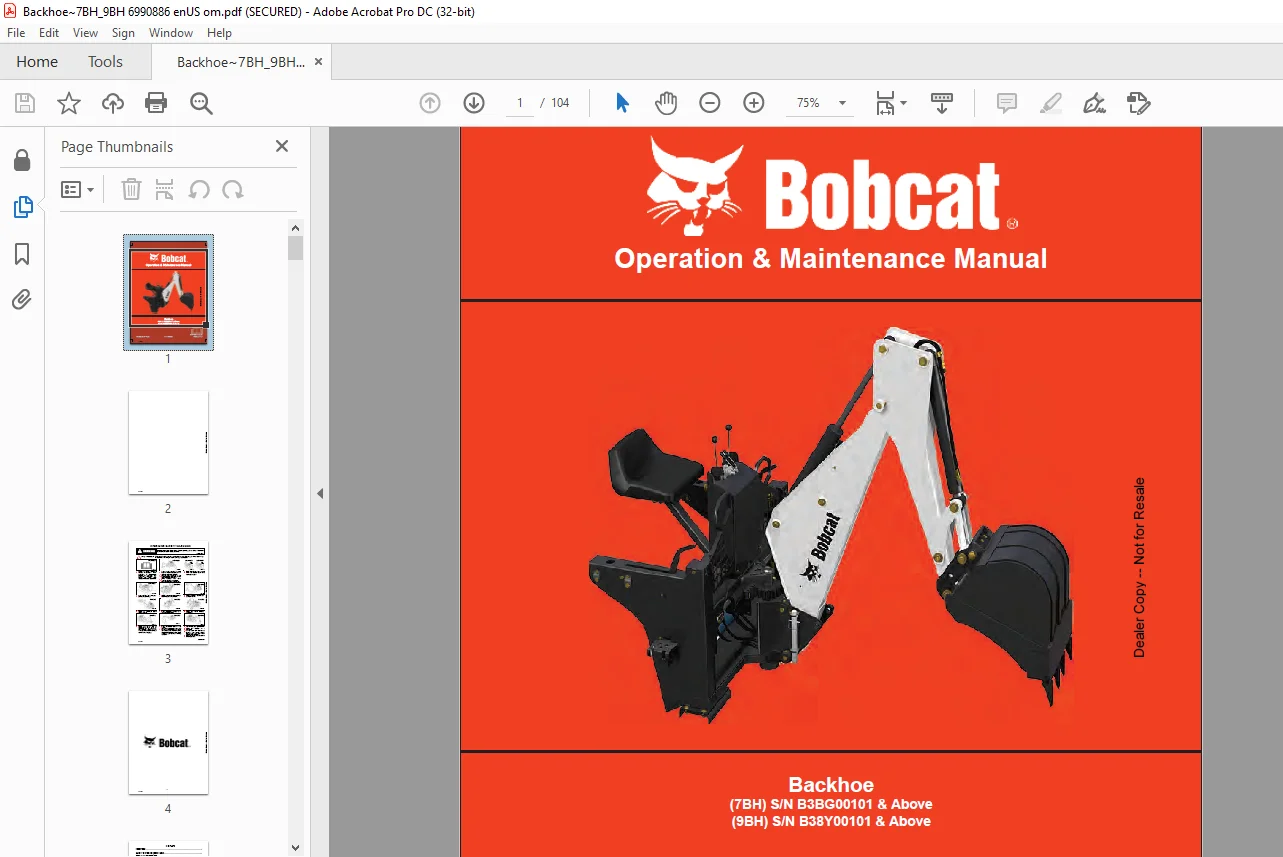

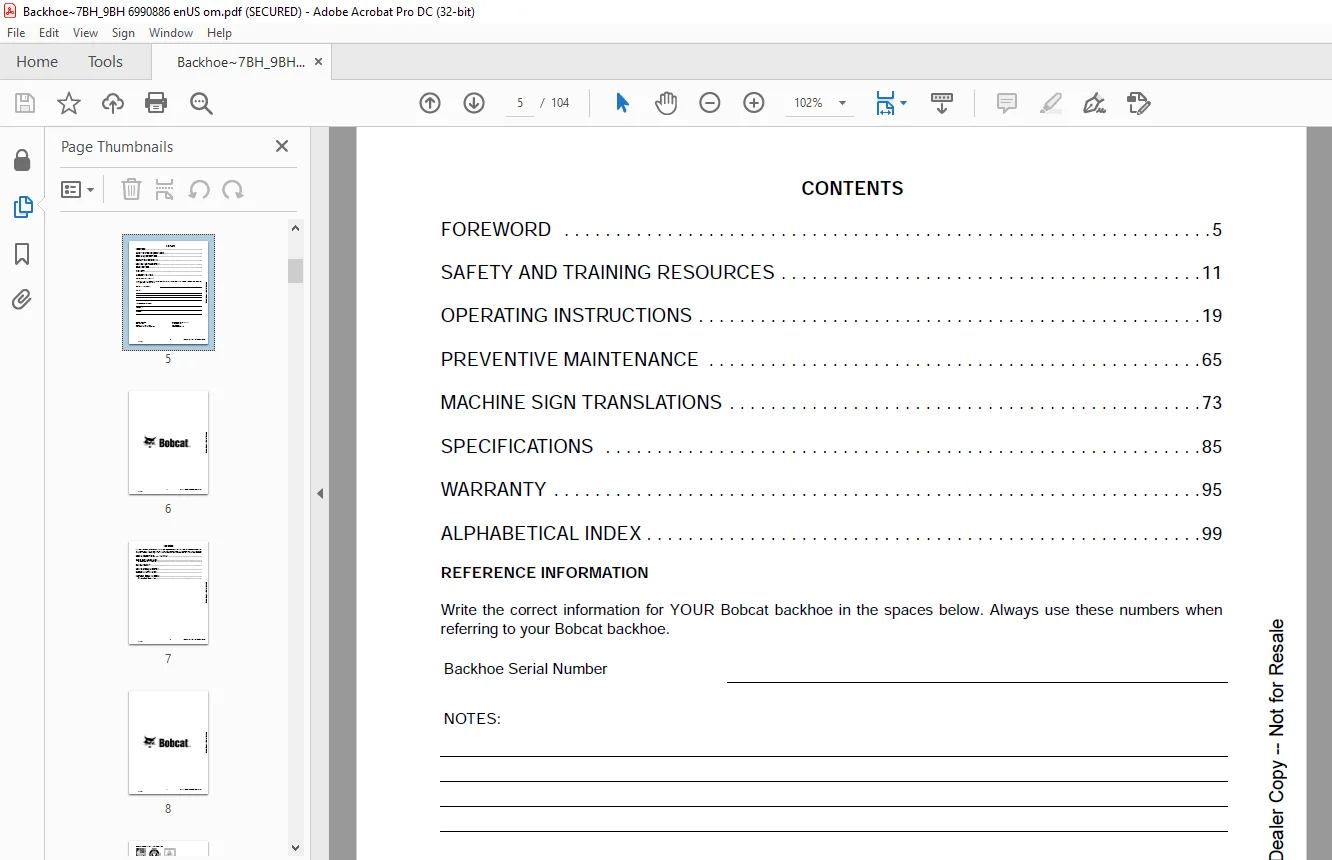

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Bobcat Backhoe 7BH 9BH Operation & Maintenance Manual – PDF DOWNLOAD
OPERATOR SAFETY WARNINGS 3
CONTENTS 5
FOREWORD 7
BOBCAT COMPANY IS IS0 9001 CERTIFIED 9
SERIAL NUMBER LOCATION 10
Attachment Serial Number 10
DELIVERY REPORT 10
MANUAL STORAGE LOCATION 10

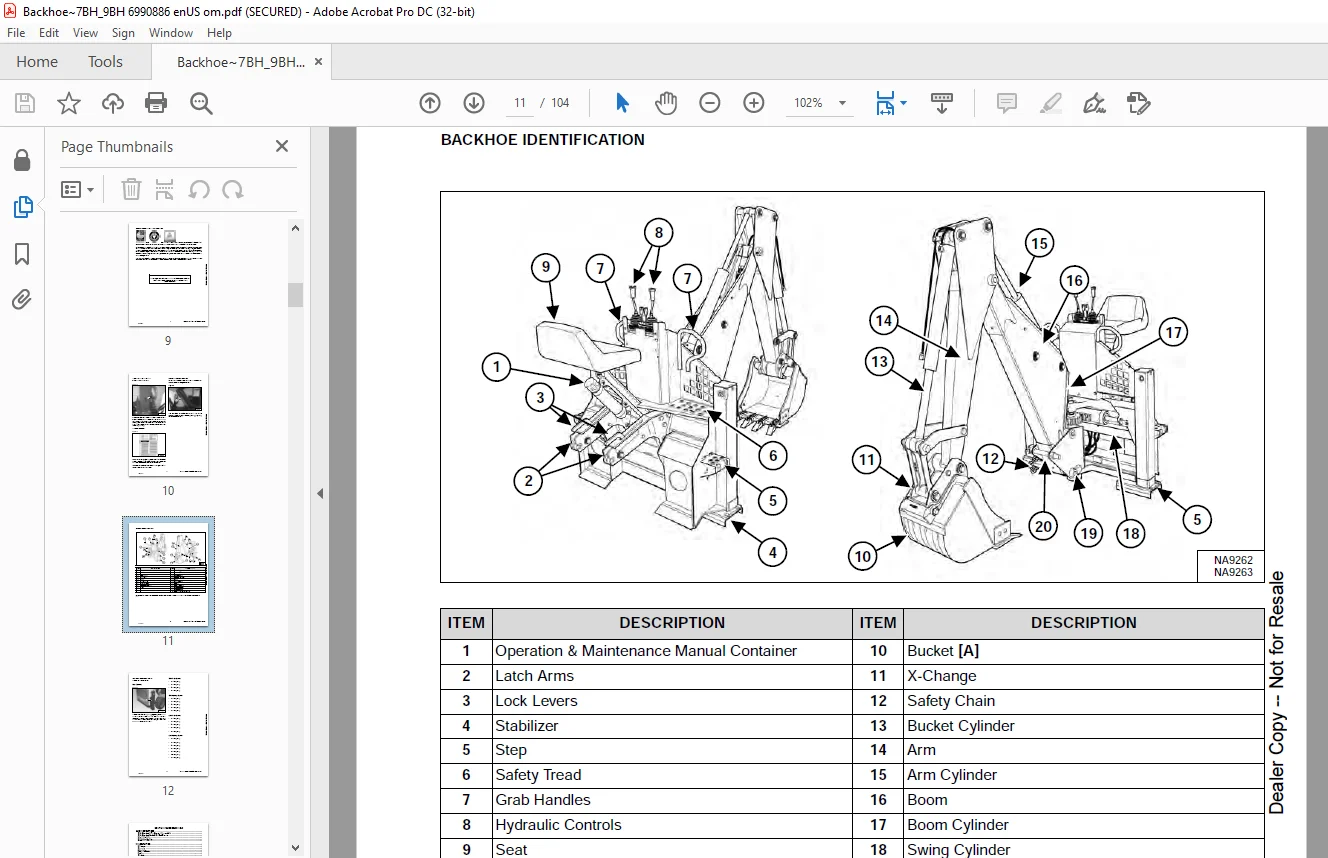

BACKHOE IDENTIFICATION 11
FEATURES AND ACCESSORIES 12
Options And Accessories 12
SAFETY AND TRAINING RESOURCES 13
SAFETY INSTRUCTIONS 15
Safe Operation Is The Operator’s Responsibility 15
Safe Operation Needs A Qualified Operator 15
Use Safety Rules 16
Call Before You Dig 16
Avoid Silica Dust 16
FIRE PREVENTION 17
Maintenance 17
Operation 17
Electrical 17
Hydraulic System 17
Fueling 17
Starting 17
Spark Arrester Exhaust System 17
Welding And Grinding 18
Fire Extinguishers 18
PUBLICATIONS AND TRAINING RESOURCES 19
ATTACHMENT SIGNS (DECALS) 20
Backhoe Equipped With Telescoping Stabilizers 20
OPERATING INSTRUCTIONS 21
INITIAL SETUP 23
Backhoe Mounting Kit 23
Seat Adjustment 23
DAILY INSPECTION 24
Attachment Mounting Frame 24
Bob-Tach 25
X-Change™ 27
Pin-On Attachment 27
OPERATING PROCEDURE WITH LOADERS 28
Approved Loader Models And Requirements 28
Machine / Attachment Setup 30
Entering And Exiting The Loader 31
Installation 32
Hydraulic Quick Couplers 39
Control Functions 40
Operation With The Loader 44
Removal 56
LIFTING THE BACKHOE 64
Procedure 64
TRANSPORTING THE BACKHOE ON A TRAILER 64
Fastening The Backhoe To The Transport Vehicle 64
TRANSPORTING THE BACKHOE AND MACHINE ON A TRAILER 65
Loading And Fastening 65
PREVENTIVE MAINTENANCE 67
MAINTENANCE SAFETY 69
TROUBLESHOOTING 71
LUBRICATING THE ATTACHMENT 72
Lubrication Locations 72
ATTACHMENT STORAGE AND RETURN TO SERVICE 74
Storage 74
Return To Service 74
MACHINE SIGN TRANSLATIONS 75
MACHINE SIGN TRANSLATIONS 77
Warning (7247628) 77
Warning (7247626) 78
Warning (7247625) 79
Warning (7247627) 80
Warning (7166144) 81
Mounting (7235869) 82
X-Change (6818059) 85
SPECIFICATIONS 87
7BH BACKHOE SPECIFICATIONS 89
Dimensions 89
Hydraulic Specifications 90
Transport 90
Operational 91
Lift Capacities 91
9BH BACKHOE SPECIFICATIONS 92
Dimensions 92
Hydraulic Specifications 93
Transport 93
Operational 94
Lift Capacities 94
BUCKET SPECIFICATIONS 95
WARRANTY 97
WARRANTY 99
ALPHABETICAL INDEX 101
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
- Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
