Bobcat 3400 Utility Vehicle 3400 3400XL Operation & Maintenance Manual 7297099 (01-16) – PDF DOWNLOAD
FILE DETAILS:
Bobcat 3400 Utility Vehicle 3400 3400XL Operation & Maintenance Manual 7297099 (01-16) – PDF DOWNLOAD
Language : English
Pages :156
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Bobcat 3400 Utility Vehicle 3400 3400XL Operation & Maintenance Manual 7297099 (01-16) – PDF DOWNLOAD
FOREWORD
This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation and maintenance of the Bobcat utility vehicle. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR BOBCAT UTILITY VEHICLE. If you have any questions, see your Bobcat dealer. This manual may illustrate options and accessories not installed on your Bobcat utility vehicle.
SAFETY INSTRUCTIONS
Before Operation
- Carefully follow the operating and maintenance instructions in this manual. The Bobcat utility vehicle is highly maneuverable and compact. It is rugged and useful under a wide variety of conditions.
- This presents an operator with hazards associated with off road, rough terrain applications, common with Bobcat utility vehicle usage. This vehicle handles differently than other vehicles, such as motorcycles, golf cars or cars. If you fail to take proper precautions, a collision or rollover can occur quickly, even during routine maneuvers like turning, braking, driving over rough terrain and up and down hills or over obstacles.
- This can result in severe injury or death. This vehicle is intended for off road use only and should not be operated on public roads. Driving this vehicle in an aggressive manner can increase the risk of head injury and requires head protection. For these aggressive driving conditions, Bobcat Company recommends that all occupants wear a properly fitting Department of Transportation (D.O.T.) approved helmet
Always follow these instructions:
- Fasten seat belts for occupant restraint before operating.
- Keep hands and feet inside the vehicle at all times.
- Travel at appropriate vehicle speeds depending on the type of terrain, visibility conditions, operating conditions and your operating experience.
- Wear eye protection.
- Wear other personal protective equipment such as a helmet or hard hat, face protection, hearing protection, safety boots or shoes, chemical suit, respirators and gloves as needed by work location and vehicle operation.
- NEVER attempt jumps or other stunts with the vehicle.
This vehicle is an ADULT VEHICLE ONLY. NEVER operate this vehicle if you are under age 16 and NEVER operate without a valid drivers license. No person under the age of 12 may ride as a passenger in this vehicle.
- Any passenger must be able to comfortably reach the floor and hand holds. Never permit a guest to operate this vehicle unless the guest has read this manual and all safety signs (decals). Always inspect the vehicle before each use to make sure it is in safe operating condition. Always follow the inspection procedures described in this manual.
- The Bobcat utility vehicle has an internal combustion engine with resultant heat and exhaust. All exhaust gases can kill or cause illness so use the utility vehicle with adequate ventilation. The dealer explains the capabilities and restrictions of the Bobcat utility vehicle, attachment and accessories for each application. The dealer demonstrates the safe operation according to Bobcat instructional materials, which are also available to operators.
- The dealer can also identify unsafe modifications or use of unapproved attachments and accessories. The attachments and buckets are designed for an attachment arm Rated Capacity. They are designed for secure fastening to the Bobcat utility vehicle. The user must check with the dealer, or Bobcat literature, to determine safe loads of materials of specified densities for the vehicle – attachment combination.
The following publications and training materials provide information on the safe use and maintenance of the Bobcat utility vehicle and attachments and accessories:
- • The Delivery Report is used to assure that complete instructions have been given to the new owner and that the machine and attachment is in safe operating condition.
- The Operation & Maintenance Manual delivered with the machine or attachment gives operating information as well as routine maintenance and service procedures. It is a part of the machine and can be stored in a container provided on the machine. Replacement Operation & Maintenance Manuals can be ordered from your Bobcat dealer.
- Machine signs (decals) instruct on the safe operation and care of your Bobcat machine or attachment. The signs and their locations are shown in the Operation & Maintenance Manual. Replacement signs are available from your Bobcat dealer.
- An Operator’s Handbook is fastened to the operator cab of the machine. It’s brief instructions are convenient to the operator. The handbook is available from your dealer in an English edition or one of many other languages. See your Bobcat dealer for more information on translated versions.
- The Toolcat Utility Work Machine Operating Training Course is available through your Bobcat dealer. This course is intended to provide rules and practices of correct operation of the Toolcat utility work machine. The course is available in English and Spanish versions.

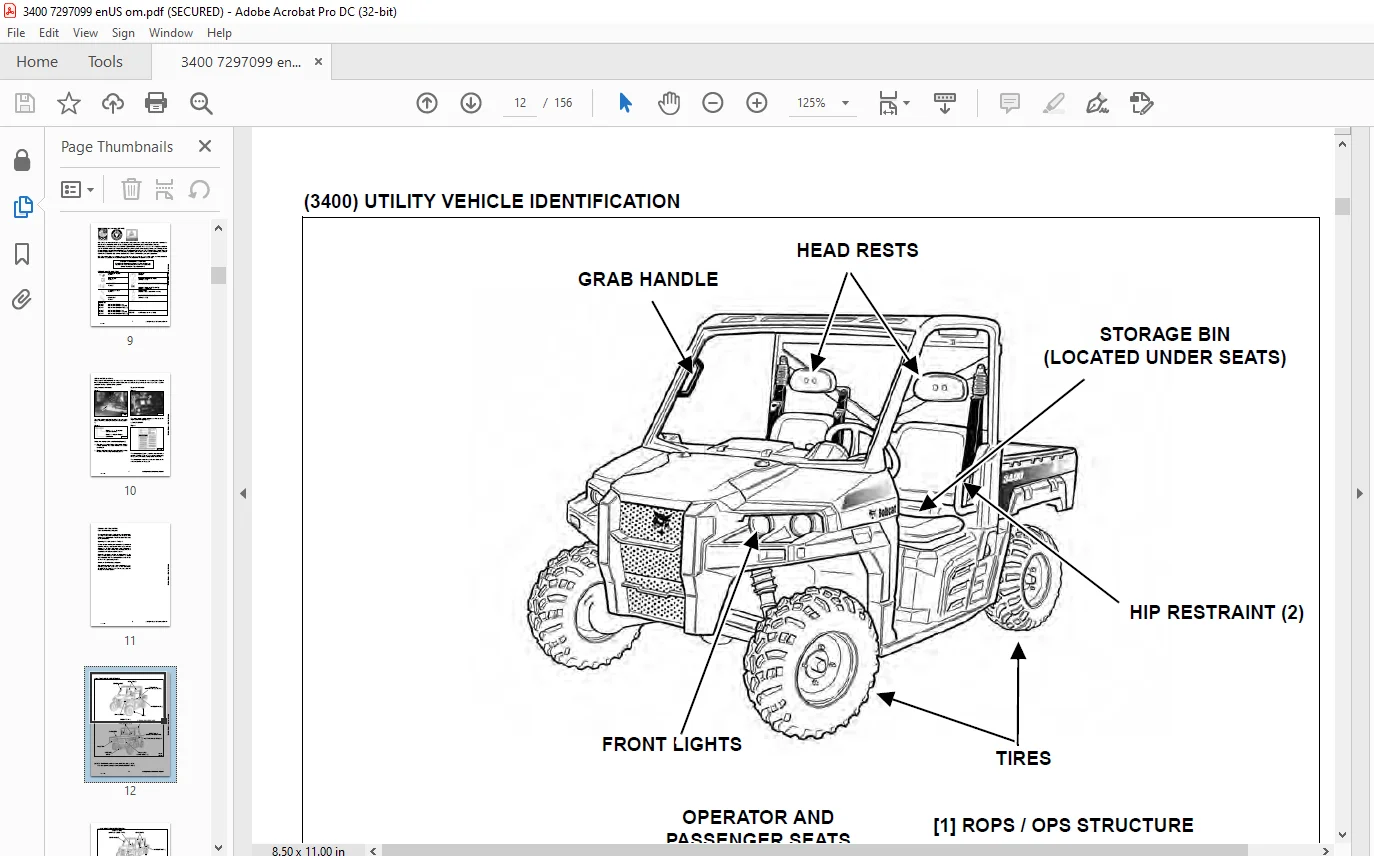

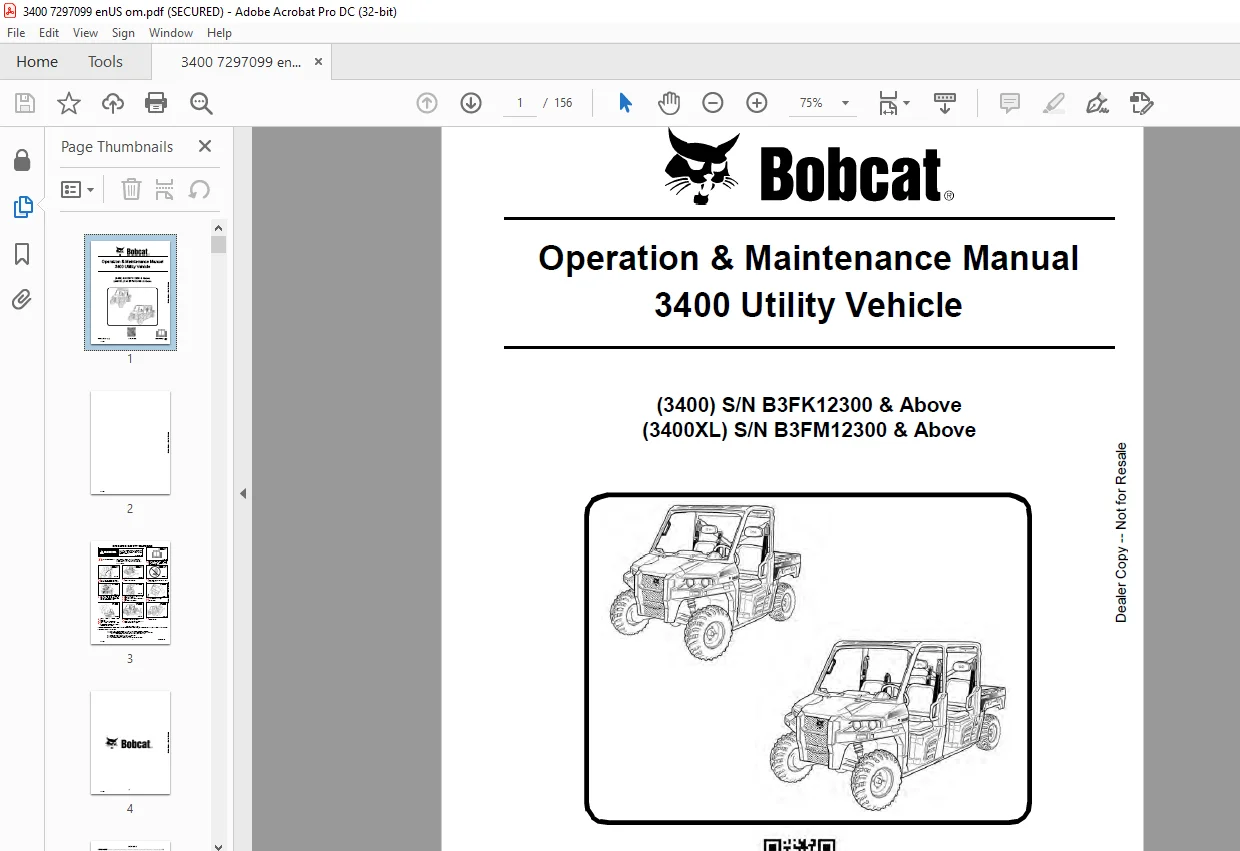

IMAGES PREVIEW OF THE MANUAL:

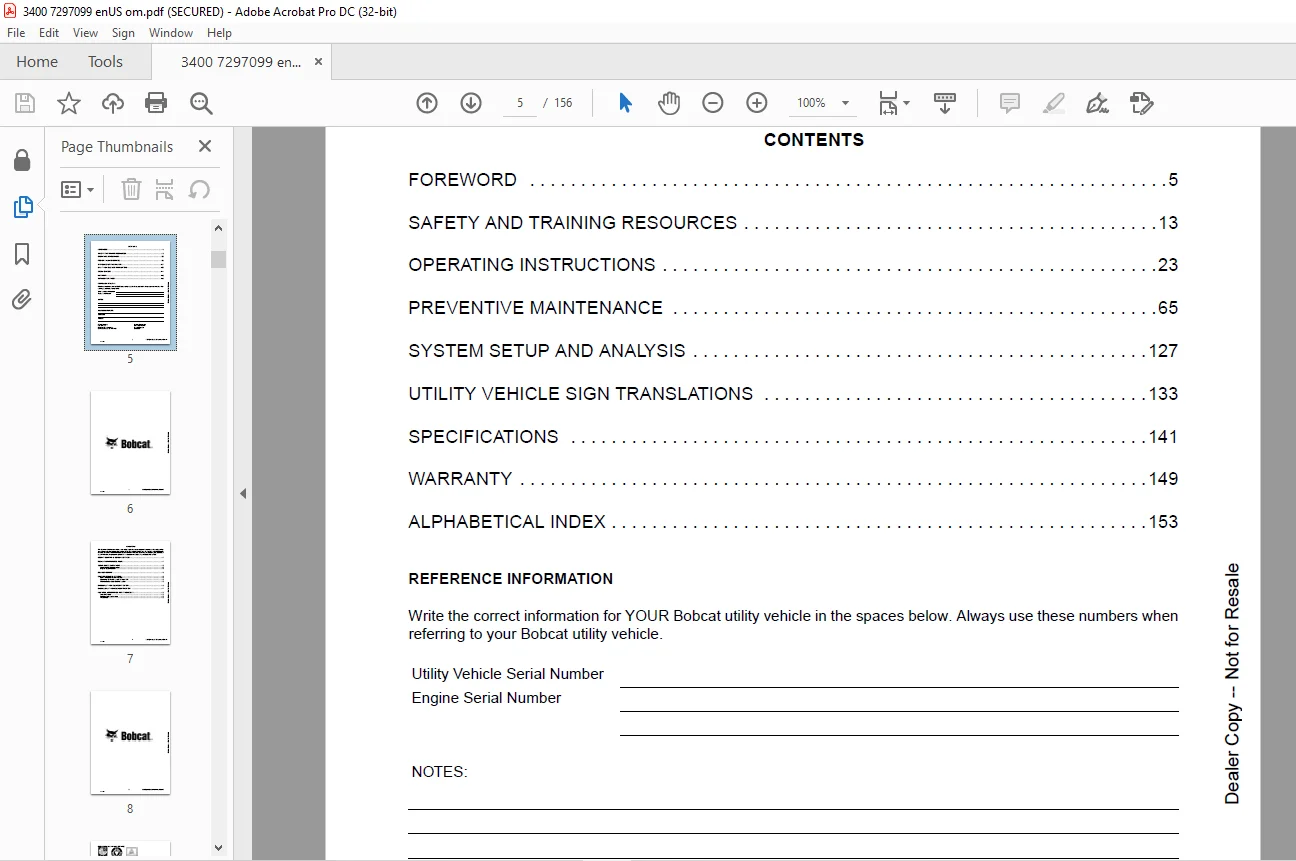

TABLE OF CONTENTS:
Bobcat 3400 Utility Vehicle 3400 3400XL Operation & Maintenance Manual 7297099 (01-16) – PDF DOWNLOAD
FOREWORD 5
SAFETY AND TRAINING RESOURCES 13
OPERATING INSTRUCTIONS 23
PREVENTIVE MAINTENANCE 65
SYSTEM SETUP AND ANALYSIS 127
UTILITY VEHICLE SIGN TRANSLATIONS 133
SPECIFICATIONS 141
WARRANTY 149
ALPHABETICAL INDEX 153
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
