Belarus 1220.1 1220.3 1220.4 Tractor Parts Catalogue & Assembly Manual 1220.1-0000010 KDS – PDF DOWNLOAD
FILE DETAILS:
Belarus 1220.1 1220.3 1220.4 Tractor Parts Catalogue & Assembly Manual 1220.1-0000010 KDS – PDF DOWNLOAD
Language : English
Pages : 332
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Belarus 1220.1 1220.3 1220.4 Tractor Parts Catalogue & Assembly Manual 1220.1-0000010 KDS – PDF DOWNLOAD
INTRODUCTION:
The present catalogue contains the whole range of assembly units and parts for tractors
BELARUS-1220.1/1220.3/1220.4.
The catalogue is meant for organizations and firms that are concerned with tractor
sales, operation and repair. It can be used in calculation and preparation of orders for spare
parts and serves as a manual during tractor disassembling and assembling.
All changes related to tractor design development are represented in respective
information sheets.
HOW TO USE THE CATALOGUE:
- Catalogue includes tractor assembly units and parts:
Assembly units and parts are divided into groups and subgroups according to

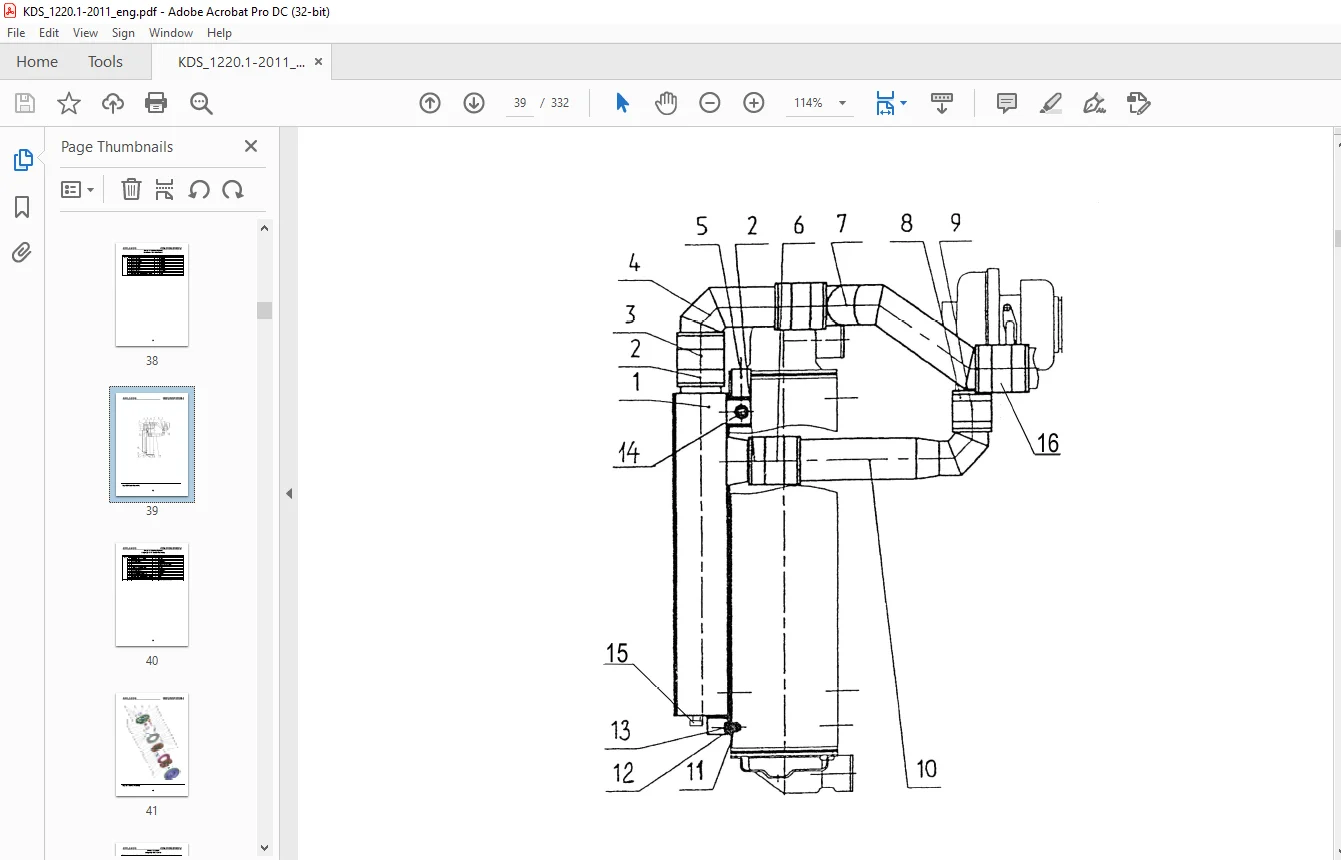

functional attribute. This directory is well illustrated with axonometric figures of knocked-down
tractor components. All parts in the figures have sequence numbers (figure numbers). - For ease of catalogue reference in search for necessary part the same sequence numbers are
placed in column “Pos. No.” in the text part of the catalogue in ascending order from top
downward. - The figures referred to in the catalogue are well-done in the terms of art and let
the user get acquainted with structure and configuration of parts and assembly units. They
can serve as a manual for carrying out disassembling and assembling operations.
For example, the following record is given in the catalogue:
“…52-2303030 2 Gear (5-7)”.

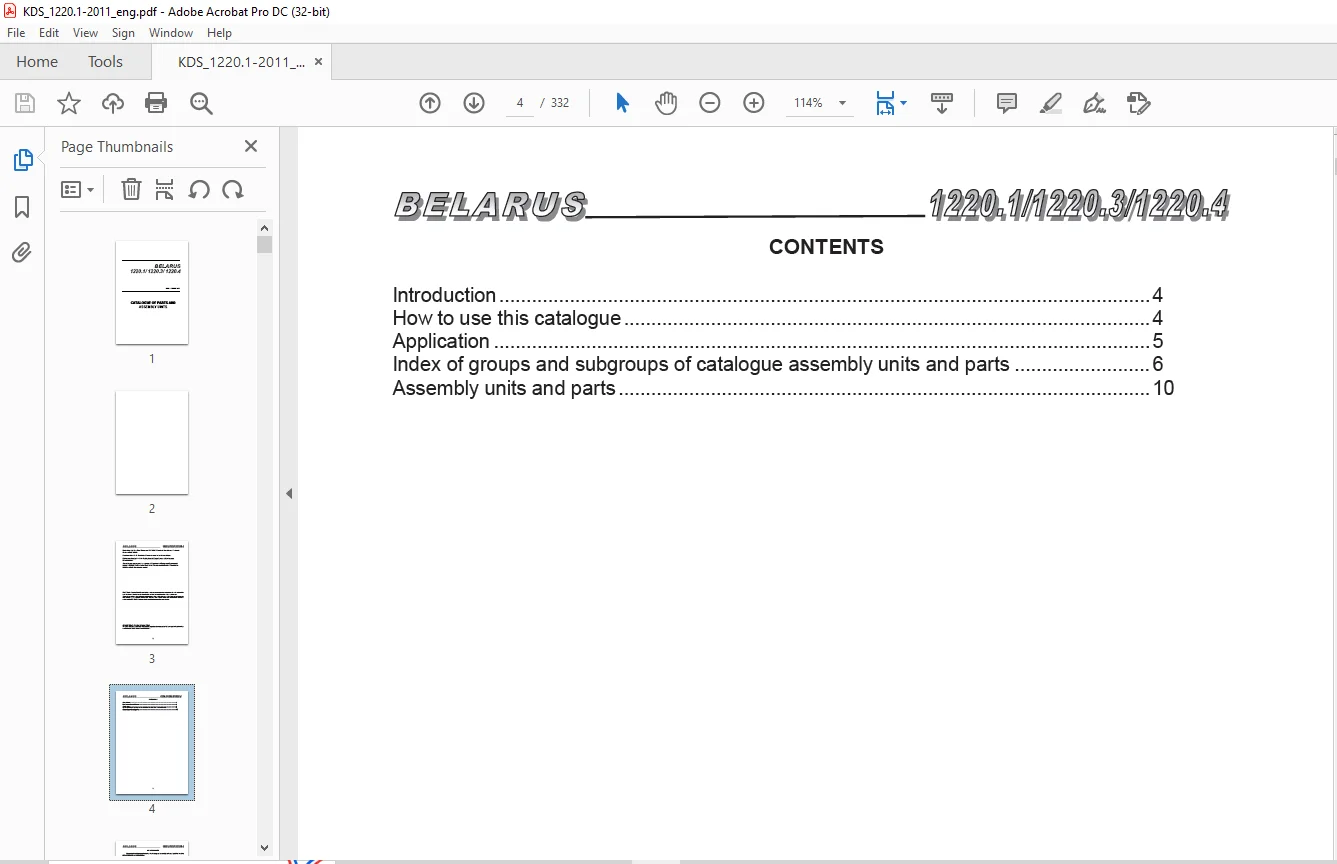

TABLE OF CONTENTS:
Belarus 1220.1 1220.3 1220.4 Tractor Parts Catalogue & Assembly Manual 1220.1-0000010 KDS – PDF DOWNLOAD
Diesel Engine Mechanisms
1001 10.1 Diesel Engine Assembly 10
Fuel System
1101 11.1 Fuel Tanks 12
1108 11.2 Fuel Supply Control 1021-1108500 14
1108 11.3 Fuel Supply Control 1221-1108005 18
1108 11.4 Fuel Supply Control 1221.4-1108000 20
1109 11.5 Air Cleaner “Donaldson” (D-245.2S2) 22
1109 11.6 Air Cleaner “Donaldson” (D-245.2S3 and D-245.2S3) 24
1117 11.7 Fuel Filter Assembly 26
Gas Exhaust System
1205 12.1 Muffler Assembly 1220.1-1205005 28
1205 12.2 Muffler Assembly 1021.4-1205600 30
1205 12.3 Muffler 32
Cooling System
1301 13.1 Cooling Unit 34
1309 13.2 Fan Guard 36
1317 13.3 Cooler Assembly 38
Clutch
1601 16.1 Clutch Assembly 40
1601 16.2 Clutch Housing 42
1601 16.3 Clutch Housing 44
1602 16.4 Clutch Control 48
Gearbox
1701 17.1 Gearbox 112-1700010- (16F+8R) 50
1701 17.2 Gearbox. Primary Shaft 52
1701 17.3 Gearbox. Secondary Shaft 54
1701 17.4 Gearbox. Intermediate Shaft 56
1701 17.5 Shaft of Low Speeds 58
1702 17.6 Control Mechanism of Gearbox (16F+8R) 60
1701 17.7 Gearbox 1222-1700010 (24F+12R) 64
1701 17.8 Primary Shaft 66
1701 17.9 Intermediate Shaft 68
1701 17.10 Shaft of Low Speeds and Reverse 70
1701 17.11 Gear Unit Shaft 74
1701 17.12 Secondary Shaft 76
1702 17.13 Control Mechanism of Gearbox (24F+12R) 78
1704 17.14 Pump Drive 82
1716 17.15 Filter 84
1737 17.16 Filter-distributor 86
18 FDA Drive
1802 18.1 Drive of Front Driving Axle 88
Cardan Drive
2203 22.1 Cardan Drive 92
2210 22.2 Guard 94
Front Driving Axle
2300 23.1 Front Driving Axle 822-2300020 96
2302 23.2 Gear 98
2303 23.3 Differential Unit 100
2308 23.4 Final Drive Reduction Gear Unit of Front Driving Axle 102
Rear Axle
2401,2403,
2407
24.1,
24.1a Rear Axle. Differential Unit. Final Drives 106
2401 24.2 Final Drive (Lubricant) 111
2409 24.3 Differential Locking Mechanism 112
2409 24.4 Differential Locking Mechanism of Wet Type 114
Drawbar Hitch
2707 27.1 Drawbar Hitch 116
2707 27.2 Drawbar Hitch (Configuration Variants) 118
Frame
2801 28.1 Semi-frame 120
2805 28.2 Trailing Appliance 122
2807 28.3 Trailer Hook 1220-2807010- 124
2807 28.4 Trailer Hook 1220-2807010- (Options Arrangement) 126
30 Steering Link
3003 30.1 Steering Link 128
Wheels and Hubs
3101 31.1, 31.2 Front Driving Wheels 130
3104, 3107 31.3,31.4 Rear Driving Wheels. Rear Wheels Hubs 132
Steering Control
3401 34.1 Steering Column 134
3407 34.2 Steering Control 1025-3400010 136
3405 34.3 Hydraulic Cylinder 63 (63×30-200) 140
3407 34.4 Tank 142
Brakes
3502 35.1 Brakes 144
3502 35.2 Wet Brakes 146
3503 35.3 Control of Wet Brakes 148
3507 35.4 Parking and Emergency Brake, Control of Parking and
Emergency Brake 150
3507 35.5 Parking and Emergency Brake. Control of Parking and
Emergency Brake (for Wet Brakes) 152
Pneumatic Drive
3506 35.6 Pneumatic Drive 1220-3506005 (Single-line) 154
3513 35.7 Pneumatic Drive 1220-3506505 (Double-line) 156
3514 35.8 Brake Valve 158
3521 35.9 Coupling Head
(for Single-line Pneumatic Drive) 159
Coupling Head
(for Double-line Pneumatic Drive)
Electrical Equipment
3700 37.1 Engine Electrical Equipment 920-3700030- 162
3700 37.2 Engine Electrical Equipment 1025.4-3700030 164
3700 37.3 Transmission Electrical Equipment 166
3700 37.4 Cabin Electrical Equipment 168
3703 37.5 Storage Batteries assembly 170
3711 37.6 Head Lamps assembly 172
3711 37.7 Working Lights assembly 174
3711 37.8 Front Lights assembly 176
3716 37.9 Rear Lights assembly 178
3730 37.10 Electrical Equipment of Conditioner 180
Group Subgroup Fig.No Name Page
3730 37.11 Electrical Equipment of Heater 182
3738 37.12 Roadtrain Lights assembly 183
3738 37.13 Beacon Assembly 184
3741 37.14 Electrical Equipment of Starting Device 186
Instruments
3805 38.1 Dashboard. Dashboard Assembly. 188
3805 38.2 Dashboard (in Expanded Form) 189
Tools and Accessories
3901 39.1 Operator Tool 192
3912 39.2 First Aid Kit 193
3919 39.3 Tool Box 193
Power Take-Off
4202 42.1 Rear PTO Shaft 194
4202 42.2 Crown Gear 198
4216 42.3 Control of Rear Power Take-Off Shaft 200
4235 42.4 Ballast 202
Hydraulic System
4605 46.1 Lift Linkage with Hydraulic Lift 204
4605 46.2 Lift Linkage 208
4607 46.3 Hydraulic System 1221-4600010 212
4607 46.4 Hydraulic System Housing 1221-4600015 216
4607 46.5,
46.5 Hydraulic System 1221-4600010 220
4607 46.6 Hydraulic System Housing 1221-4600015 224
4607 46.7 Hydraulic System 1221-4600010 228
4607 46.8,
46.8 Hydraulic System Housing 1221-4600015 230
4607 46.9,
46.9 Hydraulic System 920-4600010-01 234
4607 46.10,
46.10 Hydraulic System Housing 920-4600015-01 238
4607 46.11,
46.11 Hydraulic System 920-4600010-01 242
4607 46.12 Hydraulic System Housing 952-4600015-08 246
4604 46.13 Pump Drive 250
4607 46.14 Control of Hydraulic Distributor Valve (70, RS 213 Mita) 252
4607 46.15 Hydraulic System Housing and Filter 254
036.50 46.16 Fast Coupling 256
70 46.17 Hydraulic Distributor Valve 70 258
4625 46.18 Hydraulic Lift Cylinder 262
4634 46.19 Distributor Valve of Hydraulic Lift 264
4635 46.20 Hydraulic Lift Control 266
4635 46.21 Hydraulic Lift 270
4635 46.22 Hydraulic Lift 1221-4635010 272
Windscreen Wipers
5205 52.1 Windscreen Wiper Assembly 274
5208 52.2 Windscreen Washer assembly 276
Cabin
6700 67.1 Tractor Cabin 278
6700 67.2 Tractor Cabin 282
6700 67.3,
67.4 Roof 284
6700 67.5 Panels 286
6702 67.6 Cabin Doors 288
Group Subgroup Fig.No Name Page
Seat
6800 68.1 Operator Seat 290
6800 68.2 Operator Seat 294
6801 68.3 Seat Suspension 296
6809 68.4 Additional Seat 300
Heater
8101 81.1 Heater 302
8100 81.2 Conditioner Assembly 304
8100 81.3 Compressor Assembly 306
Cabin Accessories
8201 82.1 Inside Mirror 308
8201 82.2 Outside Mirror 308
8204 82.3 Sun Visor 308
Fin Assembly
8400 84.1 Facing 310
8403 84.2 Front Wheels Wings 314
8405 84.3 Foot Step 316
Control System
8700 87.1 Control of MMZ Tier-3a Engine (D-245.2S3A) 318
8700 87.2 Control of FDA, DL of Rear Axle and Front PTO Shaft
(with GB 16Fx8R) 320
8700 87.3 Control of FDA, DL of Rear Axle and Front PTO Shaft
(with GB 16Fx8R) (for Tractors 1220.4) 322
8700 87.4 Control of FDA, DL of Rear Axle, Rear PTO Shaft and
Reduction Gear Unit (with GB 24Fx12R) 326
8700 87.5 Control of Rear Lift Linkage 330
