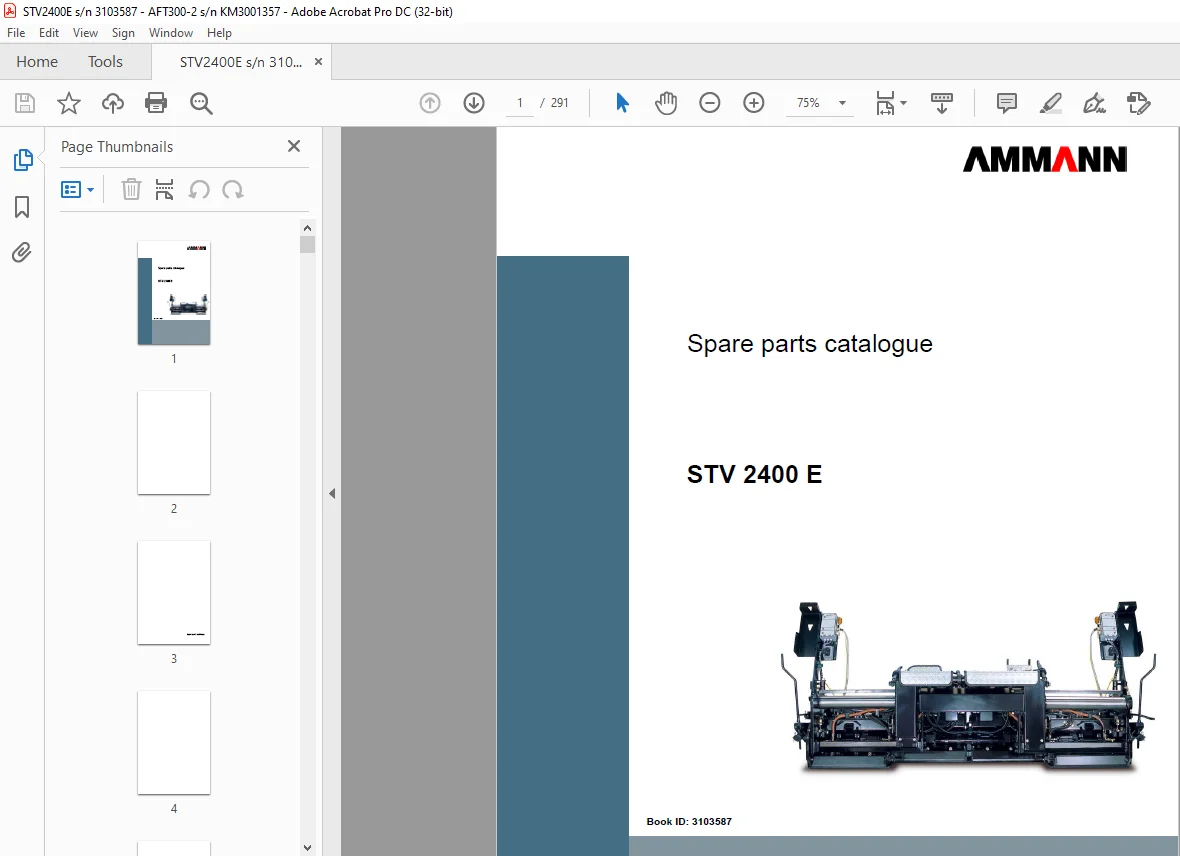

Ammann STV 2400 E Parts Catalogue Manual 3103587 – PDF DOWNLOAD
FILE DETAILS:
Ammann STV 2400 E Parts Catalogue Manual 3103587 – PDF DOWNLOAD
Language : English
Pages : 291
Downloadable : Yes
File Type : PDF
IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:

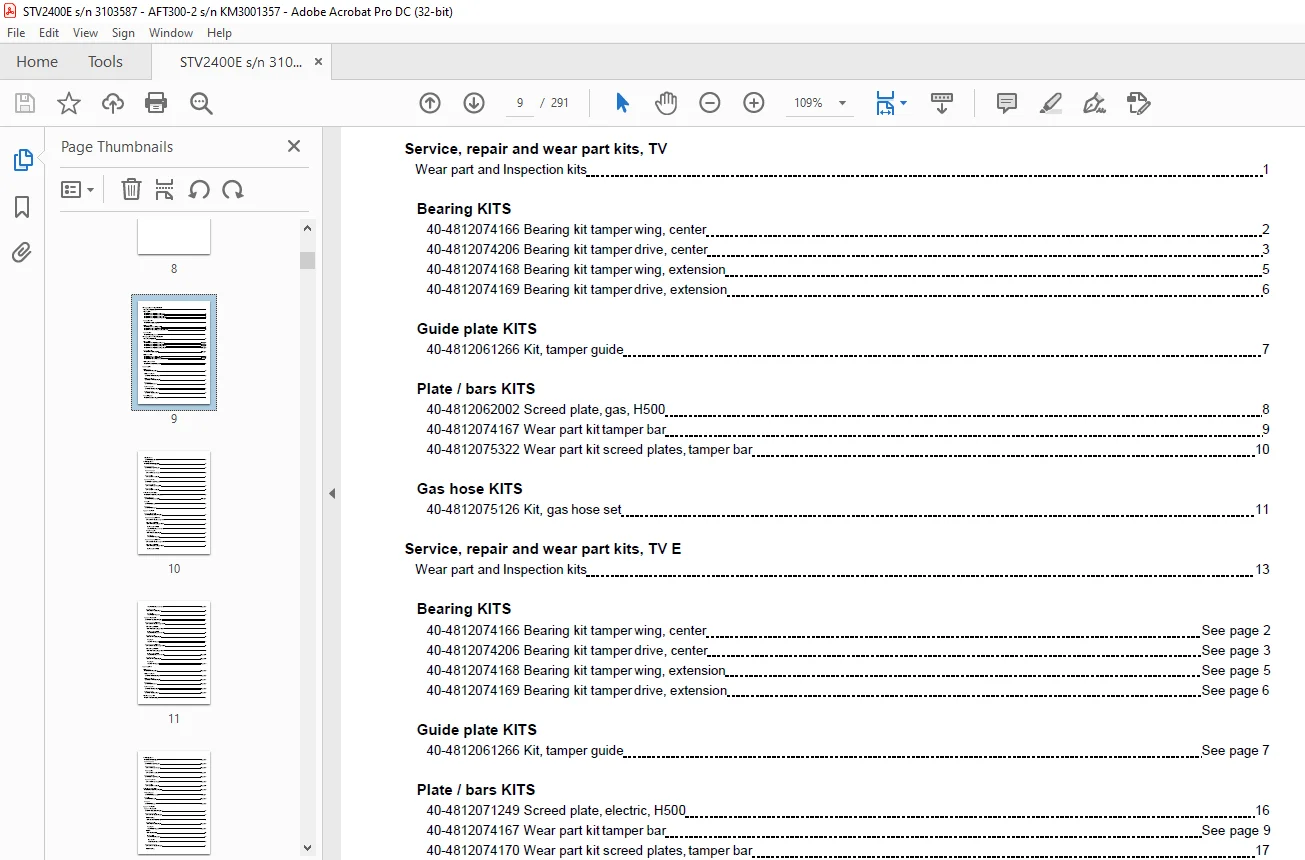

Ammann STV 2400 E Parts Catalogue Manual 3103587 – PDF DOWNLOAD

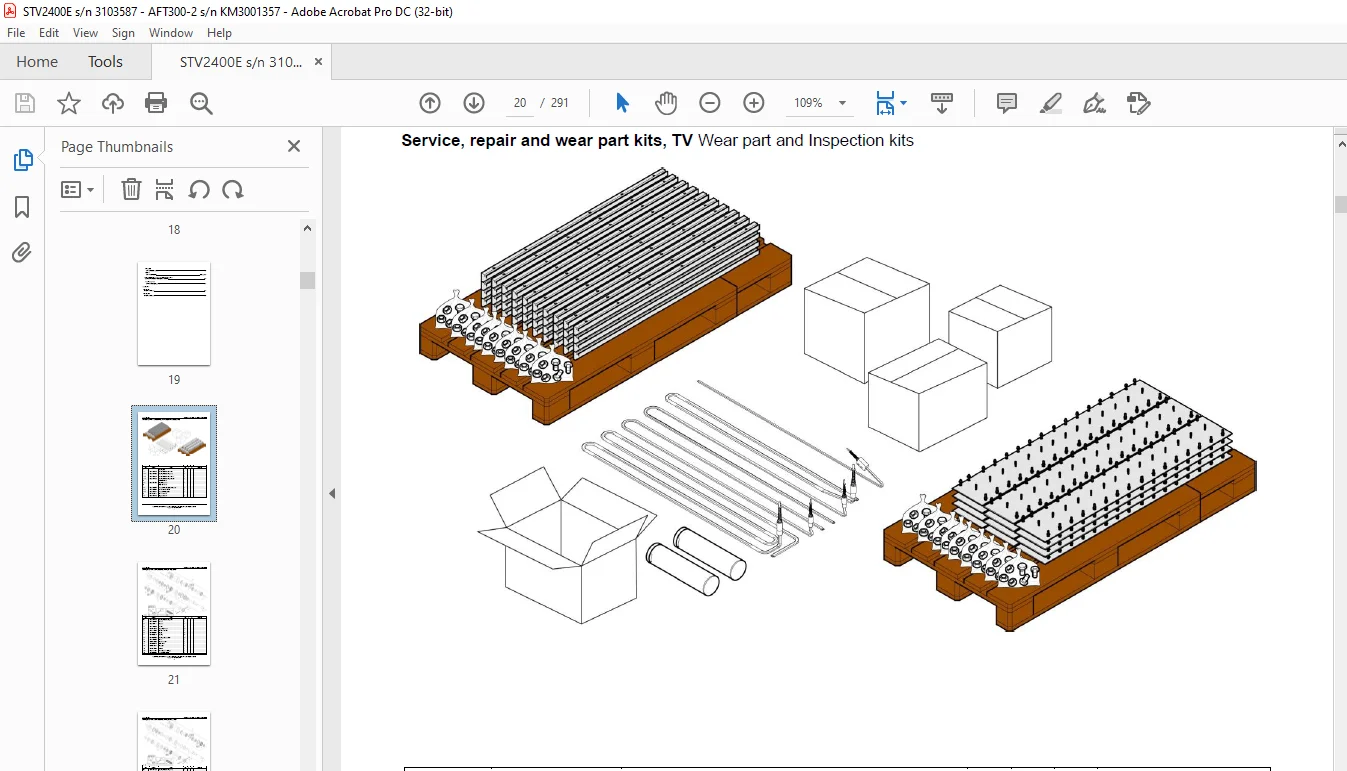

Service, repair and wear part kits, TV
Wear part and Inspection kits 1
Bearing KITS
40-4812074166 Bearing kit tamper wing, center 2
40-4812074206 Bearing kit tamper drive, center 3
40-4812074168 Bearing kit tamper wing, extension 5
40-4812074169 Bearing kit tamper drive, extension 6
Guide plate KITS
40-4812061266 Kit, tamper guide 7
Plate / bars KITS
40-4812062002 Screed plate, gas, H500 8
40-4812074167 Wear part kit tamper bar 9
40-4812075322 Wear part kit screed plates, tamper bar 10
Gas hose KITS
40-4812075126 Kit, gas hose set 11
Service, repair and wear part kits, TV E
Wear part and Inspection kits 13
Bearing KITS
40-4812074166 Bearing kit tamper wing, center See page 2
40-4812074206 Bearing kit tamper drive, center See page 3
40-4812074168 Bearing kit tamper wing, extension See page 5
40-4812074169 Bearing kit tamper drive, extension See page 6
Guide plate KITS
40-4812061266 Kit, tamper guide See page 7
Plate / bars KITS
40-4812071249 Screed plate, electric, H500 16
40-4812074167 Wear part kit tamper bar See page 9
40-4812074170 Wear part kit screed plates, tamper bar 17
Heating Element KITS
40-4812074165 Set of heating elements 19
Mechanical, TV
Basic screed
40-4812061076A Basic screed 20
Extension unit, l.h.
40-4812061128 Extension unit, l.h. 26
Extension unit, r.h.
40-4812061177 Extension unit, r.h. 27
Hose guide
40-4812024535 Hose guide 28
Scale holder, l.h.
40-4812061133 Scale holder, l.h. 29
Scale holder, r.h.
40-4812061145 Scale holder, r.h. 30
Gas heating, cpl.
40-4812072940 Gas heating, cpl. 31
Gas feeder arr.
40-4812072595 Gas feeder arr. 35
Profile adjustment
40-4812060915 Profile adjustment 38
Top con rod, rear.
40-4812060916 Top con rod, rear. 39
Top con rod, rear.
40-4812216810 Top con rod, rear. 40
Track adjuster
40-4812060918 Track adjuster 41
Top con rod, front.
40-4812060917 Top con rod, front. 42
Top con rod, front.
40-4812216804 Top con rod, front. 43
Track adjuster
40-4812060920 Track adjuster 44
Protection and trim plates
40-4812061255 Protection and trim plates 45
Kit, tamper guide
40-4812061266 Kit, tamper guide See page 7
Hood, l.h.
40-4812061280 Hood, l.h. 48
Hood, r.h.
40-4812061283 Hood, r.h. 49
Operation width, TV
Operation width, 3.00m
40-4812061878 Operation width, 3.00m 50
Extension mount, AT300 l.h.
40-4812061879 Extension mount, AT300 l.h. 51
Gas heating, AT300 l.h.
40-4812237476 Gas heating, AT300 l.h. 53
Gas feeder arr. AT300.
40-4812072600 Gas feeder arr. AT300. 55
Tamper drive, l.h.
40-4812239660 Tamper drive, l.h. 56
Tamper, l.h.
40-4812239662 Tamper, l.h. 57
Extension mount, AT300 r.h.
40-4812061880 Extension mount, AT300 r.h. 59
Gas heating, AT300 r.h.
40-4812237589 Gas heating, AT300 r.h. 61
Gas feeder arr. AT300.
40-4812072600 Gas feeder arr. AT300. See page 55
Tamper drive, r.h.
40-4812239661 Tamper drive, r.h. 64
Tamper, r.h.
40-4812239663 Tamper, r.h. 65
Operation width, 3.50m
40-4812061874 Operation width, 3.50m 67
Extension mount, AT550 l.h.
40-4812061875 Extension mount, AT550 l.h. 68
Gas heating, AT550 l.h.
40-4812236583 Gas heating, AT550 l.h. 70
Gas feeder arr. AT550.
40-4812072984 Gas feeder arr. AT550. 72
Tamper drive, l.h.
40-4812071771 Tamper drive, l.h. 73
Tamper, l.h.
40-4812071772 Tamper, l.h. 74
Extension mount, AT550 r.h.
40-4812061876 Extension mount, AT550 r.h. 76
Gas heating, AT550 r.h.
40-4812236746 Gas heating, AT550 r.h. 78
Gas feeder arr. AT550.
40-4812072984 Gas feeder arr. AT550. See page 72
Tamper drive, l.h.
40-4812071771 Tamper drive, l.h. See page 73
Tamper, l.h.
40-4812071772 Tamper, l.h. See page 74
Mechanical, TV E
Basic screed
40-4812061076A Basic screed See page 20
Extension unit, l.h.
40-4812061128 Extension unit, l.h. See page 26
Extension unit, r.h.
40-4812061177 Extension unit, r.h. See page 27
Hose guide
40-4812024535 Hose guide See page 28
Scale holder, l.h.
40-4812061133 Scale holder, l.h. See page 29
Scale holder, r.h.
40-4812061145 Scale holder, r.h. See page 30
Electric heating – TVE
40-4812216918 Electric heating 87
Profile adjustment
40-4812060915 Profile adjustment See page 38
Top con rod, rear.
40-4812060916 Top con rod, rear. See page 39
Top con rod, rear.
40-4812216810 Top con rod, rear. See page 40
Track adjuster
40-4812060918 Track adjuster See page 41
Top con rod, front.
40-4812060917 Top con rod, front. See page 42
Top con rod, front.
40-4812216804 Top con rod, front. See page 43
Track adjuster
40-4812060920 Track adjuster See page 44
Protection and trim plates
40-4812061255 Protection and trim plates See page 45
Kit, tamper guide
40-4812061266 Kit, tamper guide See page 7
Hood, l.h.
40-4812061280 Hood, l.h. See page 48
Hood, r.h.
40-4812061283 Hood, r.h. See page 49
Operation width, TVE
Operation width, 3.00m
40-4812072159 Operation width, 3.00m 98
Extension mount, l.h.
40-4812072160 Extension mount, l.h. 99
Electric heating
40-4812061736 Electric heating 101
Tamper drive, l.h.
40-4812239660 Tamper drive, l.h. See page 56
Tamper, l.h.
40-4812239662 Tamper, l.h. See page 57
Electric
40-4812018013 Electric 104
Housing ATL
40-4812017963 Housing ATL 105
Harness W6
40-4812012881 Harness W6 106
Extension mount, r.h.
40-4812072161 Extension mount, r.h. 107
Electric heating
40-4812061736 Electric heating See page 101
Tamper drive, r.h.
40-4812239661 Tamper drive, r.h. See page 64
Tamper, r.h.
40-4812239663 Tamper, r.h. See page 65
Electric
40-4812018026 Electric 111
Housing ATR
40-4812017964 Housing ATR 112
Harness W7
40-4812012882 Harness W7 113
Operation width, 3.50m
40-4812071766 Operation width, 3.50m 114
Extension mount, l.h.
40-4812071767 Extension mount, l.h. 115
Electric heating, l.h.
40-4812071769 Electric heating, l.h. 117
Tamper drive, l.h.
40-4812071771 Tamper drive, l.h. See page 73
Tamper, l.h.
40-4812071772 Tamper, l.h. See page 74
Electric housing ATL
40-4812012885 Electric housing ATL 120
Electric housing ATL
40-4812013261 Electric housing ATL 121
Harness
40-4812013262 Harness W9 122
Extension mount, r.h.
40-4812071768 Extension mount, r.h. 123
Electric heating, r.h.
40-4812071770 Electric heating, r.h. 125
Tamper drive, r.h.
40-4812071774 Tamper drive, r.h. 127
Tamper, r.h.
40-4812071775 Tamper, r.h. 128
Electric housing ATR
40-4812012886 Electric housing ATR 130
Electric housing ATR
40-4812013263 Electric housing ATR 131
Harness
40-4812018961 Harness W10 132
Tamper
Tamper drive
40-4812073587 Tamper drive 133
Kit, tamper subassembly
40-4812073586 Kit, tamper subassembly 134
Tamper drive, centr. l.h.
40-4812073585 Tamper drive, centr. l.h. 135
Tamper drive, centr. r.h.
40-4812073584 Tamper drive, centr. r.h. 137
Tamper drive, ext. l.h.
40-4812073583 Tamper drive, ext. l.h. 139
Tamper drive, ext. r.h.
40-4812073576 Tamper drive, ext. r.h. 141
Tamper drive centr. part, l.h.
40-4812071387 Tamper drive centr. part, l.h. 143
Tamper drive centr. part, r.h.
40-4812071388 Tamper drive centr. part, r.h. 144
Tamper drive ext. part, l.h.
40-4812071389 Tamper drive ext. part, l.h. 145
Tamper drive ext. part, r.h.
40-4812071390 Tamper drive ext. part, r.h. 147
Vibration
Vibration
40-4812215926 Vibration 149
Vibration unit
40-4812215824 Vibration unit 150
Hydraulic system
Hydraulic
40-4812201754A Hydrl. complete screed 152
Hydrl. tamper
40-4812201758 Hydrl. tamper 153
Hydrl. vibration
40-4812073214 Hydrl. vibration 156
Cylinder – screed
40-4812201753 Cylinder – screed 158
Electric system, TV
Electric
40-4812074001 Electric 159
Control panel
40-4812073499 Electric Control panel 160
Control panel
40-4812215580 Control panel 161
Harness W11
40-4812215555 Harness W11 162
Resistance thermometer cpl.
40-4812042276 Resistance thermometer cpl. 163
Wiring
40-4812073491 Wiring 164
Harness
40-4812073493 Harness W1 165
40-4812018913 Harness W4 169
40-4812018962 Harness W5 170
40-4812215555 Harness W11 See page 162
40-4812019037 Harness W20 171
40-4812018963 Harness W21 172
40-4812017501 Harness W22 173
40-4812018852 Harness W23 174
Remote control
40-4812016618 Remote control 176
Remote control, l.h.
40-4812016658 Remote control, l.h. 177
Harness W4
40-4812018913 Harness W4 See page 169
Remote control, r.h.
40-4812016659 Remote control, r.h. 179
Harness W5
40-4812018962 Harness W5 See page 170
Mounting parts
40-4812016173 Mounting parts 181
Extension cable W1, con.
40-4812018970 Extension cable W1, con. 182
Electric system, TV E
Electric
40-4812074002 Electric 183
Control panel
40-4812016264 Electric 184
Junction box
40-4812202643 Junction box 185
Harness
40-4812216556 Harness W3 190
40-4812071058 Harness W11 191
Electric, heating
40-4812072301 Electric, heating 192
Housing
40-4812216626 Housing, MT l.h. 193
40-4812216630 Housing, MT r.h. 194
40-4812216641 Housing, VT r.h. 195
40-4812216643 Housing, VT l.h. 196
Control panel
40-4812202653 Control panel 197
40-4812202602 Harness W2 198
Electric, tamper
40-4812018114 Electric, tamper 199
Wiring
40-4812073498 Wiring 200
Harness
40-4812073494 Harness W1 201
40-4812202602 Harness W2 See page 198
40-4812216556 Harness W3 See page 190
40-4812018913 Harness W4 See page 169
40-4812018962 Harness W5 See page 170
40-4812012881 Harness W6 See page 106
40-4812012882 Harness W7 See page 113
40-4812202646 Harness W8 204
40-4812013262 Harness W9 See page 122
40-4812018961 Harness W10 See page 132
40-4812071058 Harness W11 See page 191
Remote control
40-4812016618 Remote control See page 176
Remote control, l.h.
40-4812016658 Remote control, l.h. See page 177
Harness W4
40-4812018913 Harness W4 See page 169
Remote control, r.h.
40-4812016659 Remote control, r.h. See page 179
Harness W4
40-4812018962 Harness W5 See page 170
Extension cable W1, con.
40-4812018970 Extension cable W1, con. See page 182
Options
End plate unheated, l.h. & r.h.
40-4812061590 End plate unheated, l.h. & r.h. 210
End plate, cpl
40-4812061589 End plate, cpl 211
End plate, l.h.
40-4812061574 End plate, l.h. 212
Holder for remote control, l.h.
40-4812061554 Holder for remote control, l.h. 216
End plate, r.h.
40-4812061588 End plate, r.h. 217
Holder for remote control, r.h.
40-4812061580 Holder for remote control, r.h. 221
End plate, cpl
40-4812064152 End plate, cpl 222
End plate, l.h.
40-4812064154 End plate, l.h. 223
Holder for remote control, l.h.
40-4812064156 Holder for remote control, l.h. 227
End plate, r.h.
40-4812064153 End plate, r.h. 228
Holder for remote control, r.h.
40-4812064155 Holder for remote control, r.h. 232
Retainer
40-4812228334 Retainer 233
40-4720005918 Retainer height adjustment Moba
40-4720005918 Extension arm 234
Swinging arm
40-4720007201 Swinging arm 235
Extension arm
40-4720005790 Extension arm 236
Height regulator holder, compl.
40-4720007200 Height regulator holder, compl. 237
40-4720006020 Adapter kit for level
40-4720006020 Level 238
40-4812061383 Levelling equipment
40-4812061383 Levelling equipment 239
40-4812074662 Levelling bar
40-4812074662 Levelling bar 240
40-4812076864 Sonic sensor, auger con.
40-4812076864 Sonic sensor, auger 242
Electric, sonic sensor
40-4812076873 Electric, sonic sensor 243
Electric, sonic sensor
40-4812076874 Electric, sonic sensor 244
Available options
40-4812062325 Cut off shoe, cpl.
40-4812062325 Cut off shoe, cpl. 245
Cut off shoe, l.h.
40-4812062323 Cut off shoe, l.h. 246
Cut off shoe, r.h.
40-4812062324 Cut off shoe, r.h. 247
El. end plate below heating, l.h. & r.h. – TV E
40-4812061630 El. end plate below heating, l.h. & r.h. 248
End plate, cpl
40-4812061589 End plate, cpl See page 211
End plate, l.h.
40-4812061574 End plate, l.h. See page 212
Holder for remote control, l.h.
40-4812061554 Holder for remote control, l.h. See page 216
End plate, r.h.
40-4812061588 End plate, r.h. See page 217
Holder for remote control, r.h.
40-4812061580 Holder for remote control, r.h. See page 221
End plate, cpl
40-4812064152 End plate, cpl See page 222
End plate, l.h.
40-4812064154 End plate, l.h. See page 223
Holder for remote control, l.h.
40-4812064156 Holder for remote control, l.h. See page 227
End plate, r.h.
40-4812064153 End plate, r.h. See page 228
Holder for remote control, r.h.
40-4812064155 Holder for remote control, r.h. See page 232
El. Heating
40-4812061604 El. Heating 255
Retainer
40-4812228334 Retainer See page 233
End plate unheated with skid, l.h. & r.h.
40-4812061625 End plate unheated with skid, l.h. & r.h. 257
End plate, cpl
40-4812061589 End plate, cpl See page 211
End plate, l.h.
40-4812061574 End plate, l.h. See page 212
Holder for remote control, l.h.
40-4812061554 Holder for remote control, l.h. See page 216
End plate, r.h.
40-4812061588 End plate, r.h. See page 217
Holder for remote control, r.h.
40-4812061580 Holder for remote control, r.h. See page 221
End plate, cpl
40-4812064152 End plate, cpl See page 222
End plate, l.h.
40-4812064154 End plate, l.h. See page 223
Holder for remote control, l.h.
40-4812064156 Holder for remote control, l.h. See page 227
End plate, r.h.
40-4812064153 End plate, r.h. See page 228
Holder for remote control, r.h.
40-4812064155 Holder for remote control, r.h. See page 232
Slide plate
40-4812061605 Slide plate 264
Retainer
40-4812228334 Retainer See page 233
40-D275131700 Retainer height adjustment Gradeline
40-D275131700 Retainer height adjustment Gradeline 266
Adjusting spindle
40-4720006889 Adjusting spindle 267
Accessories
Decals, TV
40-4812018578 Decals 269
Decals, TVE
40-4812018579 Decals 270
VIDEO PREVIEW OF THE MANUAL:
S.V
