2010 Arctic Cat 120 Sno Pro Snowmobile Service Manual
DESCRIPTION:
2010 Arctic Cat 120 Sno Pro Snowmobile Service Manual
FOREWORD:
This Arctic Cat Service Manual contains service and maintenance information for the Model Year 2010 Arctic Cat 120 Sno Pro Snowmobile. The manual is designed to aid service personnel in service-oriented applications. This manual is divided into sections. The sections cover specific snowmobile components or systems and, in addition to the standard service procedures, includes assembling, disassembling, and inspecting instructions. When using this manual as a guide, the technician should use discretion as to how much disassembly is needed to correct any given condition.
- The service technician should become familiar with the operation and construction of the components or systems by carefully studying the complete manual. This will assist the service technician in becoming more aware of and efficient with servicing procedures. Such efficiency not only helps build consumer confidence but also saves time and labor. All Arctic Cat publications and snowmobile decals display the words Warning, Caution, and Note to emphasize important information.
- The symbol ! WARNING identifies personal safety-related information. Be sure to follow the directive because it deals with the possibility of severe personal injury or even death. A CAUTION identifies unsafe practices which may result in snowmobile-related damage. Follow the directive because it deals with the possibility of damaging part or parts of the snowmobile. The symbol NOTE: identifies supplementary information worthy of particular attention.
- At the time of publication, all information, photographs, and illustrations were technically correct. Some photographs and illustrations used in this manual are used for clarity purposes only and are not designed to depict actual conditions. Because Arctic Cat Inc. constantly refines and improves its products, no retroactive obligation is incurred. All materials and specifications are subject to change without notice.
TABLE OF CONTENTS:
2010 Arctic Cat 120 Sno Pro Snowmobile Service Manual
Snowmobile Identification 2
Recommended Gasoline and Oil 2
Break-In Procedure 3
Genuine Parts 3
Drive Chain Lubrication 3
Preparation For Storage 3
Preparation After Storage 4
Torque Conversions (ft-lb/N-m) 4
Torque Specifications 4
Engine Torque Diagram 5
Engine Specifications 6
Carburetor Specifications 6
Track Specifications 6
Ski Shock Spring Specifications 6
Rear Arm Spring Specifications 6
Ski Shock Absorber Specifications 6
Idler Wheel Dimensions 6
Engine 7
Removing 7
Disassembling 8
Servicing Components 12
Assembling 19
Installing 23
Troubleshooting Engine 25
Changing Oil 27
Recoil Starter 27
Fuel System 28
Pre-Maintenance Checks 28
Carburetor 28
Throttle Cable 31
Troubleshooting Fuel System 33
Electrical System 34
Transistorized Ignition System 34
Testing Ignition Switches 35
Testing Electrical Resistances 35
Drive Chain and Sprockets 36
Track and Driveshaft 37
Brake System 41
Troubleshooting Track 43
Rear Suspension 44
Steering and Body 51
Steering Post 51
Ski 54
Ski Wear Bar 54
Tie Rods 54
Spindle 55
Ski Alignment 56
Front Suspension A-Arms 57
Front Suspension (Ski) Shock Absorber 58
Belly Pan 58
Seat/Cushion/Taillight Housing 59

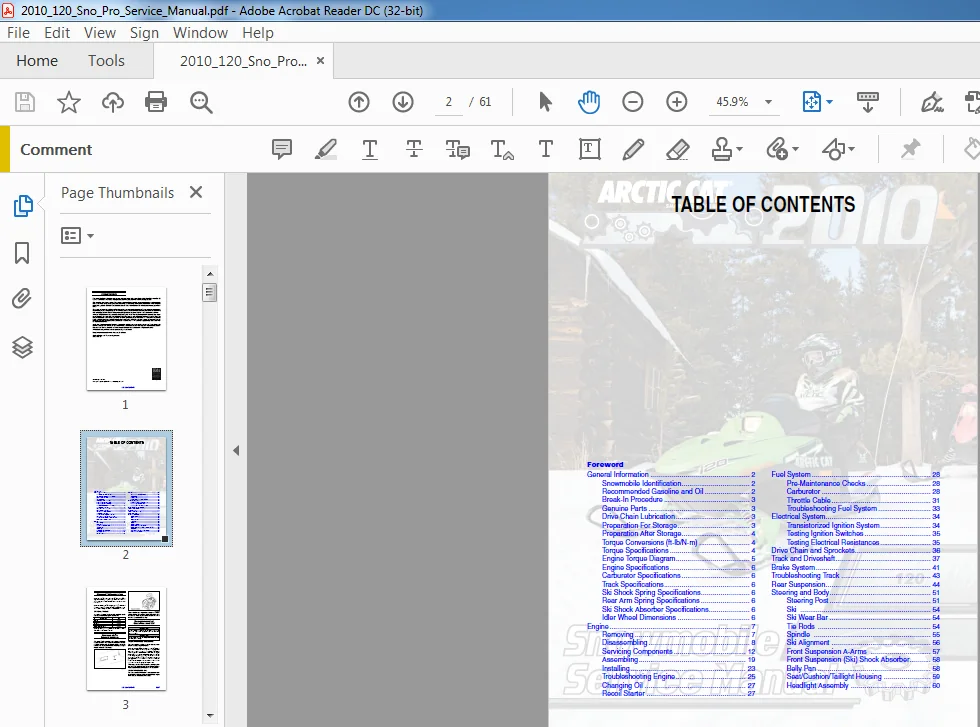

Headlight Assembly 60
VIDEO PREVIEW OF THE MANUAL:

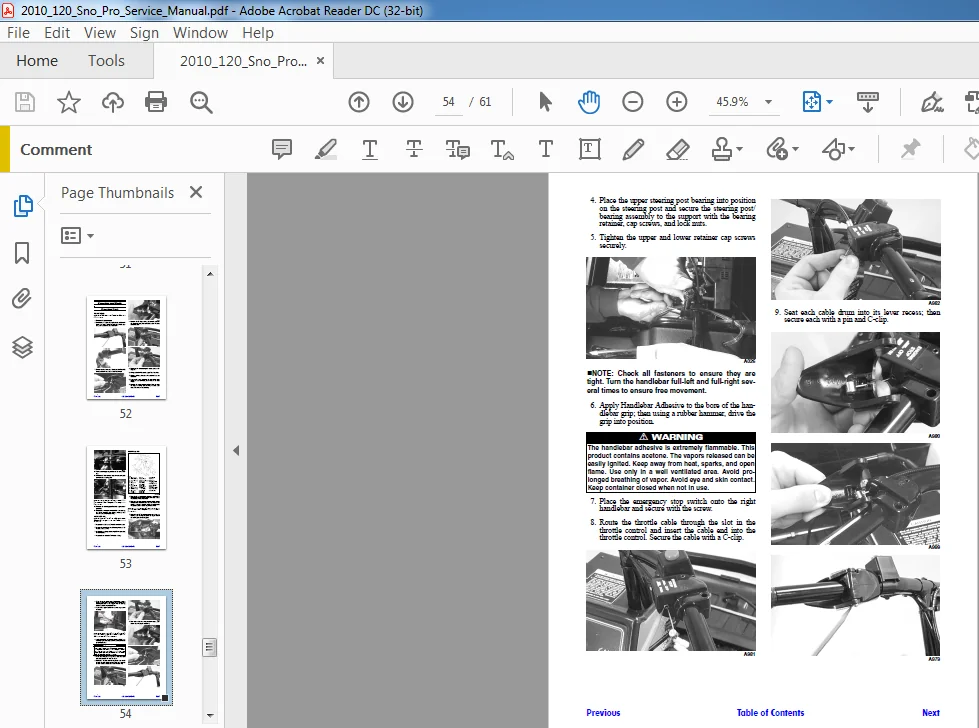

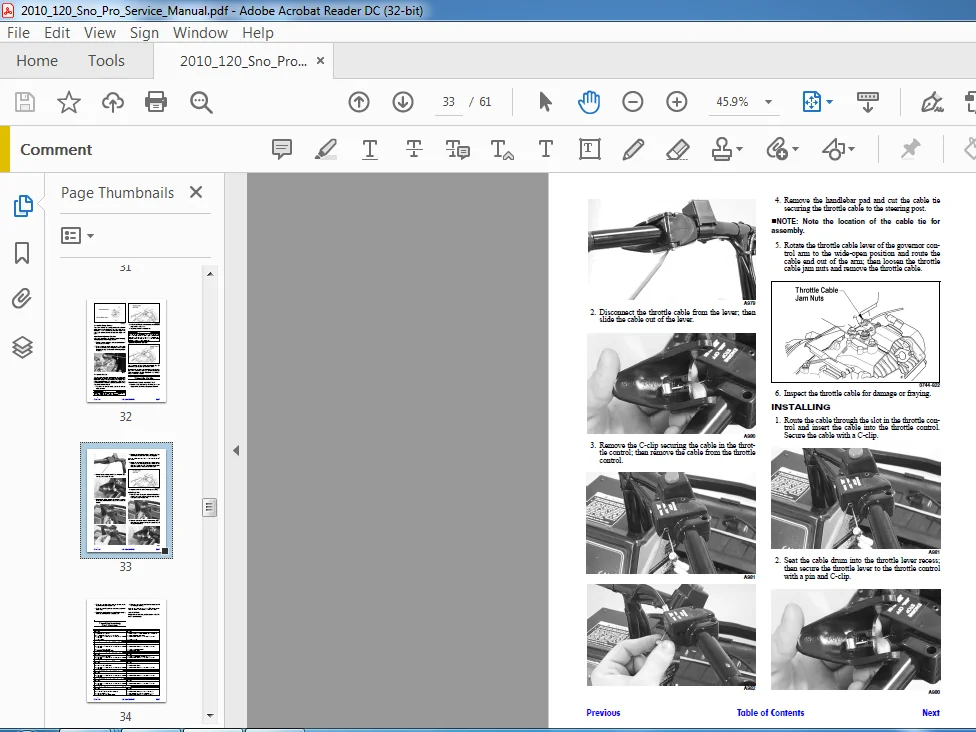

IMAGES PREVIEW OF THE MANUAL:
