2001 YAMAHA FZS1000(N) SERVICE MANUAL – PDF DOWNLOAD
DESCRIPTION:
2001 YAMAHA FZS1000(N) SERVICE MANUAL – PDF DOWNLOAD
NOTICE
- This manual was produced by the Yamaha Motor Company, Ltd. primarily for use by Yamaha dealers and their qualified mechanics. It is not possible to include all the knowledge of a mechanic in one manual.
- Therefore, anyone who uses this book to perform maintenance and repairs on Yamaha vehicles should have a basic understanding of mechanics and the techniques to repair these types of vehicles.
- Repair and maintenance work attempted by anyone without this knowledge is likely to render the vehicle unsafe and unfit for use. This model has been designed and manufactured to perform within certain specifications in regard to performance and emissions.
- Proper service with the correct tools in necessary to ensure that the vehicle will operate as designed. If there is any question about a service procedure, it is imperative that you contact a Yamaha dealer for any service information changes that apply to this model.
- This policy is intended to provide the customer with the most satisfaction from his vehicle and to conform with federal environmental quality objectives. Yamaha Motor Company, Ltd. is continually striving to improve all its models.
- Modifications and significant changes in specifications or procedures will be forwarded to all authorized Yamaha dealers and will appear in future editions of this manual where applicable.
HOW TO USE THIS MANUAL
This manual is intended as a handy, easy-to-read reference book for the mechanic. Comprehensive explanations of all installation, removal, disassembly, assembly, repair and check procedures are laid out with the individual steps in sequential order.
1 The manual is divided into chapters. An abbreviation and symbol in the upper right corner of each page indicate the current chapter. Refer to “SYMBOLS” on the following page.
2 Each chapter is divided into sections. The current section title is shown at the top of each page, except in Chapter 3 (“Periodic Checks and Adjustments”), where the sub-section title(-s) appears. (In Chapter
3, “Periodic Checks and Adjustments”, the sub-section title appears at the top of each page, instead of the section title.) 3 Sub-section titles appear in smaller print than the section title.

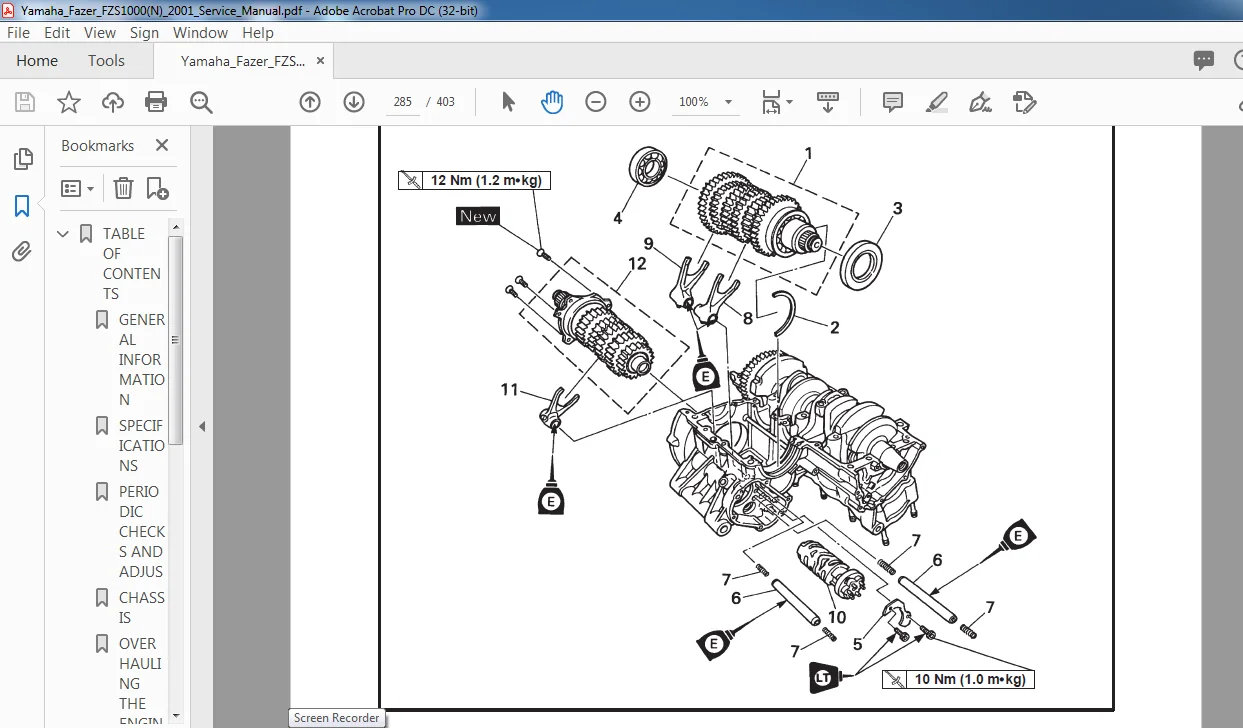

4 To help identify parts and clarify procedure steps, there are exploded diagrams at the start of each removal and disassembly section.
5 Numbers are given in the order of the jobs in the exploded diagram. A circled number indicates a disassembly step
6 Symbols indicate parts to be lubricated or replaced (see “SYMBOLS”).
7 A job instruction chart accompanies the exploded diagram, providing the order of jobs, names of parts, notes in jobs, etc
. 8 Jobs requiring more information (such as special tools and technical data) are described sequentially.
TABLE OF CONTENTS:
2001 YAMAHA FZS1000(N) SERVICE MANUAL – PDF DOWNLOAD
TABLE OF CONTENTS…………………. 0
GENERAL INFORMATION……………. 10
SPECIFICATIONS………………… 21
PERIODIC CHECKS AND ADJUSTMENTS…. 66
CHASSIS……………………….129
OVERHAULING THE ENGINE………….204
COOLING SYSTEM…………………295
CARBURETORS……………………310
ELECTRICAL ……………………329
TROUBLESHOOTING………………..392
WIRING DIAGRAM (EUR)……………402
WIRING DIAGRAM (OCE)……………403
RETURN (Model List)……………….. 0
RETURN (Manual List)………………. 0
