1993 Toyota Celica 1.6L 4-CYL – VIN [A] & 1.8L 4-CYL – VIN [A] Service Manual – PDF DOWNLOAD
FILE DETAILS:
1993 Toyota Celica 1.6L 4-CYL – VIN [A] & 1.8L 4-CYL – VIN [A] Service Manual – PDF DOWNLOAD
Language : English
Pages : 1519
Downloadable : Yes
File Type : PDF
Size: 21.3 MB

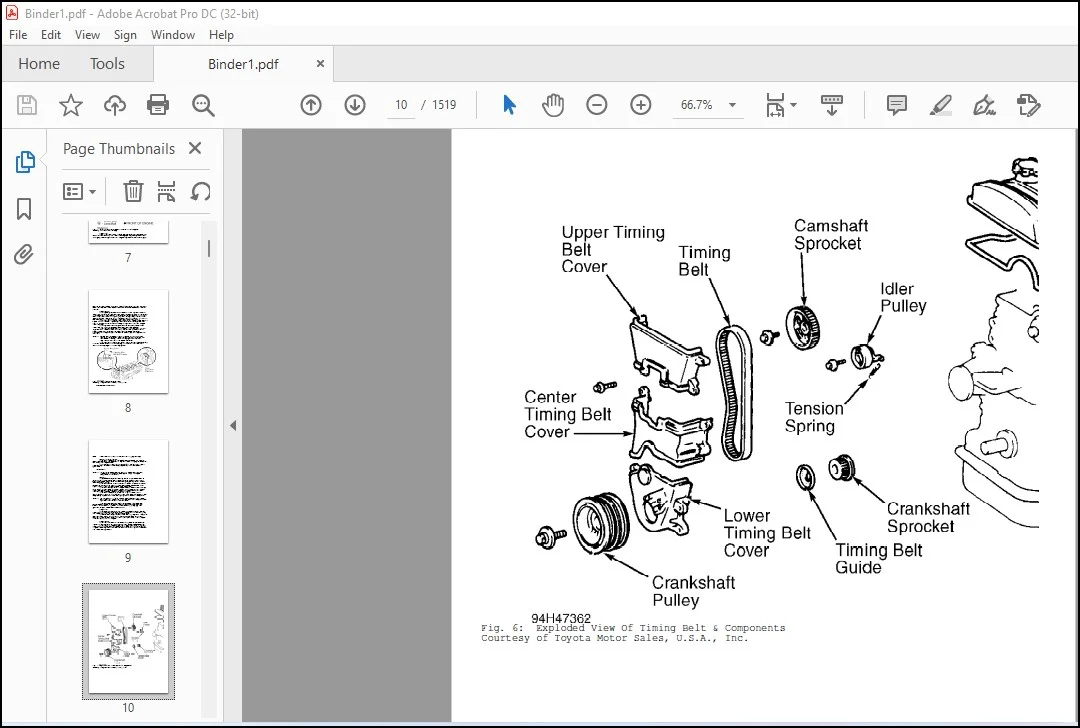

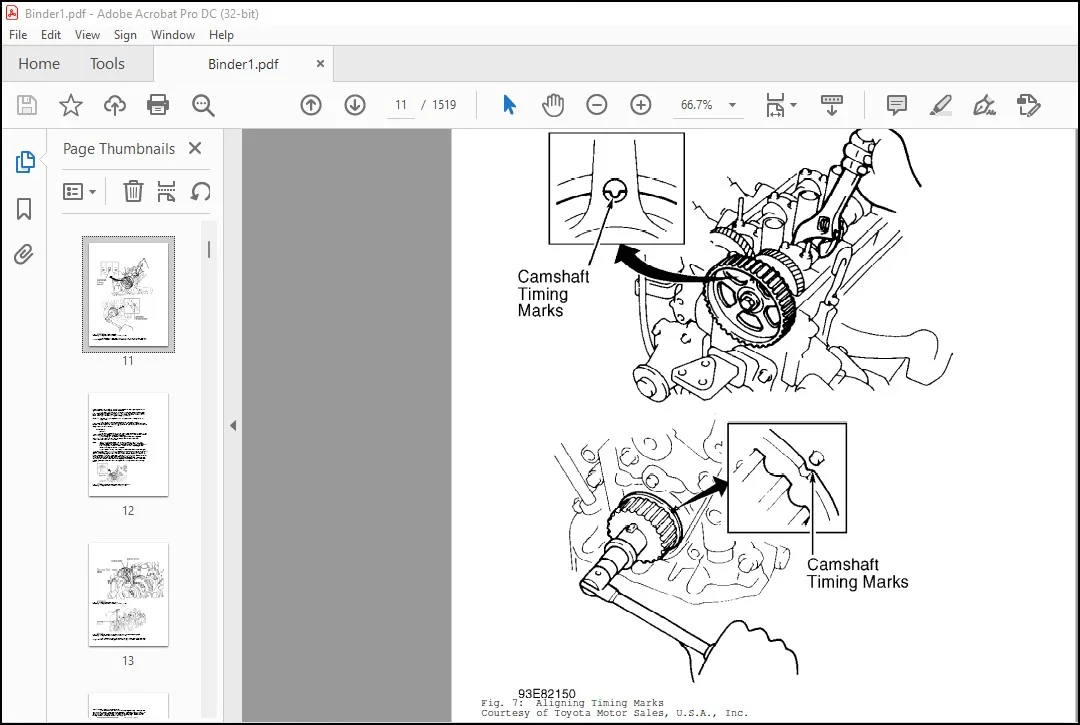

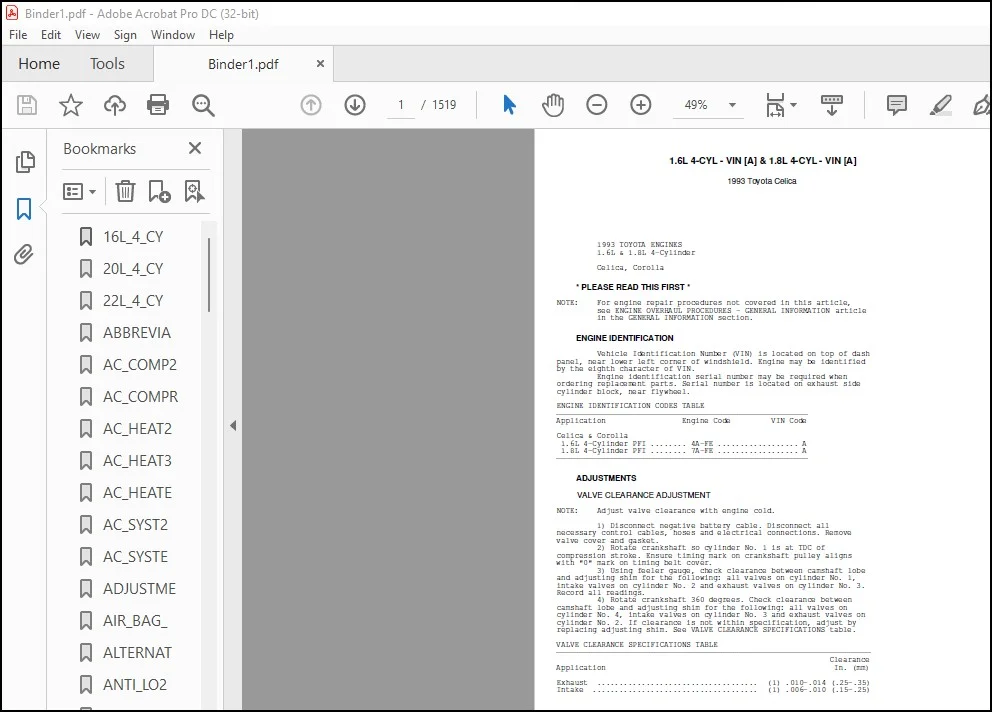

IMAGES PREVIEW OF THE MANUAL:
DESCRIPTION:
1993 Toyota Celica 1.6L 4-CYL – VIN [A] & 1.8L 4-CYL – VIN [A] Service Manual – PDF DOWNLOAD
ENGINE IDENTIFICATION:
- Vehicle Identification Number (VIN) is located on top of dash
panel, near lower left corner of windshield. Engine may be identified
by the eighth character of VIN. - Engine identification serial number may be required when
ordering replacement parts. Serial number is located on exhaust side
cylinder block, near flywheel.
ADJUSTMENTS:
VALVE CLEARANCE ADJUSTMENT:
NOTE: Adjust valve clearance with engine cold.
1) Disconnect negative battery cable. Disconnect all
necessary control cables, hoses and electrical connections. Remove
valve cover and gasket.
2) Rotate crankshaft so cylinder No. 1 is at TDC of
compression stroke. Ensure timing mark on crankshaft pulley aligns
with “0” mark on timing belt cover.
3) Using feeler gauge, check clearance between camshaft lobe
and adjusting shim for the following: all valves on cylinder No. 1,
intake valves on cylinder No. 2 and exhaust valves on cylinder No. 3.
Record all readings.
4) Rotate crankshaft 360 degrees. Check clearance between
camshaft lobe and adjusting shim for the following: all valves on
cylinder No. 4, intake valves on cylinder No. 3 and exhaust valves on
cylinder No. 2. If clearance is not within specification, adjust by
replacing adjusting shim. See VALVE CLEARANCE SPECIFICATIONS table.
TABLE OF CONTENTS:
1993 Toyota Celica 1.6L 4-CYL – VIN [A] & 1.8L 4-CYL – VIN [A] Service Manual – PDF DOWNLOAD
16L_4_CY 1
20L_4_CY 36
22L_4_CY 92
ABBREVIA 163
AC_COMP2 174
AC_COMPR 199
AC_HEAT2 218
AC_HEAT3 239
AC_HEATE 279
AC_SYST2 294
AC_SYSTE 301
ADJUSTME 307
AIR_BAG_ 314
ALTERNAT 336
ANTI_LO2 346
ANTI_LOC 365
AUTO_TRA 366
AXLE_SHA 408
BASIC_TE 415
BRAKE_S2 425
BRAKE_SY 440
CLUTCH 474
COMPUTER 481
CRUIS_CO 483
DEFOGGER 505
DOOR_LOC 516
DRIVE_A2 521
DRIVE_AX 528
DRIVETRA 535
EGR_FUNC 576
ELECTRI2 577
ELECTRIC 629
ELECTROS 658
EMISSIO2 660
EMISSION 675
ENGINE_C 679
ENGINE_O 685
ENGINE_S 725
ENGINE_V 830
EXHAUST_ 836
FUSES_AN 845
GEAR_TOO 853
GENERAL_ 856
HEATER_S 859
HOW_TO_U 869
INSTRUME 876
INTERFER 887
JACKING_ 890
MAINTENA 891
METRIC_C 912
MIRRORS_ 916
PASSIVE_ 923
PIN_VOLT 946
POWER_WI 955
PRE_ALIG 959
REMOVE_I 960
RIDING_H 973
SCHEDUL2 974
SCHEDULE 996
SEATS_PO 1018
SENSOR_R 1024
SHIFT_LO 1028
SPECIFIC 1047
STARTER 1054
STEERIN2 1065
STEERIN3 1073
STEERIN4 1080
STEERIN5 1085
STEERIN6 1095
STEERING 1145
SUN_ROOF 1149
SUSPENS2 1154
SUSPENS3 1160
SUSPENSI 1210
SYMPTOM_ 1216
SYSTEM_C 1228
SYSTEM_W 1272
TESTS_W2 1288
TESTS_WI 1295
THEORY_O 1335
TRANSMI2 1348
TRANSMI3 1352
TRANSMI4 1357
TRANSMIS 1359
TROUBLE_ 1361
VACUUM_D 1424
WAVEFOR2 1438
WAVEFORM 1440
WHEEL_A2 1472
WHEEL_AL 1477
WIPER_WA 1480
WIRING_2 1490
WIRING_3 1508
WIRING_D 1512
