1992-1994 MITSUBISHI LASER TALON ECLIPSE SERVICE MANUAL – PDF DOWNLOAD
VIDEO PREVIEW:

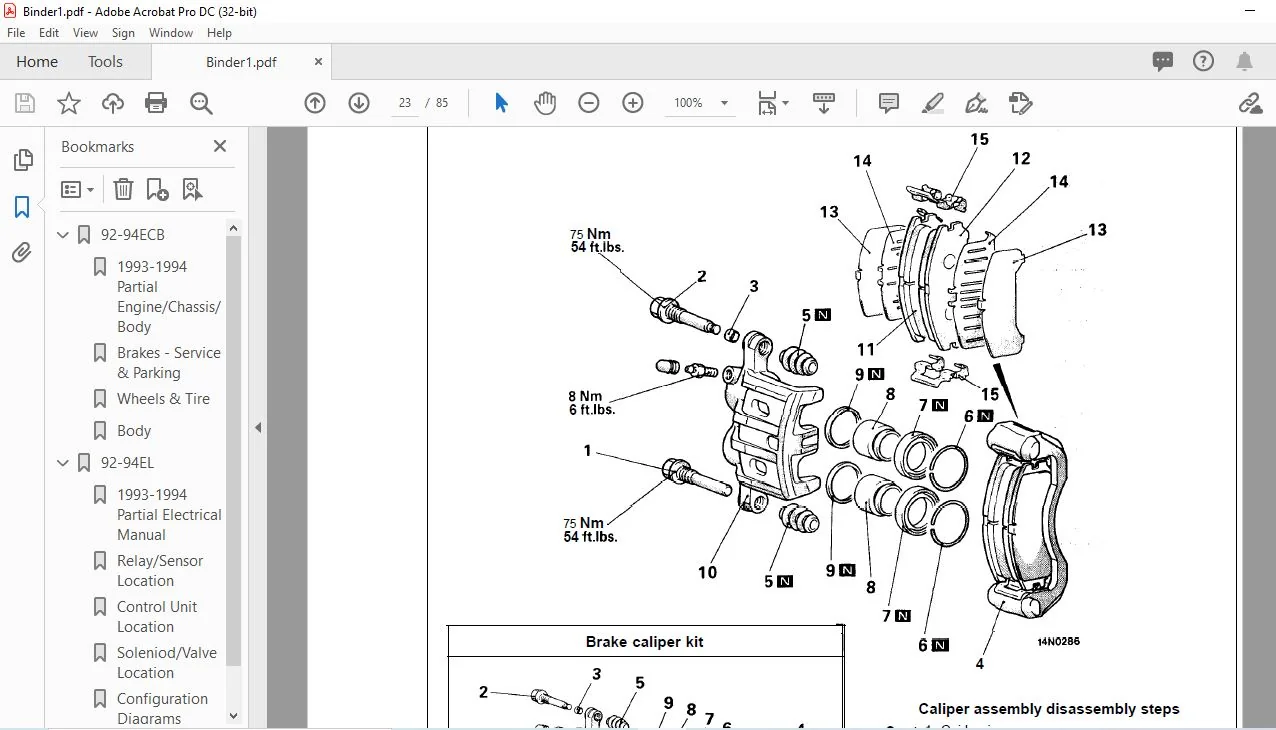

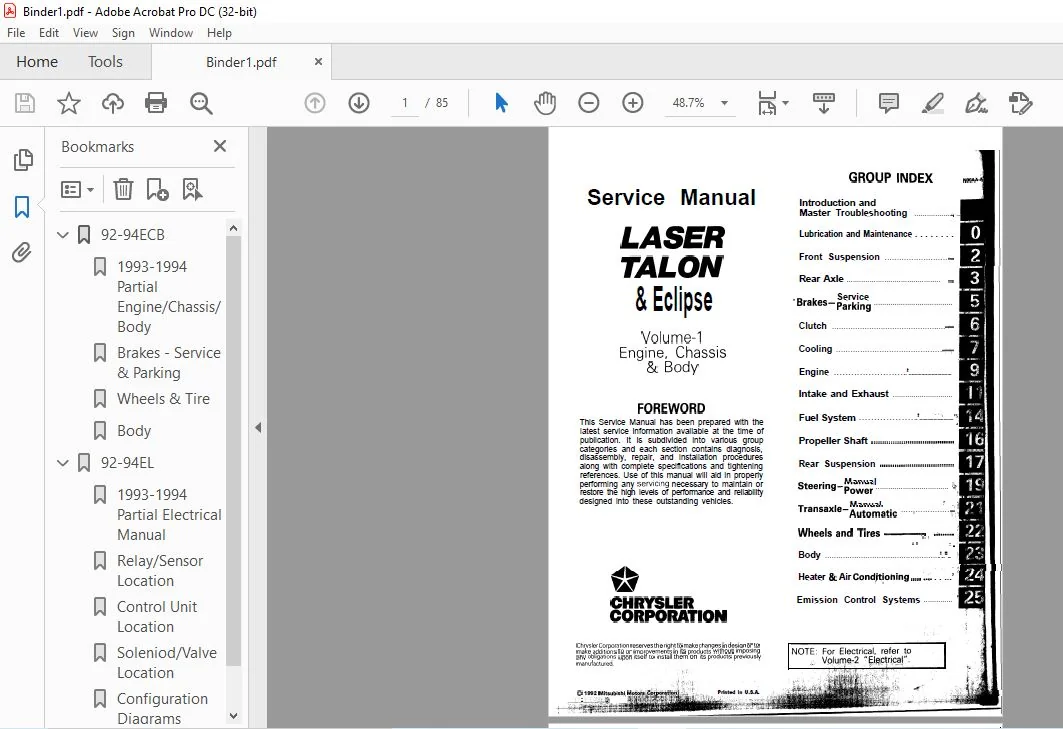

IMAGE PREVIEW:
DESCRIPTION:
1992-1994 MITSUBISHI LASER TALON ECLIPSE SERVICE MANUAL – PDF DOWNLOAD
- Use the specified brake fluid. Avoid using a mixture of the specified brake fluid and other fluid. 2. If brake fluid is exposed to the air, it will absorb moisture; as water is absorbed from the atmosphere, the boiling point of the brake fluid will decrease and the braking performance will be seriously impaired.
- For this reason, use a hermetically sealed 1 lit. (1.06 qt.) or 0.5 lit. (0.52 qt.) brake fluid container. 3. Firmly close the cap of the brake fluid container after use. 4.
- For vehicles with the anti-lock braking system, be sure to install a filter to the master cylinder reservoir tank when supplying brake fluid. ORDINARY AIR-BLEEDING PROCEDURES (1)
- Depress the brake pedal several times until resistance is felt; then, with the pedal depressed, loosen the bleeder screw l/3 to l/2 turn and then tighten it before the fluid pressure is all gone.
- (2) Release the brake pedal. Repeat this procedure until there are no more air bubbles in the brake fluid. FRONT DISC BRAKE PAD CHECK AND REPLACEMENT N05FOAF NOTE The brake pads have wear indicators that contact the brake disc when the brake pad thickness becomes 2 mm (.08 in.), and emit a squealing sound to warn the driver.
TABLE OF CONTENTS:
1992-1994 MITSUBISHI LASER TALON ECLIPSE SERVICE MANUAL – PDF DOWNLOAD
ANTI-LOCK BRAKING SYSTEM
TROUBLESHOOTING ……………………. 9
BRAKE BOOSTER ………………………… 71
BRAKE LINE ……………………………… 73
BRAKE PEDAL ……………………………. 63
ELECTRONIC CONTROL UNIT
<VEHICLES WITH ABS> ………………. 102
FRONT DISC BRAKE …………………….. 76
G-SENSOR <AWD-ABS> ………………. 101
HYDRAULIC UNIT
<VEHICLES WITH ABS> ………………. 92
MASTER CYLINDER ……………………… 67
PARKING BRAKES ……………………….. 103
REAR DISC BRAKE ………………………. 65
SERVICE ADJUSTMENT PROCEDURES ..a 47
ABS Power Relay Check ……………….. 62
Bleeding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Brake Booster Operating Inspection ……. 49
Brake Fluid Level Sensor Check ……….. 48
Brake Pedal Inspection and Adjustment … 47
Check Valve Operation Check ………….. 49
Flat Battery Remedy ……………………. 62
Front Disc Brake Pad Check and
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Front Disc Brake Rotor Inspection ……… 53
Inspection of Hydraulic Unit …………….. 59
Measurement of Wheel Speed Sensor
Output Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Parking Brake Lever Stroke Check ……… 48
Parking Brake Switch Check ……………. 49
Proportioning Valve Function Test ………. 50
Rear Brake Disc Run-out Check ………… 57
Rear Brake Disc Run-out Correction ……. 57
Rear Brake Disc Thickness Check ………. 56
Rear Disc Brake Pad Check and
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Run-out Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Run-out Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Thickness Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
SPECIAL TOOLS …………………………. 6
SPECIFICATIONS …………………………. 2
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . 2
Lubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Service Specifications …………………… 4
Torque Specifications ……………… .:. … 4
TROUBLESHOOTING …………………….. 7
WHEEL SPEED SENSOR
<VEHICLES WITH ABS> ……………….. 95
PLEASE NOTE:
- This is the SAME MANUAL used by the dealerships to diagnose your vehicle
- No waiting for couriers / posts as this is a PDF manual and you can download it within 2 minutes time once you make the payment.
- Your payment is all safe and the delivery of the manual is INSTANT – You will be taken to the DOWNLOAD PAGE.
- So have no hesitations whatsoever and write to us about any queries you may have : heydownloadss @gmail.com
