1969 OLDSMOBILE 85 Vista Cruiser Cutlass 442 Delta 88 Delta 38 Custom Delia 88 Royale 98 Toronado CHASSIS Service Manual – PDF DOWNLOAD
FILE DETAILS:
1969 Oldsmobile Chassis 442 W-30 W-31 Cutlass Supreme Hurst Olds Vista Cruiser Delta Royale 88 98 Luxury Toronado F-85 Service Manual – PDF DOWNLOAD
Language : English
Pages : 1172
Downloadable : Yes
File Type : PDF
DESCRIPTION:
1969 OLDSMOBILE 85 Vista Cruiser Cutlass 442 Delta 88 Delta 38 Custom Delia 88 Royale 98 Toronado CHASSIS Service Manual – PDF DOWNLOAD
FOREWORD:
This Manual provides information on chassis service procedures, adjustments and specifications for 1969 Oldsmobiles. An understanding of the materia! contained herein and in monthly issues of the Oldsmobile Service Guild and Dealer Technical lnformation Bulletins, issued when necessary, will assist service personnel in properly maintaining the quality to which Oldsmobile cars are built. A separate Manual, the 1969 Body Service Manual, contains body service information on all serie,s and models used in 1969.
SERVICE BRAKES:
The fluid level in the master cylinder located at the left rear side of the engine compartment should be checked at each engine oil change interval. If necessary to add fluid, use Brake Fluid equivalent to Supreme No. 11. On all standard and power brakes, the fluid level must be maintained at 1/4″ below the top of both sections of the reservoir, at the rear. Prevent entry of dirt into the master cylinder. See Periodic Maintenance Chart for checking brake warning light. Brake linings should be periodically inspected for wear. The frequency of this inspection depends upon driving conditions such as traffic or terrain, and also the driving techniques of individual owners.
BODY LUBRICATION POINTS:
HOOD LATCH
Lubricate the latch pilot bolts and latch locking plate with a thin film of lubriplate or equivalent. Use a light oil for pivot points.
HOOD HINGES
AT EVERY ENGINE OIL CHANGE SAE 10W-30 oil should be used to lubricate the hood hinges. Do not allow the oil to drop on fenders or other exposed painted surfaces.

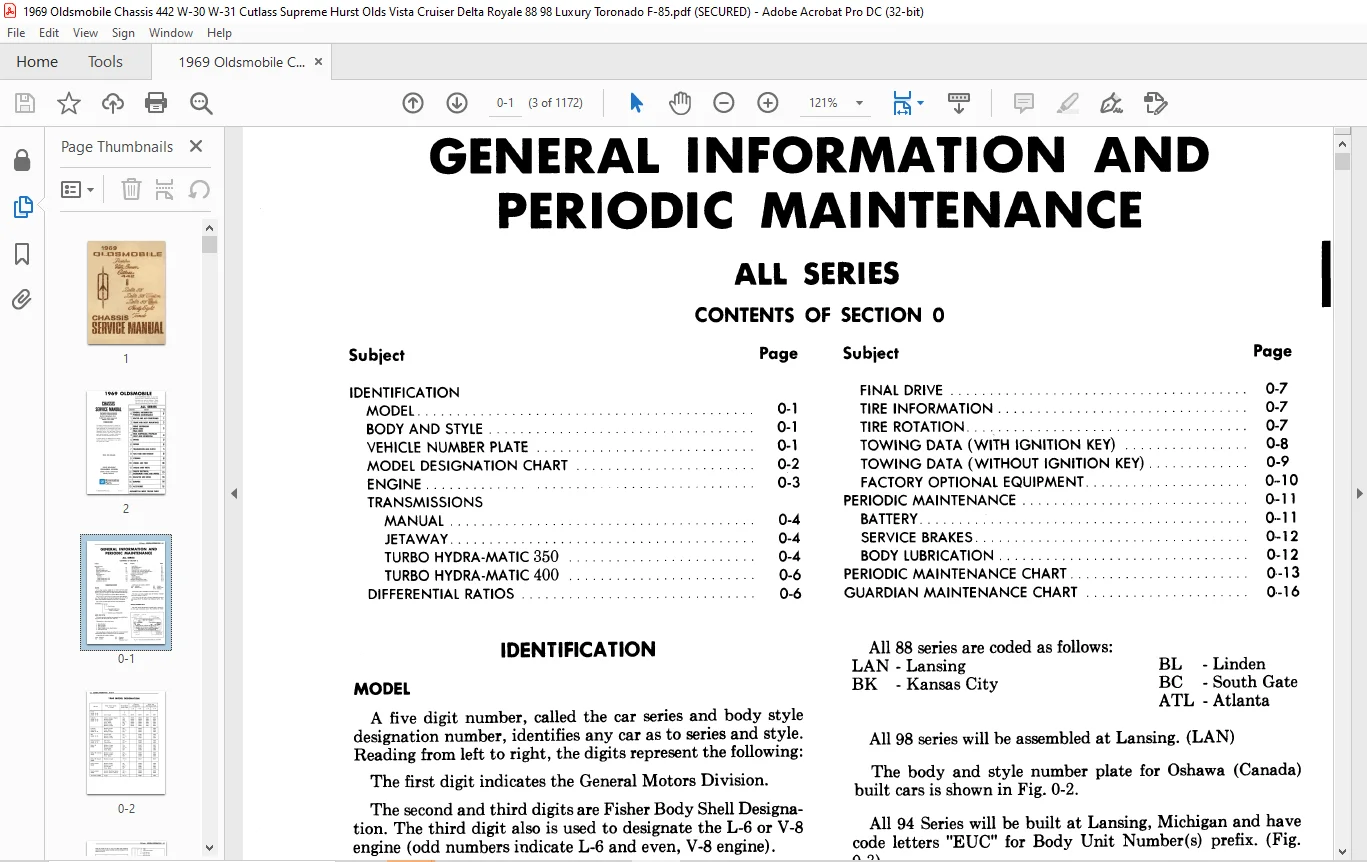

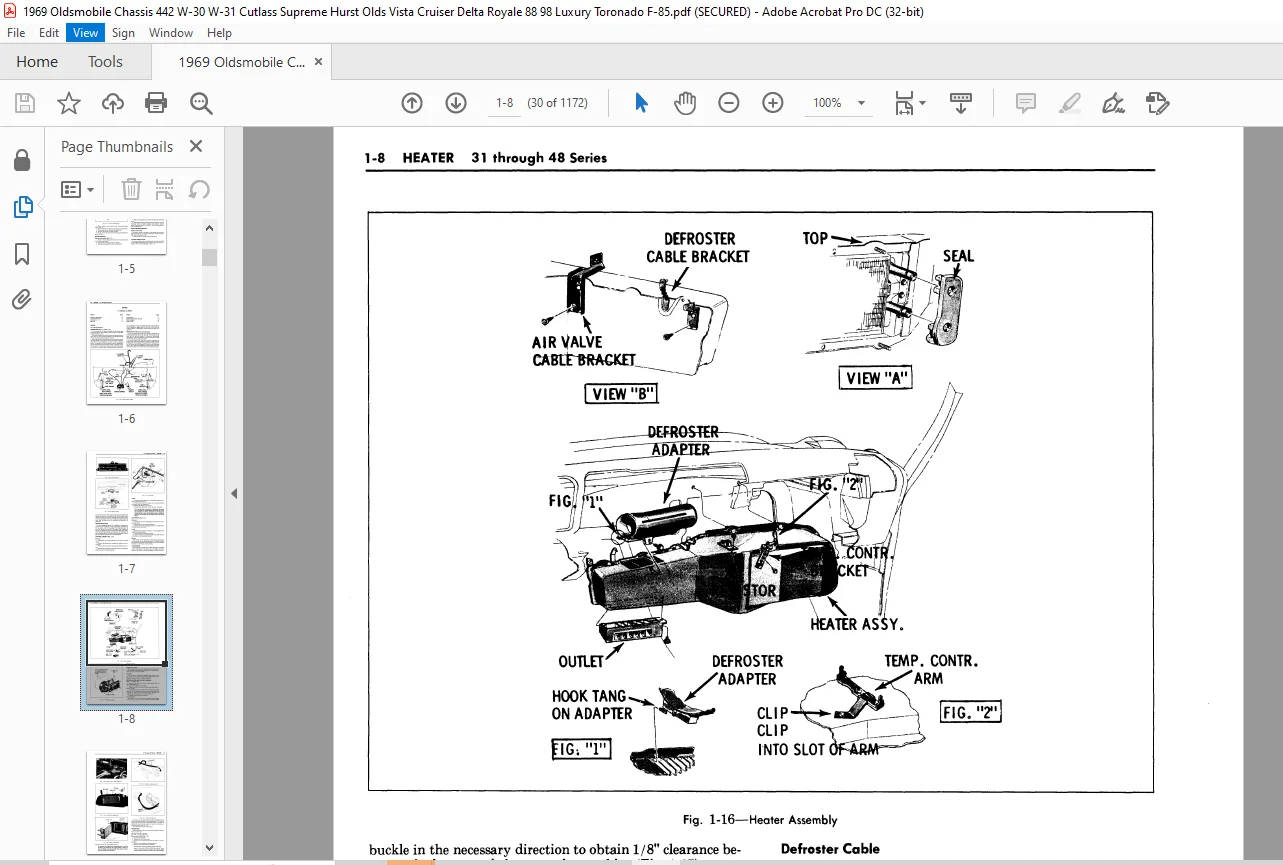

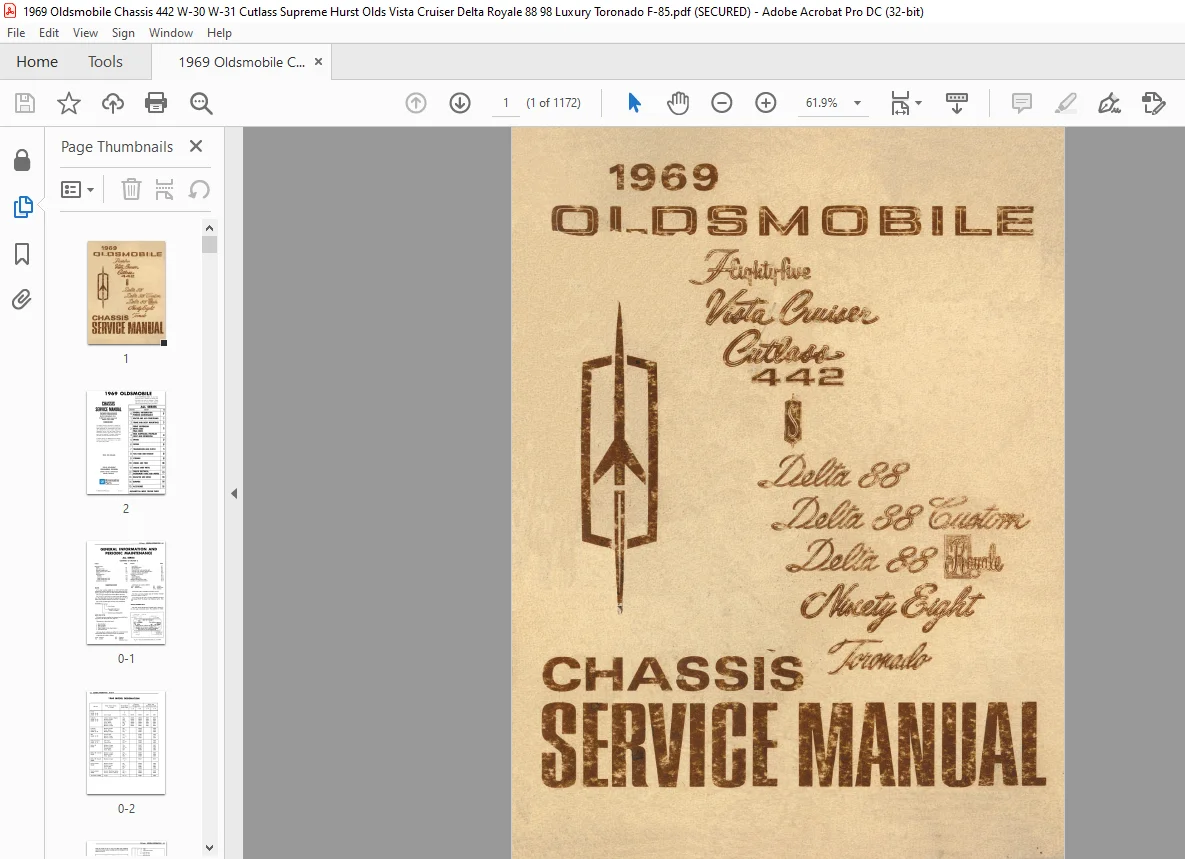

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
1969 OLDSMOBILE 85 Vista Cruiser Cutlass 442 Delta 88 Delta 38 Custom Delia 88 Royale 98 Toronado CHASSIS Service Manual – PDF DOWNLOAD
0 GENERAL INFORMATION
PERIODI( MAINTENANCE
1 HEATER AND AIR CONDITIONER
2 FRAME AND BODY MOUNTINGS
FRONT SUSPENSION
3 DRIVE AXLES
FINAL DRIVE
4 REAR SUSPENSION, PROPELLER
SHAFT AND DIFFERENTIAL
5 BRAKES
6 ENGINE
7 TRANSMISSION AND CLUTCH
8 FUEL T ANK AND EXHAUST
9 STEERING
10 WHEELS AND TIRES
11 CHASSIS SHEET METAL
12 CHASSIS ELECTRICAL,
INSTRUMENT PANEL AND WIPERS
13 RADIATOR AND GRILLE
14 BUMPERS
15 ACCESSORIES
ALPHABETICAL INDEX YELLOW PAGES
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
S.V
