NEW HOLLAND VN 2080 Service Repair Manual (87613091A) NEW HOLLAND VN 2080 – PDF Download

Description

NEW HOLLAND VN 2080 Service Repair Manual (87613091A) NEW HOLLAND VN 2080

File Details:

NEW HOLLAND VN 2080 Service Repair Manual (87613091A) NEW HOLLAND VN 2080
Size: 23.8 MB
Format: PDF
Language: English
Number of Page: 400 Pages
Brand: New Holland
Type of document: Service Manual
Model: NEW HOLLAND VN 2080

NEW HOLLAND VN 2080 SERVICE REPAIR MANUAL (87613091A) NEW HOLLAND VN 2080 – PDF DOWNLOAD:

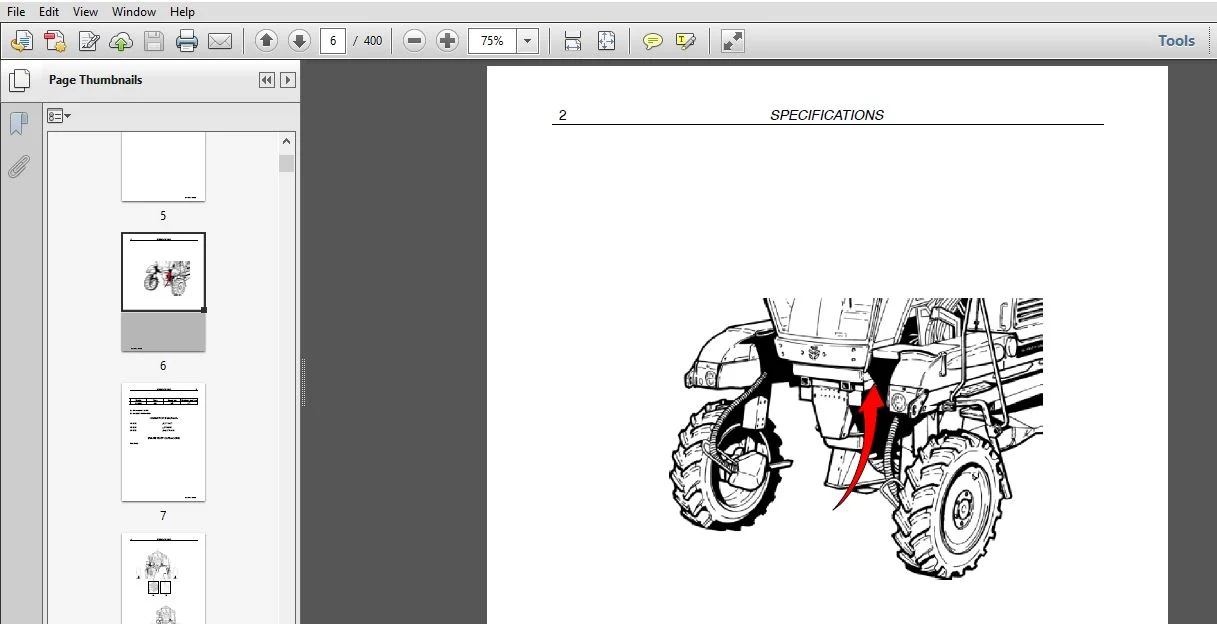

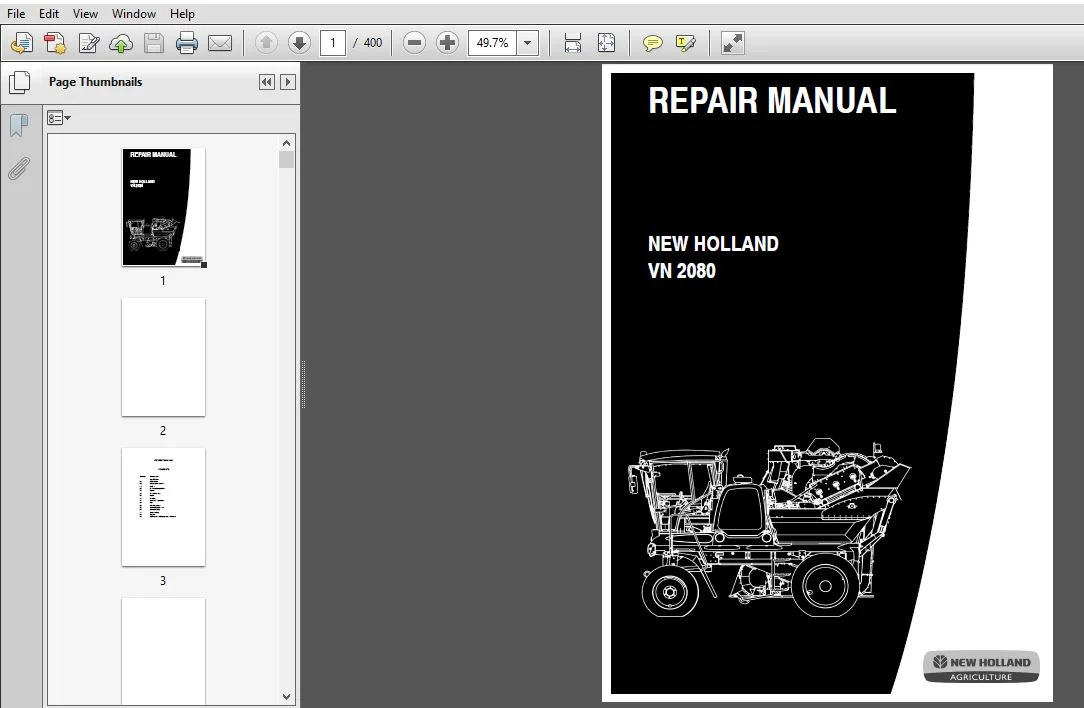

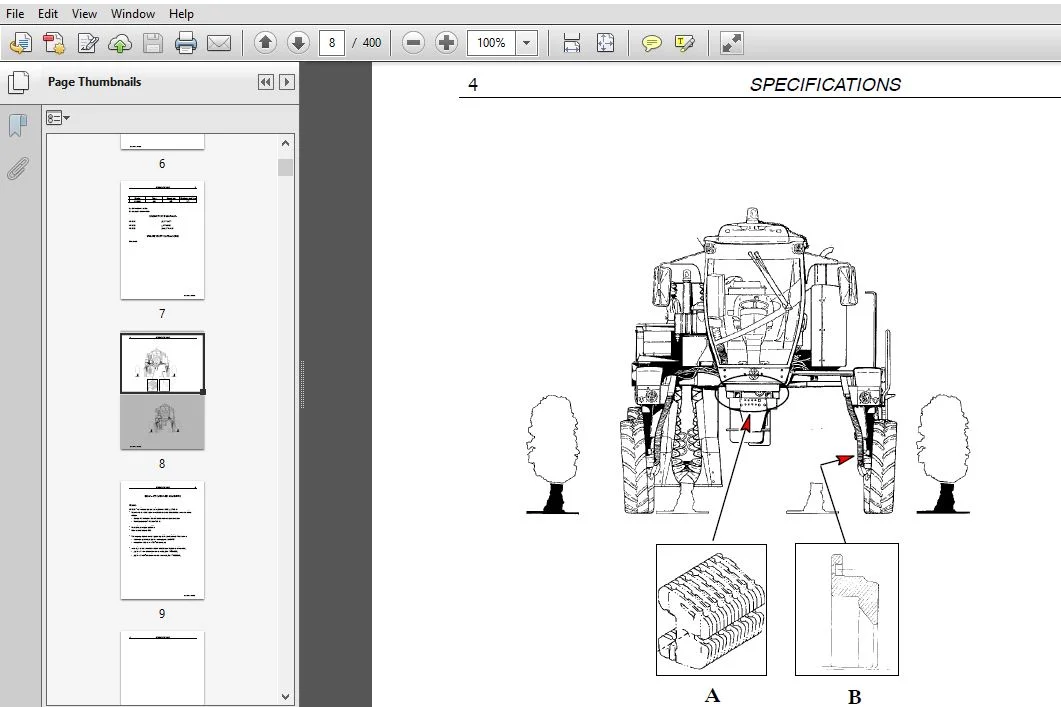

Image Preview:

Description:

NEW HOLLAND VN 2080 Service Repair Manual (87613091A) NEW HOLLAND VN 2080

— No electric distributor is powered, thus:

• the distributor (211) allows the direct return of rear wheels towards the pump
• The machine is therefore on 4 drive wheels.
• The return of rear motors is directly through the reduced rear displacement to ensure front/rear antiskid.
• During steering, the front/rear antiskid is progressively released by the steering valves (208) and (209) operated by a potentiometer fastened on the front right leg.
• The distributor (215) is operated by HP enabling the oil exchange valve (216).
• Front motor torque reduction is obtained by the electric supply of the electric distributor (50):
  — to this purpose: press the left pedal, then the push button on the steering column.
  — In this case:
  1) the valve (209) fully opens so that the right and left serial lines can communicate.
  2) The valve (208) opens depending on the relevant adjustment, to get the required torque reduction
  in the two front motors.
• The right/left capacity division is obtained by the electric supply of the electric distributor (49).
  — To this purpose: press the left pedal.
  — In this case:
  1) the distributor (210) operates the divider 50/50 to get the right/left antiskid.
  2) It prevents the supply to the steering valves (208) and (209) to force the antiskid independently
  of the steering angle.
• In adjusted position, adjustment is automatically cut–out if the sender (85) gives a HP in forward
  range over 450 bar.
• The steering electric valves (151) and (153) open the serial lines through the distributors (208) and
  (209) when the machine steers (see inching control electronic board parameter).

Table Of Contents:

NEW HOLLAND VN 2080 Service Repair Manual (87613091A) NEW HOLLAND VN 2080

00 Maintenance
05 Preparing the machine
10 Engine
29 Hydrostatic transmission
33 Brakes
35 Hydraulic system
39 Frame
41 Steering
44 Front axle and wheels
50 Cab
55 Electrical system
58 Harvesting equipment
60 Product feeding
74 Crop cleaning
80 Hopper
88 Equipment, multipurpose and accessories

Please Note:

• This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
• The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
• Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer
