New Holland Fiat Trattori 570, 570DT 670, 670DT Service Repair Manual (06910055) New Holland Fiat – PDF Download

Description

New Holland Fiat Trattori 570, 570DT 670, 670DT Service Repair Manual (06910055) New Holland Fiat

File Details:

New Holland Fiat Trattori 570, 670 Workshop Manual_06910055
Size: 5.02 MB
Format: PDF
Language: English
Number of Pages: 54 pages
Brand: New Holland
Type of document: Workshop Manual
Model: Fiat Trattori 570, 670
Part No: 06910055

NEW HOLLAND FIAT TRATTORI 570, 570DT 670, 670DT SERVICE REPAIR MANUAL (06910055) NEW HOLLAND FIAT – PDF DOWNLOAD:

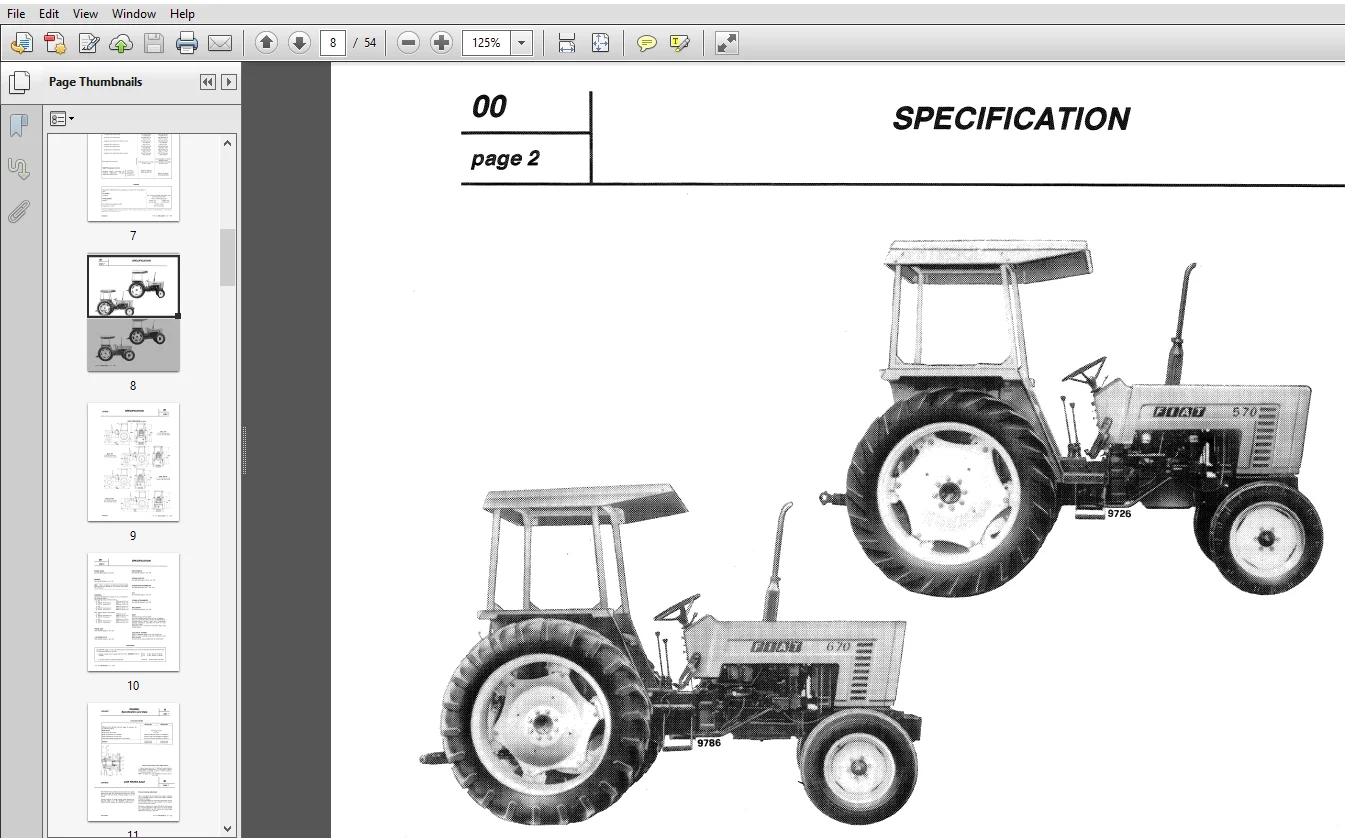

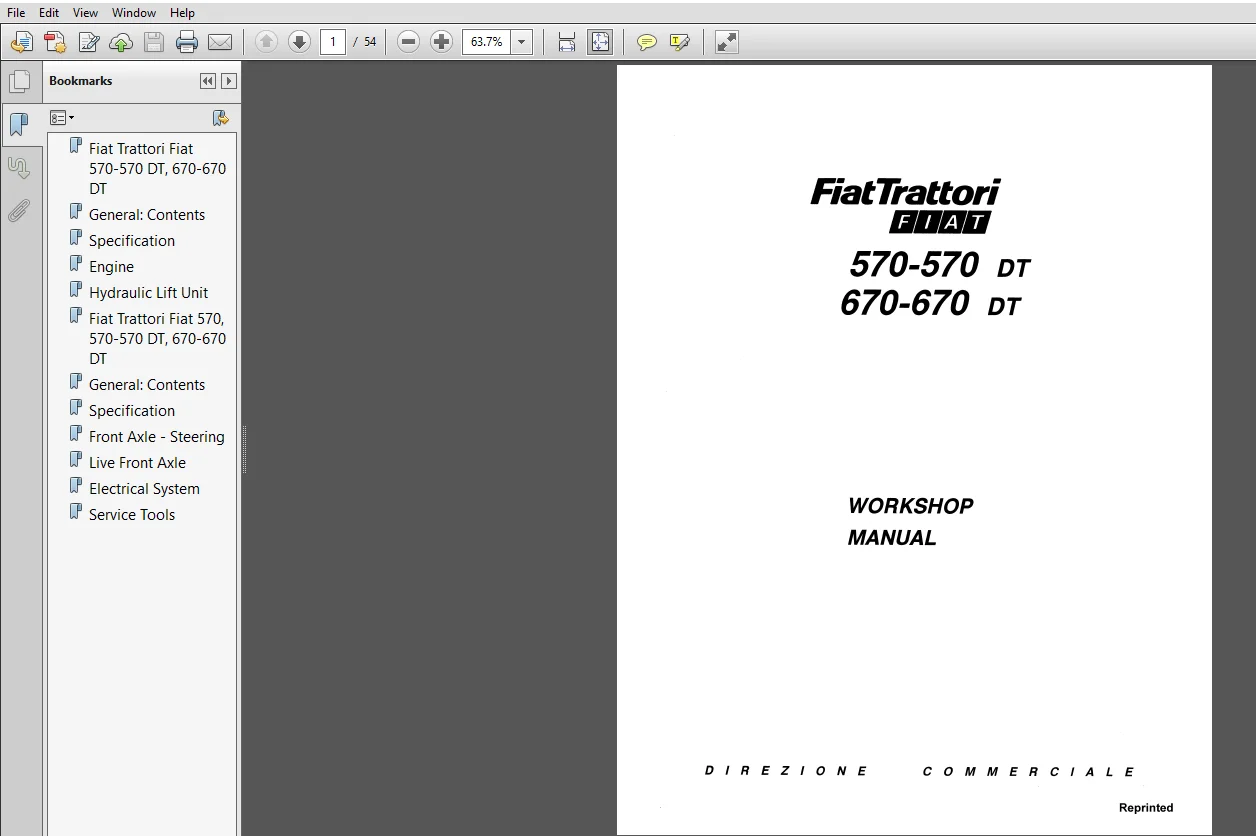

Image Preview:

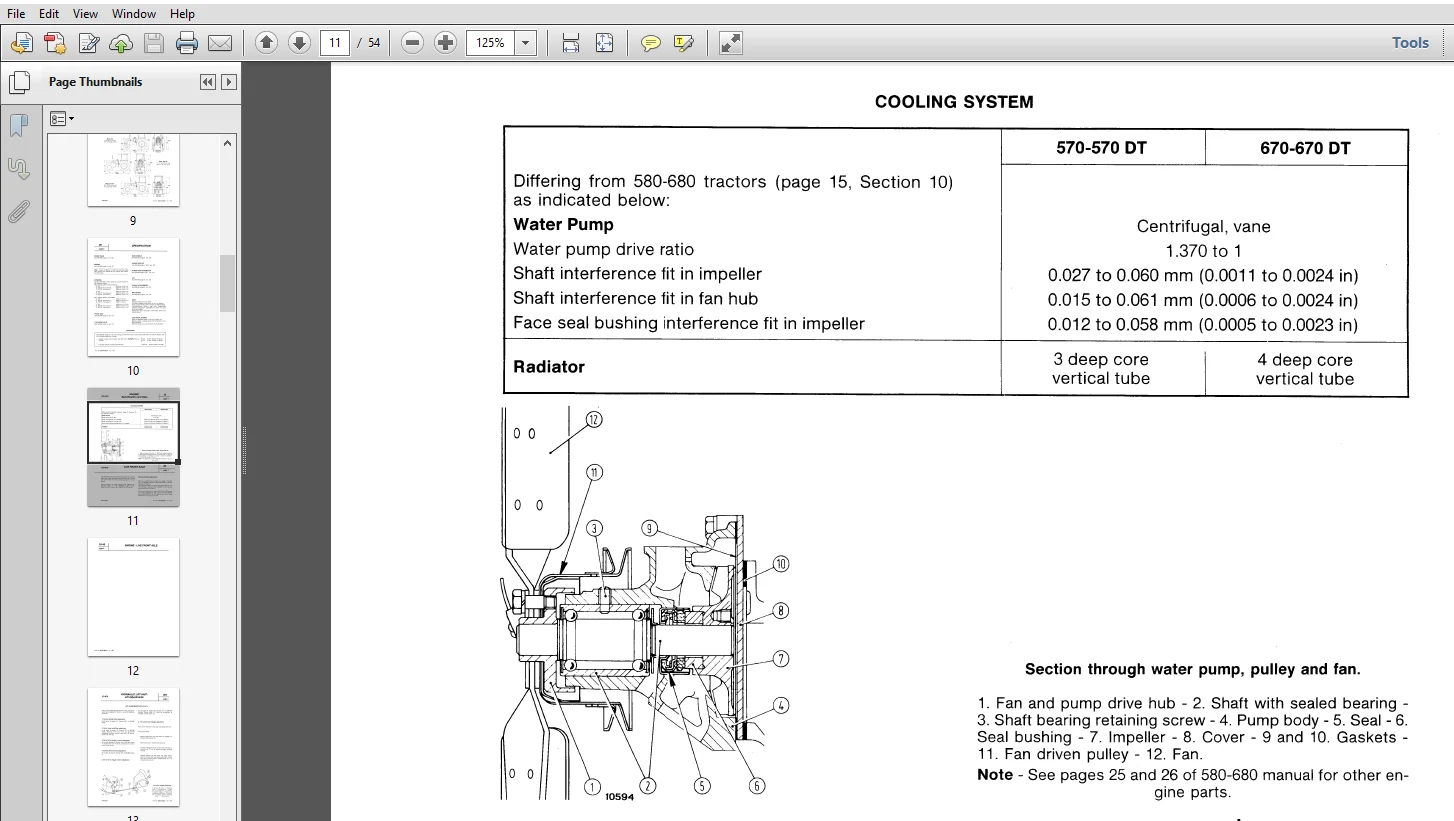

Sample Page from The Manual:

New Holland Fiat Trattori 570, 570DT 670, 670DT Service Repair Manual (06910055) New Holland Fiat

Place the differential bearing cups on shaft (P) of tool 293400/1 wilh attached cones (R) and position the assembly inside the drive head housing. tightening the differential cap screws (Cut) to 113 Nm (11.5 kgm or 83 ft lb). Screw in or back off cones (R) so as to align 100 mm bar (L) towards the bearing cone [11) and eliminate any end play between cones (R) and differential bearing cups. Act on micrometer gauge (N) to bring bar (L) in con- tact with cone (11) and read dimension [Hs). Determine correct nominal dimension (Hr) from ring gear centerline to back of pinion as follows:

Table of Contents:

New Holland Fiat Trattori 570, 570DT 670, 670DT Service Repair Manual (06910055) New Holland Fiat

Fiat Trattori Fiat 570-570 DT, 670-670 DT .......... 3
General: Contents .................................. 5
Specification ...................................... 7
Engine .............................................11
Hydraulic Lift Unit
................................13
Fiat Trattori Fiat 570, 570-570 DT, 670-670 DT
....19
General: Contents
.................................21
Specification
.....................................23
Front Axle - Steering
 .............................33
Live Front Axle
....................................37
Electrical System
..................................49
Service Tools
......................................51

Please Note:

• This is the SAME manual used by the dealers to troubleshoot any faults in your vehicle. This can be yours in 2 minutes after the payment is made.
• Contact us at [email protected] should you have any queries before your purchase or that you need any other service / repair / parts operators manual.
