ZF Hyster ERGOPOWER (WG211) Transmission Operation & Diagnostics Manual PDF
$15.95
ZF Hyster ERGOPOWER (WG211) Transmission Operation & Diagnostics Manual – PDF DOWNLOAD
PART NO. 4146227
Description
ZF Hyster ERGOPOWER (WG211) Transmission Operation & Diagnostics Manual – PDF DOWNLOAD
FILE DETAILS:
ZF Hyster ERGOPOWER (WG211) Transmission Operation & Diagnostics Manual – PDF DOWNLOAD
Language : English
Pages : 42
Downloadable : Yes
File Type : PDF

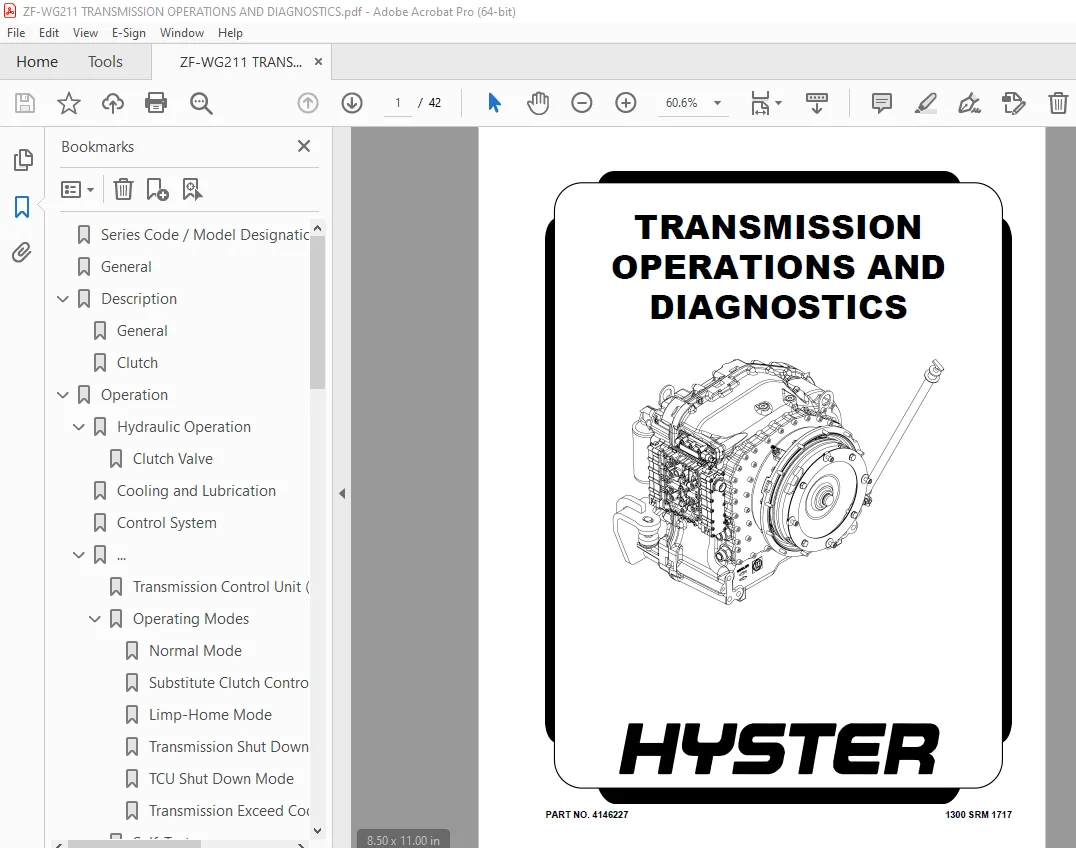

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
ZF Hyster ERGOPOWER (WG211) Transmission Operation & Diagnostics Manual – PDF DOWNLOAD
PART NO. 4146227
General 1
Description 2
General 2
Clutch 6
Operation 6
Hydraulic Operation 6
Clutch Valve 8
Cooling and Lubrication 9
Control System 10
Transmission Control Unit (TCU) 10
Operating Modes 10
Normal Mode 10
Substitute Clutch Control 10
Limp-Home Mode 10
Transmission Shut Down Mode 11
TCU Shut Down Mode 11
Transmission Exceed Codes 11
Self-Test 11
Fault Codes 11
Description 11
Fault Log Mode 12
Access 12
Exit 12
Clear 12
Fault Log Memory 12
Fault Rectification 13
Hydraulic Control Valve 13
Hydraulic Control Valve Repair 15
Solenoid Replacement 15
Pressure Check 15
Pressure Specifications 16
Speed and Temperature Sensors 16
Speed Sensors 16
Test 17
Temperature Sensors 17
Shift Lever 17
Pedal MONOTROL® 18
ZF Transmission Test and Calibration 18
Transmission Test and Calibration 18
Precautions 18
Stall Test 18
Description 18
Stall Test Procedure 18
Inch Pedal Calibration 19
Description 19
Calibration 19
Brake and Inch Pedal Adjustment 19
Inch Sensor Adjustment 19
Inch Pedal Calibration 20
Calibration Procedure Using the Calibration Switch 20
Calibration Procedure Using the Testman software 21
Inch Pedal Calibration Fault Codes 21
Clutch Calibration 22
Description 22
Clutch Calibration Procedure 22
Manual Clutch Calibration Procedure 23
Testman Clutch Calibration Procedure 24
Testman 24
Description 24
Connection 24
Truck Configuration 25
Configuration 25
Limitations 25
Capacities and Specifications 26
Electrical Specifications 26
Transmission Control Unit Diagram 27
ZF Transmission Fault Codes 28
Transmission Exceed Codes 28
Testman Fault Codes 29
DESCRIPTION:
ZF Hyster ERGOPOWER (WG211) Transmission Operation & Diagnostics Manual – PDF DOWNLOAD
PART NO. 4146227
SAFETY PRECAUTIONS:
MAINTENANCE AND REPAIR:
• The Service Manuals are updated on a regular basis, but may not reflect recent design changes to the
product. Updated technical service information may be available from your local authorized Hyster®
dealer. Service Manuals provide general guidelines for maintenance and service and are intended for
use by trained and experienced technicians. Failure to properly maintain equipment or to follow instructions
contained in the Service Manual could result in damage to the products, personal injury,
property damage or death.
• When lifting parts or assemblies, make sure all slings, chains, or cables are correctly fastened, and
that the load being lifted is balanced. Make sure the crane, cables, and chains have the capacity to
support the weight of the load.
• Do not lift heavy parts by hand, use a lifting mechanism.
• Wear safety glasses.
• DISCONNECT THE BATTERY CONNECTOR before doing any maintenance or repair on electric lift
trucks. Disconnect the battery ground cable on internal combustion lift trucks.
• Always use correct blocks to prevent the unit from rolling or falling. See HOW TO PUT THE LIFT
TRUCK ON BLOCKS in the Operating Manual or the Periodic Maintenance section.
• Keep the unit clean and the working area clean and orderly.
• Use the correct tools for the job.
• Keep the tools clean and in good condition.
• Always use HYSTER APPROVED parts when making repairs. Replacement parts must meet or exceed
the specifications of the original equipment manufacturer.
• Make sure all nuts, bolts, snap rings, and other fastening devices are removed before using force to
remove parts.
• Always fasten a DO NOT OPERATE tag to the controls of the unit when making repairs, or if the unit
needs repairs.
• Be sure to follow the WARNING and CAUTION notes in the instructions.
• Gasoline, Liquid Petroleum Gas (LPG), Compressed Natural Gas (CNG), and Diesel fuel are flammable.
Be sure to follow the necessary safety precautions when handling these fuels and when working
on these fuel systems.
• Batteries generate flammable gas when they are being charged. Keep fire and sparks away from the
area. Make sure the area is well ventilated.
S.V 2/04/2025
