Zetor Tractor Proxima Plus 90 Proxima Plus 100 Proxima Plus 110 Operator’s Manual – PDF DOWNLOAD
FILE DETAILS:
Zetor Tractor Proxima Plus 90 Proxima Plus 100 Proxima Plus 110 Operator’s Manual – PDF DOWNLOAD
Language : English
Pages : 254
Downloadable : Yes
File Type : PDF
Size: 4.33 MB
DESCRIPTION:
Zetor Tractor Proxima Plus 90 Proxima Plus 100 Proxima Plus 110 Operator’s Manual – PDF DOWNLOAD
ZETOR:
- This present operation manual provides information with operation and maintenance of your new tractor the
PROXIMA PLUS. - Despite the fact that many of you have rich experience with operation of other types of tractors, please read this
manual carefully to acquaint yourself with its contents as thoroughly as possible. - In the manual, you can find a lot of information how to utilise the best your tractor with various types of work.
- When following the given principles of operation and maintenance of the tractor and safety of driving, your tractor
will become your reliable partner for many years.
GENERAL SAFETY REGULATIONS
1. The tractor may only be operated by a trained worker having a valid qualification to drive the tractor and who is acquainted
thoroughly with the operational and safety principles.
2. In addition to the warnings relating to safety and given in the operational manual, it is necessary to respect all the generally applicable
safety and traffic regulations of the country in which the tractor is used.
PROPER CLOTHING:
3. Do not wear loose clothing and free flying long hair.
4. When executing any work, use suitable (prescribed) personal protective means (working shoes, gloves, etc.)
STARTING THE ENGINE:
5. Starting of the engine by driving from slopes is not allowed.
6. Make the tractor moving for the purpose of starting the engine using other tractor or another vehicle is permitted only with use of a tow bar.
7.Start the engine only from the driver’s seat with the shifting level in neutral position and clutch pedal depressed. Danger of death when starting the engine using short-circuited terminals of the starter!
8. The key in the ignition box shall be in position “I”.
9. When warming up the engine using an electric heater, first plug in the power supply cord to the heater and then to the mains
socket. When the engine is warm, first disconnect the supply cord from the mains socket.
DRIVING:
10. Hoses of hydrostatic steering, brakes and fuel system shall be checked regularly and in case that some traces of damage are observed, replace the damaged components. The traces of damage include, for example, cracks, loose pre-stressing of hose connections (this can be verified by easy pulling out the hose from the coupling) and mechanical damages of hoses. The hoses with specified life span shall be replaced immediately after termination of the specified period.
11. When driving with trailers and implements on roads the brake pedals shall be connected by a latch.
12. Brakes and steering shall be always in perfect condition.
13. Driving downhill without shifted any gear is forbidden!
14. Special attention shall be paid to driving a tractor on slopes, muddy, sandy, icy and uneven surfaces.
15. Observe the permitted angle of the gradient accessibility, i.e. max. 12°.
16. Respect the total permitted weight of the vehicle train, given on the type plate of the tractor or mudguard of the rear wheel.
17. When driving through road bends, do not use the differential lock.
18. Getting on and off the moving tractor is forbidden.

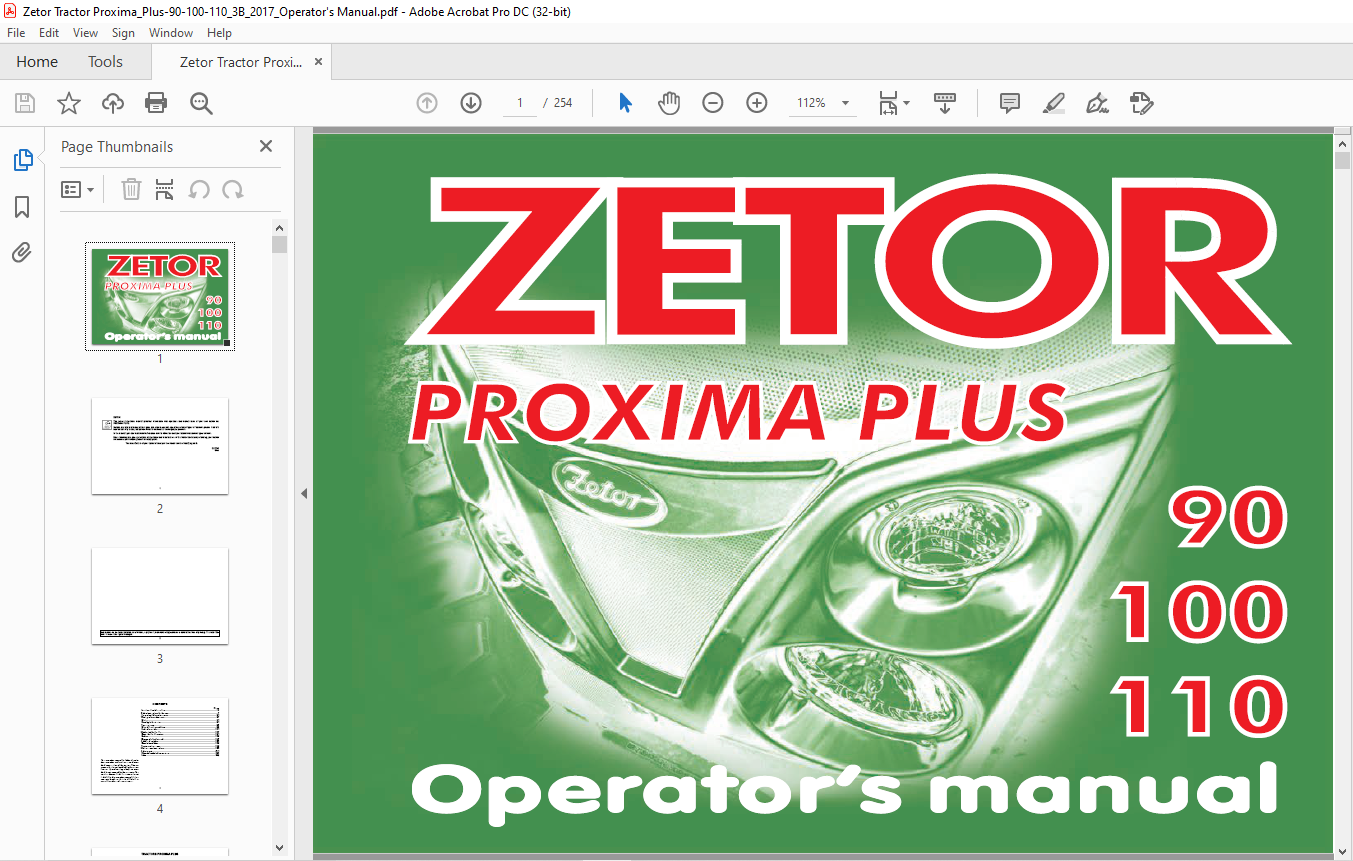

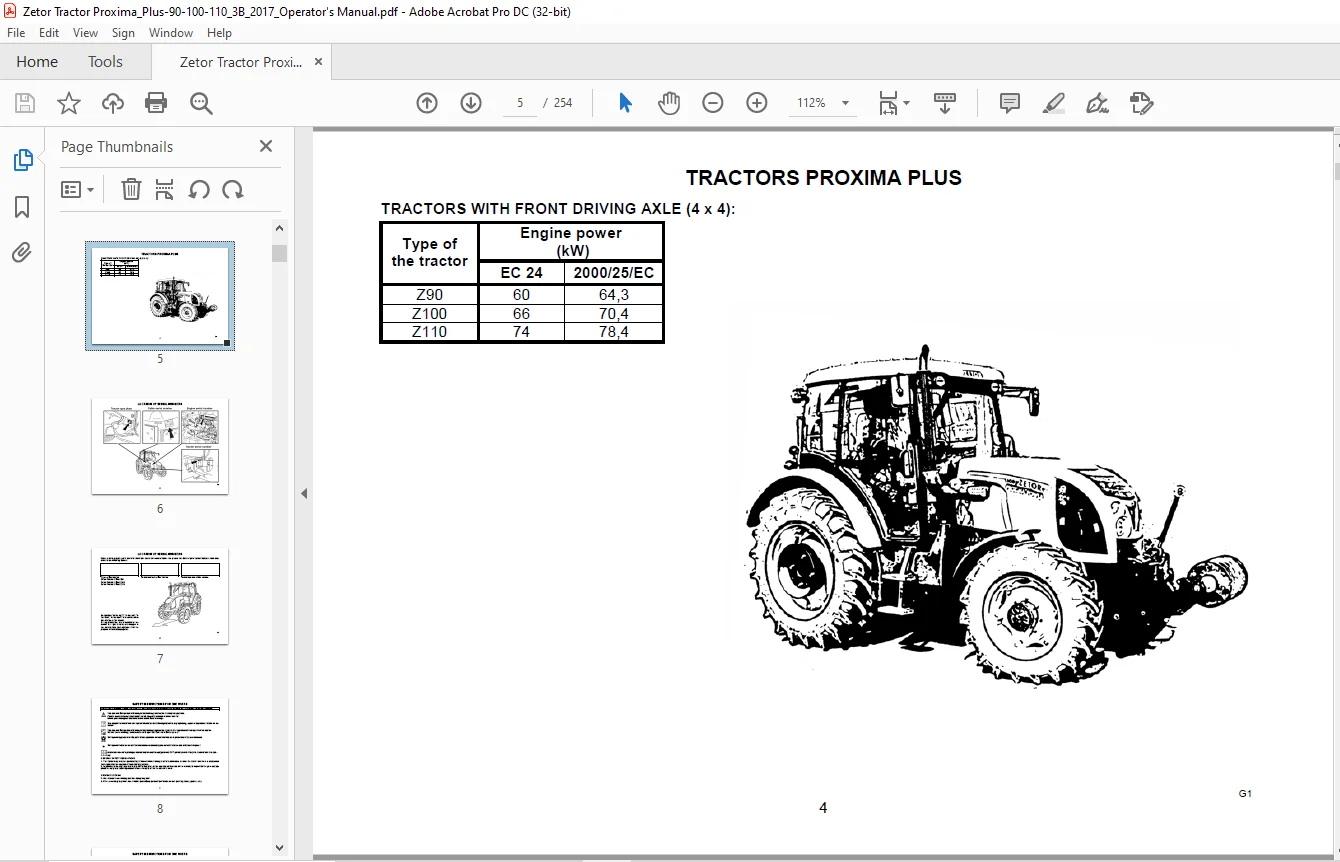

IMAGES PREVIEW OF THE MANUAL:

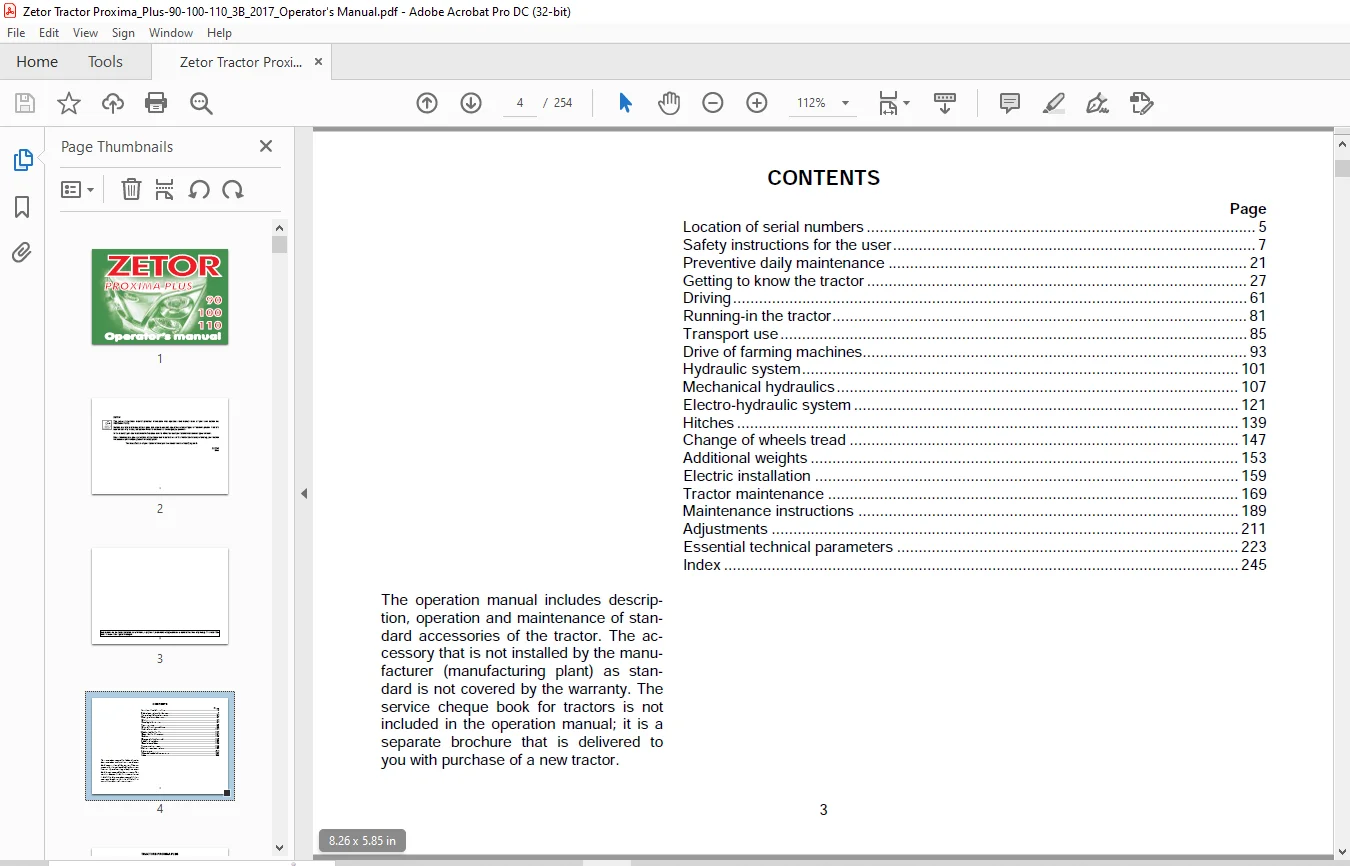

TABLE OF CONTENTS:
Zetor Tractor Proxima Plus 90 Proxima Plus 100 Proxima Plus 110 Operator’s Manual – PDF DOWNLOAD
Location of serial numbers 5
Safety instructions for the user 7
Preventive daily maintenance 21
Getting to know the tractor 27
Driving 61
Running-in the tractor 81
Transport use 85
Drive of farming machines 93
Hydraulic system 101
Mechanical hydraulics 107
Electro-hydraulic system 121
Hitches 139
Change of wheels tread 147
Additional weights 153
Electric installation 159
Tractor maintenance 169
Maintenance instructions 189
Adjustments 211
Essential technical parameters 223
Index 245
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the SAME exact manual used by your dealers to fix your vehicle.
- The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
- Any queries / doubts regarding your purchase, please feel free to contact [email protected]
S.V
