Zetor Tractor Forterra 100 Forterra 110 Forterra 120 Forterra 130 Forterra 140 Operator’s Manual – PDF DOWNLOAD
FILE DETAILS:
Zetor Tractor Forterra 100 Forterra 110 Forterra 120 Forterra 130 Forterra 140 Operator’s Manual – PDF DOWNLOAD
Language : English
Pages : 211
Downloadable : Yes
File Type : PDF
Size: 3.66 MB
DESCRIPTION:
Zetor Tractor Forterra 100 Forterra 110 Forterra 120 Forterra 130 Forterra 140 Operator’s Manual – PDF DOWNLOAD
ZETOR:
- This Operator’s Manual for the Zetor Forterra tractors, which we are presenting to you will help you to become
familiar with the operation and maintenance of your new tractor. - Although many of you have rich experience with the operation of other tractors, please, read the information
contained in this Operator’s Manual very carefully. - In the Manual you will find a lot of new information and get a perfect overview of how to use the tractor with
maximum efficiency during various kinds of work. - If you observe the rules of tractor operation and maintenance and driving safety, your new tractor will become your
reliable and long-term friend.
SAFETY INSTRUCTIONS FOR USERS:
1. The tractor may only be operated by a trained person that has a valid driving licence and has been thoroughly acquainted with the operation and safety rules.
2. Besides the safety instructions mentioned in the Operator’s Manual you are obliged to respect generally valid safety and traffic rules of the country where the tractor is used.
PROPER CLOTHING
3. Do not wear loose clothing and free flying long hair.
4. During all work use suitable (prescribed) means of personal protection (working boots, gloves, goggles, etc.)
STARTING THE ENGINE
5. It is not permitted to start the engine by driving down a slope.
6. The tractor may be put in motion to start the engine with the use of another tractor or another vehicle with the use of a towing
bar only.
7. Only start the engine from the driver’s seat with the clutch pedal fully depressed.
Life hazard when starting by means of short-circuiting the starter terminals!
8. The key in the switch box must be in the “I” position.
9. When heating the engine with the * electric heater first plug the power supply cord to the heater and only then to the electric mains. After the end of heating first disconnect the heater from the electric mains.
10. Hoses of the hydrostatic steering, brakes and fuel system must be checked and replaced immediately if any signs of damage
are found. These are some examples of hose damage signs: – cracks on the hose surface, releasing of pre-tensioning of hose
connection (which can be verified by easy removal of the hose from the connection) and mechanical damage of the hose. Hoses
with indicated service life must be replaced immediately after the expiration of the service period.
11. If the tractor uses bio-fuel, the fuel system must be equipped with REP hoses (the fuel system is equipped with REP 6 hoses
by the manufacturer).
12. The brakes and steering must be in the perfect condition all the time.
13. During driving on roads with trailers and tools the brake pedals must be connected with a latch.
14. Driving downhill without an engaged gear is forbidden.
TABLE OF CONTENTS:
Zetor Tractor Forterra 100 Forterra 110 Forterra 120 Forterra 130 Forterra 140 Operator’s Manual – PDF DOWNLOAD
Location of serial numbers 7
Safety instructions for users 9
Preventive daily maintenance 13
Acquaintance with the tractor 19
Driving operation 51
Running in the tractor 69
Transportation 73
Drive of agricultural machines 79
Hydraulic system 89
Electro-hydraulic system 97
Hitches 109
Wheel track change 117
Ballast weights 125
Electric installation 133
Tractor maintenance 143
Maintenance instructions 157
Adjustment 181
Main technical parameters 189
Index 203

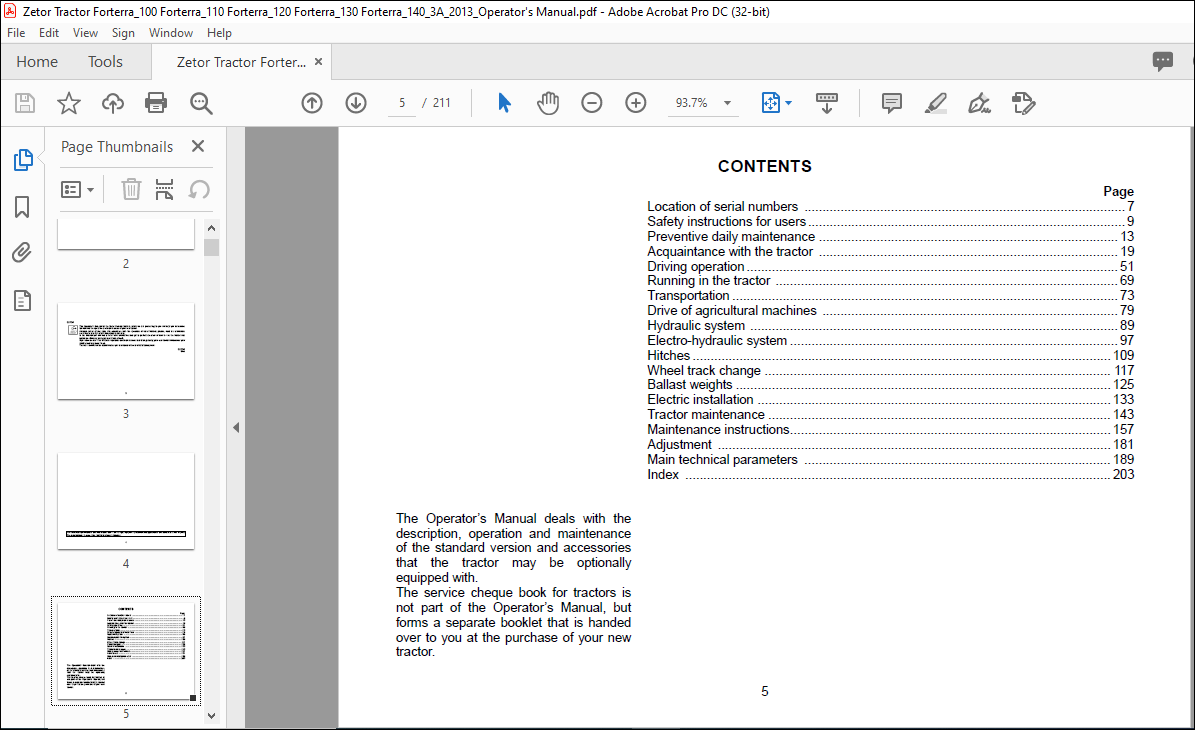

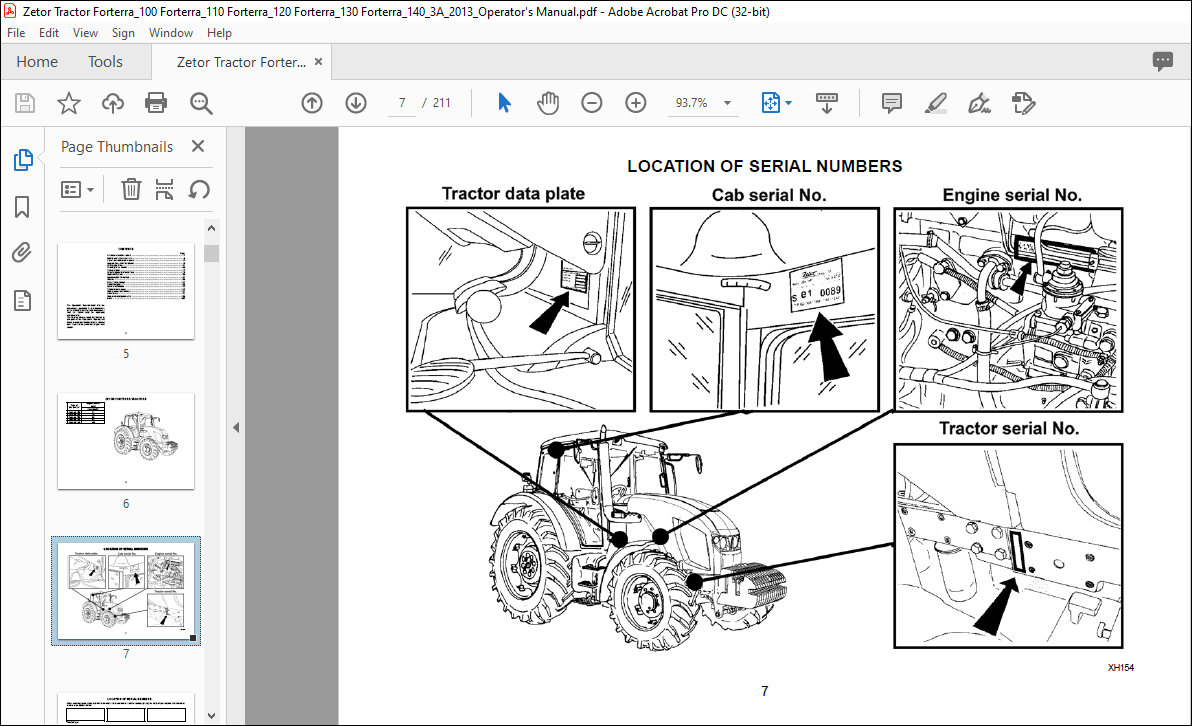

IMAGES PREVIEW OF THE MANUAL:
VIDEO PREVIEW OF THE MANUAL:
PLEASE NOTE:
- This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
- You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
- Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
